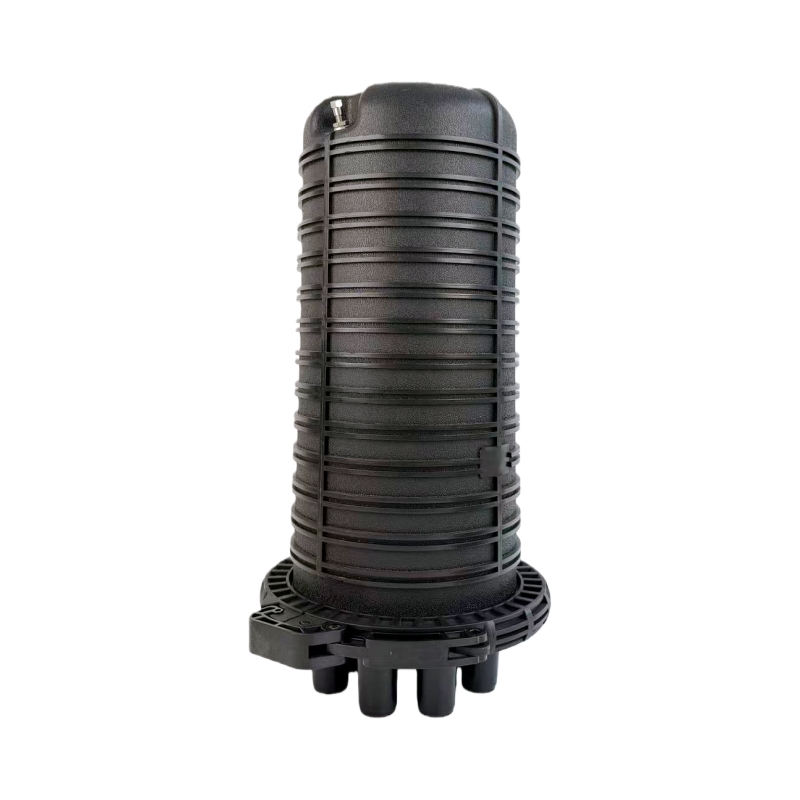

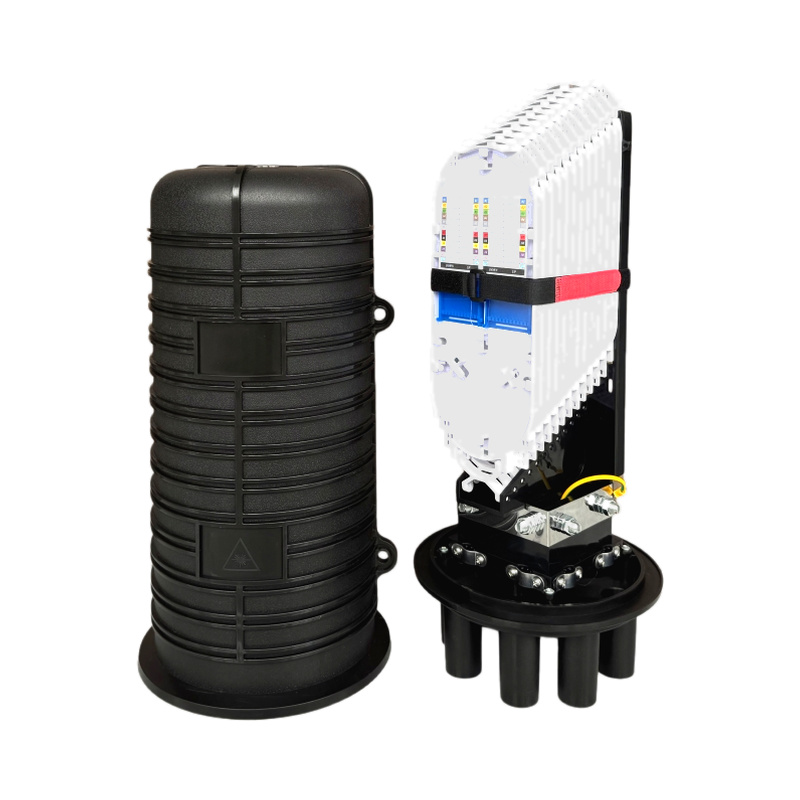

A dome-to-base clamp with an O-ring secures the enclosure while allowing access to the internal splice area.

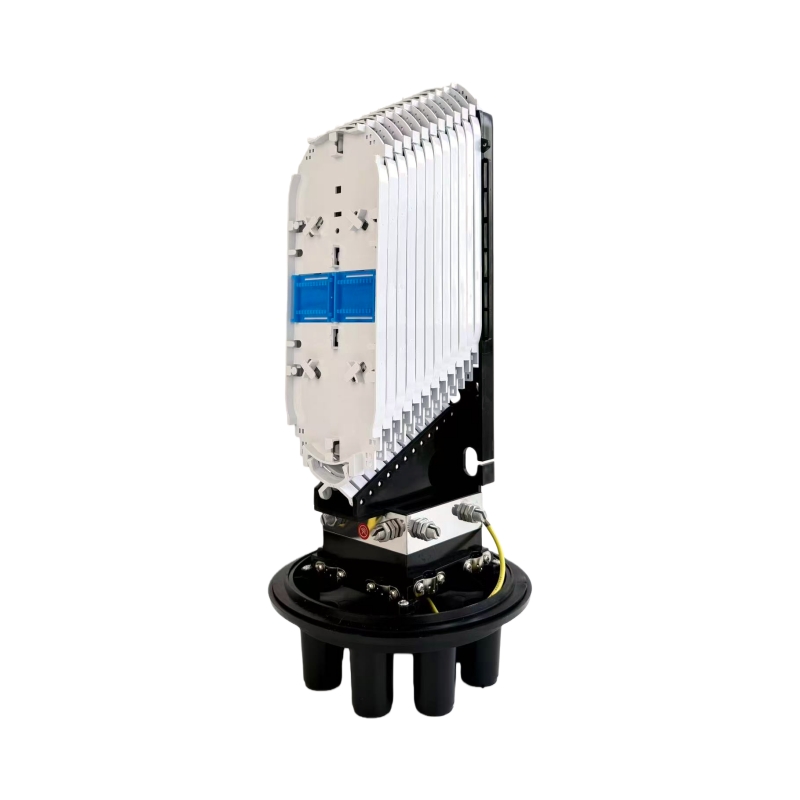

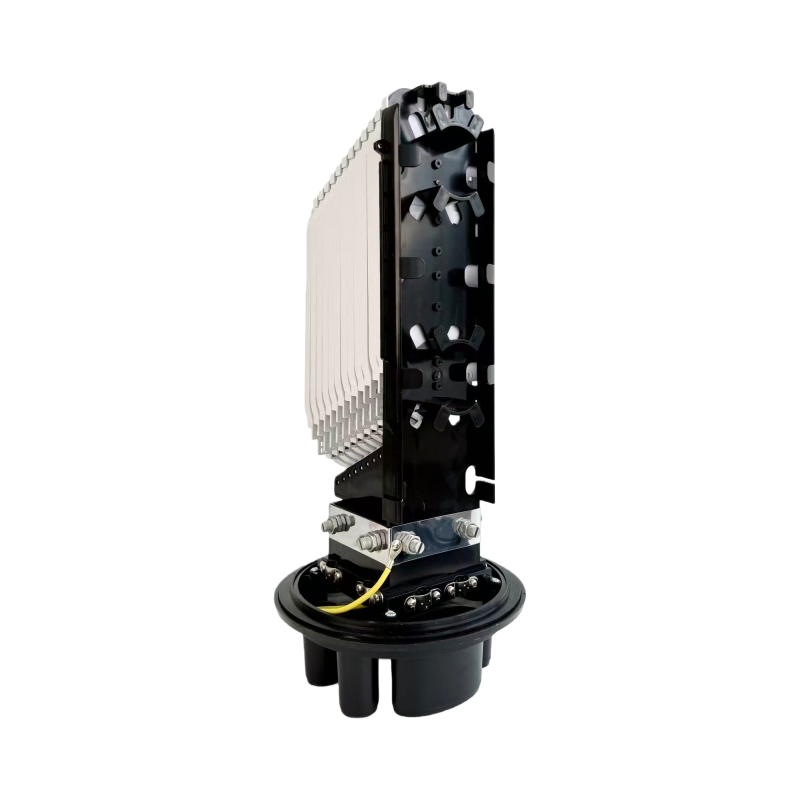

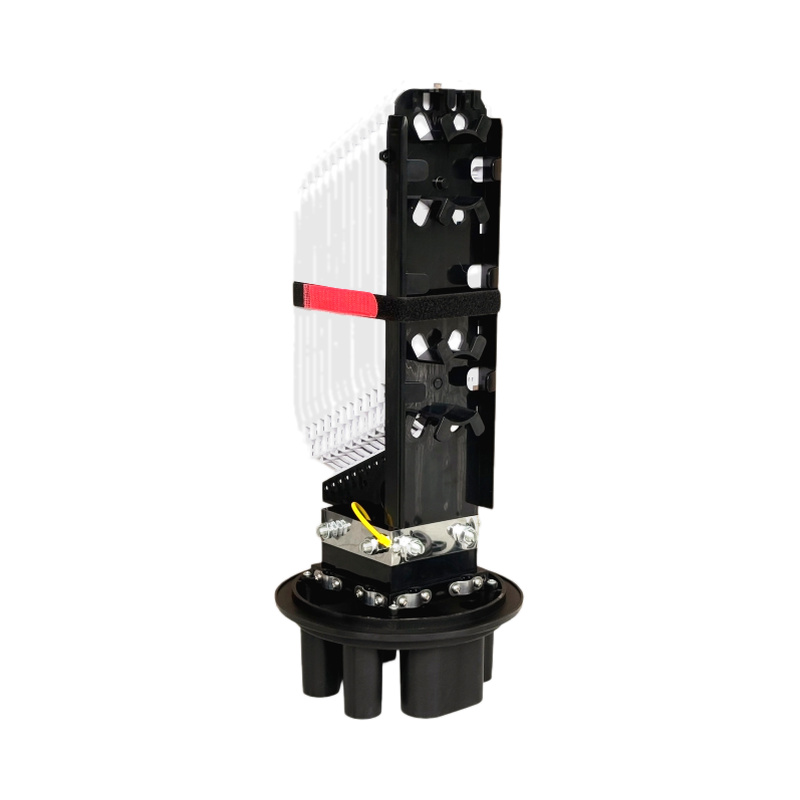

Twelve turn-style splice trays provide organized fiber routing and individual tray access during splicing and maintenance.
The splice trays maintain a minimum fiber bend radius of 40 mm.
The MPP enclosure and ABS splice trays provide a durable structure for outdoor deployment.
An inflation valve and grounding device are available as optional pre-installed components.
Wall-mounting and pole-mounting kits are available in SUS304 stainless steel.
Specification
Part No.
GJS-D2887C
Dimensions
Ø254 × 523 mm
Enclosure Material
MPP
Base Sealing Method
Dome-to-base clamp with O-ring

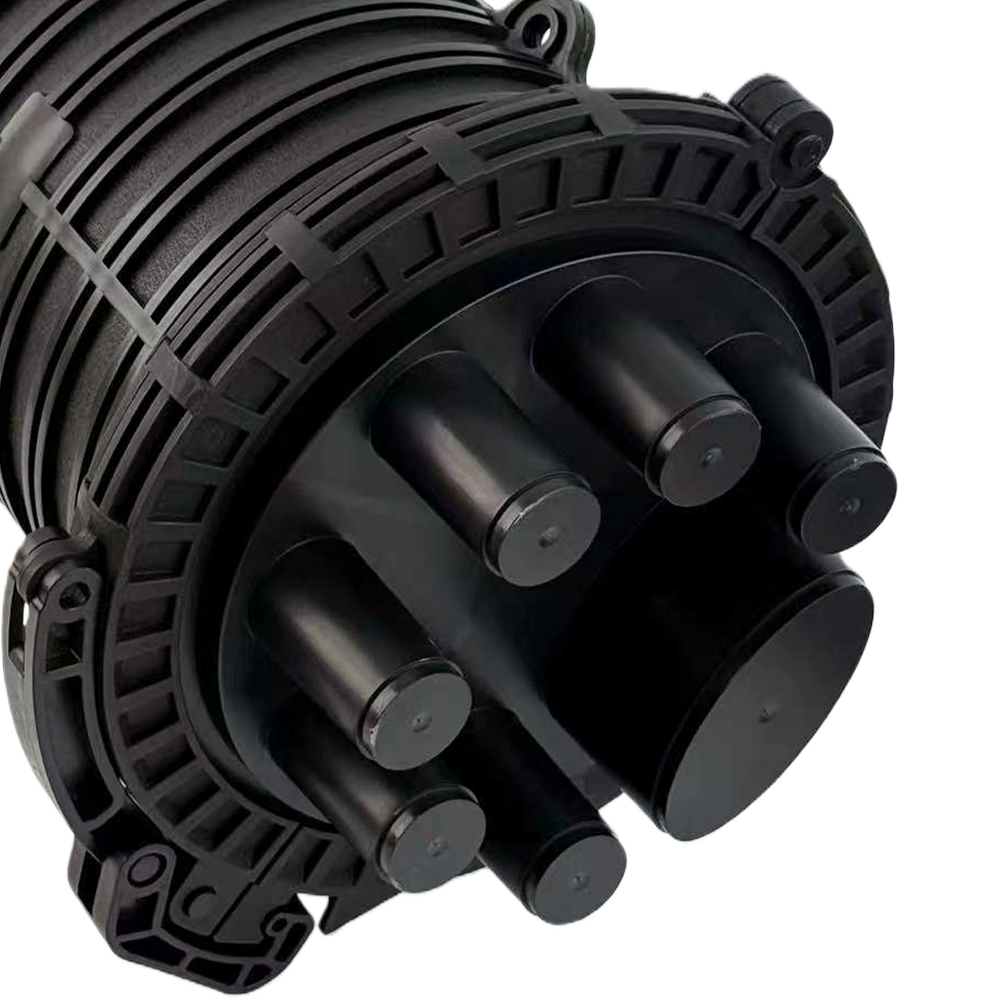

Cable Sealing Method
Heat-shrink Sealing

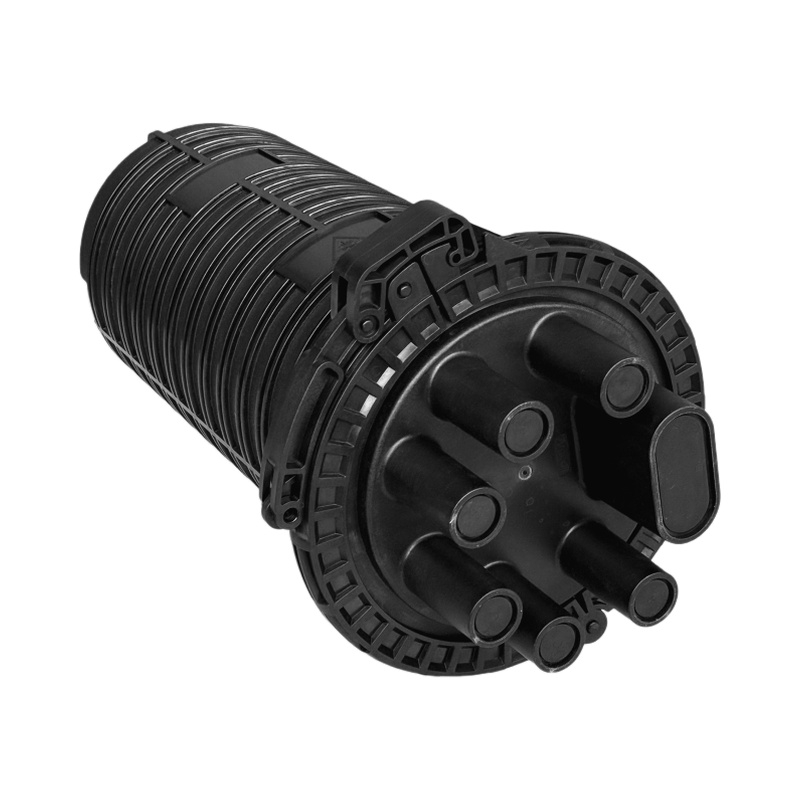

Cable Entry Ports
1 Oval Port (72 × 34.5mm)
Cable Exit Ports
6 Round Ports (Ø25mm)
Splicing Capacity
288 Fibers (Single-fiber)
Max Splice Tray
12 Trays
Splices per Tray
24 Fibers / Tray
Tray Material
ABS
Inflating Valve
Pre-installed (Optional)
Grounding Device
Pre-installed (Optional)
IP Rating
IP68
Mounting
Aerial / Wall / Pole / Direct-Buried
Packing List
1Carton Capacity
1 PCS/CTN
Carton G.W.
5.5 KG
Carton Size
28×28×55cm
FAQ
1. What is the maximum splicing capacity of the GJS-D2887C?
The GJS-D2887C supports up to 288 single-fiber splices. It accommodates up to 12 splice trays, with a capacity of 24 fibers per tray.
2. What types of fiber networks is this closure designed for?
The closure is designed for FTTx access networks, telecommunications networks, and outside plant fiber deployments. It can be used to protect fiber splices in straight-through or branched cable routes.
3. How are the cables and closure base sealed?
The cable ports use heat-shrink sealing. The dome is secured to the base with a clamp and an O-ring, providing an IP68-rated enclosure for outdoor fiber splice protection.
4. Where can the GJS-D2887C be installed?
The closure supports aerial, wall, pole, and direct-buried installation. An optional aerial hanging hook or suitable mounting hardware can be selected according to the installation environment.
5. Are grounding and pressure-testing components available?
Yes. A grounding device and an inflation valve are available as optional pre-installed components. Their inclusion should be confirmed when placing an order.
