Features & Benefits

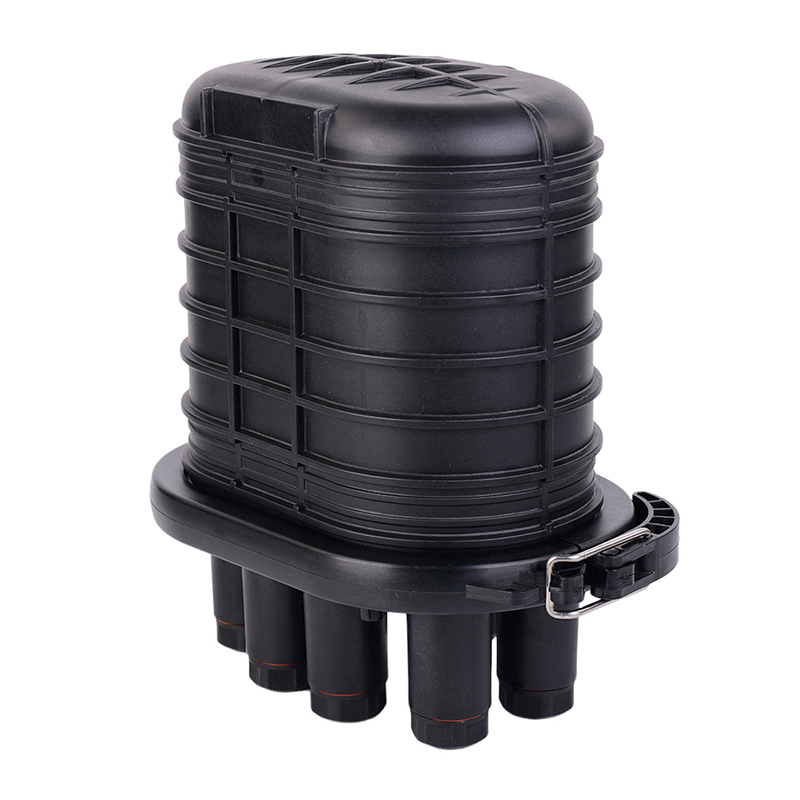

The GJS-M0025 is a high-reliability, single-ended dome closure designed for seamless fiber splicing and distribution in various network environments. Optimized for performance and ease of use, this 2-In 6-Out mechanical closure is the preferred choice for operators looking for a durable, reusable solution for branch and distribution applications.
Precision Mechanical Sealing System
The hallmark of the GJS-M0025 is its robust 100% mechanical sealing mechanism. By utilizing a high-grade silicone gasket and a rugged external clamp, it eliminates the need for heat guns, adhesive tapes, or messy resins. This "cold-seal" approach ensures a consistent, IP68-rated seal every time, regardless of the installer's experience level, and allows for rapid re-entry for maintenance without requiring replacement kits.

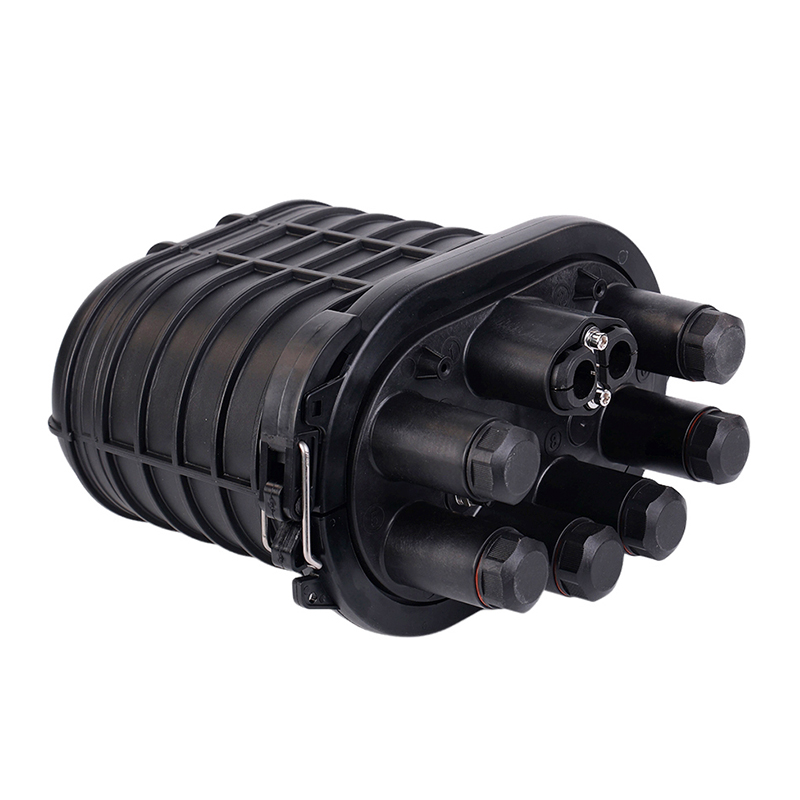

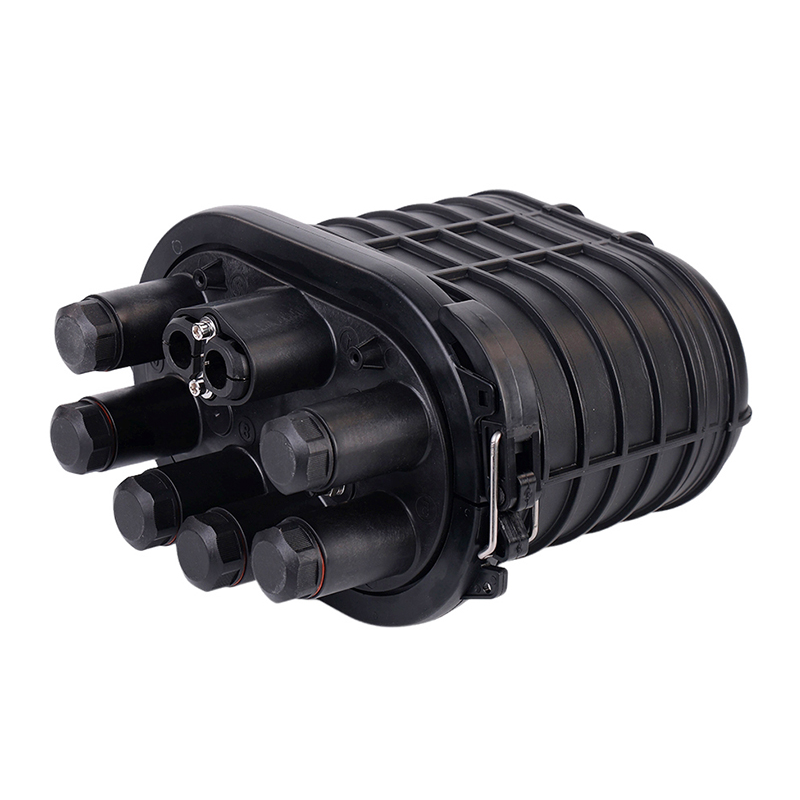

Optimized 8-Port Layout for Distribution
With a total of 8 ports—2 main ports and 6 smaller branch ports—the GJS-M0025 offers an ideal balance for mid-capacity fiber deployments. It allows for the main feeder cable to pass through (uncut) while providing 6 dedicated exits for drop cables or branch lines, making it perfect for FTTH (Fiber to the Home) and FTTB (Fiber to the Building) distribution points.

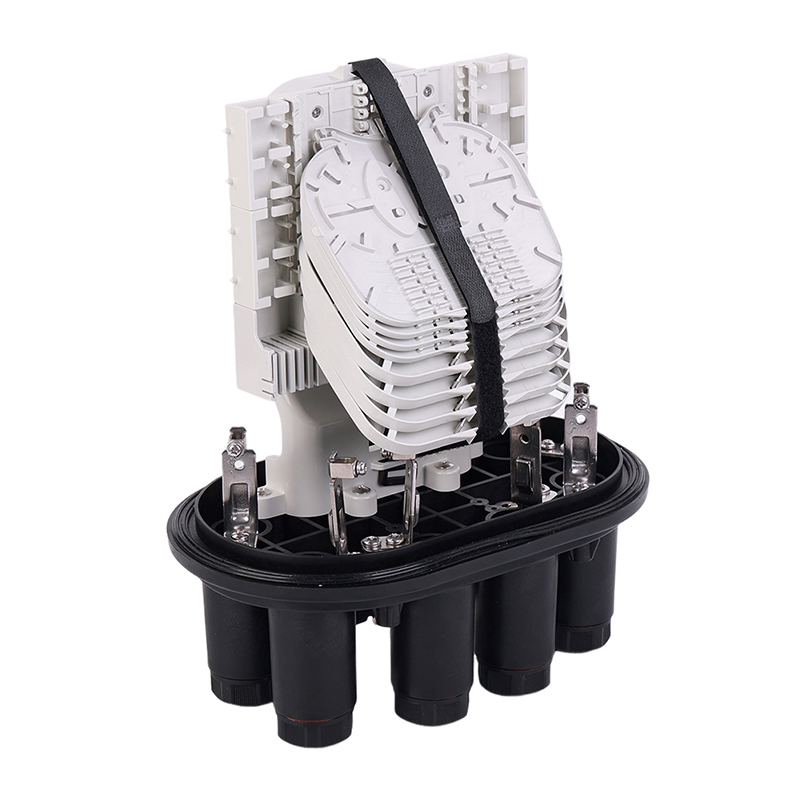

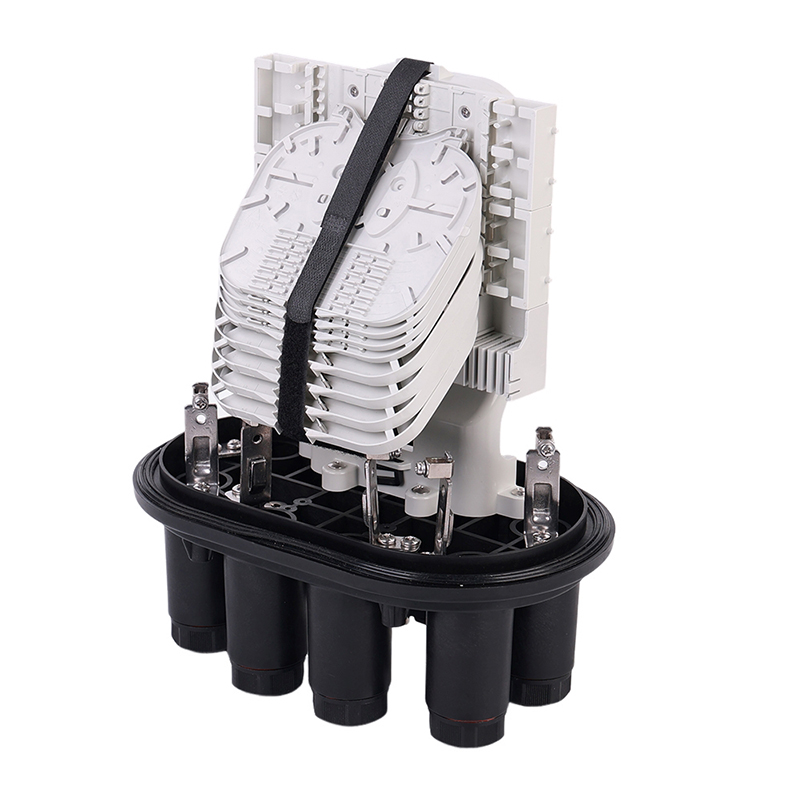

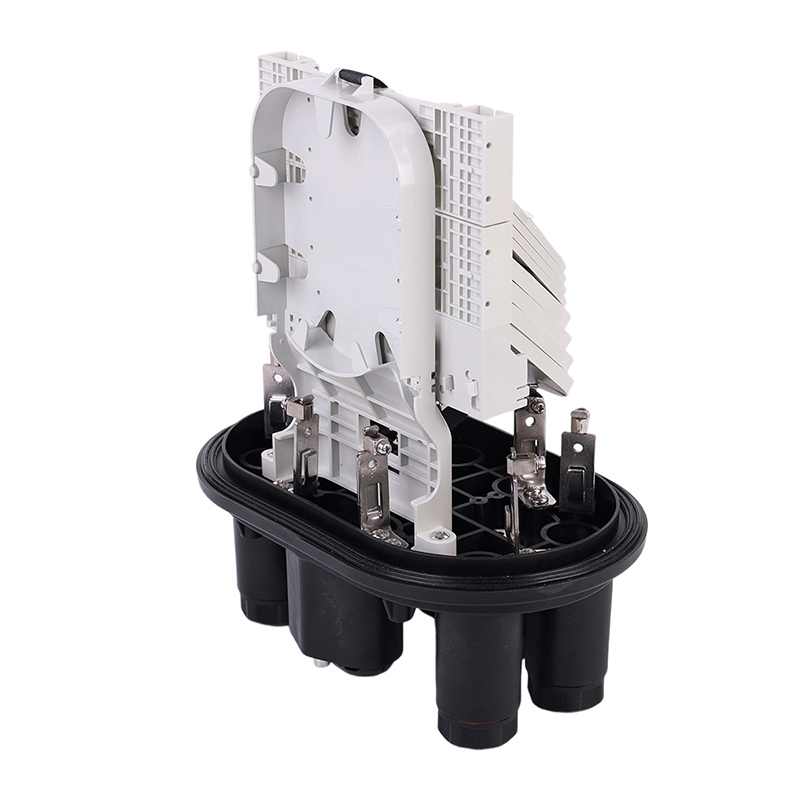

Space-Efficient Internal Management
Despite its compact dome profile, the GJS-M0025 features a sophisticated internal tray system. The trays are designed to ensure all fibers maintain a minimum bend radius of 30mm, preventing signal loss. The modular design allows for easy organization of both spliced fibers and expressed buffer tubes, ensuring a clean and manageable installation.
Key features of the GJS-M0025 closures:
8-Port Configuration: Includes 2 main ports and 6 branch ports to support diverse network architectures.
Total Mechanical Sealing: Features a screw-thread mechanical nut system for cable ports, ensuring airtight and watertight integrity.
Impact-Resistant Material: Made from premium UV-resistant PP (Polypropylene), offering excellent protection against impact, chemicals, and extreme weather.
IP68 Waterproof Integrity: Fully submersible and dust-proof, designed for reliable operation in manholes, underground, or aerial environments.
Hinged Tray System: Allows for easy access to any individual splice tray without disturbing the fiber connections in others.
Cost-Effective Maintenance: The reusable mechanical components significantly reduce long-term operational expenses (OPEX).
All-Environment Deployment: Suitable for pole-mounting, wall-mounting, aerial hanging, or direct burial.
