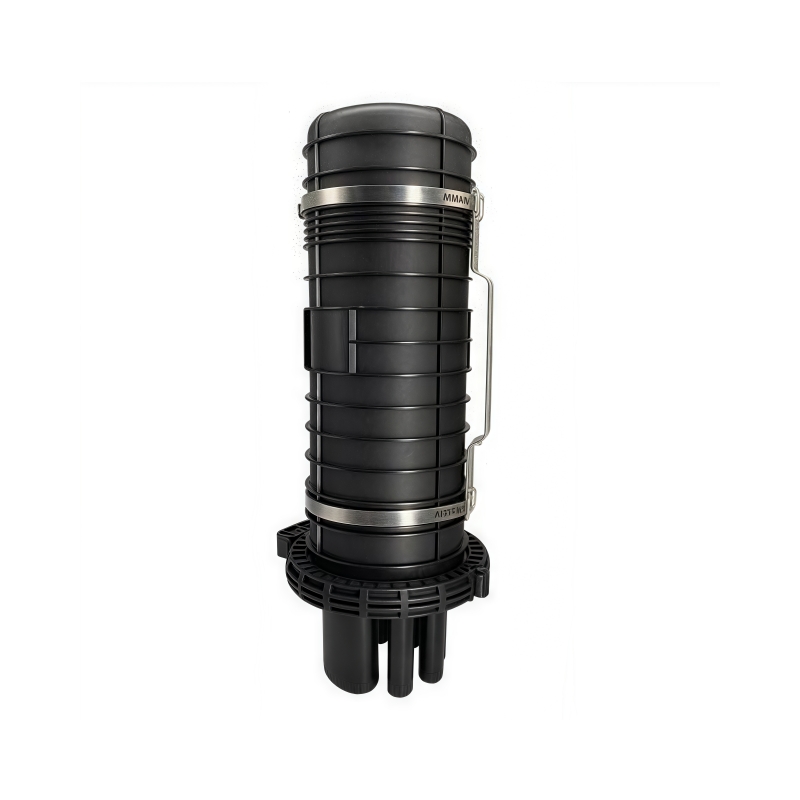

Secures fiber splices in harsh environments (aerial, underground, ducts) with IP68 waterproof protection.
Supports high-density networks requiring up to 144 single-core fiber terminations.
GJS-M1446C2
GJS-M1446C2 Datasheet.pdf
Customization Options
Grounding Device: Add a grounding device for enhanced electrical safety in installations requiring grounding protection.
Inflating Valve: Include an inflating valve for pressure testing to verify sealing integrity in demanding environments.
Mounting Kits: Select from aerial, wall, or pole-mount kits to customize installation for specific deployment needs.
Features & Benifits
Robust Construction: Made from high-quality engineering plastic for long-term durability and resistance to harsh conditions.

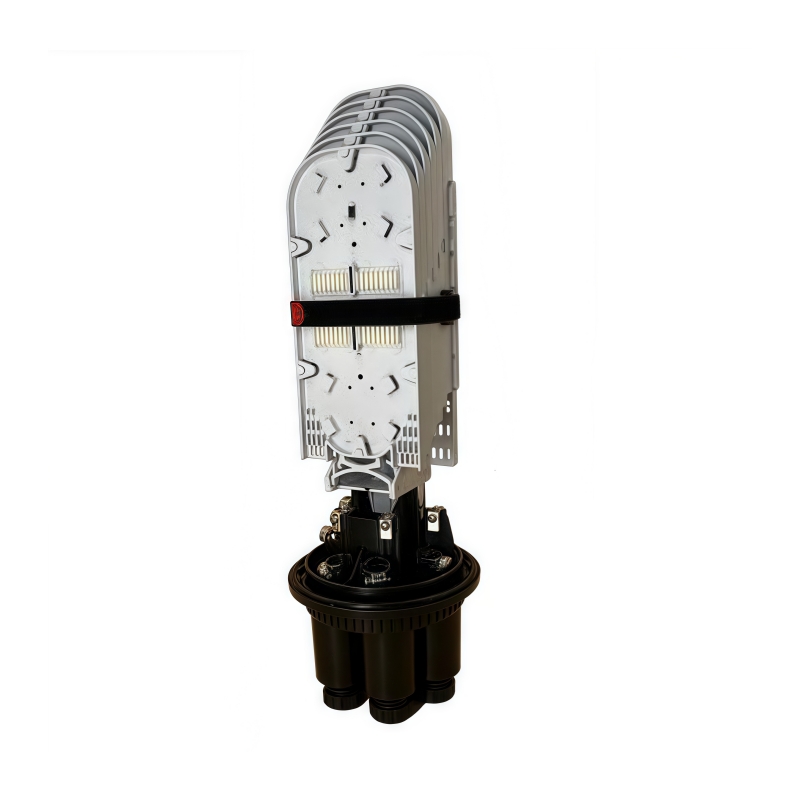

Efficient Fiber Management: Booklet-style splice trays allow easy handling of up to 24 fibers per tray.
Reliable Sealing: Uses mechanical sealing for cable ports and a silicone seal ring for the enclosure.
IP68-rated Protection: Ensures resistance to extreme weather conditions and submersion.
Versatile Installation: Suitable for wall, pole, and direct burial applications.
Specification
Dimensions
500 x Ø200 mm (19.69 x 7.87 inches)
Material of Enclosure
High-quality engineering plastic
Base Sealing Method
Mechanical seal
Cable Sealing Type
Silicone seal ring

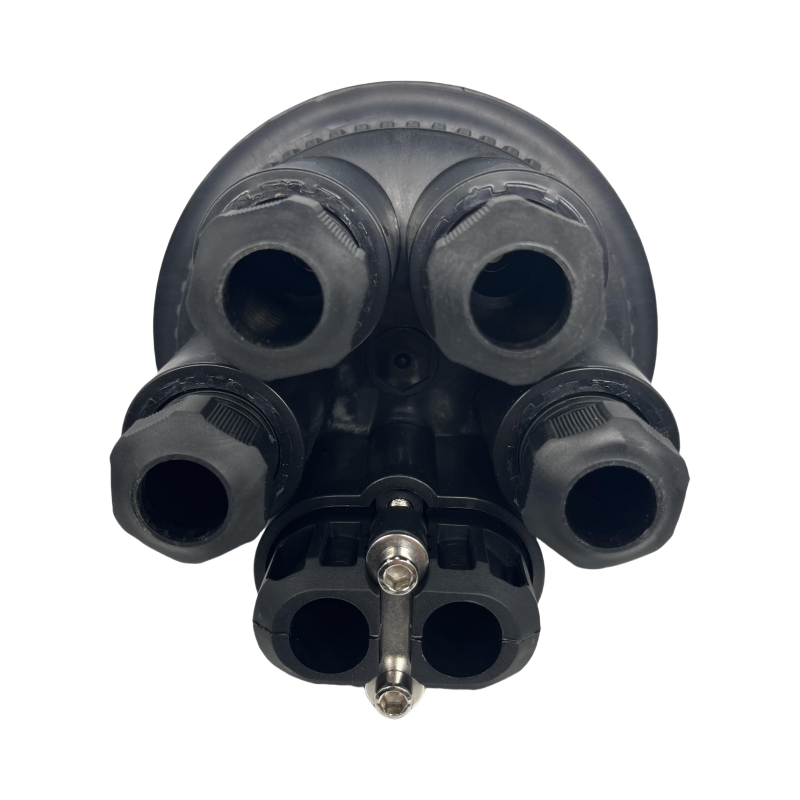

Cable Entry Ports
2 x Ø8-18 mm
Cable Exit Ports
4 x Ø6-18 mm
Splicing Capacity (Max)
144 FO (Single Core)
Splice Trays (Max)
6 pcs
Material of Trays
IP Rating
IP68
Mounting
Wall-mounted, Pole-mounted, Direct burial
Packing List
