GJS-D5049
GJS-D5049

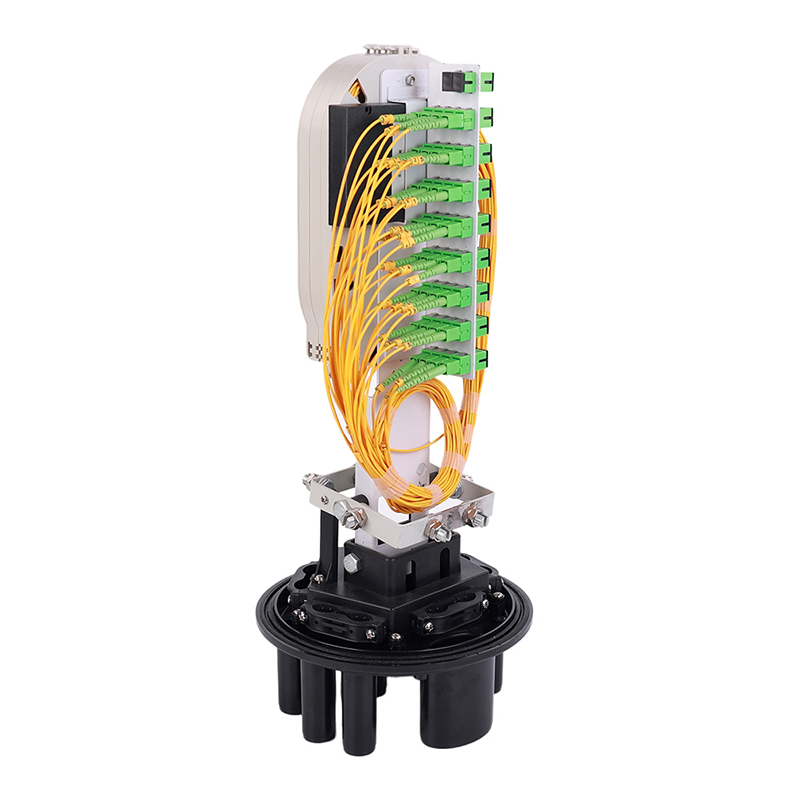

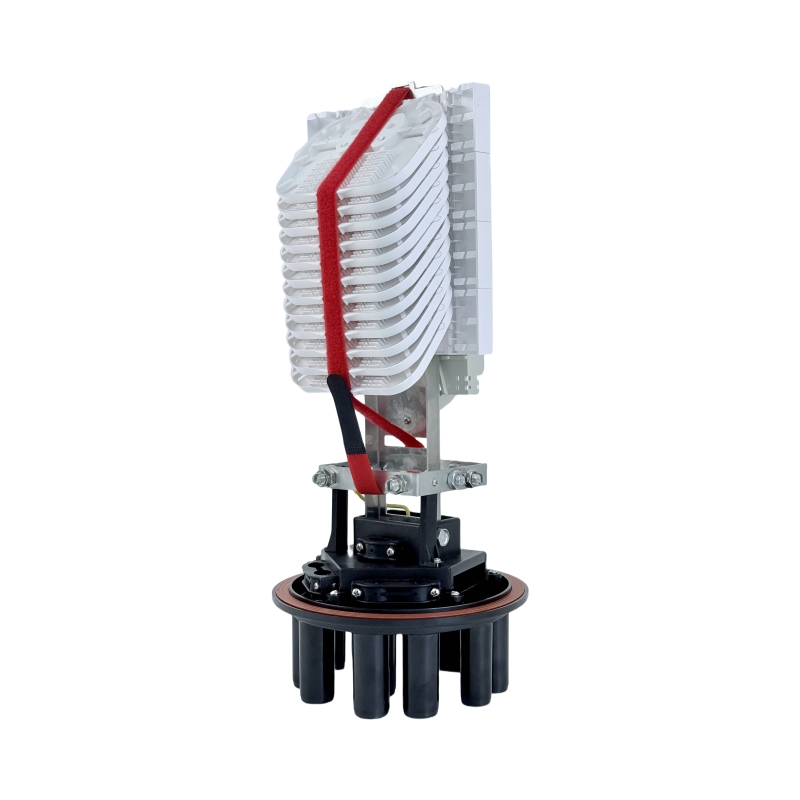

| Part No. | GJS-D5049 | GJS-D5016 | GJS-D5032A |
|---|---|---|---|
| Picture |
|
|
|
| Dimensions (H×Dia) | 510×Ø225mm | ||
| Cable Sealing Type | Heat-shrink Seal | ||
| Cable Entry / Exit Ports | 1 Oval Port / 9 Round Ports | ||
| Splicing Capacity | 504 Fibers | 384 Fibers | 144 Fibers |
| Patching Capacity | Not Supported | Not Supported | 34 SC Adapters |
| Splitter Capacity | Not Supported | 1×8 Micro PLC /Tray | 1(2)×32 Cassette PLC |

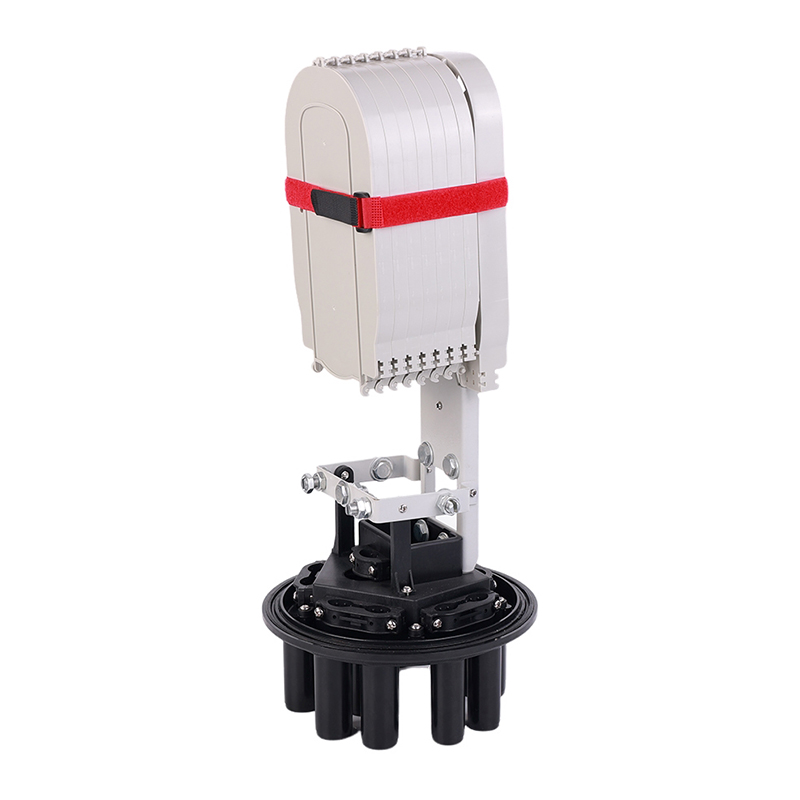

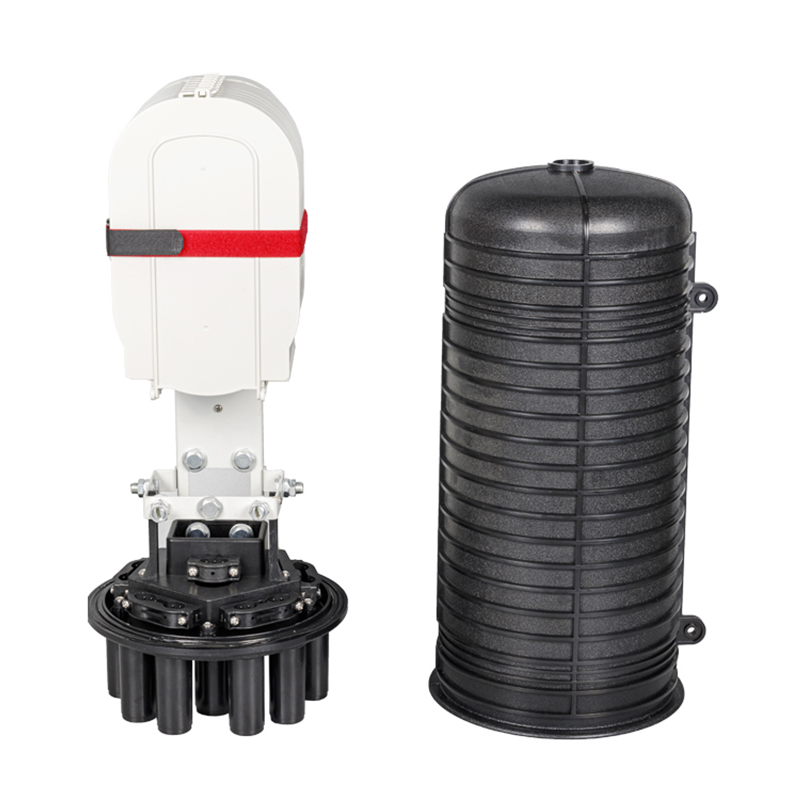

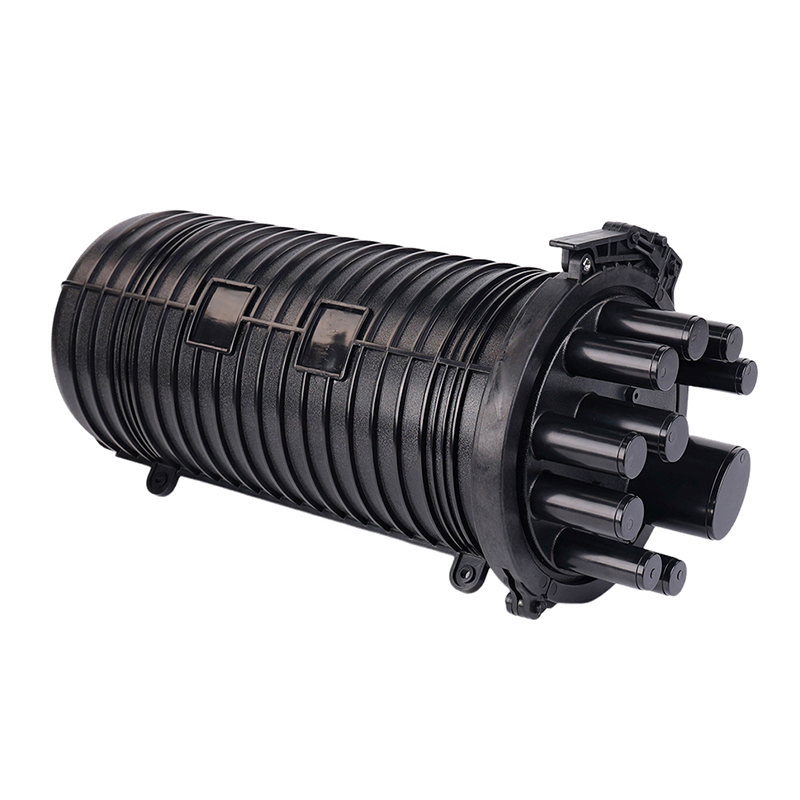

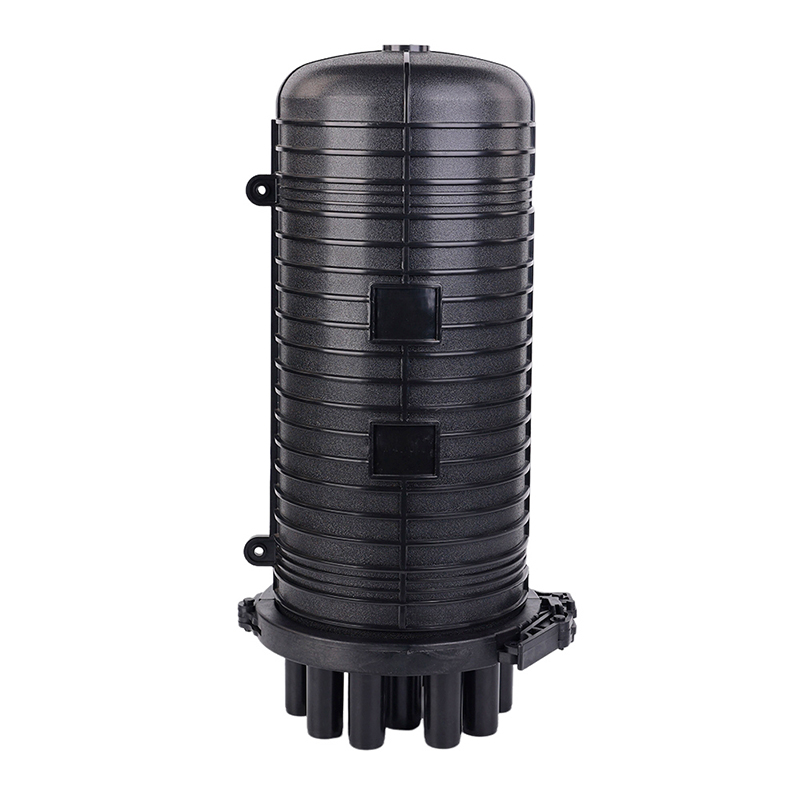

The GJS-D5049 is an ultra-high-capacity dome-type fiber optic splice closure engineered for backbone and high-density distribution networks. Designed to accommodate up to 504 fibers, this closure features a 10-port configuration (1 oval port for mid-span access and 9 circular ports) to provide maximum flexibility for large-scale cable branching. Constructed from premium PC plastic, it ensures structural integrity and chemical resistance in the most demanding Outside Plant (OSP) environments.
High Splicing Density: Supports up to 504 single fusion splices across 7 high-capacity trays.

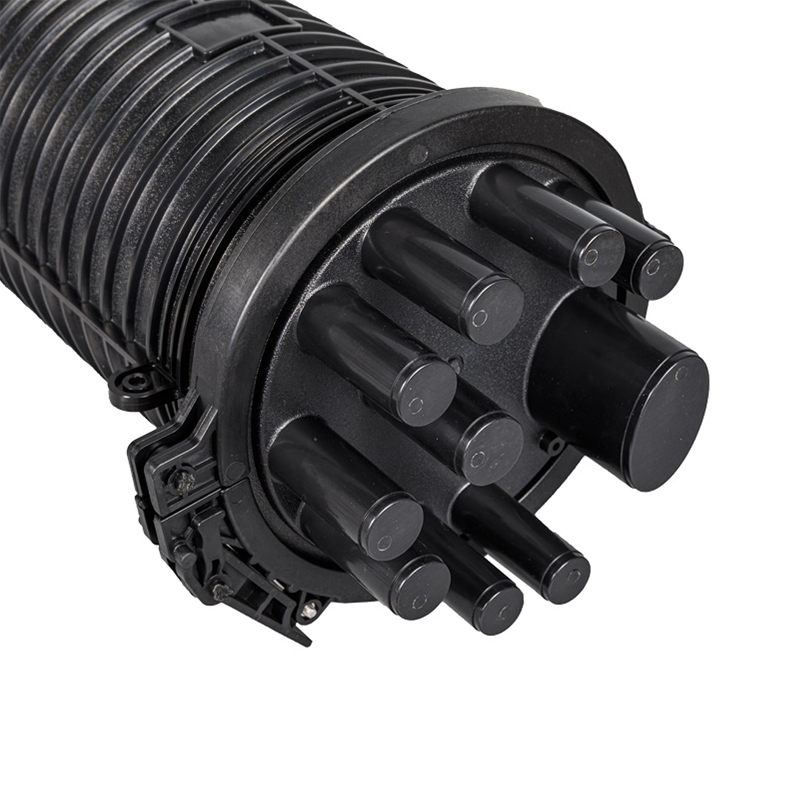

Advanced Port Configuration: Equipped with 1 oval port and 9 branch ports to manage diverse cable entries.
Superior Environmental Protection: IP68 certified, providing a hermetic seal against moisture, dust, and environmental contaminants.
25-Year Service Life: Built with impact-resistant, anti-aging materials for long-term network reliability.
Versatile Deployment: Fully compatible with aerial, wall-mount, pole-mount, and direct-buried installations.
Optimized Fiber Management: Internal tray design ensures a minimum bend radius is maintained for all fibers, reducing signal attenuation.
Flexible Installation: Supports wall-mounted and pole-mounted setups, with optional aerial hanging hook for versatile deployment.
