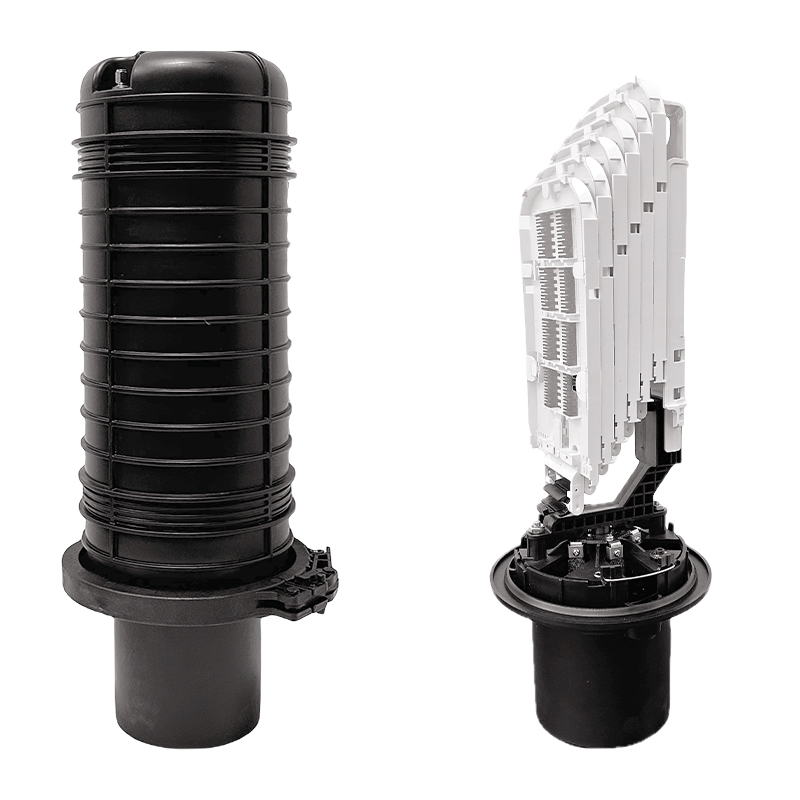

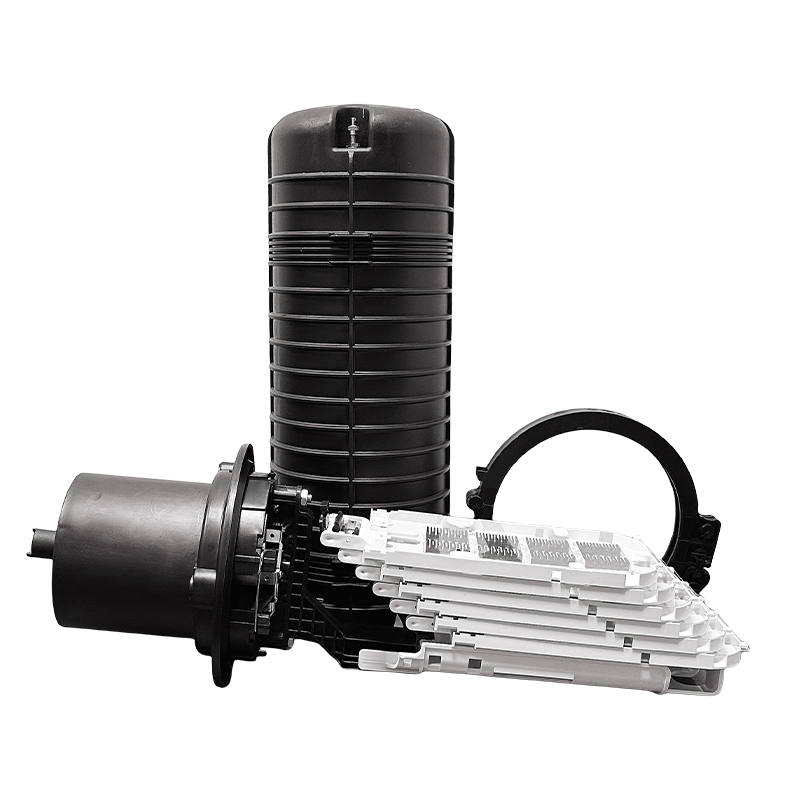

GJS-NJ1447 Gel Seal Fiber Dome Closure

Application

Telecommunications Networks: Ideal for splicing feeder and distribution cables in aerial, pedestal, or underground setups, ensuring reliable connectivity.
Harsh Environments: IP68-rated for robust performance in demanding conditions, including submersion up to 5 meters.
Versatile Cable Management: Supports loose tube, central core, and ribbon fiber cables, simplifying installation across diverse network configurations.

Capacities

Splicing Capacity: 144F
Patching Capacity: -
Splitter Capacity: -


Availability:



Inquiry Now！ Add to Basket Product Catalog

Model:
GJS-NJ1447
Download:
GJS-NJ1447 Datasheet.pdf
Model:
GJS-NJ1447

Customization Options

Features & Benifits

Specification

Packing List

Documentation

Customization Options

The GJS-NJ1447 dome closure offers flexible customization to meet specific project needs:

Air Valve Installation: Opt for an integrated air valve to enable pressure testing and ensure optimal sealing performance in demanding environments.

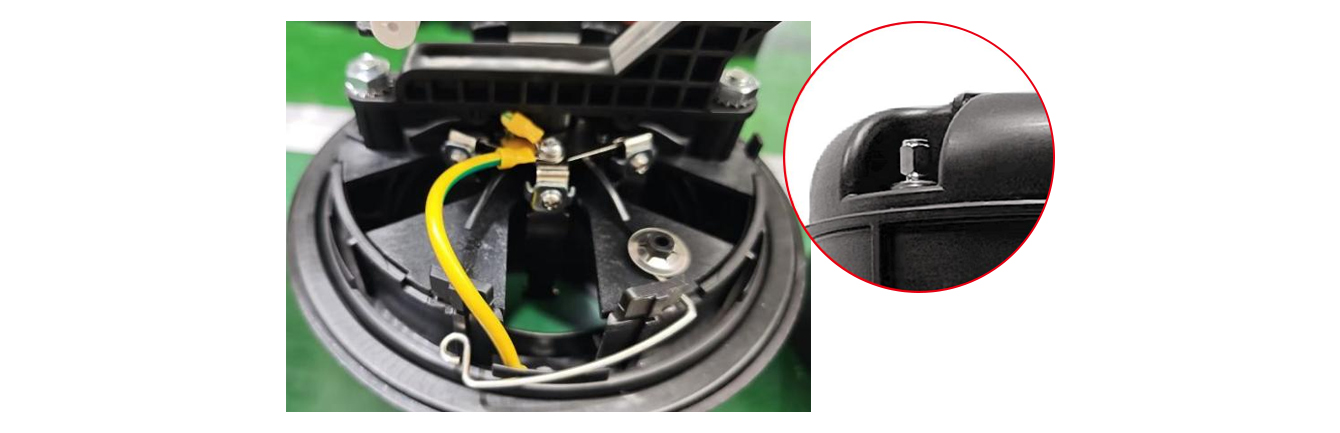

Grounding Device: Add a grounding device for enhanced safety and protection, ideal for installations requiring robust electrical grounding.

Features & Benifits

Robust Sealing Technology: Utilizes compressed gel sealing for reliable, reusable cable entry, accommodating cable diameters from 10-27mm.

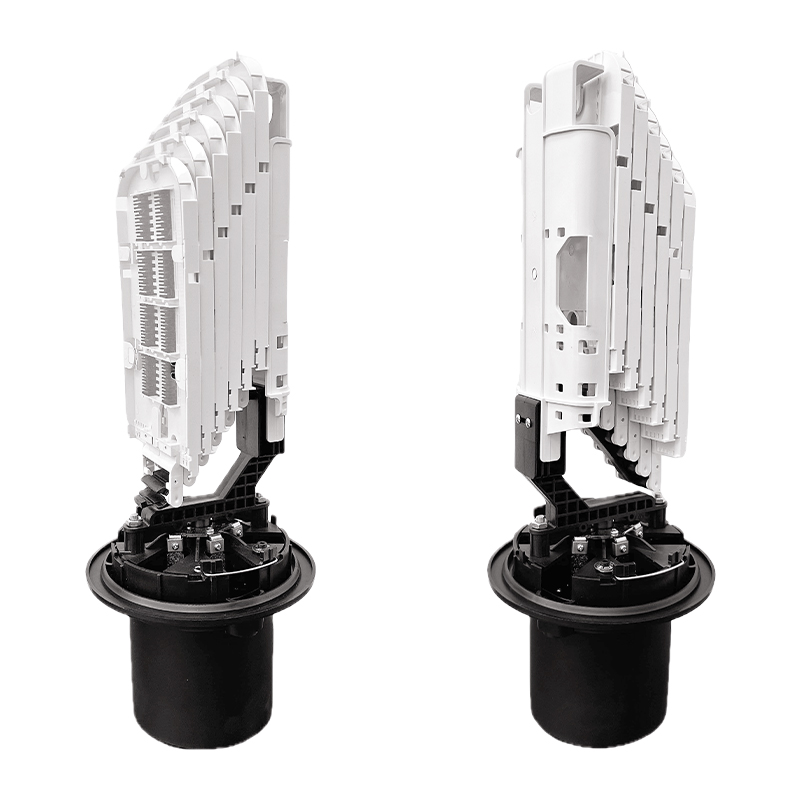

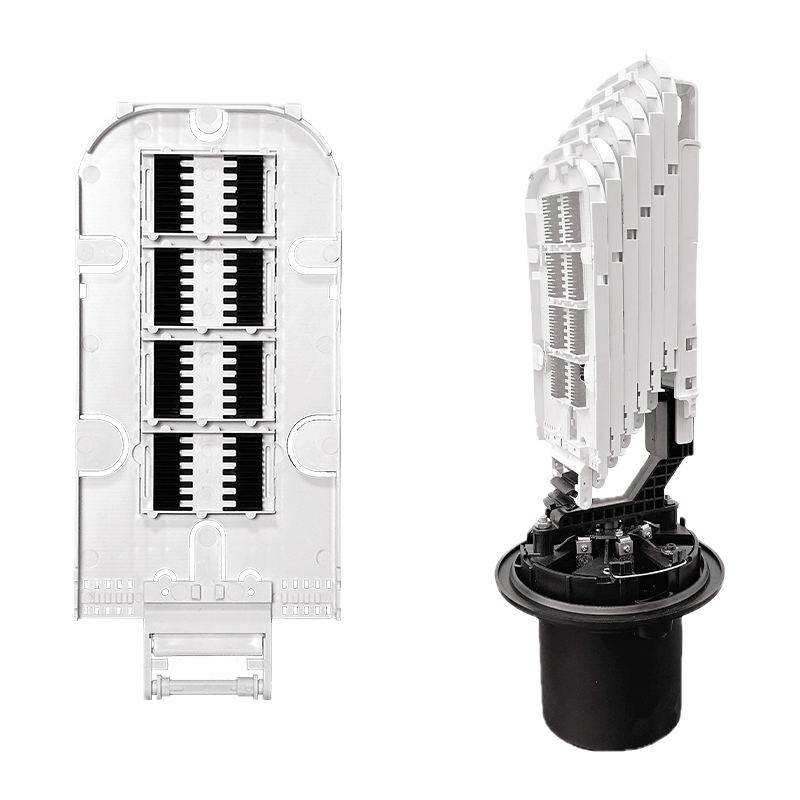

High Splicing Capacity: Supports up to 288 fibers with 6 splice trays, each holding 24/48F, ensuring ample capacity for complex networks.
Versatile Installation Options: Suitable for aerial, wall mount, pole mount, or direct-buried applications, offering flexibility for diverse environments.
Durable Construction: Made with PP+GF housing and ABS splice trays, providing IP68-rated protection for underground submersion up to 5 meters.

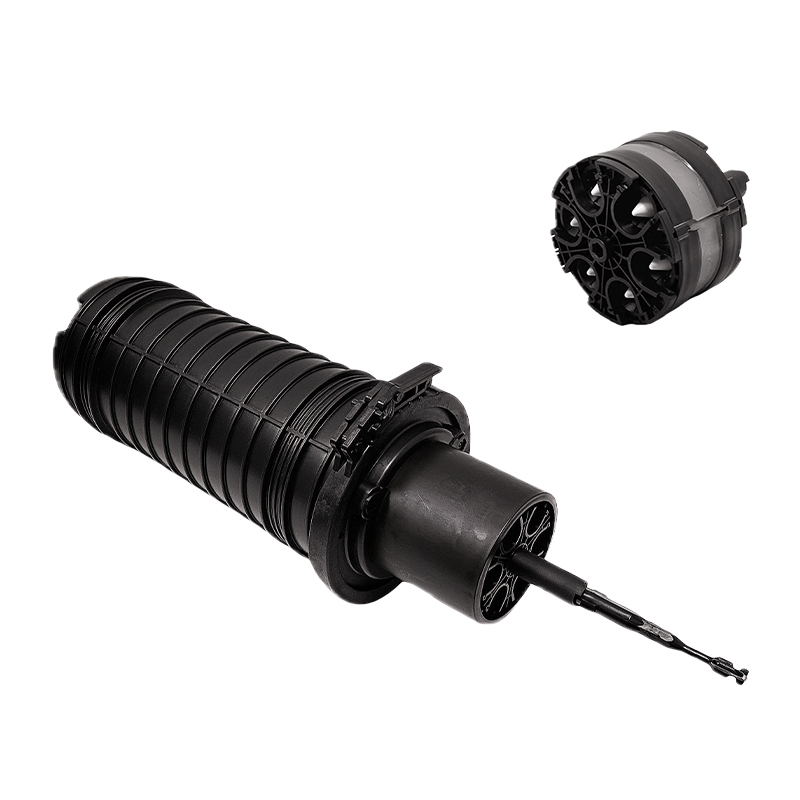

User-Friendly Design: Features a dome-to-base clamp with O-ring and a key-activated gel compression mechanism for easy installation and maintenance.

Specification

Part No.	GJS-NJ1447
Dimensions	590 x Ø210mm
Material of Dome	PP+GF
Base Sealing Method	Dome-to-base clamp with O-ring
Cable Sealing Type	Compressed Gel
Cable Ports	6 x Ø10-27mm
Splicing Capacity (Max)	288 Fibers (Single-core)
Number Of Splice Trays (Max)	6 Trays
Material of Splice Trays	ABS
Inflating Valve	Pre-installed (Optional)
Grounding Device	Pre-installed (Optional)
IP Rating	IP68
Mounting	Aerial / Wall Mount / Pole Mount / Direct-Buried

Packing List

Part NO.	GJS-NJ1447 (Excluding optional accessories)
Carton Size	61x23x32CM
Carton Capacity	1 PC/CTN
Carton G.W.	5.5 KG

GJS-NJ1447 Datasheet.pdf

Fibermint Catalogue (2023).pdf
