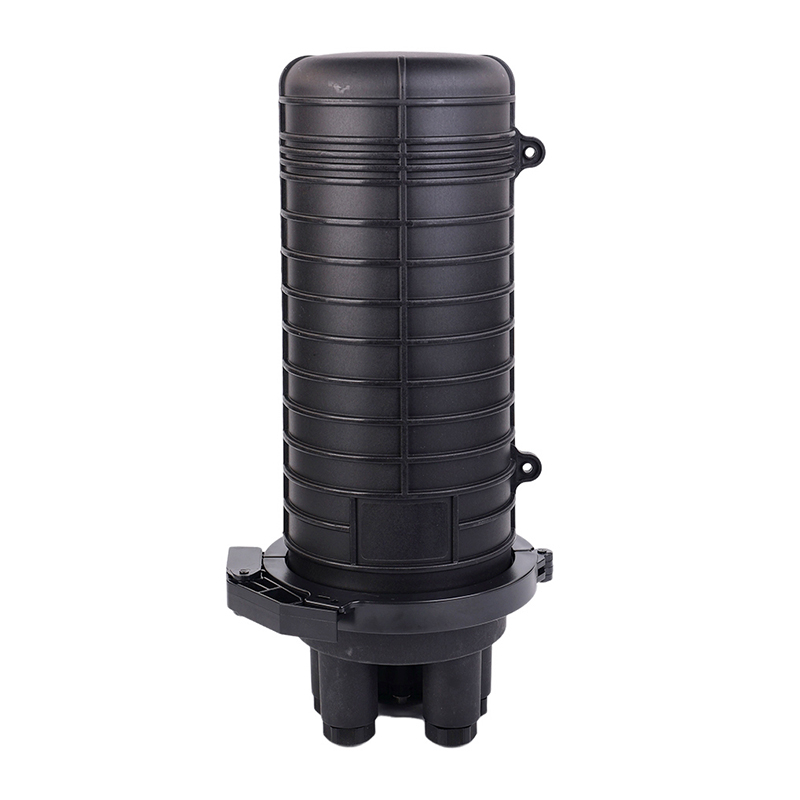

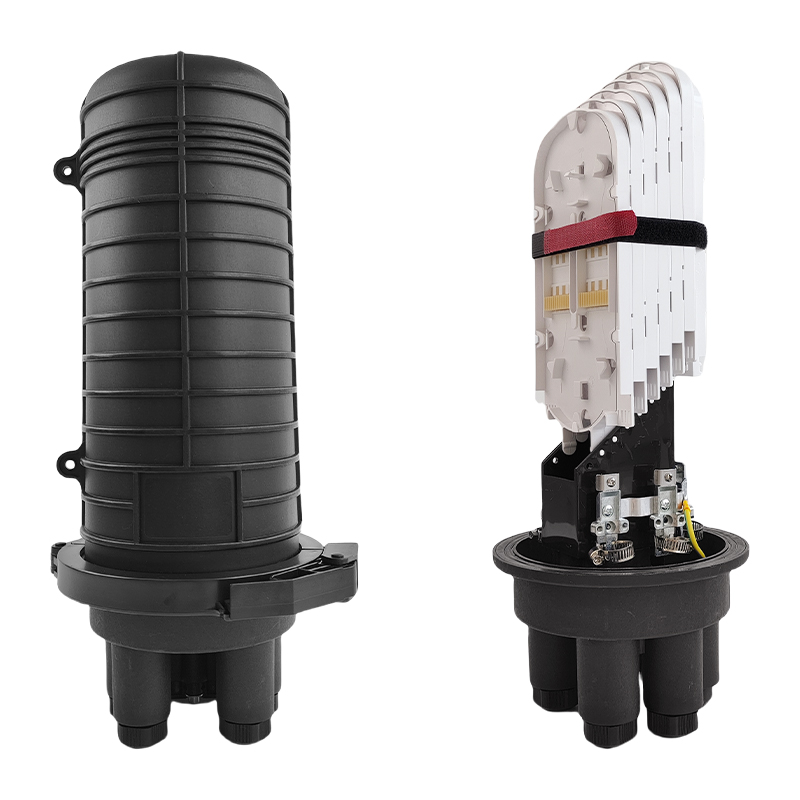

Secures fiber splices in harsh environments (aerial, underground, ducts) with IP68 waterproof protection.
Supports high-density networks requiring up to 144 single-core fiber terminations.
GJS-M1446M
GJS-M1446M Datasheet.pdf
Customization Options
Grounding Device: Add a grounding device for enhanced electrical safety in installations requiring grounding protection.
Inflating Valve: Include an inflating valve for pressure testing to verify sealing integrity in demanding environments.
Mounting Kits: Select from aerial, wall, or pole-mount kits to customize installation for specific deployment needs.
Features & Benifits
Robust IP68 Protection: Ensures complete waterproof and dustproof integrity for critical splices.

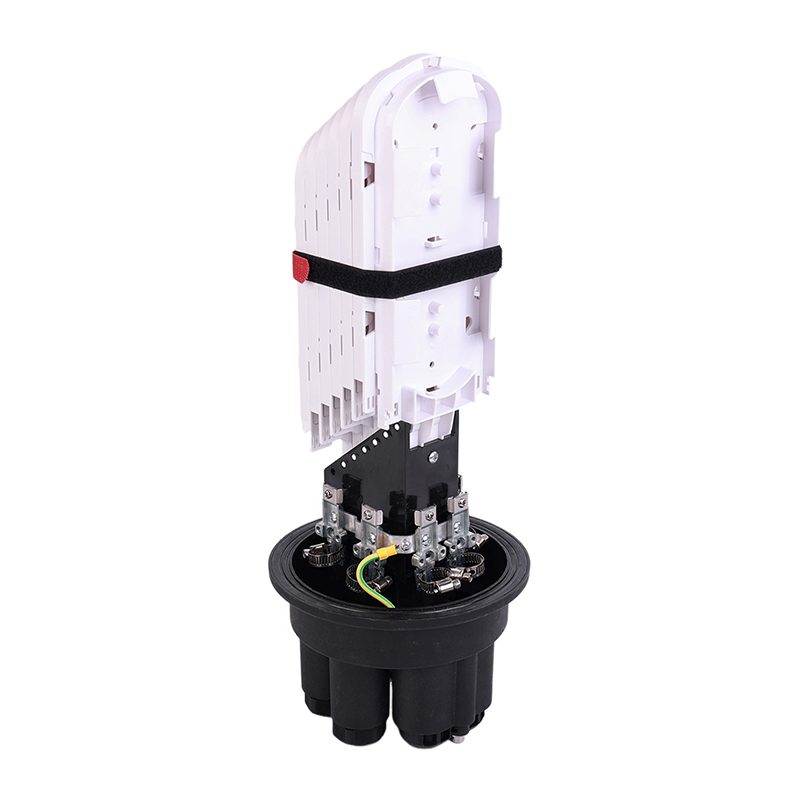

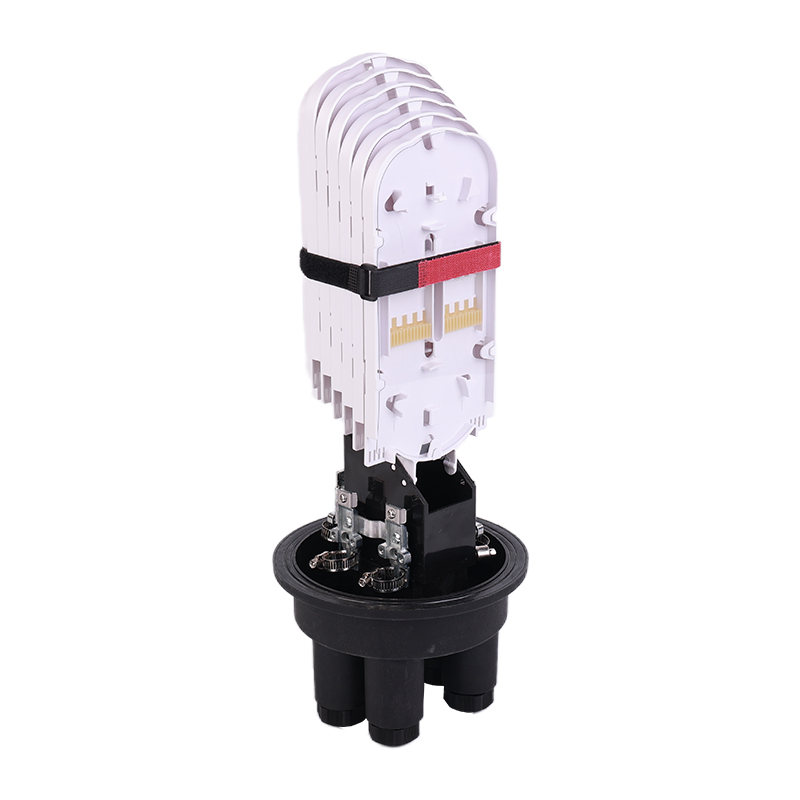

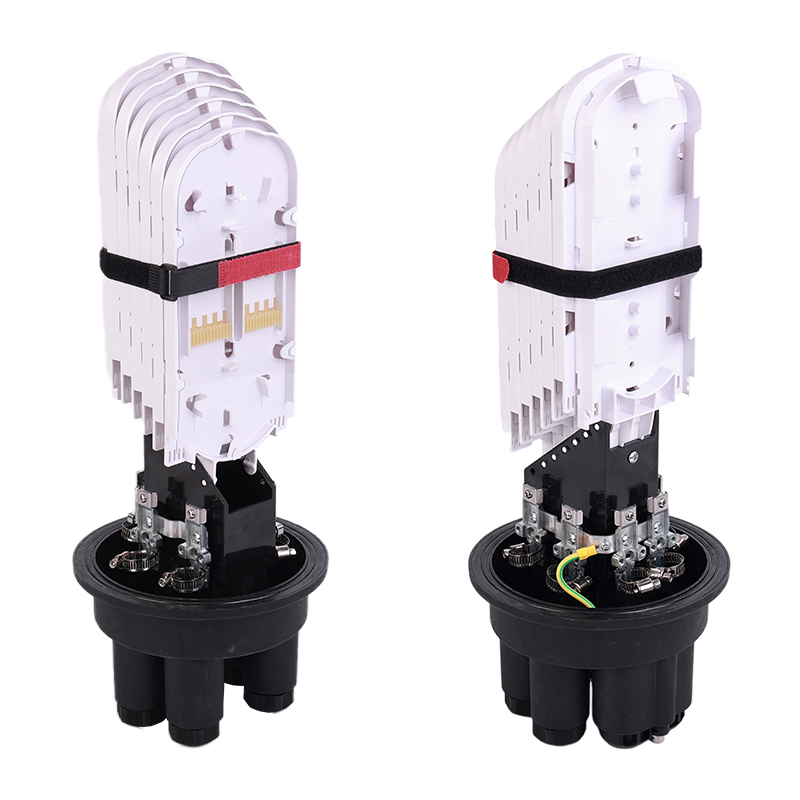

High-Capacity Design: Accommodates up to 144 single-core fibers using included splice trays.

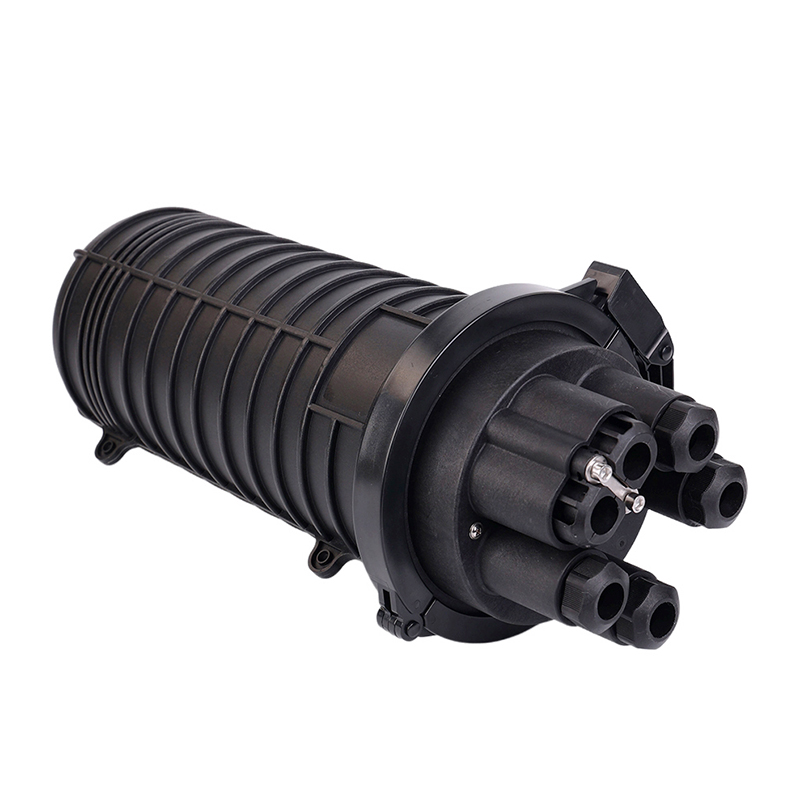

Versatile Cable Management: Features dedicated entry (2 ports) and exit (4 ports) with wide diameter compatibility (Ø6-18mm).
Reliable Mechanical Sealing: Provides superior, reusable cable port sealing without gels.
Corrosion-Resistant Enclosure: Constructed from durable PP+GF material for long-term outdoor use.
Integrated Grounding: Includes provisions for ground wire connection (based on image context).
Flexible Mounting: Compatible hardware for aerial, wall, pole, or direct burial applications.
Specification
Dimensions
460 x 189 x 225 mm (18.1" x 7.4" x 8.9")
Material of Enclosure
PP+GF (Polypropylene + Glass Fiber)
Base Sealing Method
Silicone Seal Ring + Compression Clamp
Cable Sealing Type
Mechanical Seal
Cable Entry Ports
2 ports (Ø15-18 mm)
Cable Exit Ports
4 ports (Ø6-18 mm)
Splicing Capacity (Max)
144 FO (Single Core)
Splice Trays (Max)
6 Trays
Material of Trays
ABS
IP Rating
IP68
Mounting
Wall-mounted, Pole-mounted, Direct burial
