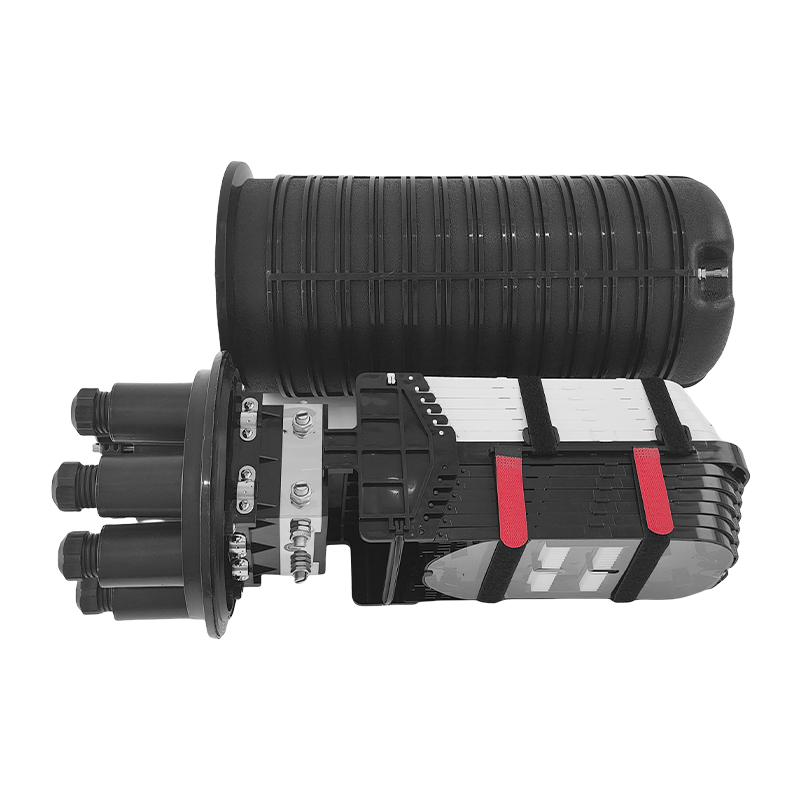

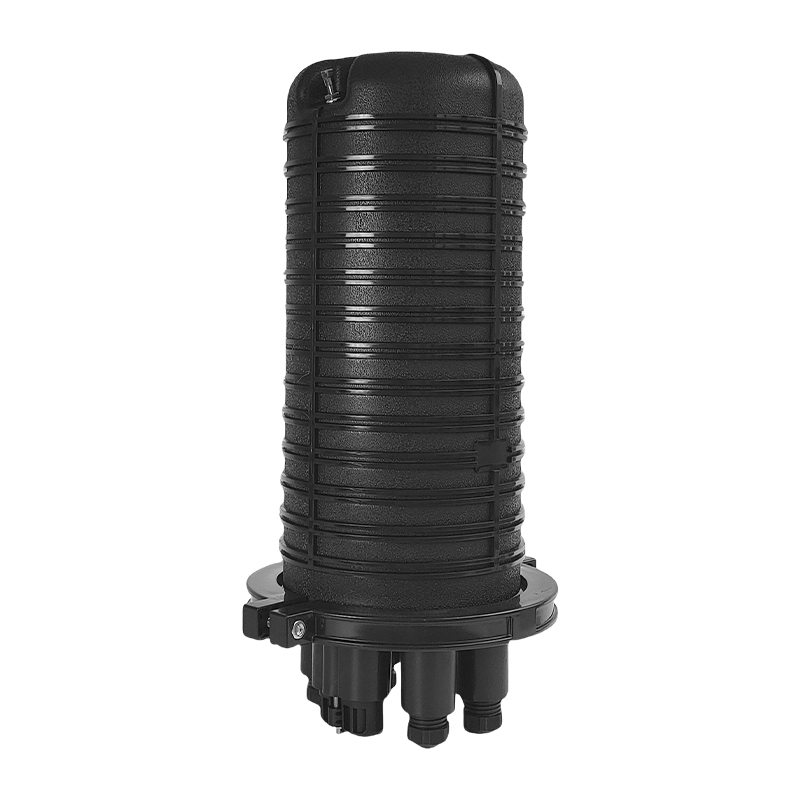

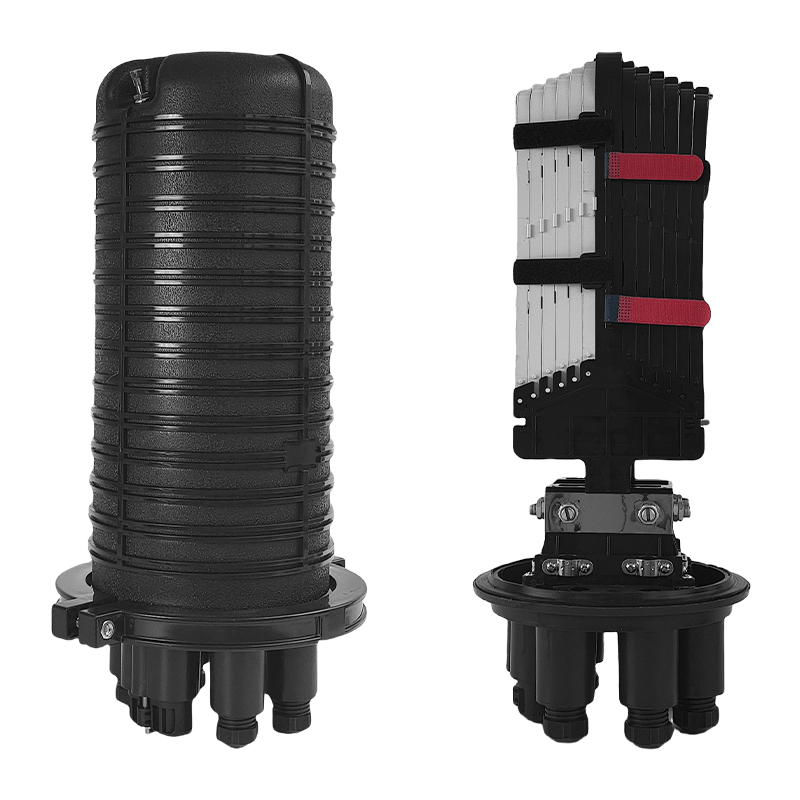

Secures fiber splices in harsh environments (aerial, underground, ducts) with IP68 waterproof protection.
Supports high-density networks requiring up to 384 single-core fiber terminations.
GJS-M3848C
GJS-M3848C Datasheet.pdf
Customization Options
Grounding Device: Add a grounding device for enhanced electrical safety in installations requiring grounding protection.
Inflating Valve: Include an inflating valve for pressure testing to verify sealing integrity in demanding environments.
Mounting Kits: Select from aerial, wall, or pole-mount kits to customize installation for specific deployment needs.
Features & Benifits

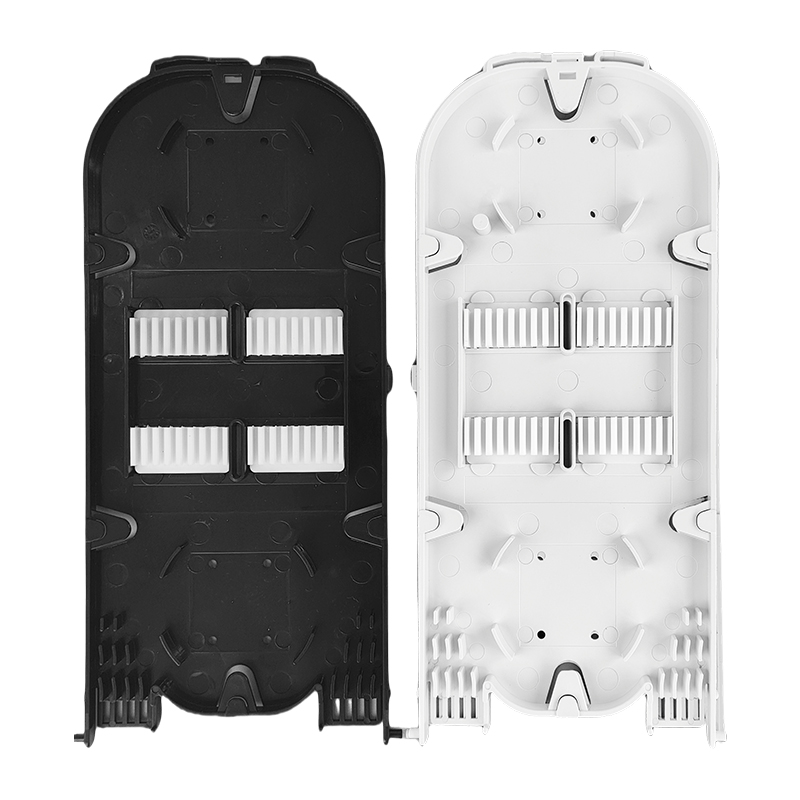

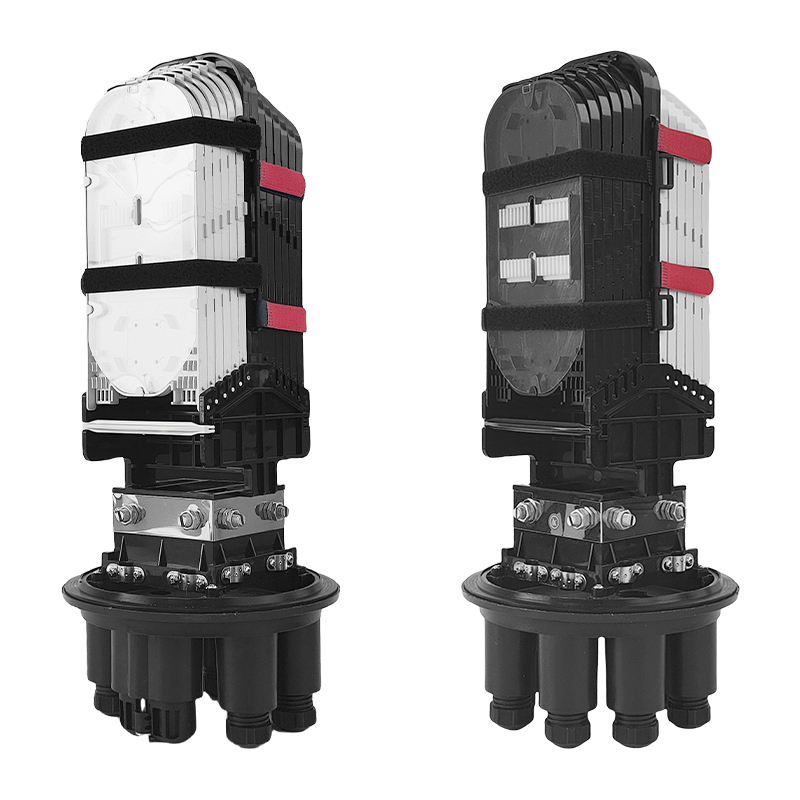

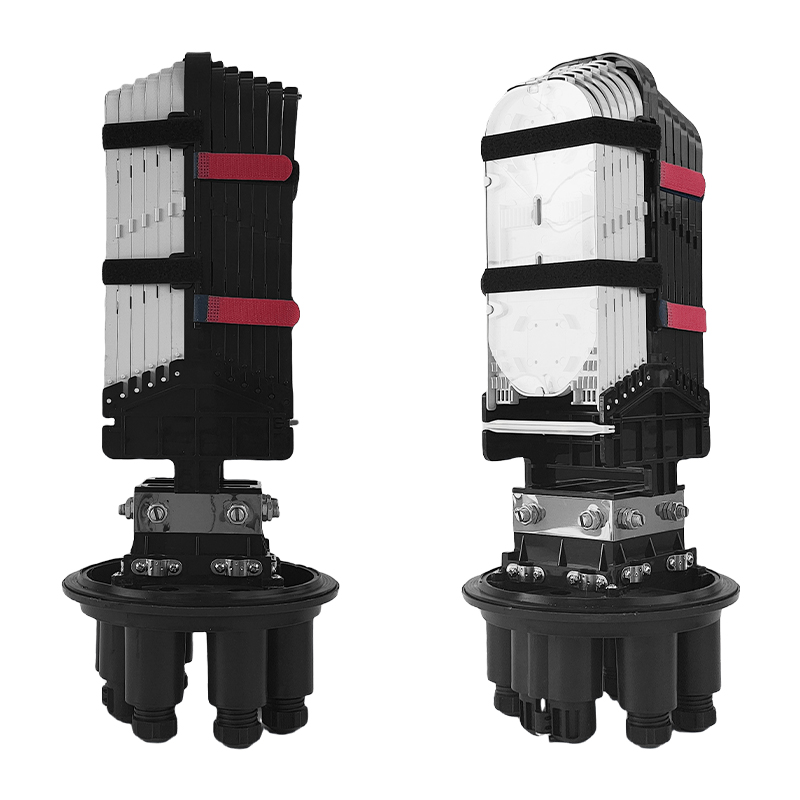

Ultra-High Capacity: Supports 384 fusion splices across 12 modular trays (16/32 fibers per tray).
Enhanced Durability: MPP housing withstands corrosion, impacts (IK10), and salt spray (96H NSS test).
Dual Mechanical Sealing: Base clamp/O-ring + cable port seals ensure reliable IP68 protection.
Optimized Cable Ports: 2x Ø18mm mid-span entry + 6x Ø16mm drop cable ports for versatile cabling.
Preconfigured Kits: Includes aerial, pole-mount, and fiber management accessories for rapid deployment.
Single-Ended Design: Simplifies installation and maintenance access in confined spaces.
Specification
Dimensions
Ø235 × 545 mm (9.3" × 21.5")
Material of Enclosure
MPP (Modified Polypropylene)
Base Sealing Method
Clamp + O-Ring System
Cable Sealing Type
Mechanical Seal
Cable Entry Ports
2 ports (Ø18 mm)
Cable Exit Ports
6 ports (Ø16 mm)
Splicing Capacity (Max)
384 Fibers
Splice Trays (Max)
12 Trays
Material of Trays
High-quality engineering plastic
IP Rating
IP68
Mounting
Direct Buried / Aerial / Pole-Mounted
