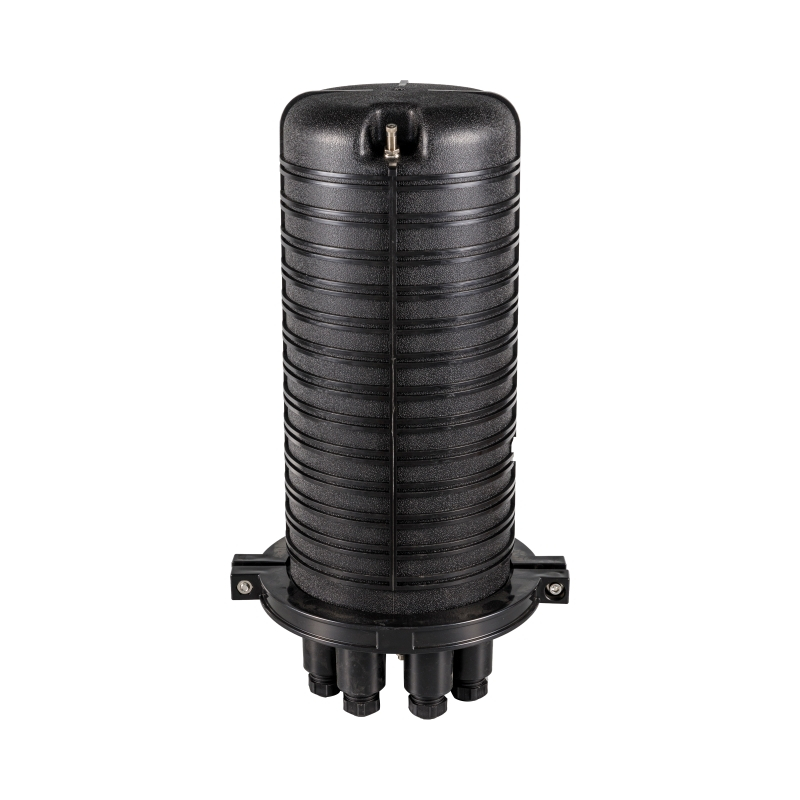

Secures fiber splices in harsh environments (aerial, underground, ducts) with IP68 waterproof protection.
Supports high-density networks requiring up to 288 single-core fiber terminations.
GJS-M2888C
GJS-M2888C Datasheet.pdf
Customization Options
Grounding Device: Add a grounding device for enhanced electrical safety in installations requiring grounding protection.
Inflating Valve: Include an inflating valve for pressure testing to verify sealing integrity in demanding environments.
Mounting Kits: Select from aerial, wall, or pole-mount kits to customize installation for specific deployment needs.
Features & Benifits
Corrosion-Resistant Housing: PP+GF engineering plastic for superior weather/aging resistance.
Zero-Gel Mechanical Sealing: Reusable rubber seal rings ensure IP68 protection without messy compounds.

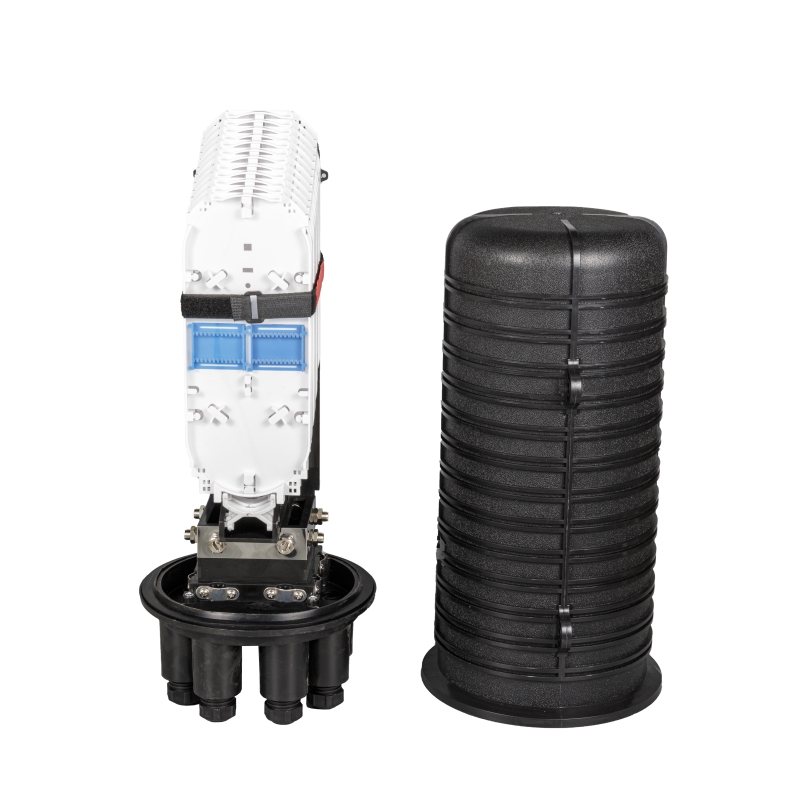

Optimized Fiber Management: 24 booklet-style trays with 40mm bend radius minimize signal loss.

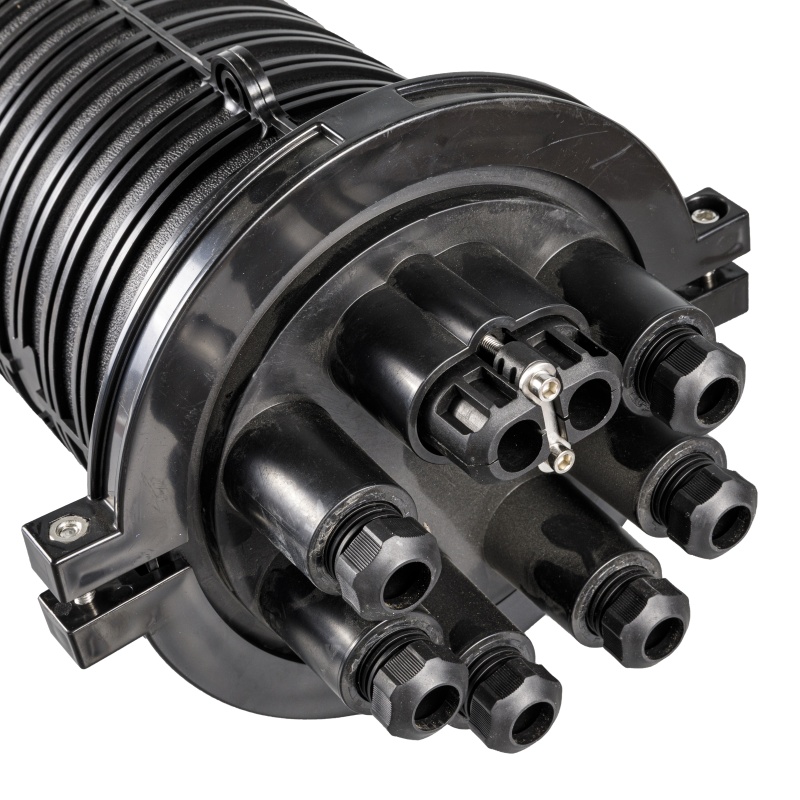

Wide Cable Compatibility: 2x Ø8-18mm entry + 6x Ø6-18mm exit ports accommodate diverse cables.
Reusable Design: Non-destructive reopening maintains seal integrity during maintenance.
High-Density Capacity: Holds 288 single-core fibers across modular trays.
Specification
Dimensions
510 × Ø300 mm (20.1" × 11.8" dia.)
Material of Enclosure
PP+GF (Polypropylene + Glass Fiber)
Base Sealing Method
Mechanical Sealing
Cable Sealing Type
Mechanical Seal + Rubber Rings
Cable Entry Ports
2 ports (Ø8-18 mm)
Cable Exit Ports
6 ports (Ø6-8 mm)
Splicing Capacity (Max)
288 Fibers (Single Core)
Splice Trays (Max)
24 Trays
Material of Trays
High-quality engineering plastic
IP Rating
IP68
Mounting
Wall-mounted, Pole-mounted, Direct burial
Packing List
