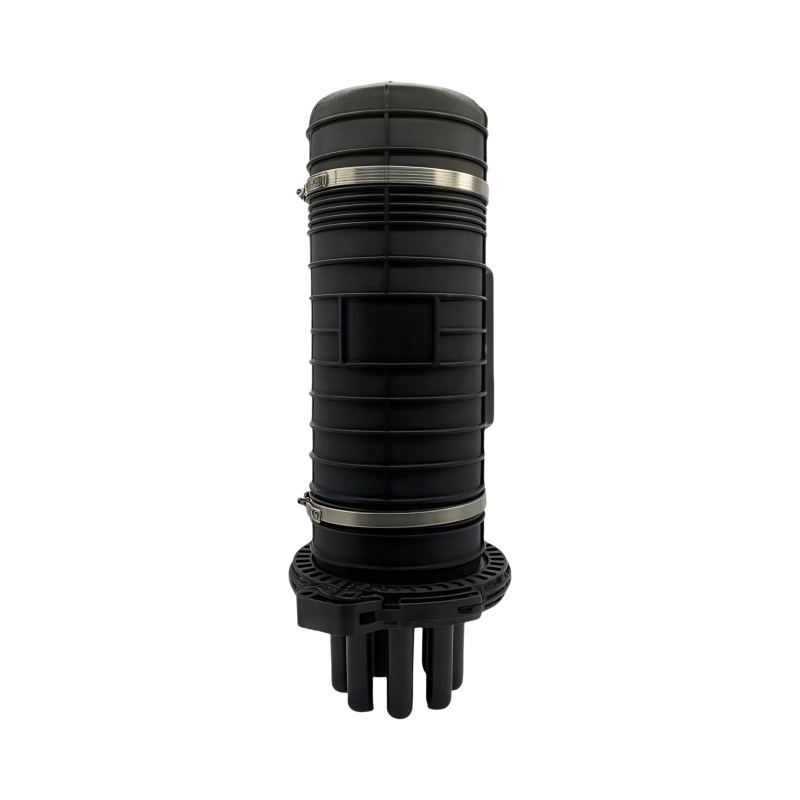

GJS-D1447C
GJS-D1447C
Customization Options

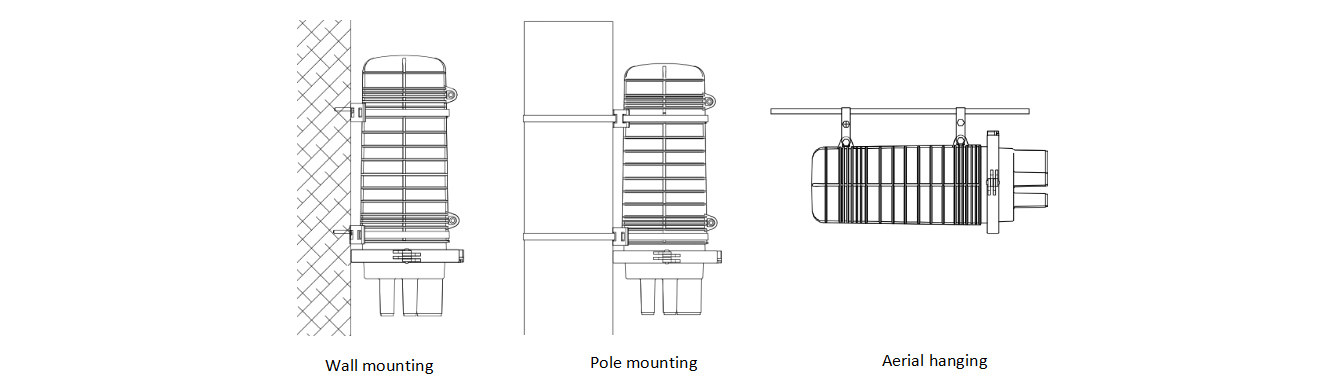

Flexible Installation: Supports wall-mounted and pole-mounted setups, with optional aerial hanging hook for versatile deployment.
Features & Benifits
Robust Environmental Protection: IP68 rating ensures waterproof/dustproof performance even in extreme outdoor conditions.

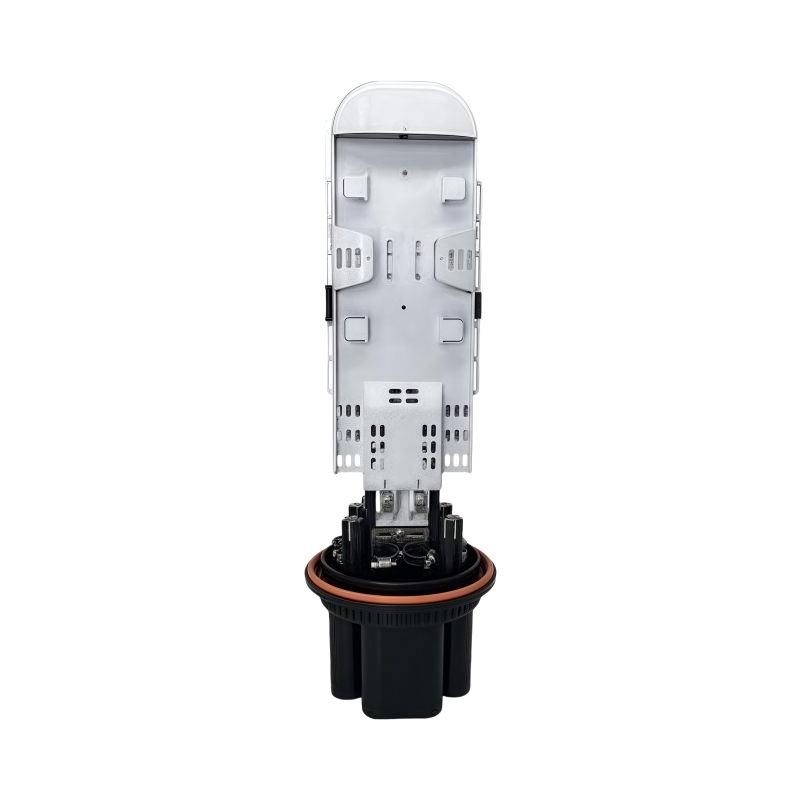

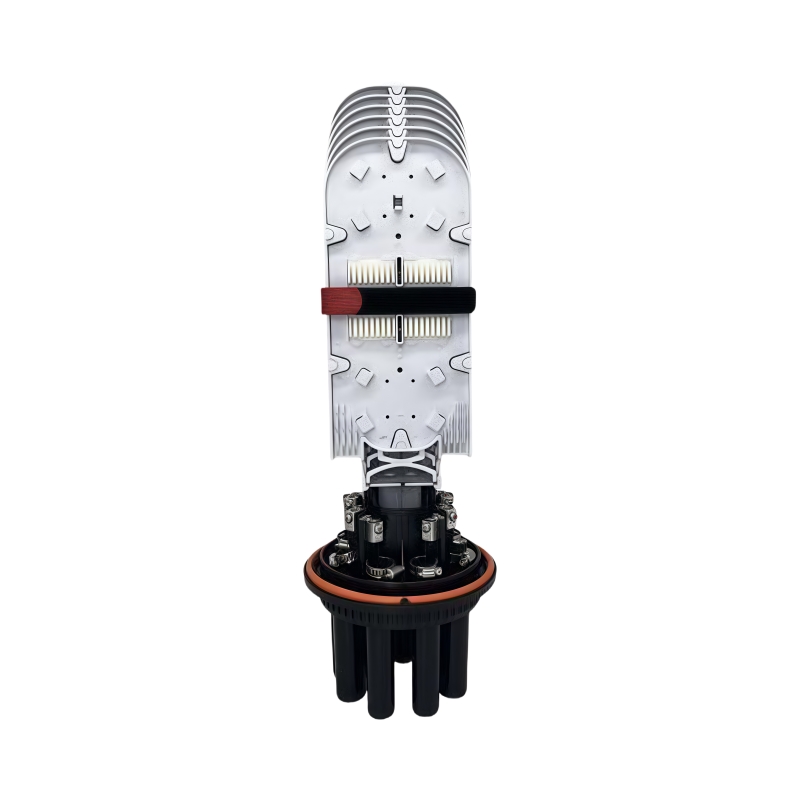

High-Capacity Fiber Management: 6 ABS splice trays handle 144 single-core fibers, ideal for large-scale network expansions.
Flexible Port Configuration: 1 oval trunk port (Ø8–39 mm) and 6 round branch ports (Ø6–20 mm) adapt to various cable sizes.
Reliable Sealing System: Heat-shrink cable seals and O-ring clamp create airtight barriers, preventing water ingress and signal degradation.
Easy Maintenance: Reusable design allows quick reopening for splicing or repairs, while turnable trays enable hassle-free fiber access.
Durable Construction: PP+GF material resists corrosion, UV radiation, and temperature fluctuations (-40°C to 60°C).
Versatile Mounting: Compatible with pole, wall, or buried installations, reducing deployment complexity for different projects
Specification
Part No. | GJS-D1447C |
Dimensions | 500 × Ø220 mm (enclosure body: Ø145 mm) |
Material of Enclosure | PP+GF |
Base Sealing Method | Dome-to-base clamp with O-ring |
Cable Sealing Type | Heat-shrink Sealing |
Cable Entry Ports | 1 Oval Port (cable dia. Ø8–39 mm) |
Cable Exit Ports | 6 Round Ports (cable dia. Ø6–20 mm) |
Splicing Capacity (Max) | 144 Fibers (Single-core) |
Number of Splice Trays (Max) | 6 Trays |
Material of Splice Trays | ABS |
Inflating Valve | Not supported |
Grounding Device | Not supported |
IP Rating | IP68 |
Mounting | Aerial / Wall Mount / Pole Mount / Direct-Buried |
Packing List
Carton Size | 72×52×45 cm (28.35×20.47×17.72 inches) |
Carton Capacity | 6 PCS/CTN |
Carton G.W. | 17.5 KG |
