GJS-D1445
GJS-D1445 Datasheet.pdf
Customization Options
Flexible Installation: Supports wall-mounted and pole-mounted setups, with optional aerial hanging hook for versatile deployment.
Features & Benifits
Robust MPP Housing: Engineered for long-term outdoor use with resistance to hydrolysis, chemicals, and UV radiation.
Reliable Heat Shrink Sealing: Dome-shaped ports with heat-shrink sleeves create airtight seals, rated IP68 for water immersion protection.

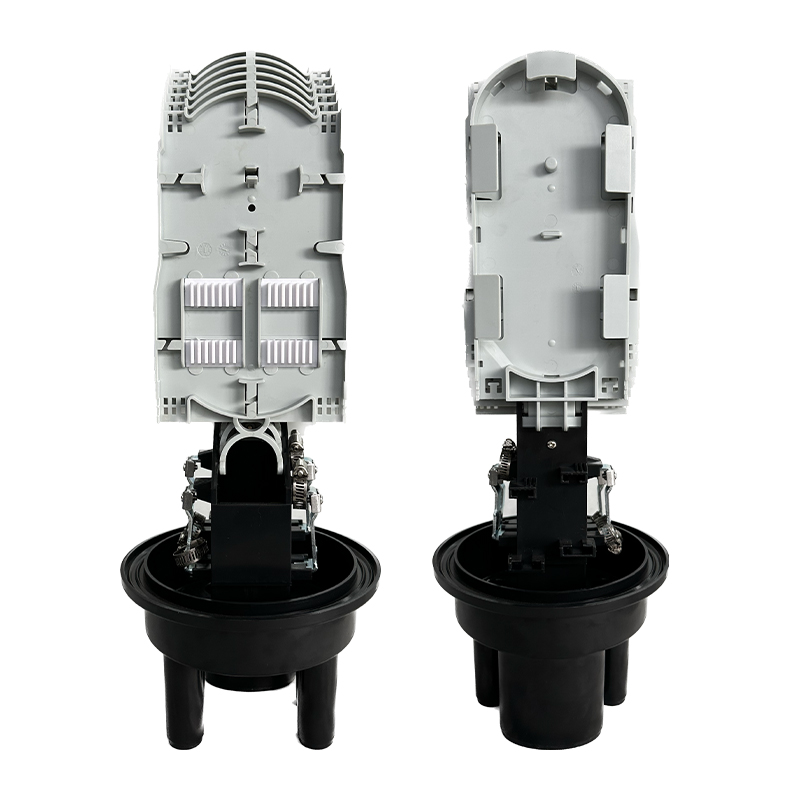

High Fiber Capacity: 6 removable splice trays accommodate 144 fibers (12/24 FO per tray) with extra space for uncut cable storage.

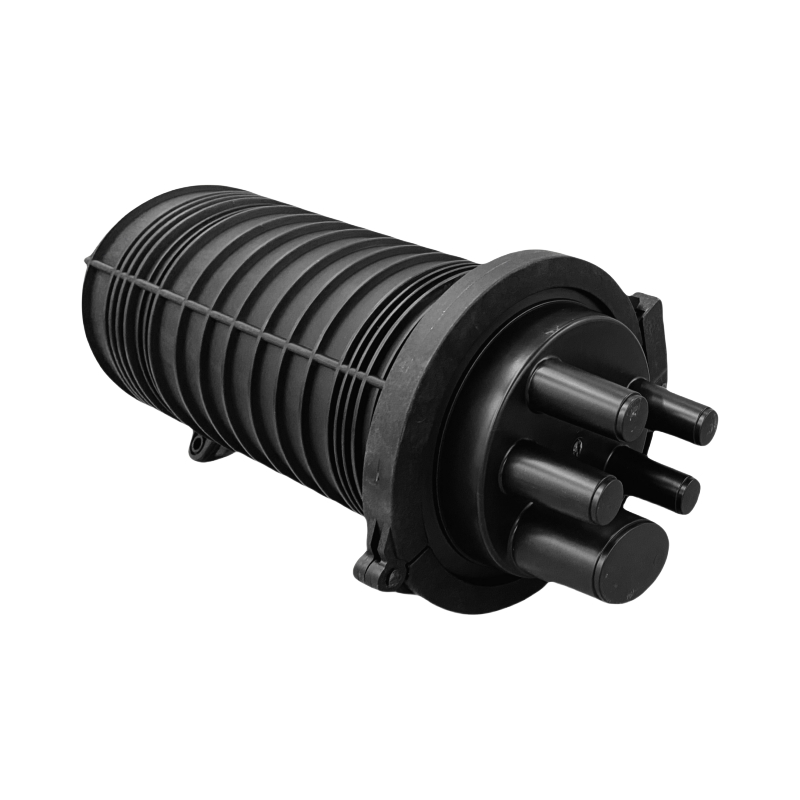

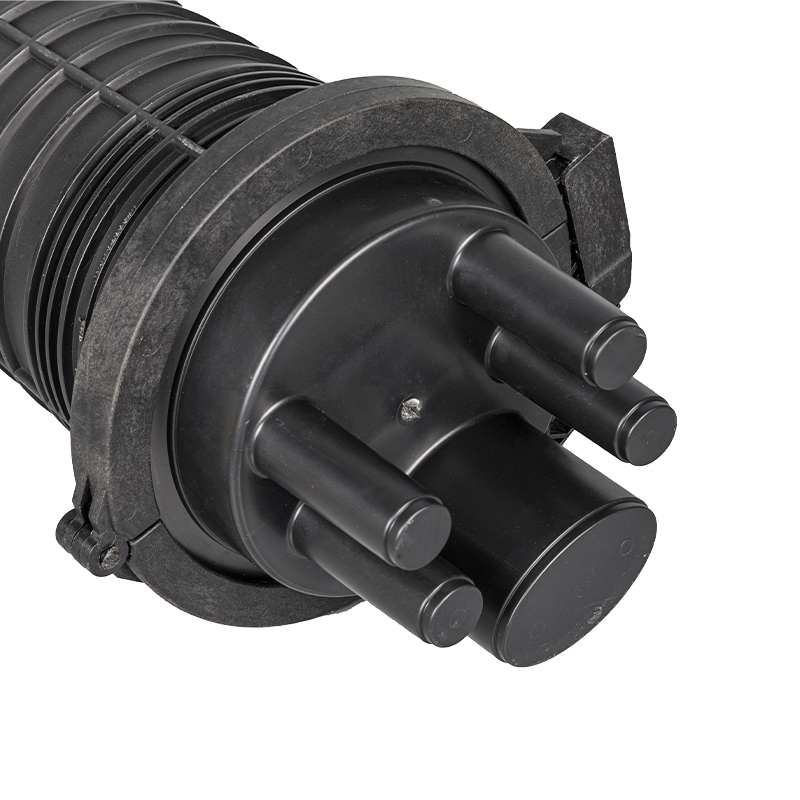

Flexible Cable Management: 1 oval trunk port (65×37 mm) and 4 circular branch ports (φ17.5 mm) adapt to various cable diameters.
Easy Installation: Versatile mounting kits for aerial hanging, wall/pole attachment, or duct/buried setups with reusable rubber grommets.
Complete Accessory Set: Includes heat-shrink sleeves, branch clips, and cable management tools for hassle-free deployment.
Optional Grounding: Metal clamping systems allow optional grounding for lightning protection in outdoor environments.
Specification
Part No.
Dimensions
455 × Ø188 mm
1 Oval Port (65×37 mm)
Splicing Capacity (Max)
144 Fibers (Single-core)
Number of Splice Trays (Max)
6 Trays
Material of Splice Trays
ABS
Inflating Valve
Mounting
Aerial / Wall Mount / Pole Mount / Direct-Buried
Packing List
