Secures fiber splices in harsh environments (aerial, underground, ducts) with IP68 waterproof protection.
Supports high-density networks requiring up to 288 single-core fiber terminations.
GJS-M2887Q
GJS-M2887Q Datasheet.pdf
Customization Options
Grounding Device: Add a grounding device for enhanced electrical safety in installations requiring grounding protection.
Inflating Valve: Include an inflating valve for pressure testing to verify sealing integrity in demanding environments.
Mounting Kits: Select from aerial, wall, or pole-mount kits to customize installation for specific deployment needs.
Features & Benifits
High-Density Capacity: Supports up to 288 fibers with modular splice tray organization.

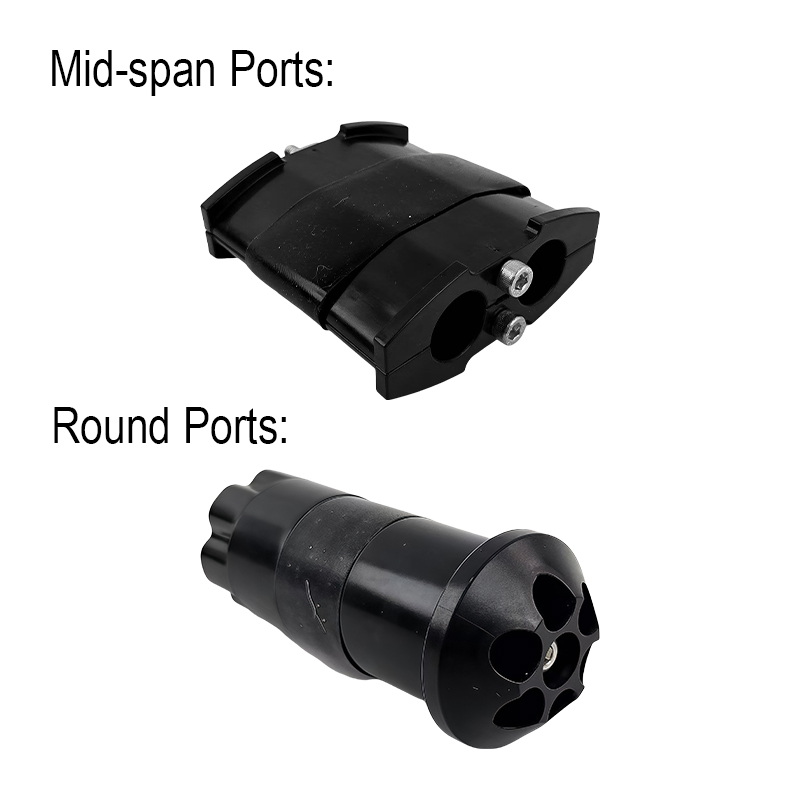

Optimized Cable Ports: 2 mid-span entry ports (Ø11-14mm) + 6 exit ports (Ø6-8mm) for flexible cabling.
IP68 Environmental Protection: Fully sealed against water/dust ingress in extreme outdoor conditions.
Mechanical Sealing System: Tool-free, reusable cable sealing without messy gels or tapes.

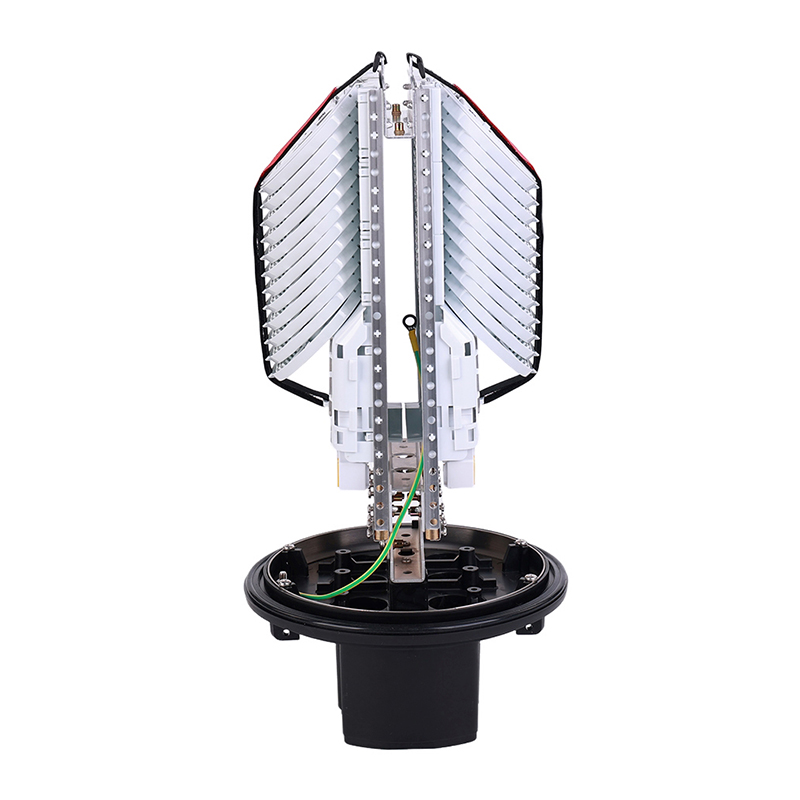

Durable Tray Design: 24 removable splice trays (12F/tray) for efficient fiber management.
Universal Mounting: Integrated hardware for aerial, pole, wall, or direct burial installation.
Specification
Dimensions
512 × Ø310.3 mm (20.2" × 12.2" dia.)
Material of Enclosure
CPP
Base Sealing Method
Mechanical Sealing
Cable Sealing Type
Cable Entry Ports
2 ports (Ø11-14 mm)
Cable Exit Ports
6 ports (Ø6-8 mm)
Splicing Capacity (Max)
288 Fibers
Splice Trays (Max)
24 Trays
Material of Trays
High-quality engineering plastic
IP Rating
IP68
Mounting
Wall-mounted, Pole-mounted, Direct burial

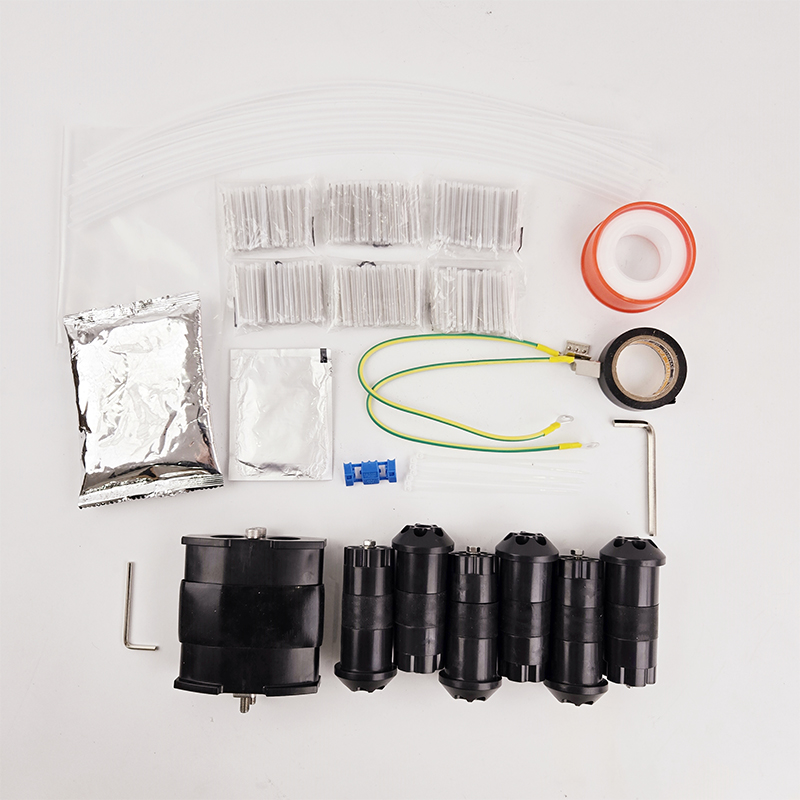

Packing List
