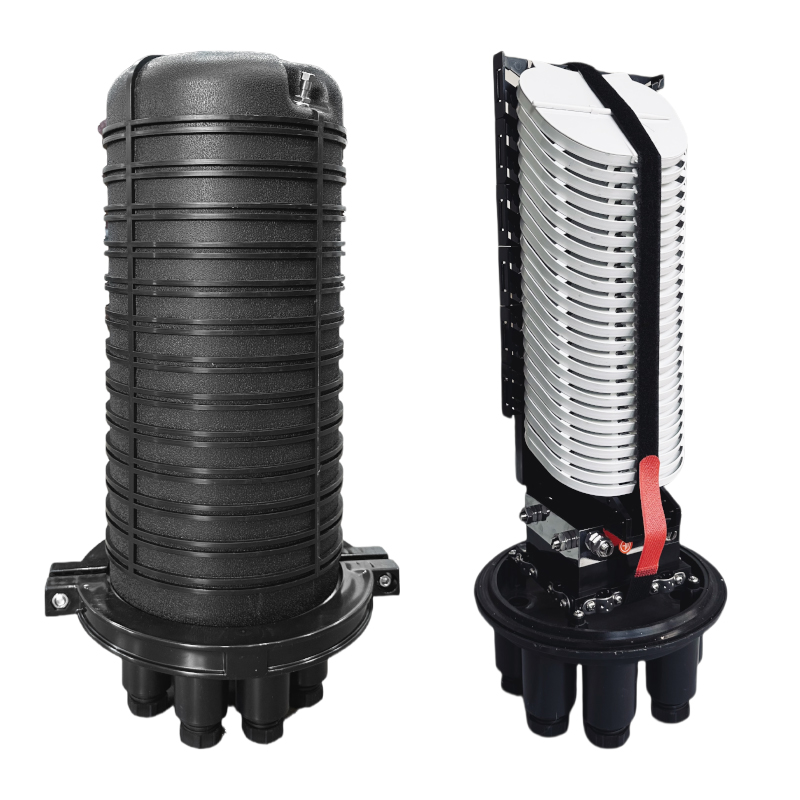

Secures fiber splices in harsh environments (aerial, underground, ducts) with IP68 waterproof protection.
Supports high-density networks requiring up to 576 single-core fiber terminations.
GJS-M5768C
GJS-M5768C Datasheet.pdf
Customization Options
Grounding Device: Add a grounding device for enhanced electrical safety in installations requiring grounding protection.
Inflating Valve: Include an inflating valve for pressure testing to verify sealing integrity in demanding environments.
Mounting Kits: Select from aerial, wall, or pole-mount kits to customize installation for specific deployment needs.
Features & Benifits

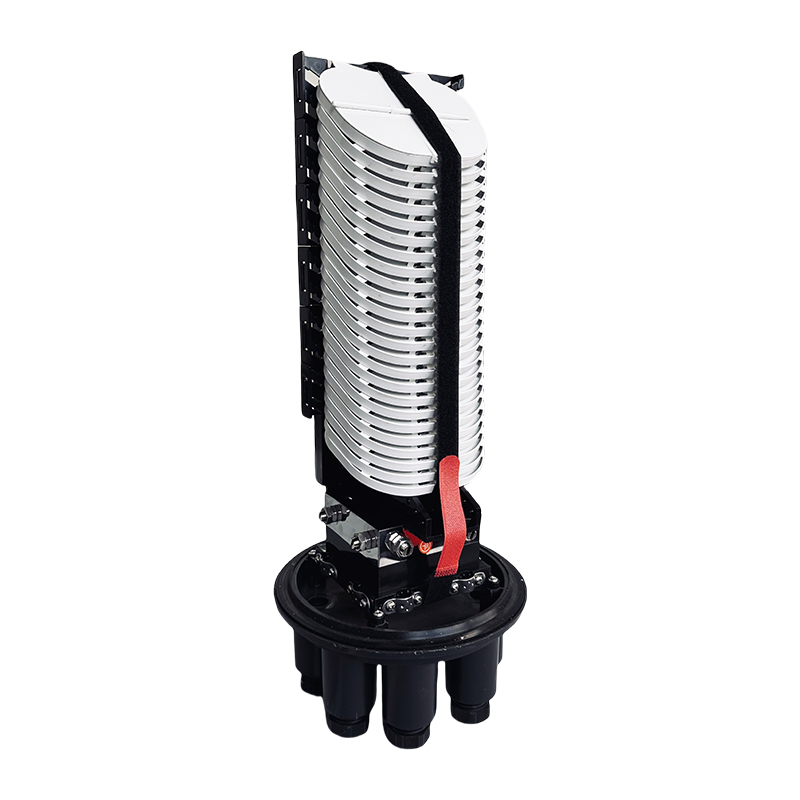

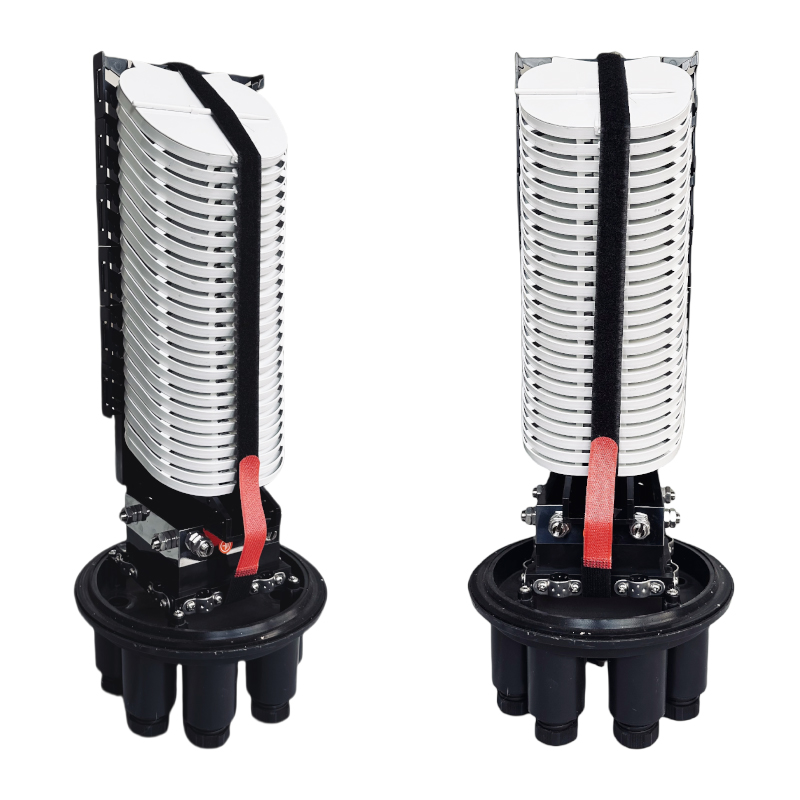

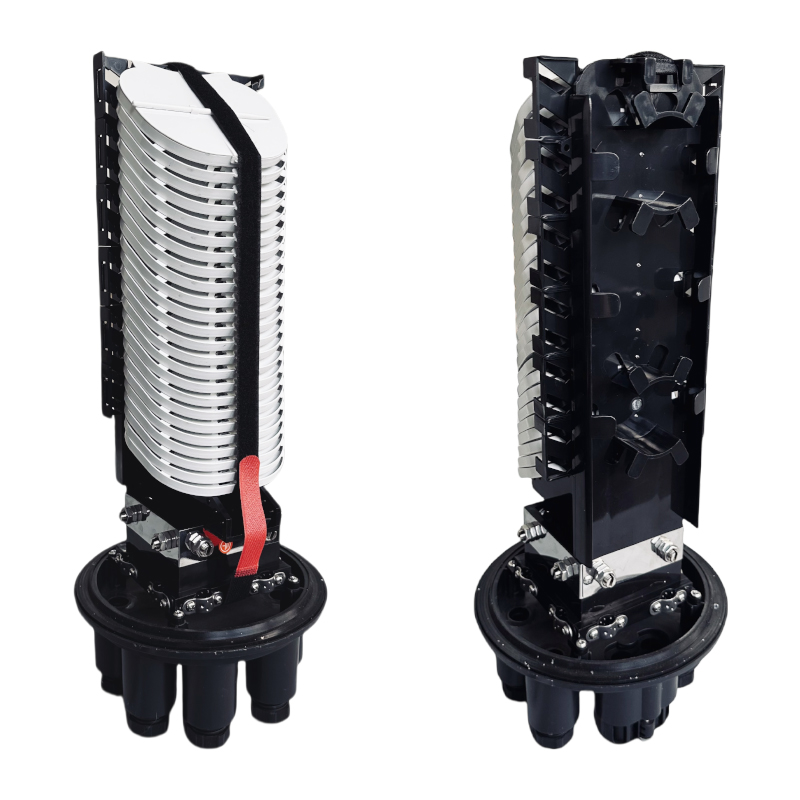

Industry-Leading Capacity: Supports 576 single-core fibers across 24 modular splice trays.
Fiber Bend Protection: Maintains >30mm bend radius to minimize signal loss during routing.
Chemical-Resistant Housing: Engineering plastic construction resists hydrolysis and corrosion.
Uncut Loop-Through Ports: Enables continuous cable runs without mid-span cuts for flexible topologies.
Mechanical Sealing System: Ensures reliable IP68 protection without gel-based sealing.
Splitter Compatibility: Accommodates 1x8 or 1x16 PLC splitters for distribution applications.
Specification
Dimensions
550 × Ø305 mm (21.7" × 12.0" dia.)
Material of Enclosure
High-quality engineering plastic
Base Sealing Method
Mechanical Seal
Cable Sealing Type

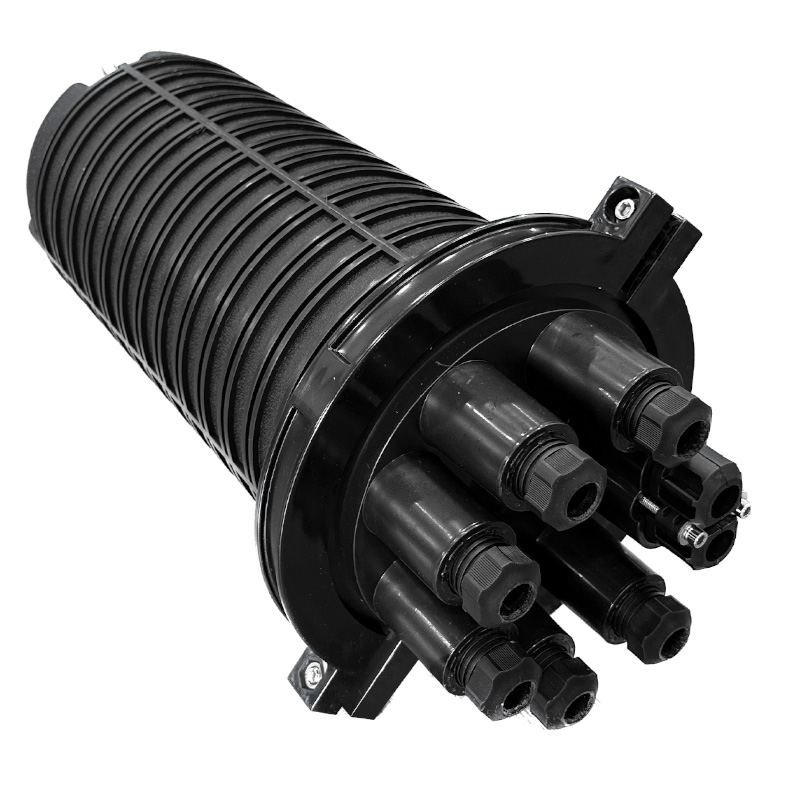

Cable Entry Ports
2 ports (Ø8-18.5 mm)
Cable Exit Ports
6 ports (Ø28 mm)
Splicing Capacity (Max)
576 Fibers (Single Core)
Splice Trays (Max)
24 Trays
Material of Trays
IP Rating
IP68
Mounting
Aerial / Pole-Mounted / Direct Buried
Packing List
