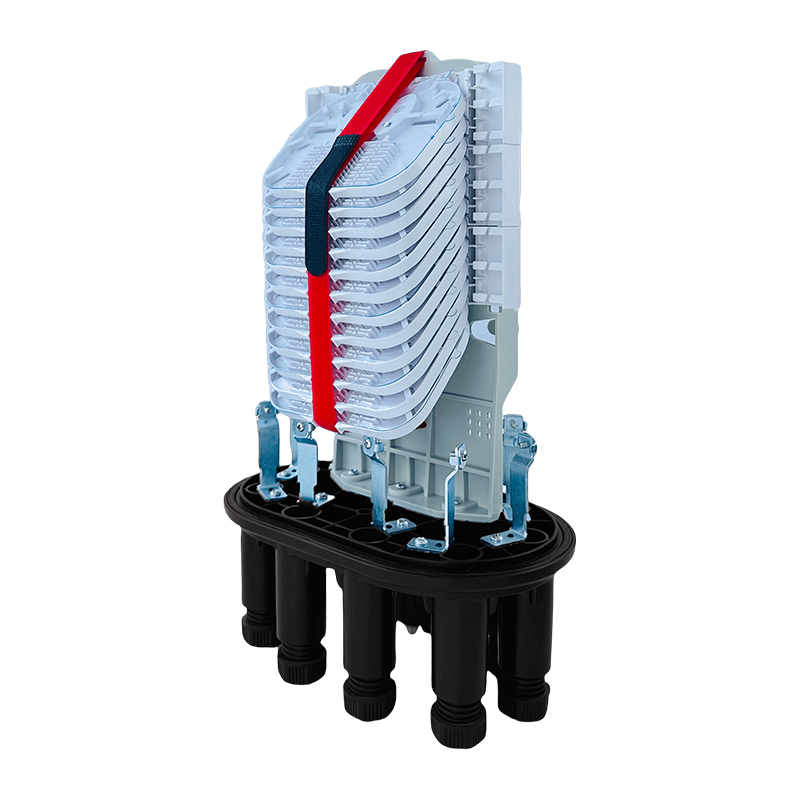

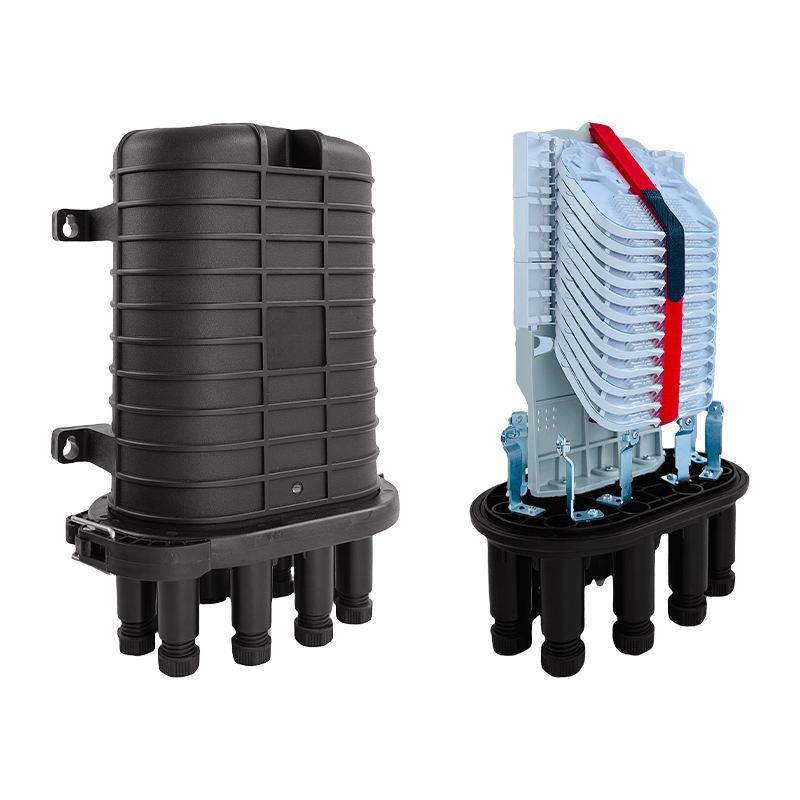

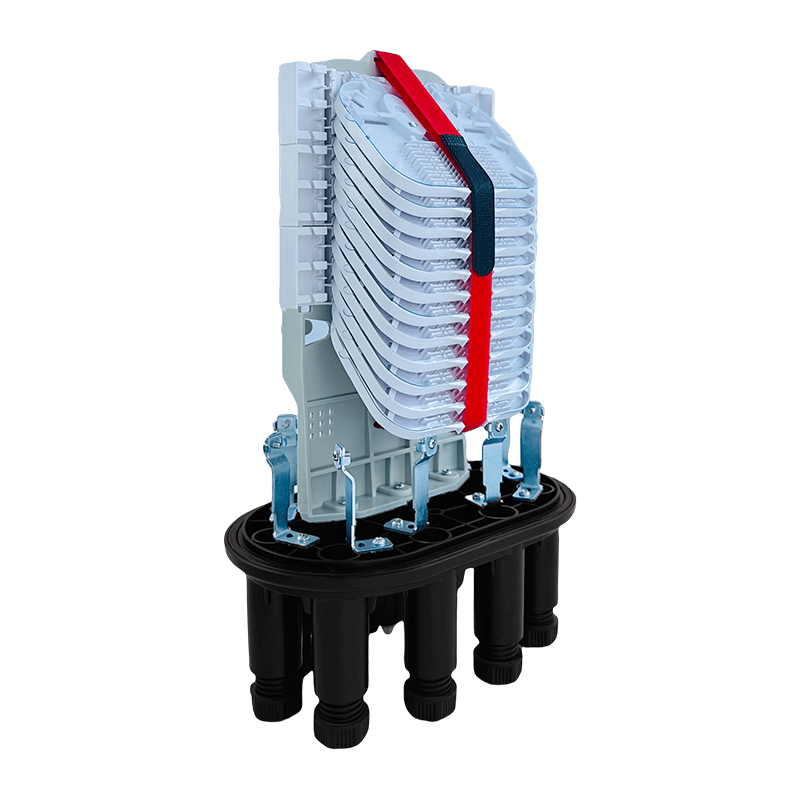

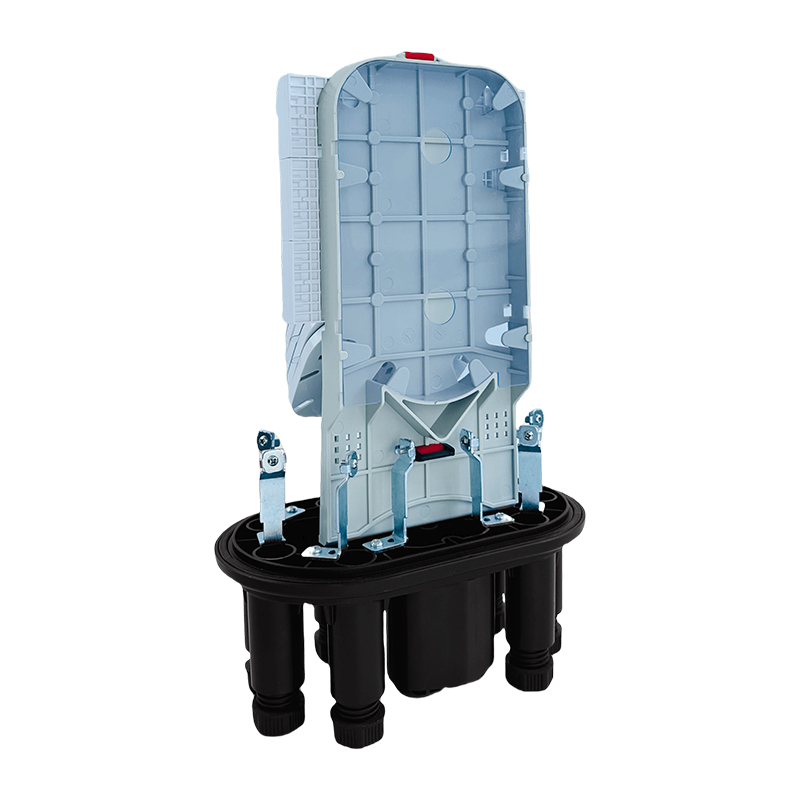

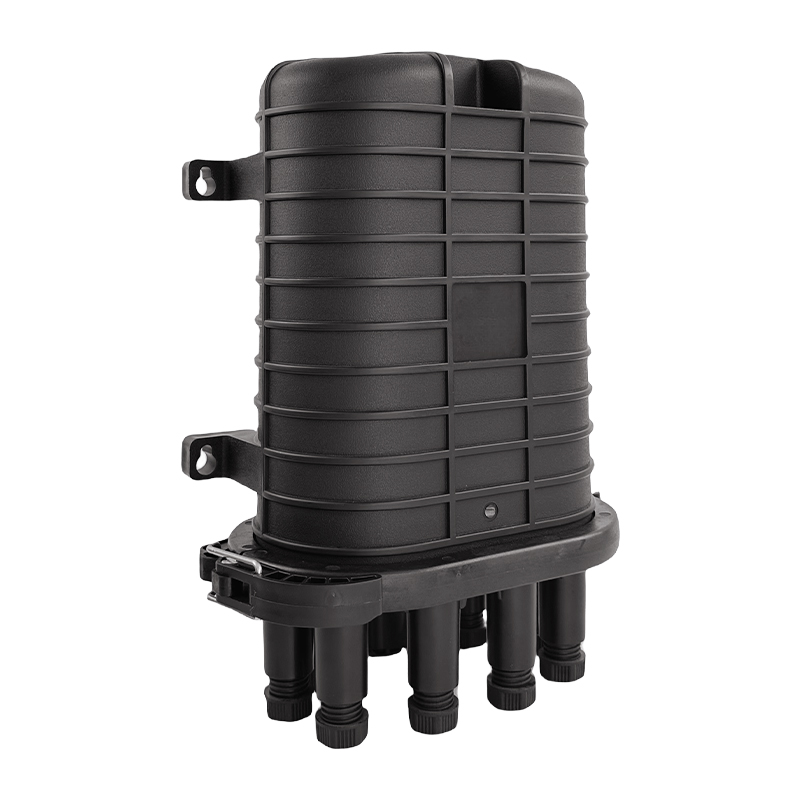

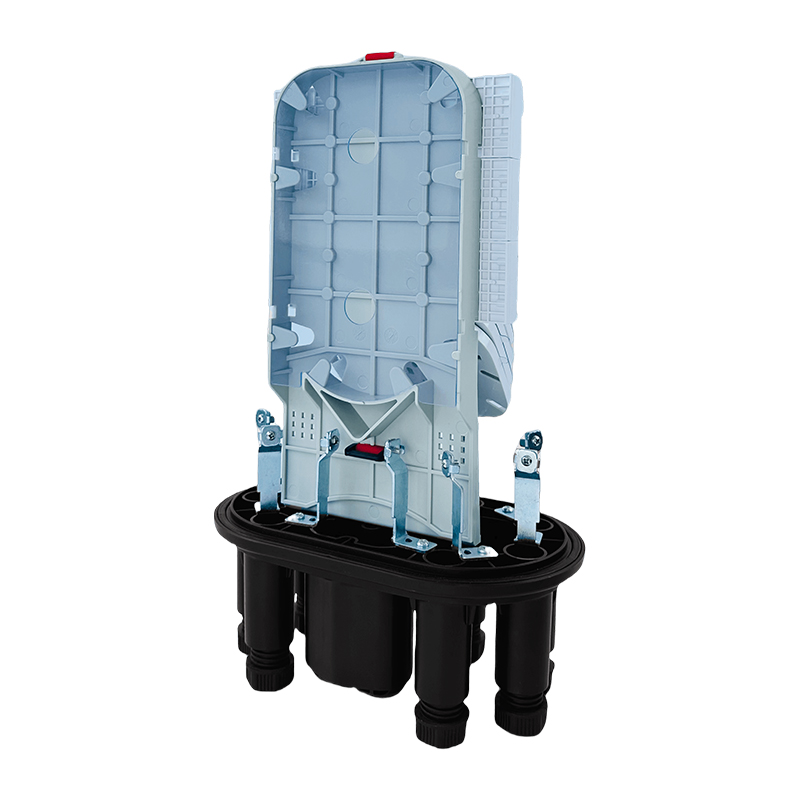

GJS-M0039 2-IN 9-OUT Mechanical Seal Dome Closure

GJS-M0039 Mechanical Seal Dome Closure

Application

Ideal for outdoor fiber optic networks requiring secure splicing and component integration in aerial, wall-mounted, or pole-mounted setups.
Supports mid-span uncut cable and branch cable connections for telecom, FTTH, and network infrastructure projects.
IP68-rated enclosure ensures reliable performance in harsh environments with water immersion and dust protection.

Capacities

Splicing Capacity: 144F
Patching Capacity: -
Splitter Capacity: -


Availability:



Inquiry Now！ Add to Basket Download Datasheet

Model:
GJS-M0039
Download:
GJS-M0039 Datasheet.pdf
Model:
GJS-M0039

Customization Options

Features & Benifits

Specification

Packing List

Documentation

Customization Options

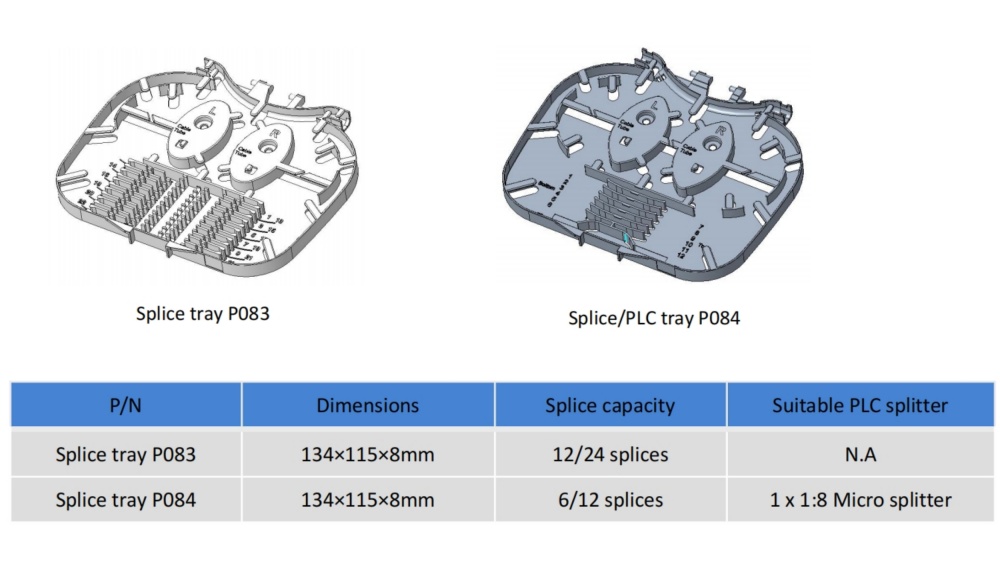

Splice Trays & Splitter Trays

Grounding Device: Add a grounding device for enhanced electrical safety in installations requiring grounding protection.

Inflating Valve: Include an inflating valve for pressure testing to verify sealing integrity in demanding environments.

Mounting Kits: Select from aerial, wall, or pole-mount kits to customize installation for specific deployment needs.

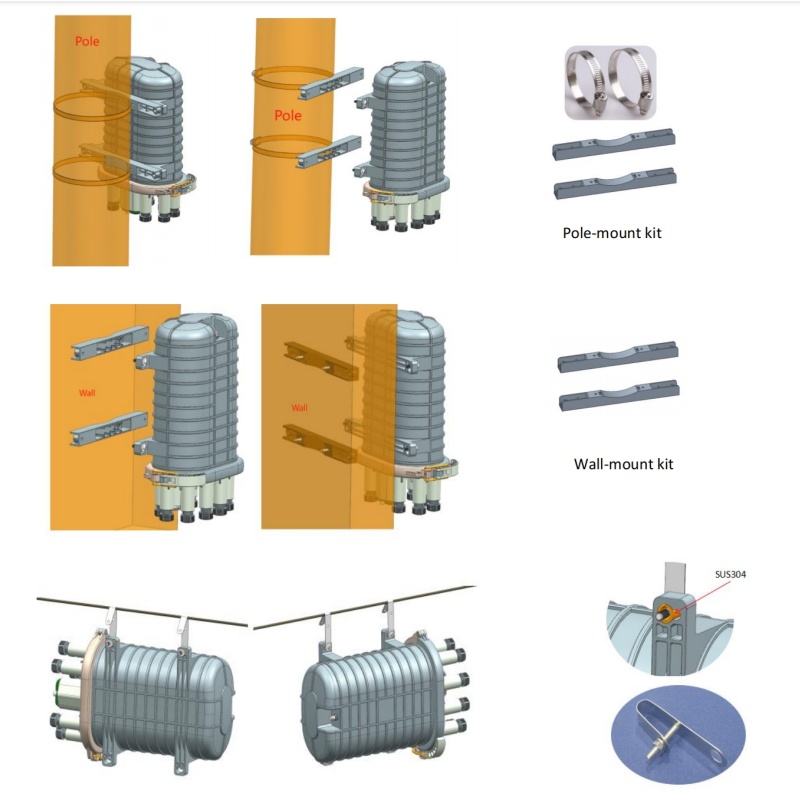

Mounting Options

Features & Benifits

Durable Construction: Reinforced PP housing with SUS 304 stainless steel components resists corrosion, UV damage, and mechanical impacts (IK10 rating).
Reliable Sealing: Mechanical nut axial compression seals provide IP68-level waterproof and dustproof protection for long-term outdoor use.
Flexible Port Configuration: 2 mid-span ports (φ16 mm) for uncut cables and 8 branch ports (φ14.5 mm) for drop cables (4×φ3–φ5.5).
High Fiber Capacity: Splice trays (P083/P084) support up to 288 fibers, with PLC splitter integration (1×1:8 micro splitter) for network expansion.
Long Service Life: 5% UV-resistant additives and -20°C to +70°C temperature tolerance ensure 20+ years of reliable operation.
Easy Installation: Versatile mounting kits (pole/wall/aerial) allow quick deployment in various field environments.
Component Protection: Internal ABS plastic trays and pressure bolt gaskets safeguard splices and passive components from environmental stress.

Specification

Part No.	GJS-M0039
Dimensions (L×W×H)	420 x 309 x 175 mm (16.54 x 12.17 x 6.89 in)
Material of Enclosure	PP+GF
Base Sealing Method	Dome-to-base clamp with O-ring
Cable Sealing Type	Mehcanical Sealing
Cable Entry Ports	2 Mid-span Ports (Ø16mm)
Cable Exit Ports	8 Round Ports (Ø14.5mm) (4-Hole Rubber Grommet for Ø3-5.5mm Drop Cables)
Splicing Capacity (Max)	288 Fibers (P083)
Splice Tray Type	P083 (Single-core)
Number of Splice Trays (Max)	12 Trays
Material of Splice Trays	ABS
IP Rating	IP68
Inflating Valve	Pre-installed (Optional)
Grounding Device	Pre-installed (Optional)
Mounting	Aerial / Wall Mount / Pole Mount / Direct-Buried

Packing List

Carton Size	65x45x38CM
Carton Capacity	4 PCS/CTN
Carton G.W.	17 KG
