Secures fiber splices in harsh environments (aerial, underground, ducts) with IP68 waterproof protection.
Supports high-density networks requiring up to 144 single-core fiber terminations.
GJS-M1446C
GJS-M1446C Datasheet.pdf
Customization Options
Grounding Device: Add a grounding device for enhanced electrical safety in installations requiring grounding protection.
Inflating Valve: Include an inflating valve for pressure testing to verify sealing integrity in demanding environments.
Mounting Kits: Select from aerial, wall, or pole-mount kits to customize installation for specific deployment needs.
Features & Benifits
Chemical-Resistant Housing: Engineered plastic with hydrolysis/UV resistance for 20+ year durability.

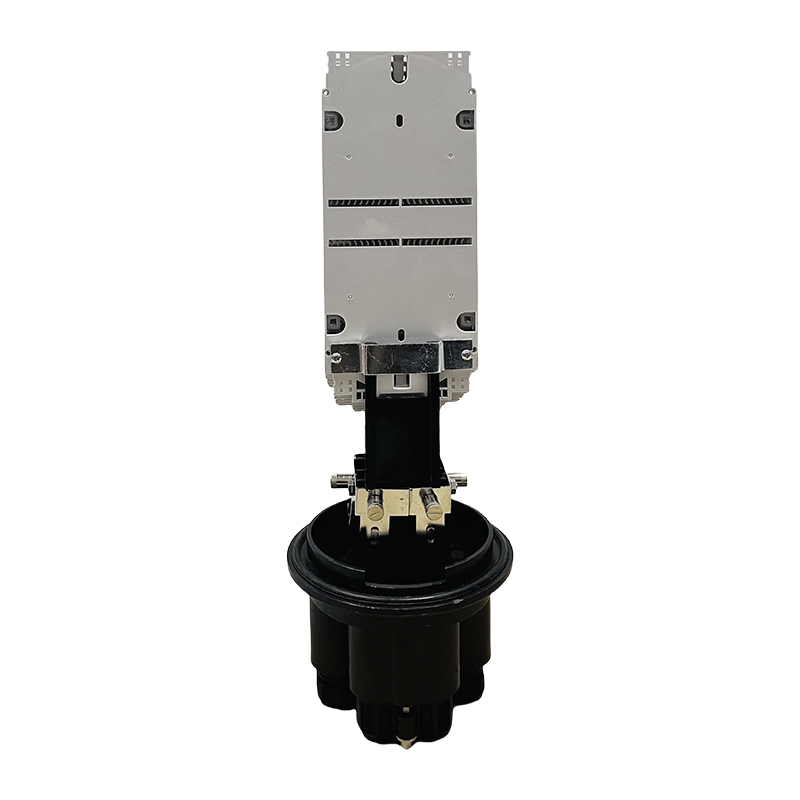

Scalable Fiber Management: Modular tray system organizes 144 fibers with bend-radius control.
Mechanical Seal Integrity: Dual-seal design (ports + base) ensures dust/waterproof IP68 compliance.

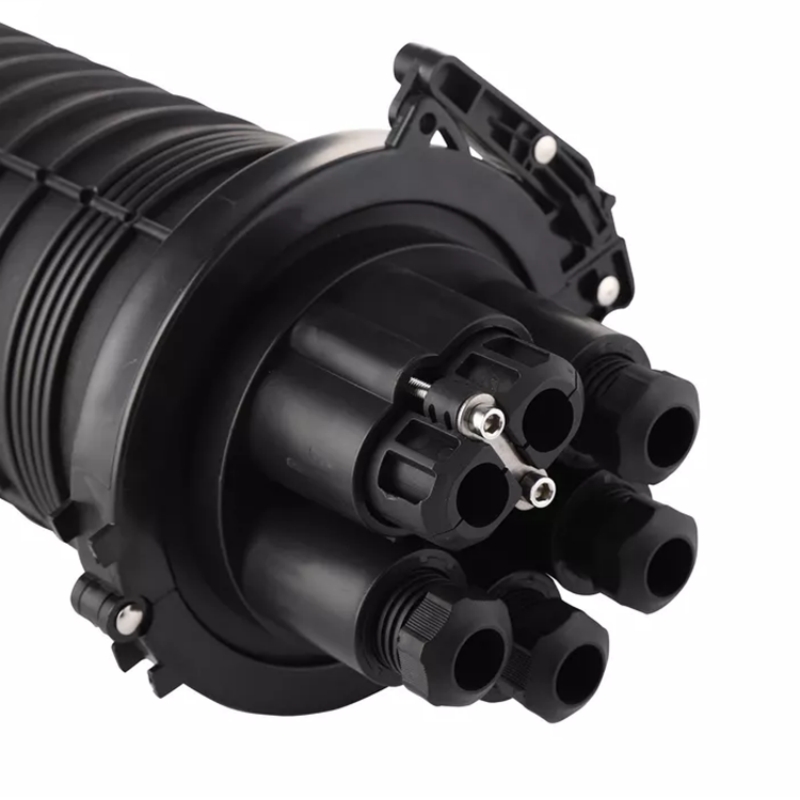

Asymmetric Port Configuration: 2× inlet (Ø12-19mm) + 4× outlet (Ø8-17mm) ports for flexible cabling.
Deployment-Ready Kit: Includes splice sleeves, tools, gaskets, and cleaning accessories.
Specification
Part No.
Dimensions
550 × Ø155 mm (21.65 × 6.1 inches)
Material of Enclosure
High-quality engineering plastic
Base Sealing Method
Mechanical seal
Cable Sealing Type
Cable Entry Ports
2 × Ø12-19mm
Cable Exit Ports
4 × Ø8-17mm
Splicing Capacity (Max)
144 FO (Single Core)
Splice Trays (Max)
6 pcs
Material of Trays
IP Rating
IP68
Mounting
Pole, Wall, Duct, Underground, Manhole
Packing List
