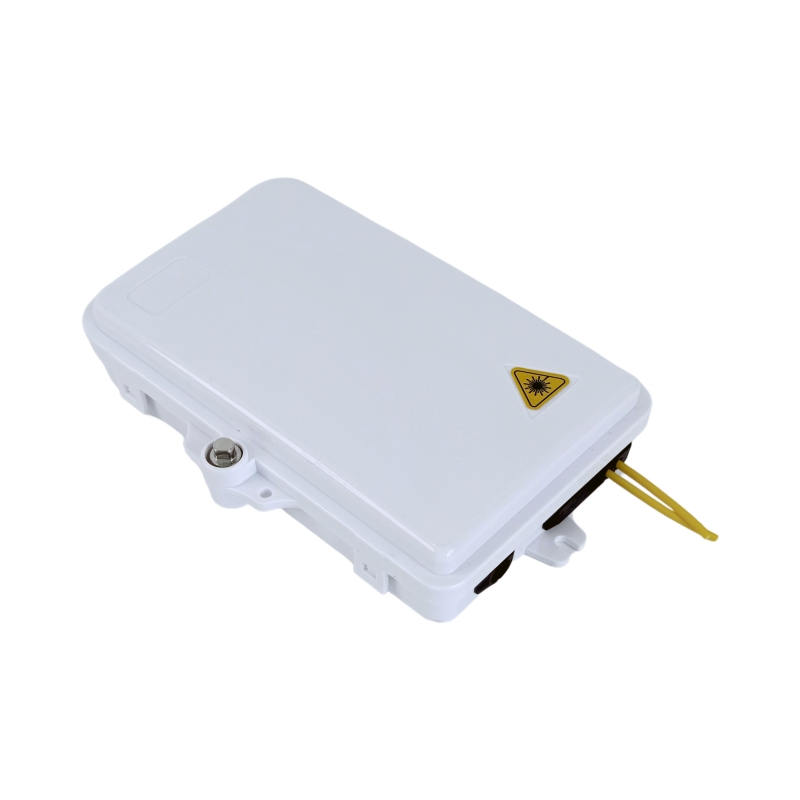

FDB-2A 2 Cores FTTH Distribution Box

Application

Designed for FTTH projects, providing mechanical protection for fiber management systems including splicing, cable fixing, and passive component integration
IP54 rated for reliable performance in both indoor and outdoor environmental conditions.

Capacities

Splicing Capacity: 4 Fibers
Patching Capacity: 2 SC Adapters
Splitter Capacity: 1×2 Micro PLC Splitter


Availability:



Inquiry Now！ Add to Basket Product Catalog

Model:
FDB-2A
Download:
FDB-2A Datasheet.pdf
Model:
FDB-2A

Comparison

Features & Benefits

Specification

Packing List

Documentation

FDB-2A / FDB-4A / FDB-6A Comparison

Feature	FDB-2A	FDB-4A	FDB-6A
Splicing Capacity	4/8 Fibers	4/8 Fibers	4/8 Fibers
Patching Capacity	2 SC Adapter	4 SC Adapter	6 SC Adapter
Splitter Slots	1×2 Micro PLC Splitter	1×4 Micro PLC Splitter	1×6 Micro PLC Splitter
Drop Cable Ports	2×Ø3mm	4×Ø3mm	6×Ø3mm

Features & Benifits

Space-saving compact design, ideal for indoor or outdoor installations
Supports both mechanical and fusion splicing for up to 6 fibers

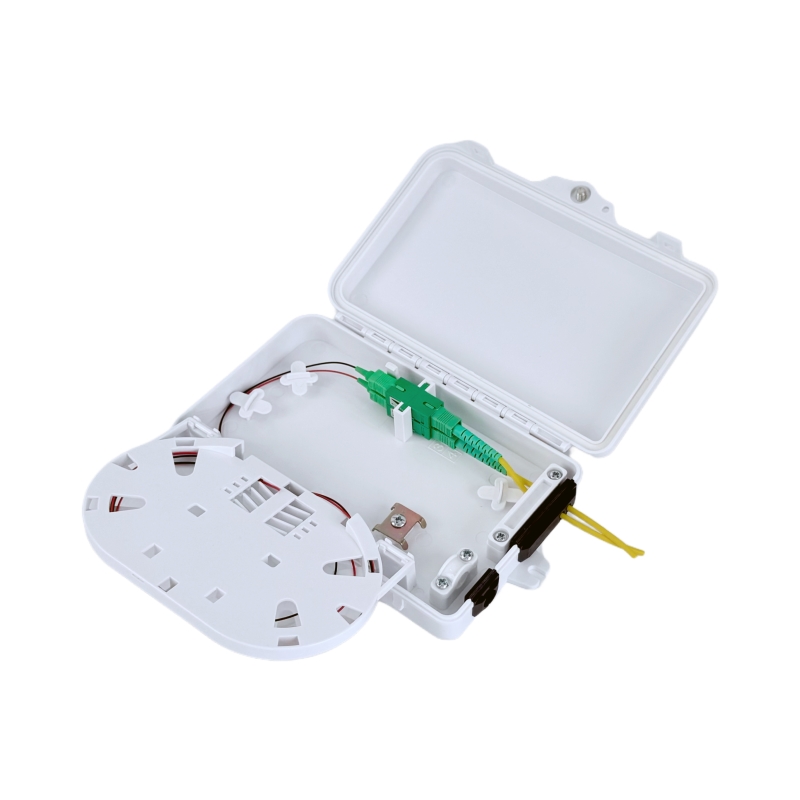

Accommodates 2 SC or duplex LC adapters and supports 1x2 micro PLC splitters
IP54 dust and water resistance ensures reliability in various environmental conditions
Open ports and reliable cable fixing devices for quick and secure cable installations

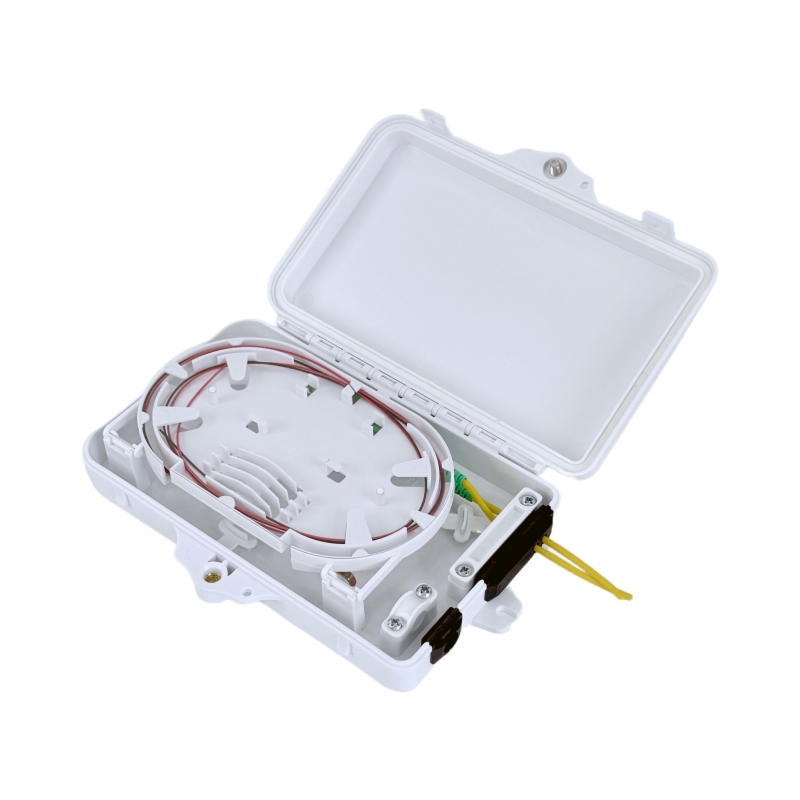

Maintains fiber bend radius greater than 30mm for efficient fiber routing and signal integrity
Wall-mountable design for flexible deployment options
Durable ABS or PC/ABS material construction for long-lasting performance

Specification

Part No.	FDB-2A
Dimensions (L×W×H)	210×135×40 mm
Housing Material	ABS or PC/ABS
Box Sealing Method	Silicone Gaskets + Snap-fit + Screw Lock
Cable Sealing Type	Grommet
Cable Entry Ports	1 × Ø7-12mm
Cable Exit Ports	4 × Ø3mm
Patching Capacity	2 SC Adapters
Splicing Capacity	4/8 Fibers (Single-core)
Max. Splice Trays	1 Tray
Tray Material	ABS
IP Rating	IP56
Mounting	Wall Mount / Pole Mount

Packing List

Carton Capacity	50 PCS/CTN
Carton G.W.	16 KG
Carton Size	44×29×58 CM

FDB-2A Datasheet.pdf

Fibermint 2025 Fiber OpticProduct Catalog.pdf
