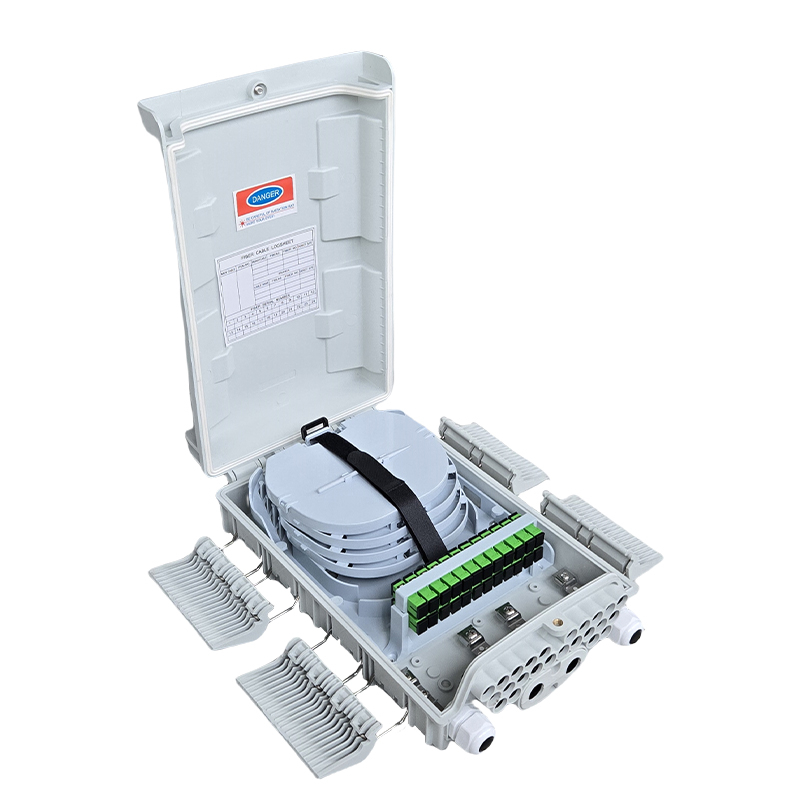

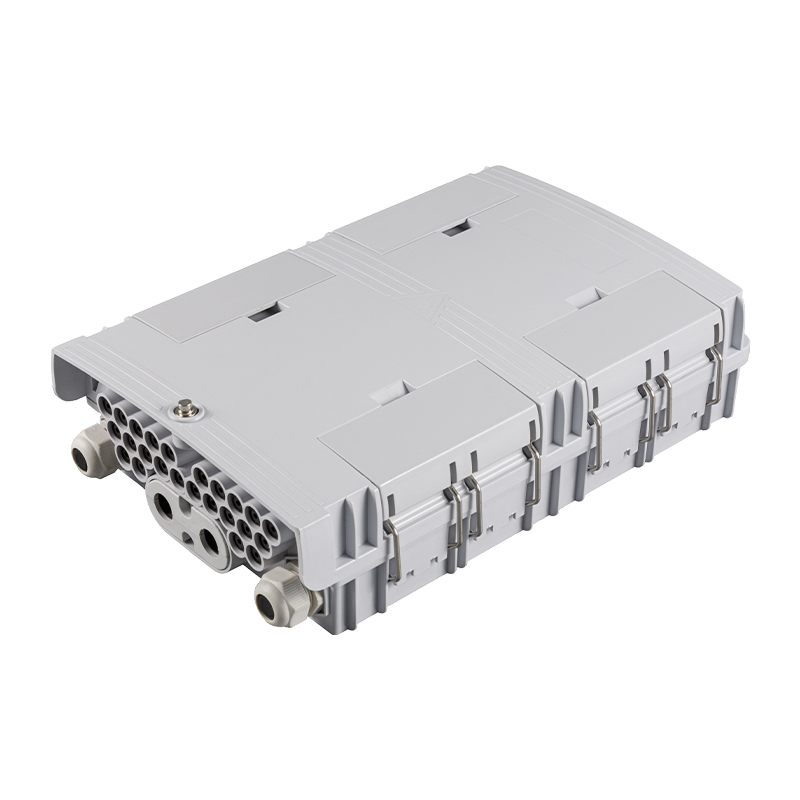

FDB-24N3
FDB-24N3
Customization Options
Mounting Kits: Select wall-mount or pole-mount kits to customize the splice box for specific installation needs (contact supplier for details).
Features & Benifits
Made from high-strength PC+ABS for long-lasting durability in harsh conditions.
Supports 24-core splicing capacity, ideal for high-density FTTx applications.
Accommodates up to 4x1:8 tube splitters for efficient signal distribution.
Special-shaped lock provides secure access and superior waterproof performance.
Independent rubber sealing plugs enhance drop cable protection against water ingress.

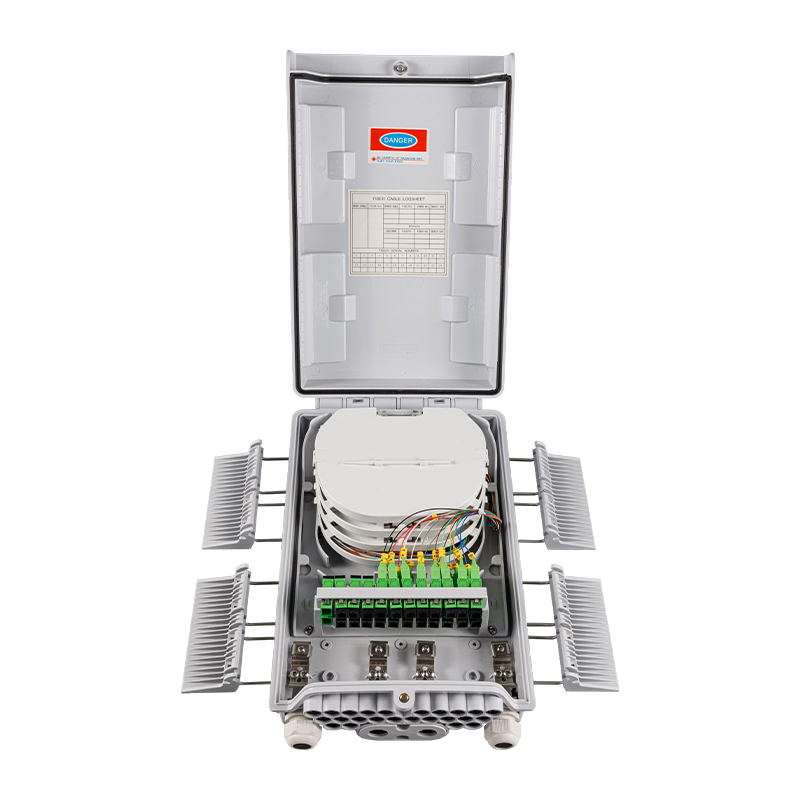

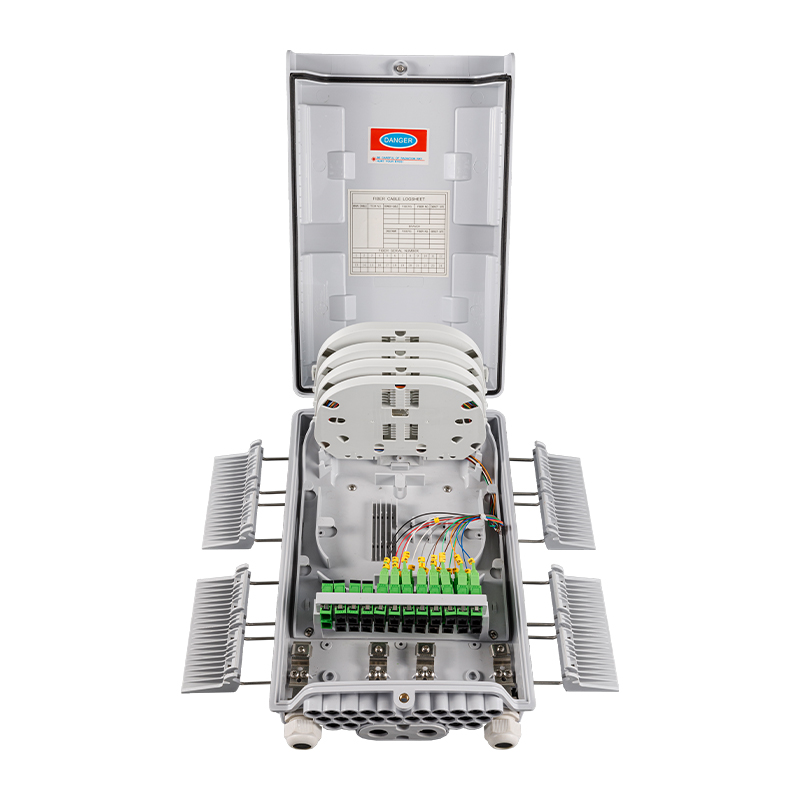

Double-page design separates fusion and termination for easy maintenance.
Compact yet spacious layout optimizes fiber management and storage.
Note: Adapters, pigtails, and splitters sold separately. Custom configurations available upon request.
Specification
Part No. | FDB-24N3 |
Dimensions (L×W×H) | 344×210×103mm |
Enclosure Material | PC+ABS |
Box Sealing Method | Silicone Gaskets + Snap-fit + Screw Lock |
Cable Sealing Type | Grommet |
Cable Entry Ports | 2 Mid-span ports × Ø15mm (for Un-cut cable) |
| Branches | 2 × PG16 |
| Cable Exit Ports | 16 Drop ports × Ø2-5mm |
Patching Capacity (Max) | 16 SC Adapters |
Splicing Capacity (Max) | 48/96 Fibers (Single-core) |
| Suitable Splitter | 1×8 or 1×16 Micro PLC Splitter |
Max Splice Trays | 4 Trays |
Tray Material | ABS |
IP Rating | IP65 |
Mounting | Wall Mount / Pole Mount |
Packing List
| Carton Size | 45×37×57 CM |
| Carton Capacity | 10 PCS/CTN |
| Carton G.W. | 21 KG |
