FDB-A3316E-1S
FDB-A3316E-1S
The A3316E Series Comparison

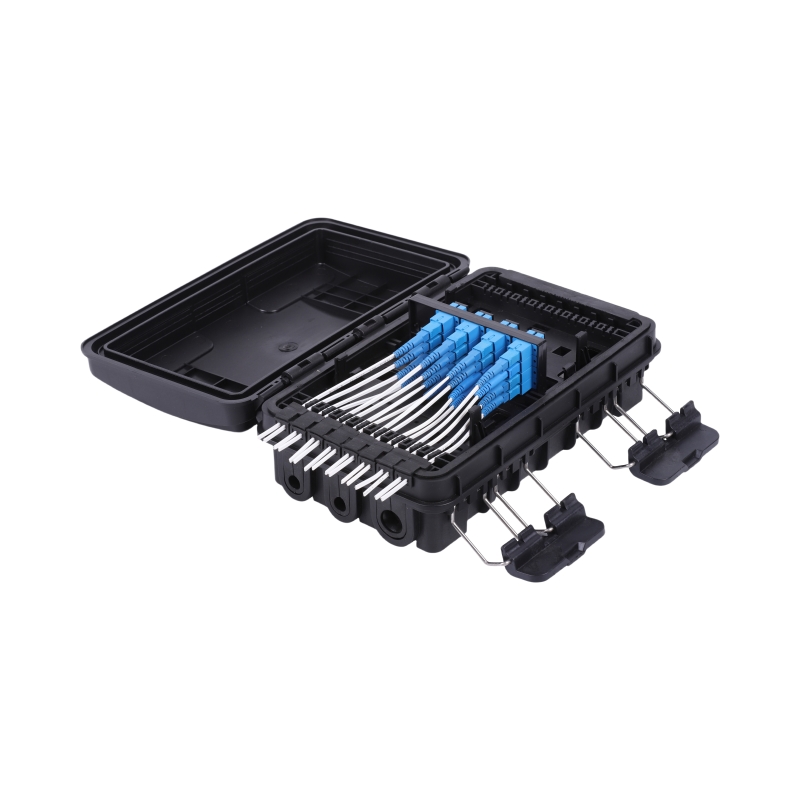

| Feature | FDB-A3316E-1S | FDB-3316E-16A |
|---|---|---|
| Picture |
|
|
| Patching Capacity | 8 SC Adapters | 16 SC Adapters |
| Suitable Splitter | 1×8 Cassette PLC Splitter | 1×8 or 1×16 Micro PLC Splitter |
Features & Benifits
Made from high-strength PC+ABS for exceptional durability and resistance to outdoor conditions.
Equipped with a 1x8 cassette PLC splitter for optimized signal distribution, replacing traditional adapter brackets.
Supports up to 16 drop cables and 16 fusion splices for efficient fiber management.
Features 1+1 and 2+2 inline ports for simplified cable entry and branching.
Dual hasp locks provide secure access while facilitating easy maintenance.
Includes aerial mounting kits for quick and reliable installation on cables or poles.
Compact design ensures efficient fiber organization in space-limited aerial applications
Note: Adapters, pigtails, and splitters sold separately. Custom configurations available upon request.
Specification
Part No. | FDB-A3316E-1S |
Dimensions (L×W×H) | 290×185×108mm |
Enclosure Material | PP +GF |
Box Sealing Method | Silicone Gaskets + Snap-fit + Screw Lock |
Cable Sealing Type | Grommet |
Cable Entry Ports | 1+1 Inline ports × Ø18mm |
| Branches | 2+2 Inline ports × Ø11.5mm |
| Cable Exit Ports | 16 Drop ports x Ø3mm |
Patching Capacity (Max) | 8 SC Adapters |
Splicing Capacity (Max) | 12/24 Fibers (Single-core) |
| Suitable Splitter | 1×8 Cassette PLC Splitter |
Max Splice Trays | 1 Tray |
Tray Material | ABS |
IP Rating | IP65 |
Mounting | Wall Mount / Pole Mount |
Packing List
| Carton Size | 68×33×43 CM |
| Carton Capacity | 10 PCS/CTN |
| Carton G.W. | 12 KG |
