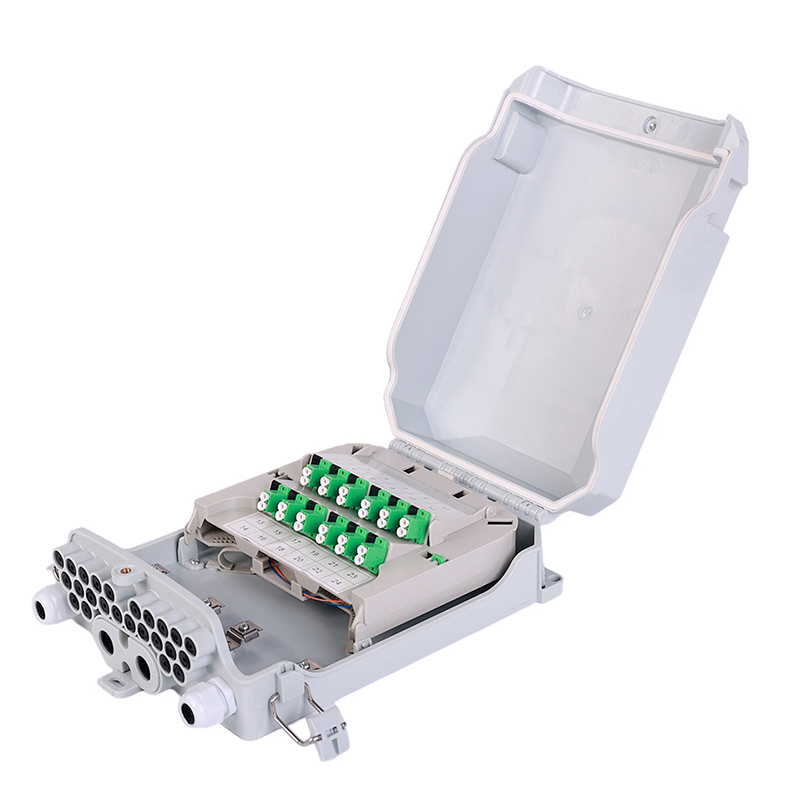

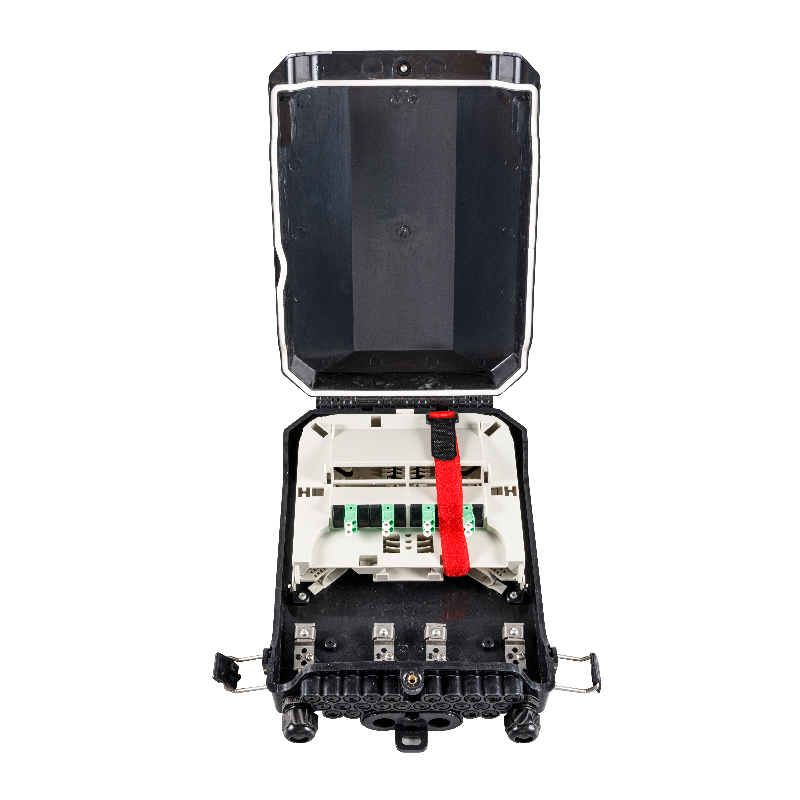

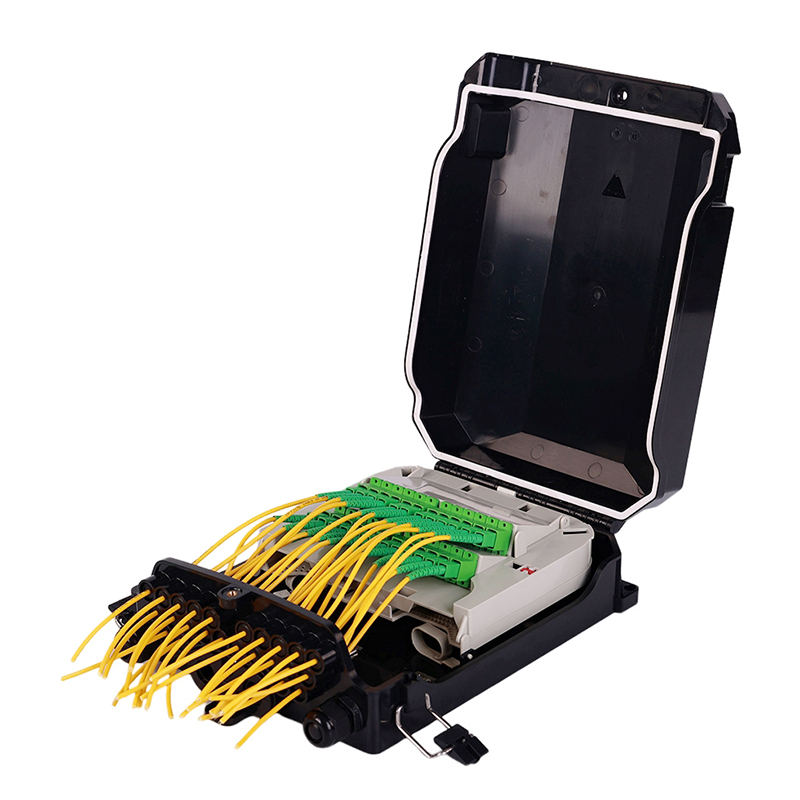

FDB-24R
FDB-24R
The 24R Series Comparison
| Feature | FDB-24R | FDB-24R2 |
|---|---|---|
| Adapter Tray |
|
|
| Splice Tray |
|
|
Features & Benifits
Built with premium engineering plastic for superior durability and environmental protection.
Supports 24 fiber splices and 24 SC-type adapters for high-density connectivity.
Accommodates micro PLC splitters (1x16 or 3x1:8) for versatile signal distribution.
Features two mid-span ports for uncut cables, enhancing network flexibility.
24 drop cable ports provide extensive connectivity options for end users.
Dual locking system (screw and hasp lock) ensures secure access and protection.
Optimized design with dedicated splice tray and fiber storage for streamlined management.
Note: Adapters, pigtails, and splitters sold separately. Custom configurations available upon request.
Specification
Part No. | FDB-24R |
Dimensions (L×W×H) | 300×214×93mm |
Enclosure Material | PC+ABS |
Box Sealing Method | Silicone Gaskets + Snap-fit + Screw Lock |
Cable Sealing Type | Grommet |
Cable Entry Ports | 2 Mid-span ports × Ø15mm (for Un-cut cable) |
| Branches | 2 × PG16 |
| Cable Exit Ports | 24 Drop ports × Ø2-4.6mm |
Patching Capacity (Max) | 24 SC Adapters |
Splicing Capacity (Max) | 12/24 Fibers (Single-core) |
| Suitable Splitter | 1×8 or 1×16 Micro PLC Splitter |
Max Splice Trays | 1 Tray |
Tray Material | ABS |
IP Rating | IP65 |
Mounting | Wall Mount / Pole Mount |
Packing List
| Carton Size | 47×32×59 CM |
| Carton Capacity | 10 PCS/CTN |
| Carton G.W. | 13 KG |
