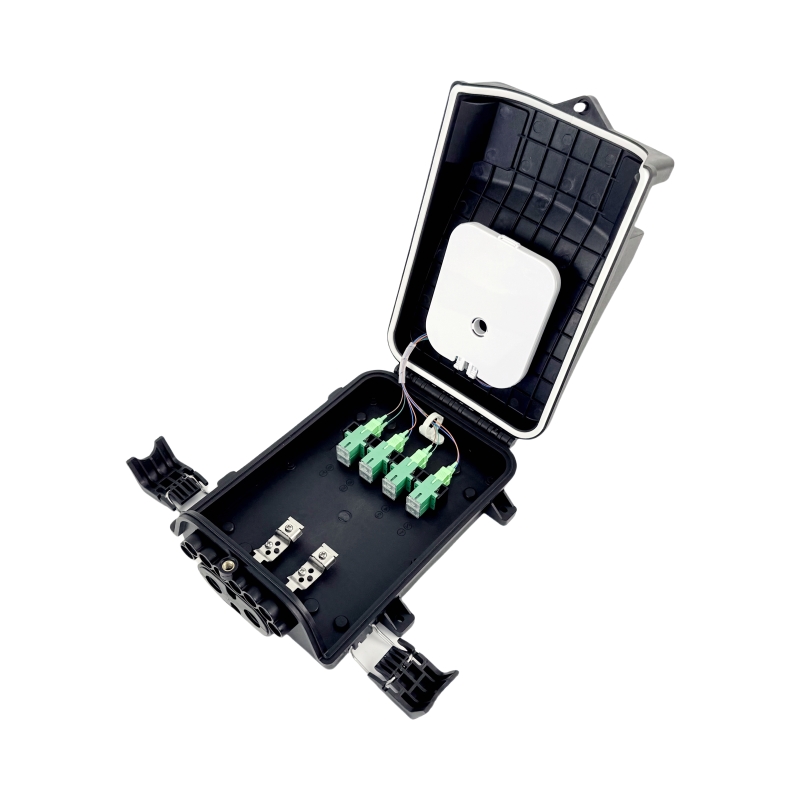

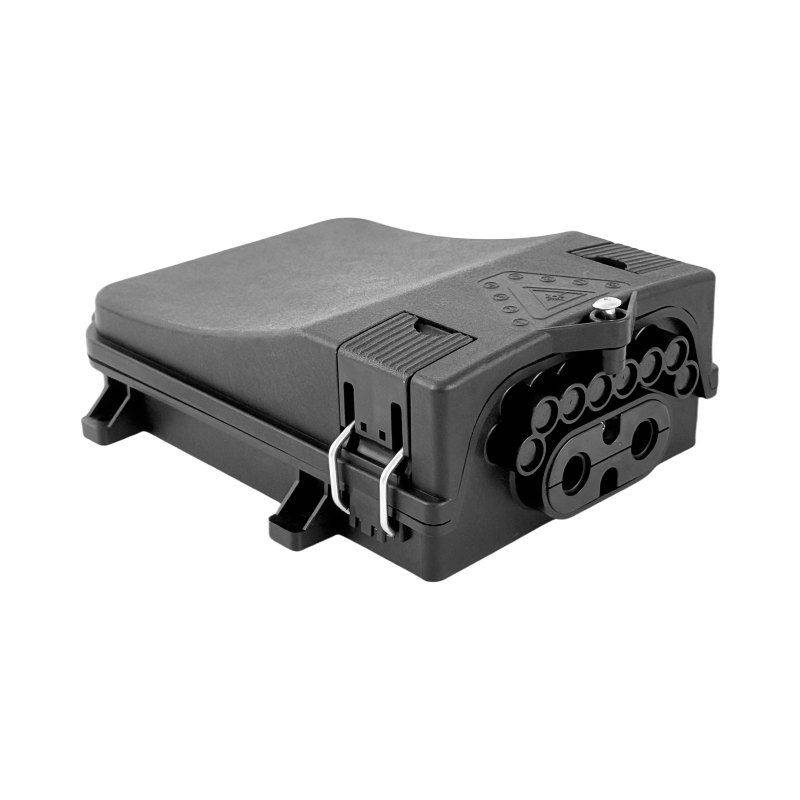

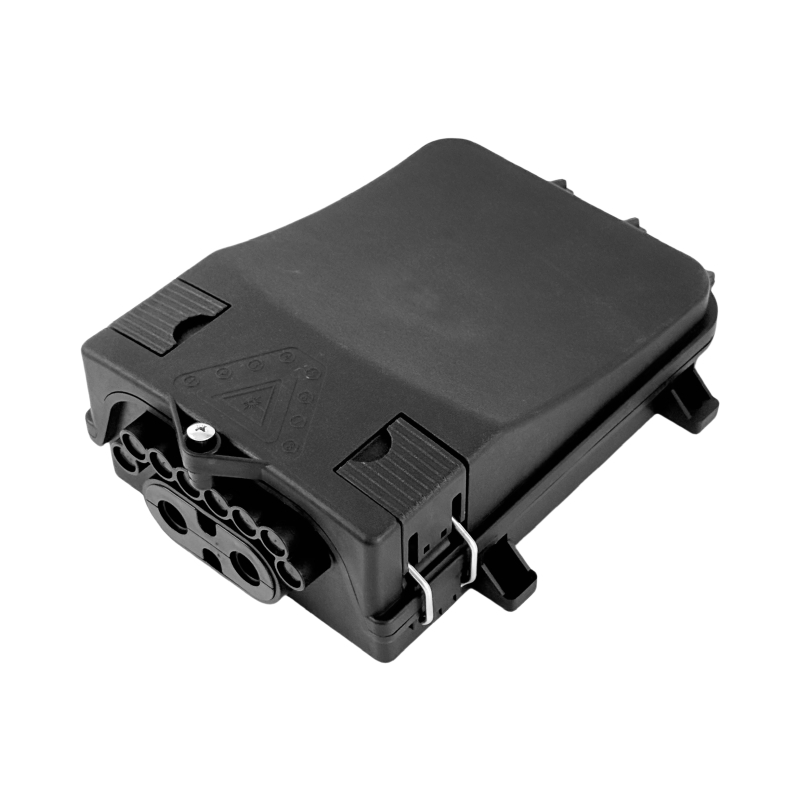

FDB-8BJ2 8-Core Compact Reliable Fiber Optic Box

Application
  • Optimized for FTTx networks, facilitating splicing, splitting, and patching for up to 8 users.
  • IP55 rating ensures dependable performance in outdoor aerial, wall, or manhole environments.
  • Supports flexible aerial, wall, or pole mounting for diverse deployment scenarios.

Capacities
  • Splicing Capacity: 12 Fibers
  • Patching Capacity: 8 SC Adapters
  • Splitter Capacity: 1×8 Micro PLC Splitter
Availability:
Inquiry Now！ Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
8BJ & 8BJ2 Comparison
Features & Benifits
Specification
Packing List
Documentation


The 8BJ & 8BJ2 Comparison


Feature FDB-8BJ FDB-8BJ2

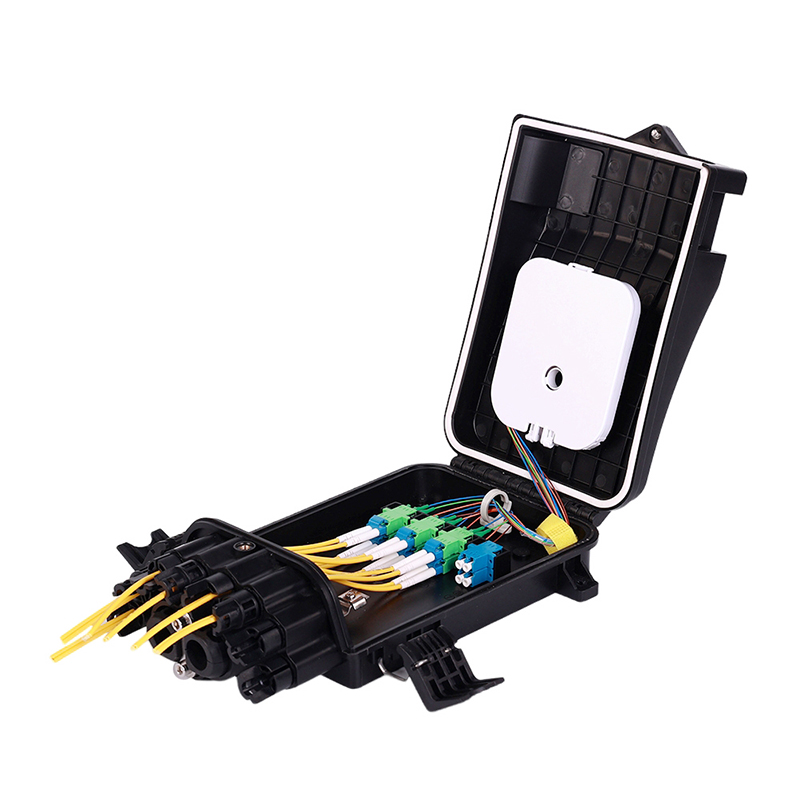

800-8BJ-3

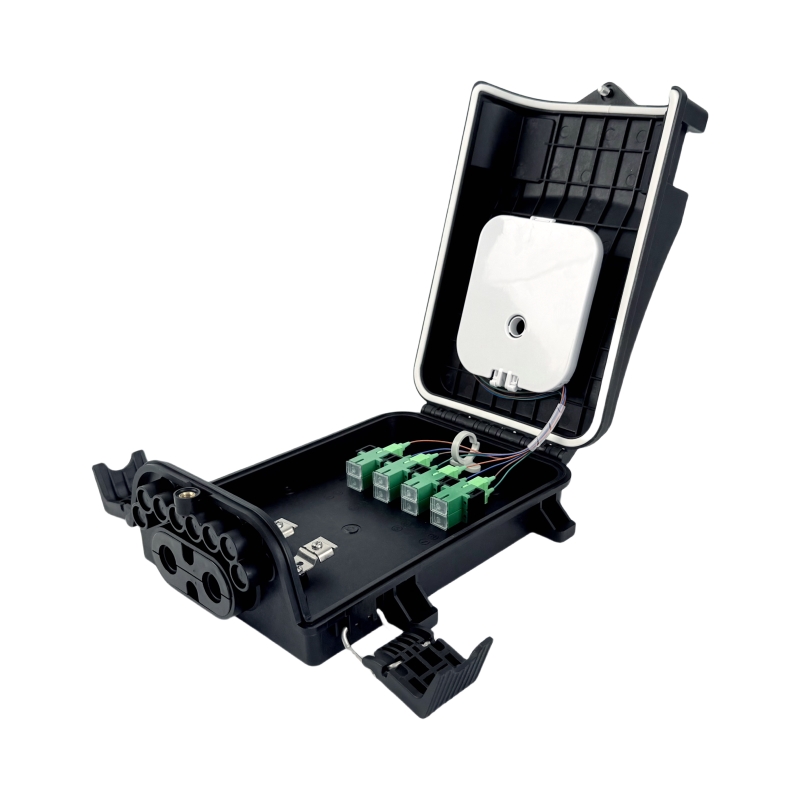

800-8BJ (1)
Enclosure Dimension
 280×185×80 mm 257×196.5×82 mm
Mid-span Ports 2 (Mid-span ports) × Ø7.5-12mm 2 × Ø14mm
Drop Cable Ports

8 × Ø6-8mm

(Or Ø3/3.5mm with changeable grommets)

 8 × Ø2-4.6mm
Patching Capacity 8 SC or LC Duplex  Adapters 8 SC Adapters
Splicing Capacity 12 Fibers 12 Fibers
Suitable Splitter 1×8 Micro PLC Splitter 1×8 Micro PLC Splitter




Features & Benifits



  • Built with high-quality CPP (PP Resin) for durability in outdoor conditions.

  • Supports 8 SC adapters for efficient and reliable fiber connections.

  • Equipped with a 1x8 micro PLC splitter for effective signal distribution.

  • Single splice tray with 12-fiber capacity ensures organized fiber management.

  • Features two mid-span ports (Ø14 mm) and eight drop ports (Ø2.0-4.6 mm) for versatile cabling.

  • Silicon rubber seals provide robust IP55 protection against dust and water.

  • Compact design simplifies installation and maintenance in space-constrained setups.


Specification


Part No.

FDB-8BJ2

Dimensions (L×W×H)

257×196.5×82 mm

Enclosure Material

CPP

Box Sealing Method

Silicone Gaskets + Snap-fit + Screw Lock

Cable Sealing Type

Grommet

Cable Entry Ports

2 (Mid-span ports) × Ø14mm

Cable Exit Ports8× (Ø2–4.6mm)

Patching Capacity (Max)

8 SC Adapters

Splicing Capacity (Max)

12 Fibers (Single-core)

Max Splice Trays

1 Tray

Tray Material

ABS

IP Rating

IP55

Mounting

Aerial / Wall / Pole Mount



Packing List


Carton Size

47×39×33 CM

Carton Capacity10 PCS/CTN
Carton G.W.15 KG


Related Products

FDB-8BJ Compact FTTH Distribution Box
FDB-8BJ Compact FTTH Distribution Box
FAT-C9PA 9-Core Plug-and-Play IP68 Fiber Optic Closure
FAT-C9PA 9-Core Plug-and-Play IP68 Fiber Optic Closure
FAT-C8PA 8-Core Waterproof Compact Fiber Optic Box
FAT-C8PA 8-Core Waterproof Compact Fiber Optic Box
FAT-C4PA 4-Core Plug-and-Play Compact Fiber Optic Box
FAT-C4PA 4-Core Plug-and-Play Compact Fiber Optic Box

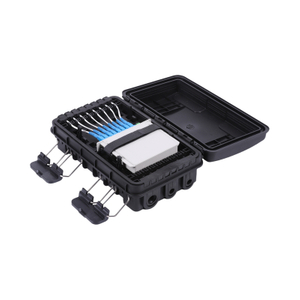

FDB-A3316E-1S 8-Core Splitter-Optimized Aerial Fiber Box
FDB-A3316E-1S 8-Core Splitter-Optimized Aerial Fiber Box
FDB-A3316E-16A 16-Core IP65 Aerial Splice Box
FDB-A3316E-16A 16-Core IP65 Aerial Splice Box

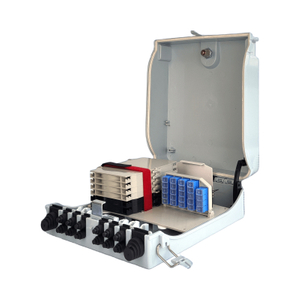

FDB-T224B-24SC 24-Core IP55 Wall/Pole Mount Fiber Box
FDB-T224B-24SC 24-Core IP55 Wall/Pole Mount Fiber Box

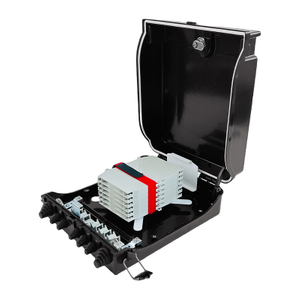

FDB-T224C-144F 144-Core IP55 Fiber Terminal Box
FDB-T224C-144F 144-Core IP55 Fiber Terminal Box

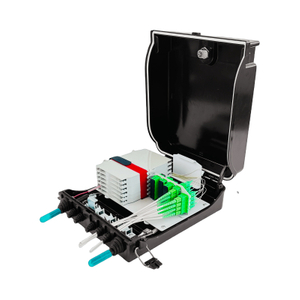

FDB-T224C-24SC 24-Core IP55 Fiber Distribution Box
FDB-T224C-24SC 24-Core IP55 Fiber Distribution Box

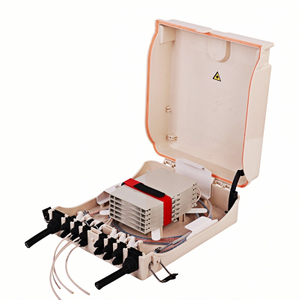

FDB-T224B-144F 144-Core IP54 Fiber Terminal Box
