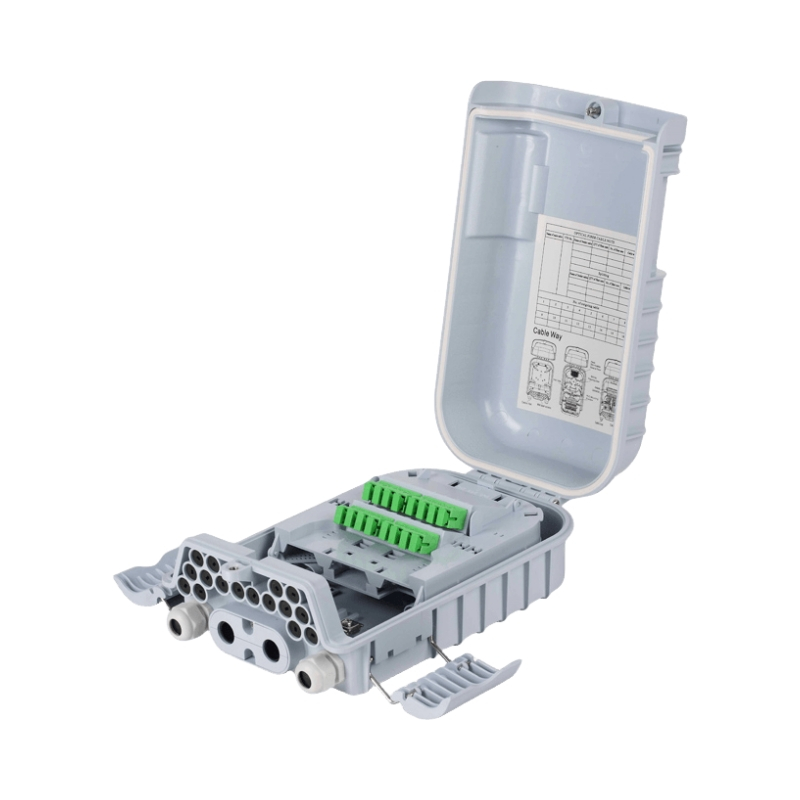

FDB-16Q2-16A
FDB-16Q2-16A Datasheet.pdf
The 16Q Series Comparison
Features & Benifits

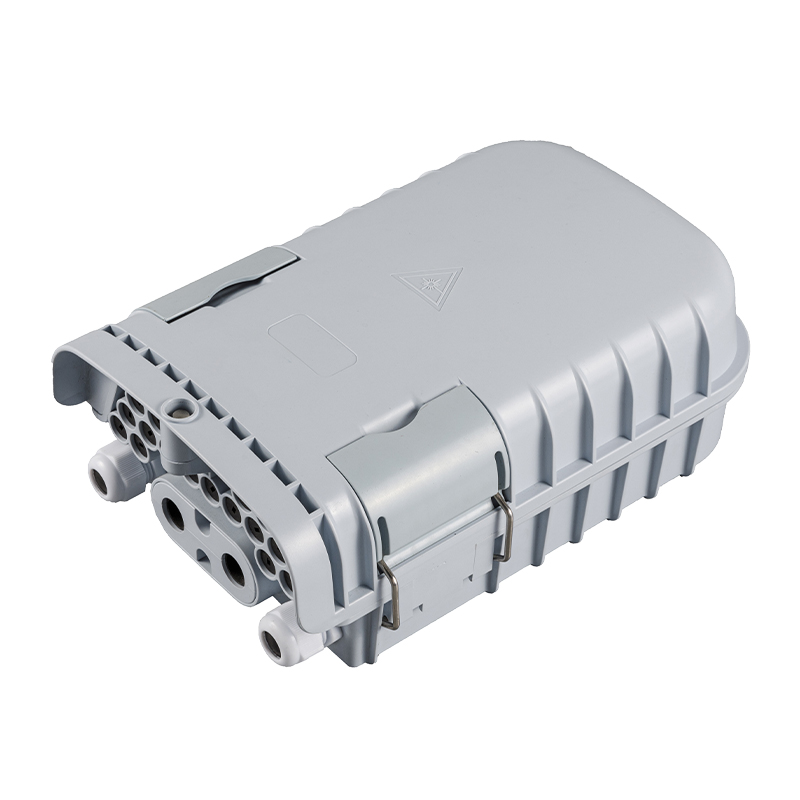

Constructed from high-grade engineering plastic for exceptional durability and weather resistance.

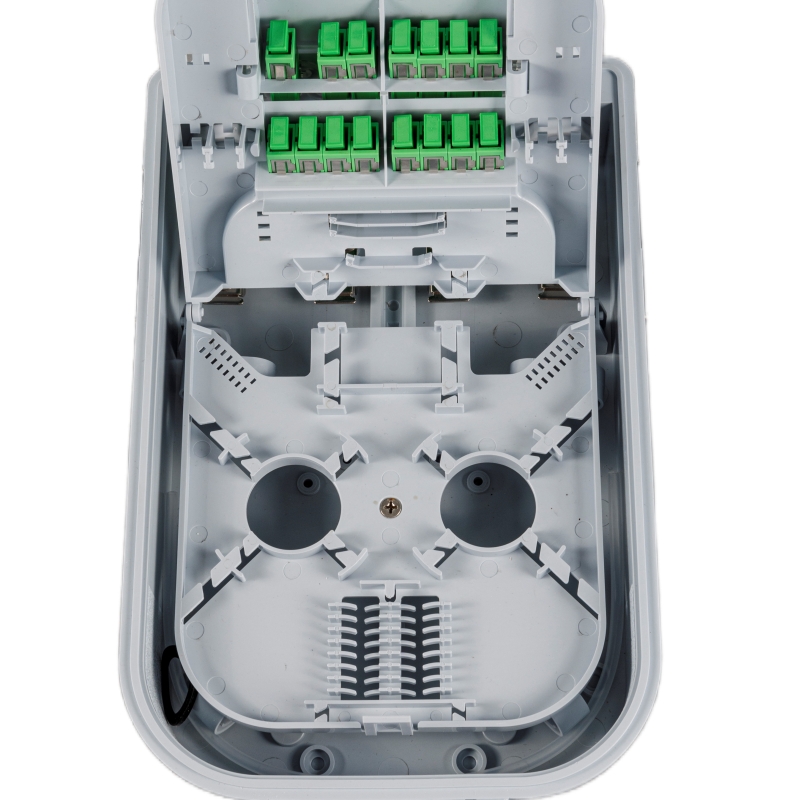

Single splice tray supports 8 or 16 fiber splices, offering configuration flexibility.

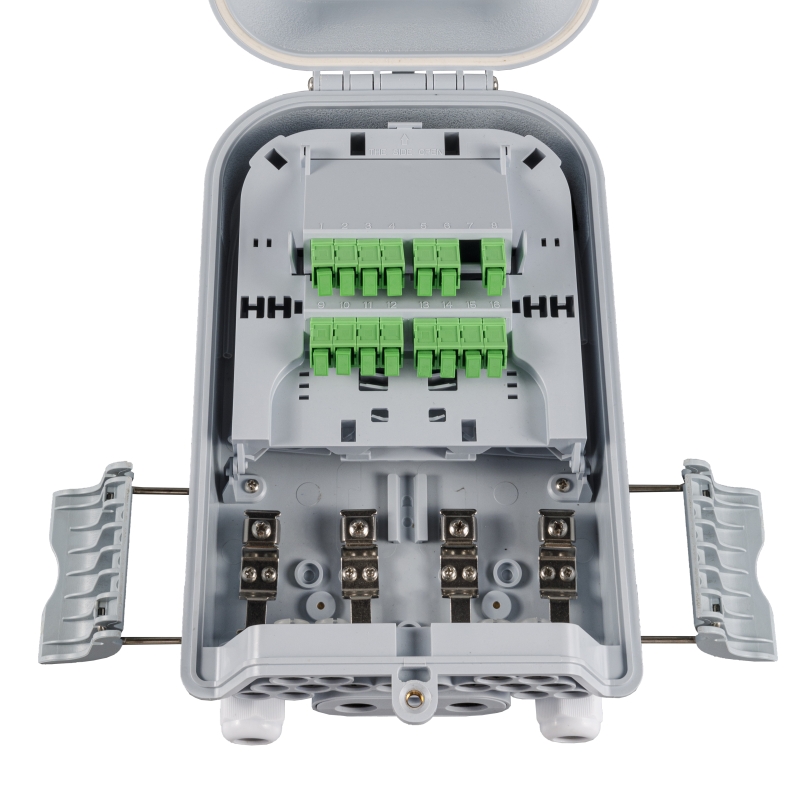

Adapter tray accommodates up to 16 SC adapters for high-capacity connectivity.
Mid-span port enables loop-through cable configurations for enhanced network flexibility.
IP65-rated enclosure protects against dust and water, ensuring long-term reliability.
Lightweight and compact design simplifies installation in constrained spaces.
Versatile mounting options (wall or pole) adapt to diverse installation requirements.
Note: Adapters, pigtails, and splitters sold separately. Custom configurations available upon request.
Specification
Part No.
Dimensions (L×W×H)
288×172×103mm
Enclosure Material
PC+ABS
Box Sealing Method
Silicone Gaskets + Snap-fit + Screw Lock
Cable Sealing Type
Grommet

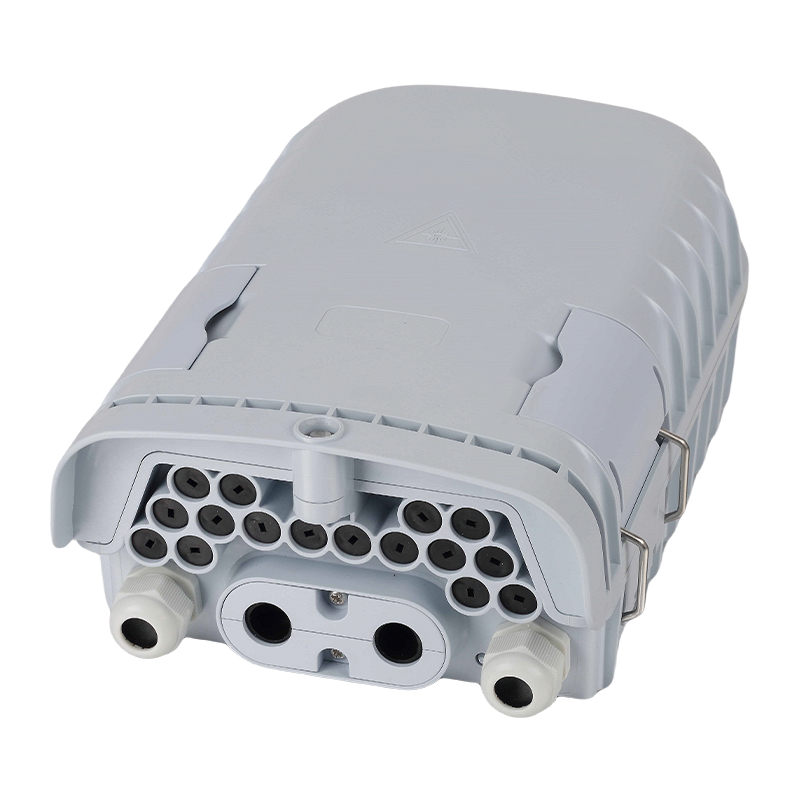

Cable Entry Ports
16 Drop ports × Ø2-4.6mm
Patching Capacity (Max)
Splicing Capacity (Max)
Max Splice Trays
1 Tray
Tray Material
ABS
IP Rating
IP65
Mounting
Wall Mount / Pole Mount
Packing List
62×41×35 CM
