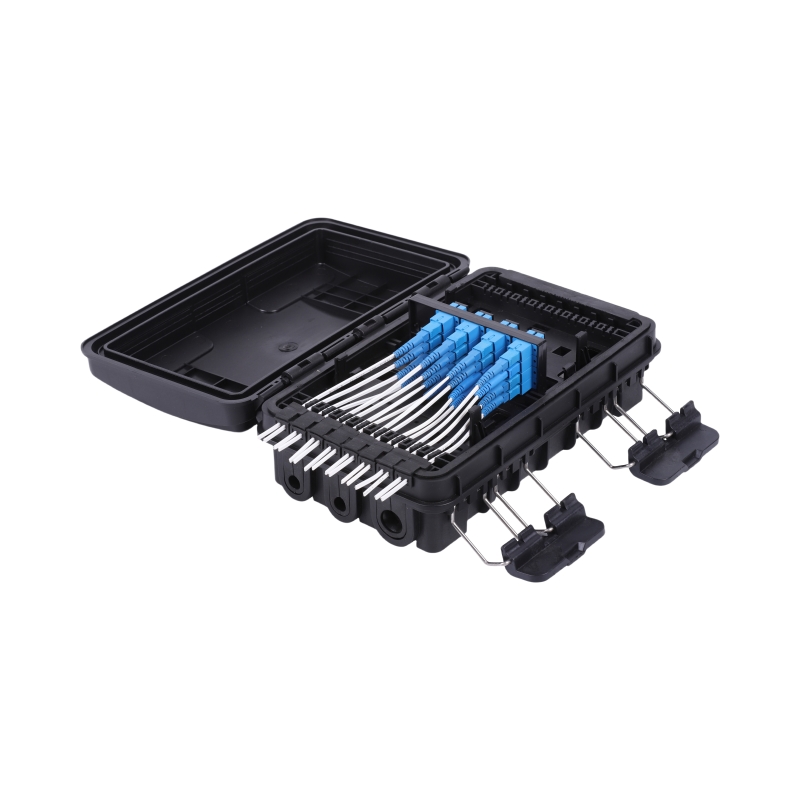

FDB-A3316E-16A
FDB-A3316E-16A
The A3316E Series Comparison
| Feature | FDB-A3316E-1S | FDB-3316E-16A |
|---|---|---|
| Picture |
|
|
| Patching Capacity | 8 SC Adapters | 16 SC Adapters |
| Suitable Splitter | 1×8 Cassette PLC Splitter | 1×8 or 1×16 Micro PLC Splitter |
Features & Benifits
Robust Engineering Plastic: Built with high-strength engineering plastic for durability in outdoor conditions.
IP65 Weather Protection: Shields against dust and water ingress, ensuring long-term reliability in harsh environments.
16-Core Fiber Management: Supports up to 16 SC adapters and 16 drop cables for efficient connectivity.
Compact 2-In-16-Out Ports: Features 2 entry ports and 16 drop cable ports for optimized cable organization.
Secure and Accessible Design: Includes two hasp locks for secure closure and easy maintenance access.
Aerial Installation Ready: Comes with 2 aerial kits for quick setup on steel cables or poles.
Complete Accessory Kit: Includes 10 nylon cable ties (3×100 mm), 8 or 16 splice sleeves (1.2/60 mm), 1 buffer tube (500 mm), and 6 metal clamps for comprehensive fiber management.
Note: Adapters, pigtails, and splitters sold separately. Custom configurations available upon request.
Specification
Part No. | FDB-A3316E-16A |
Dimensions (L×W×H) | 290×185×108mm |
Enclosure Material | PC+ABS or PP +GF |
Box Sealing Method | Silicone Gaskets + Snap-fit + Screw Lock |
Cable Sealing Type | Grommet |
Cable Entry Ports | 1+1 Inline ports × Ø18mm |
| Branches | 2+2 Inline ports × Ø11.5mm |
| Cable Exit Ports | 16 Drop ports x Ø3mm |
Patching Capacity (Max) | 16 SC Adapters |
Splicing Capacity (Max) | 12/24 Fibers (Single-core) |
| Suitable Splitter | 1×8 or 1×16 Micro PLC Splitter |
Max Splice Trays | 1 Tray |
Tray Material | ABS |
IP Rating | IP65 |
Mounting | Wall Mount / Pole Mount |
Packing List
| Carton Size | 68×33×43 CM |
| Carton Capacity | 10 PCS/CTN |
| Carton G.W. | 12 KG |
