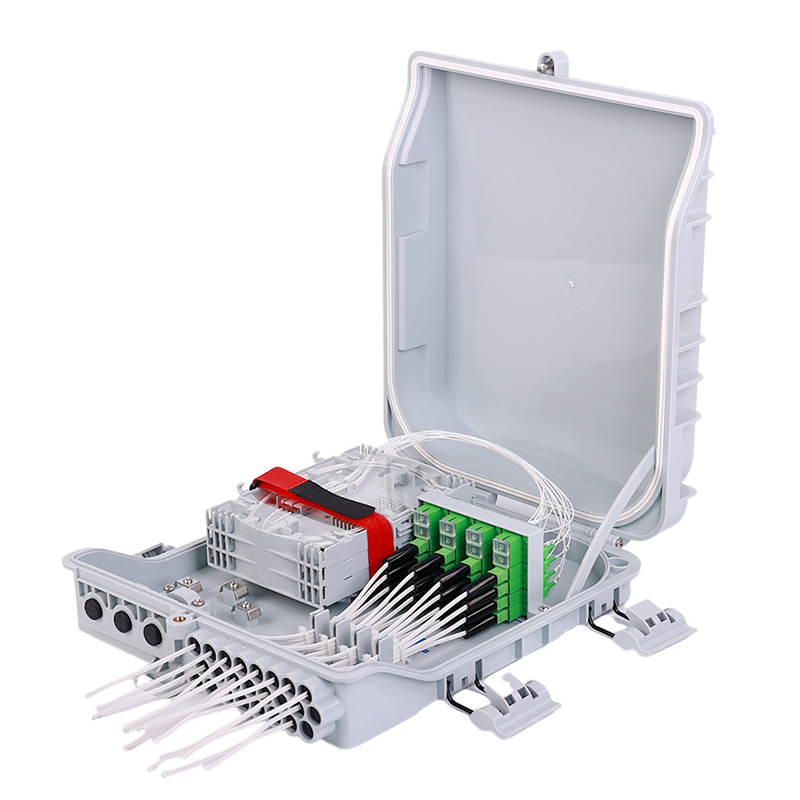

FDB-24Z
FDB-24Z
Customization Options
Color: Choose from gray (default) or other customizable colors to match aesthetic or branding requirements (contact supplier for options).
Splitter Configuration: Choose 1:8 or 1:16 micro PLC splitters module per tray to optimize network distribution for project requirements.
Wall / Pole-Mounting Kit: Include a pole-mounting kit with clamps and support frame for pole-mounted installations, tailored to specific deployment scenarios.
Features & Benifits
Built with high-quality PC+ABS or ABS for superior durability and weather resistance.

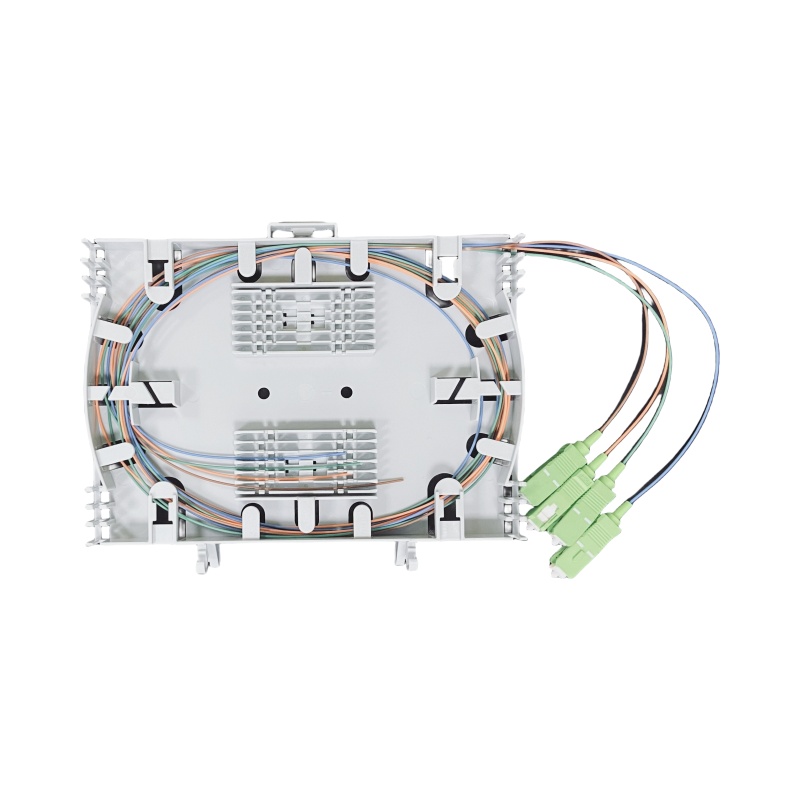

Three splice trays support up to 72 fiber splices for high-capacity applications.
Accommodates 24 SC adapters for extensive connectivity options.

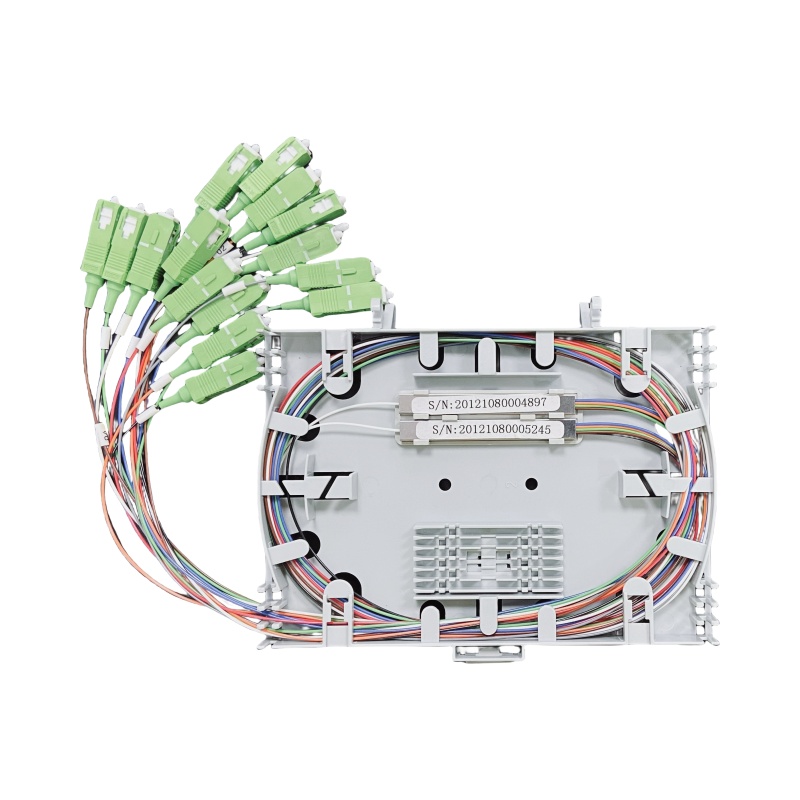

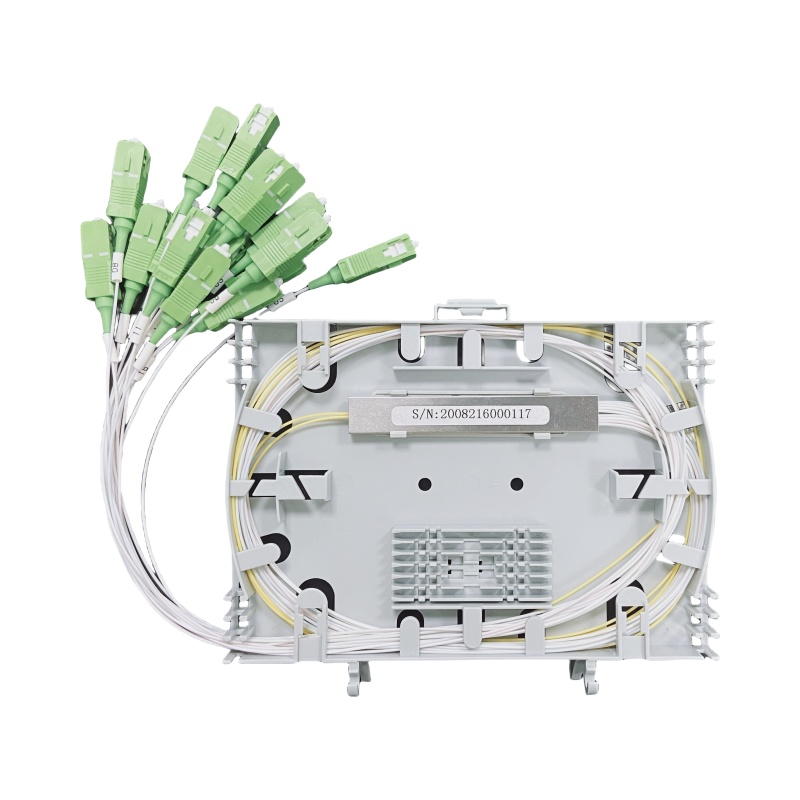

Compatible with 1x8 or 1x16 micro PLC splitters for efficient signal distribution.
Integrated splice cassette and cable management rods ensure organized fiber routing.
Maintains fiber bend radius (>40mm) for optimal signal integrity.
Designed for easy maintenance and scalability with efficient cable management.
Note: Adapters, pigtails, and splitters sold separately. Custom configurations available upon request.
Specification
Part No. | FDB-24Z |
Dimensions (L×W×H) | 328×261×85mm |
Enclosure Material | PC+ABS |
Box Sealing Method | Silicone Gaskets + Snap-fit + Screw Lock |
Cable Sealing Type | Grommet |
Cable Entry Ports | 3 Mid-span ports × Ø15mm (for Un-cut cable) |
| Cable Exit Ports | 24 Drop ports × Ø2-10mm |
Patching Capacity (Max) | 24 SC Adapters |
Splicing Capacity (Max) | 36/72 Fibers (Single-core) |
| Suitable Splitter | 1×8 or 1×16 Micro PLC Splitter |
Max Splice Trays | 3 Trays |
Tray Material | ABS |
IP Rating | IP65 |
Mounting | Wall Mount / Pole Mount |
Packing List
| Carton Size | 48×35×57 CM |
| Carton Capacity | 10 PCS/CTN |
| Carton G.W. | 17 KG |
