Perfect for FTTH networks requiring efficient termination and distribution of main cables (φ7.5–15mm) to drop cables (φ6–8mm). Suitable for wall or pole mounting in residential buildings, commercial areas, or outdoor utility sites, operating reliably in temperatures from -20℃ to +65℃.

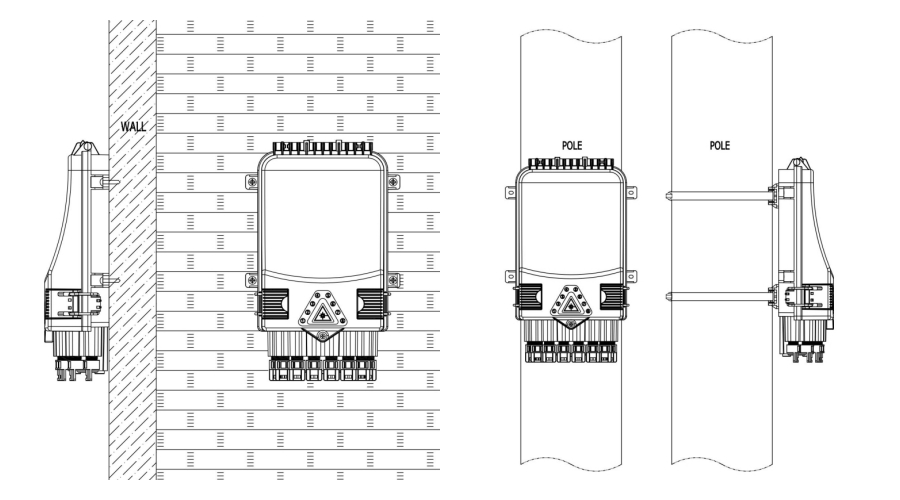

Mounting Kits: Select wall-mount or pole-mount kits to customize the splice box for specific installation needs (contact supplier for details).
Features & Benifits
Space-Saving Design: Compact 280×185×80mm size fits tight spaces, making it ideal for urban or constrained installations.
Versatile Port Options: 2 main ports (φ7.5–15mm) handle diverse cable sizes, while 8 drop ports with interchangeable grommets support single or duplex LC cables.
Easy Installation: Hasp locks enable tool-free access; included wrenches simplify port sealing and cable securing, reducing setup time.

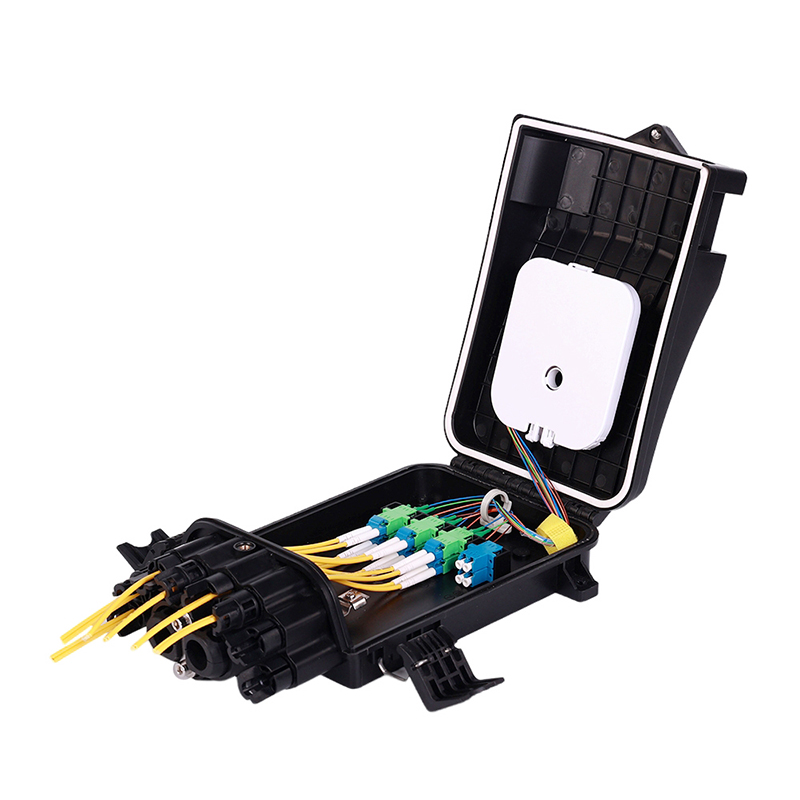

Organized Fiber Management: Plastic and Velcro loop rings keep fibers neatly routed, maintaining bend radius to protect signal integrity.
Flexible Splicing: 1 tray supports 6/12 fibers, compatible with both mechanical and fusion splicing for adaptability to project needs.
Specification
Part No.
FDB-8BJ
Dimensions (L×W×H)
280×185×80 mm
Enclosure Material
MPP
Box Sealing Method
Silicone Gaskets + Snap-fit + Screw Lock
Cable Sealing Type
Grommet
Cable Entry Ports
2 (Mid-span ports) × Ø7-12mm
Cable Exit Ports
8× (Ø6–8mm) with interchangeable rubber grommets (Ø3mm/Ø3.5mm)
