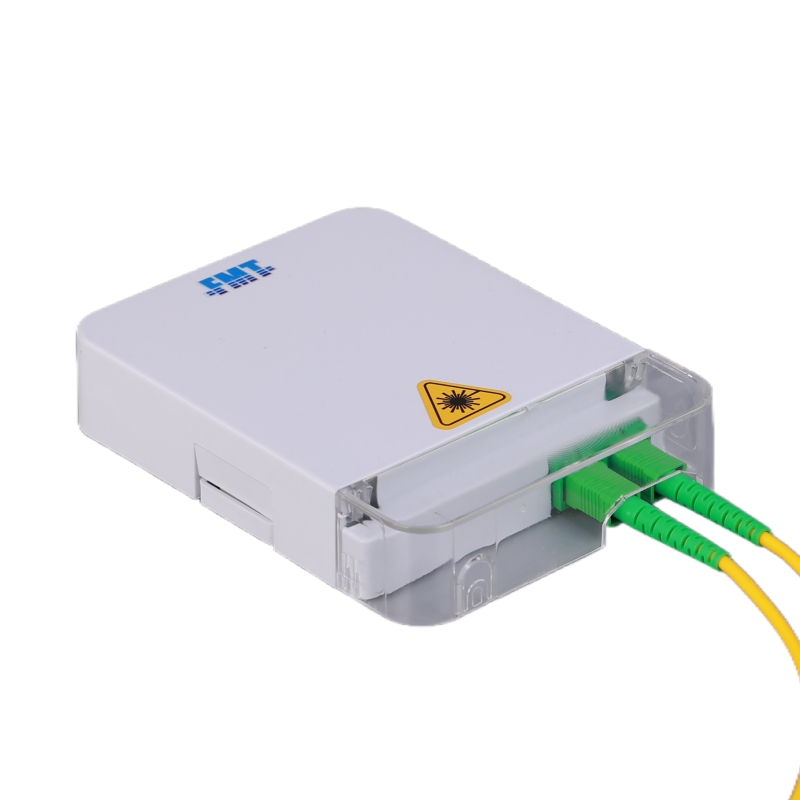

GP-T869 2-Core FTTH Wall Outlet with SC Duplex Adapter

Application

The 2-Core FTTH Wall Outlet protects and terminates 2-fiber drop cables in indoor environments including homes, apartments, offices, and multi-dwelling units.、
It is widely used in FTTH, FTTx, and broadband access networks requiring compact and aesthetic termination points.
With an IP20 rating and simple wall-mount design, it offers maximum flexibility for discreet installation on any interior wall.

Capacities

Splicing Capacity: 2 Fibers
Patching Capacity: 1 SC Duplex Adapter
Splitter Capacity: Not Supported


Availability:



Inquiry Now！ Add to Basket Product Catalog

Model:
GP-T869
Download:
GP-T869 Datasheet.pdf
Model:
GP-T869

Customization Options

Features & Benifits

Specification

Packing List

Documentation

Similar Outlets

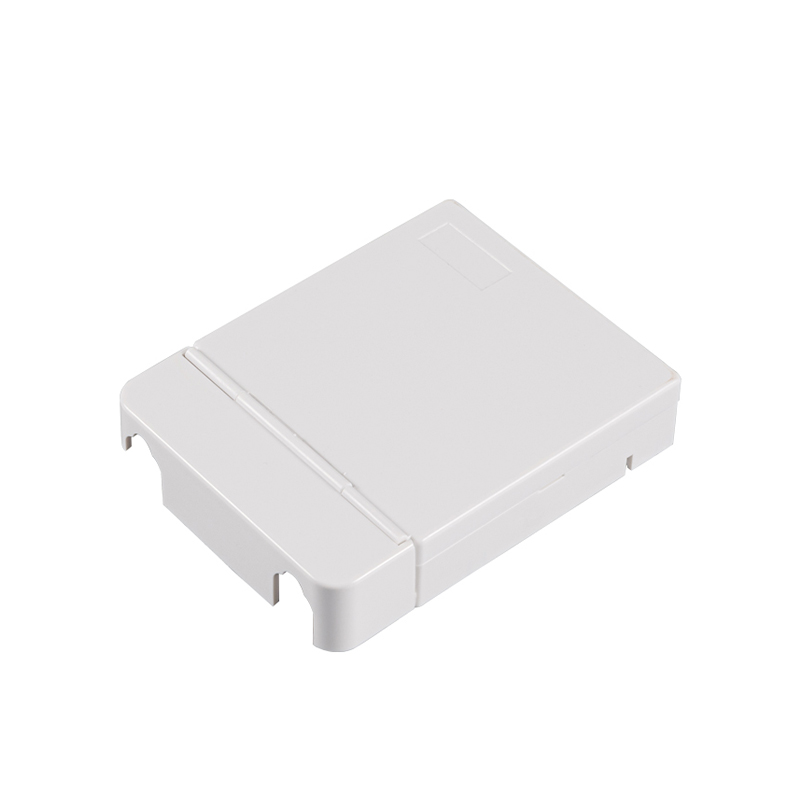

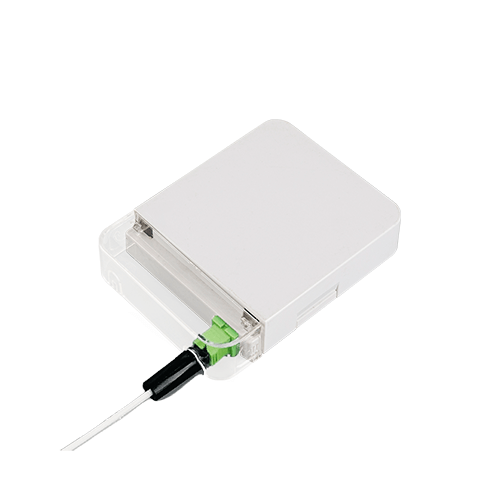

P/N	GP-T867	GP-T868	GP-T869
Pictures
Adaptor Ports	2 for SC or LC Duplex Adapters	1 for SC or LC Duplex Adapters	1 for SC Duplex Adapters

Customization Options

Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:

Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.

Features & Benifits

The ultra-compact design measures only 115 × 86 × 23 mm for discreet indoor installation.
Dedicated SC Duplex adapter supports direct 2-fiber termination without extra patching.
Built-in splice tray accommodates up to 2 fusion splices with perfect fiber management.
High-quality flame-retardant ABS housing ensures durability and safety.
IP20 rating provides reliable protection against solid objects in indoor environments.
Three additional blind ports offer flexible cable routing options.
Tool-free cover removal enables fast access for installation and maintenance.
Included wall-mount kit with screws and anchors simplifies secure installation.
Clean white finish blends seamlessly with modern home and office interiors.
Backed by Fibermint’s 2-year warranty and lifetime technical support.

Specification

Part No.	GP-T869
Dimensions (L×W×H)	115 × 86 × 23 mm
Material	ABS (UL94 V0 Optional)
Mounting	Wall Mount
IP Rating	IP20
Cable Entries	3
Supported Cable	Ø3-8 mm Round or 3×2 mm Flat Drop Cable
Storage of Fibers	G.657 Fiber
Adapter Ports	1
Adapter Type	SC Duplex Adapter
Splicing Capacity	2 Fibers
Splicing Method	Fusion Splice
Compatible Fiber	G.657A1/A2/B3
Operating Temperature	-40°C to +70°C

Packing List

Carton Capacity	250 PCS/CTN
Carton G.W.	16 KG
Carton Size	47×47×27CM

Fibermint 2025 Fiber OpticProduct Catalog.pdf

GP-T869 Datasheet.pdf

Related Products

FB-T449-18P Indoor FTTH Termination Box

FB-T448-1P Fiber Optic Floor Terminal Box for FTTH MDU

FB-T448-8P Indoor FTTH Termination Box

FB-T428i Easy Indoor Fiber Termination with Quick Drop Access

FB-T428 Optical Distribution Terminal Indoor Fiber Box

FB-T433 Compact 8-Fiber Optic Floor Distribution Box (Splice Ready)

FB-T434-4LCD Compact 8-Core Fiber Distribution Box

FB-T434-4SC Compact 4 SC Fiber Box

FB-T427 Compact 8-Port Fiber Optic Termination Box

FB-T423 8-Core Compact Versatile FTTH Floor Box

FB-T489 8 Cores FTTH Distribution Box

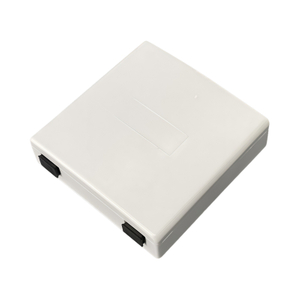

GP-T861 Standard 86 Type Fiber Optic Outlet

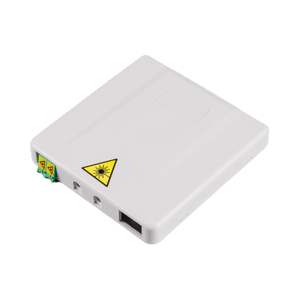

GP-T862 2-Port SC/APC Auto-Shutter FTTH Fiber Optic Outlet
