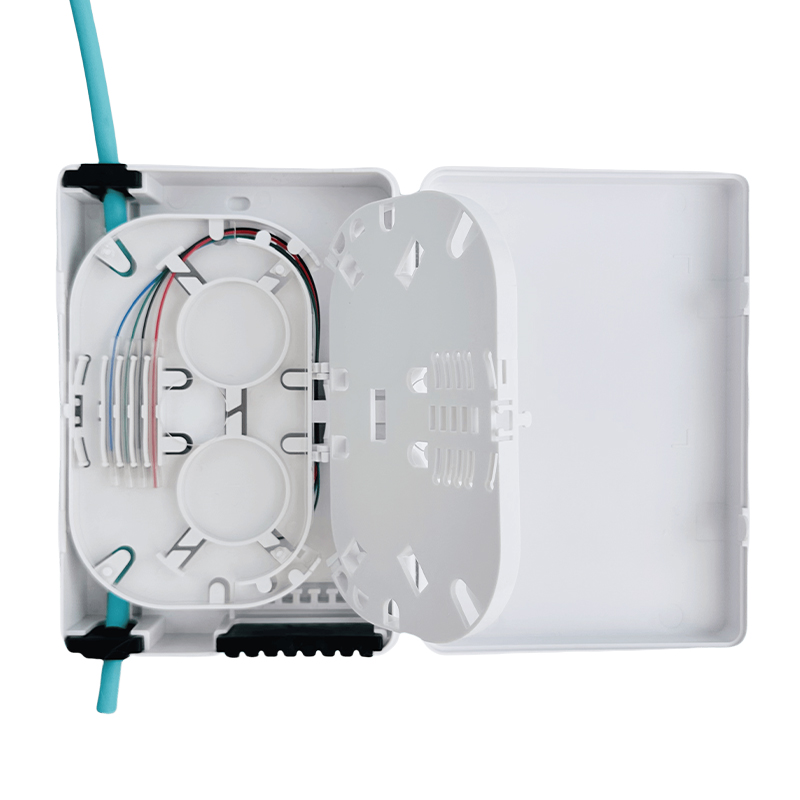

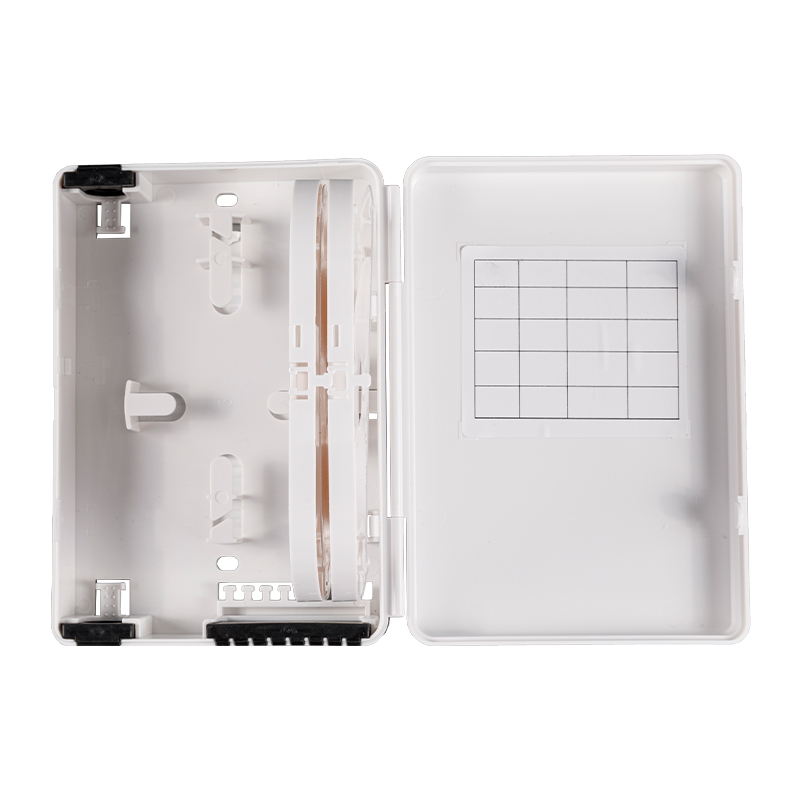

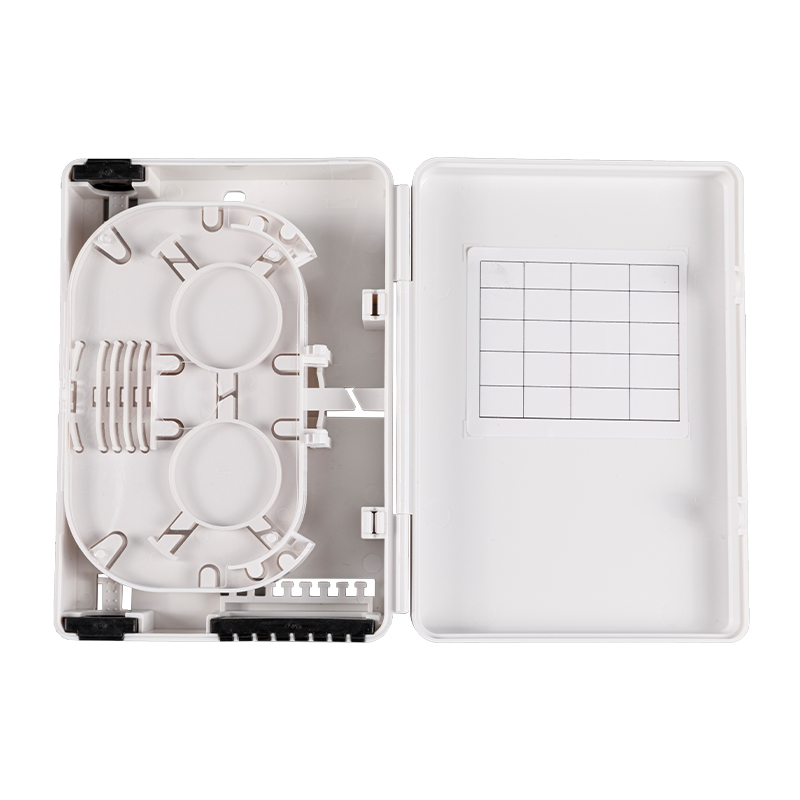

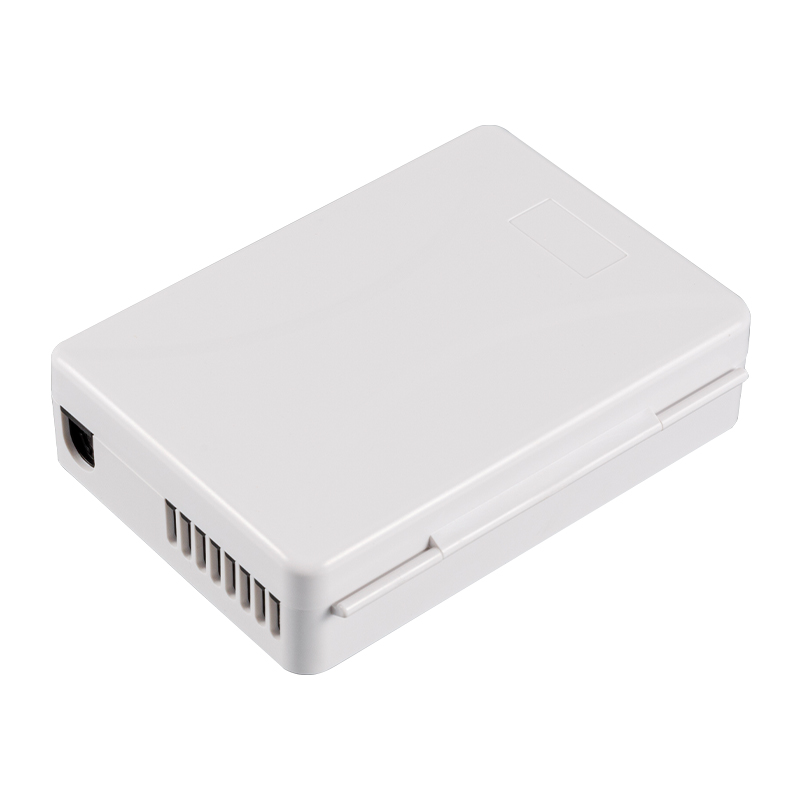

FB-T433 Compact 8-Fiber Optic Floor Distribution Box (Splice Ready)

Application

Optimized for full splicing and perfect fiber management in various FTTx system installations.
Ideal for deployment within a building environment or inside a small street cabinet.
Provides dedicated internal space for both loop-through cable and pigtail splicing operations.

Capacities

Splicing Capacity: 8 Fibers
Patching Capacity: Not Supported
Splitter Capacity: 1×4 or 1×8 Micro PLC Splitter / Tray


Availability:



Inquiry Now！ Add to Basket Download Datasheet

Model:
FB-T433
Download:
FB-T433 Datasheet.pdf
Model:
FB-T433

Splice and Patching Types Comparison

Features & Benifits

Specification

Packing List

Documentation

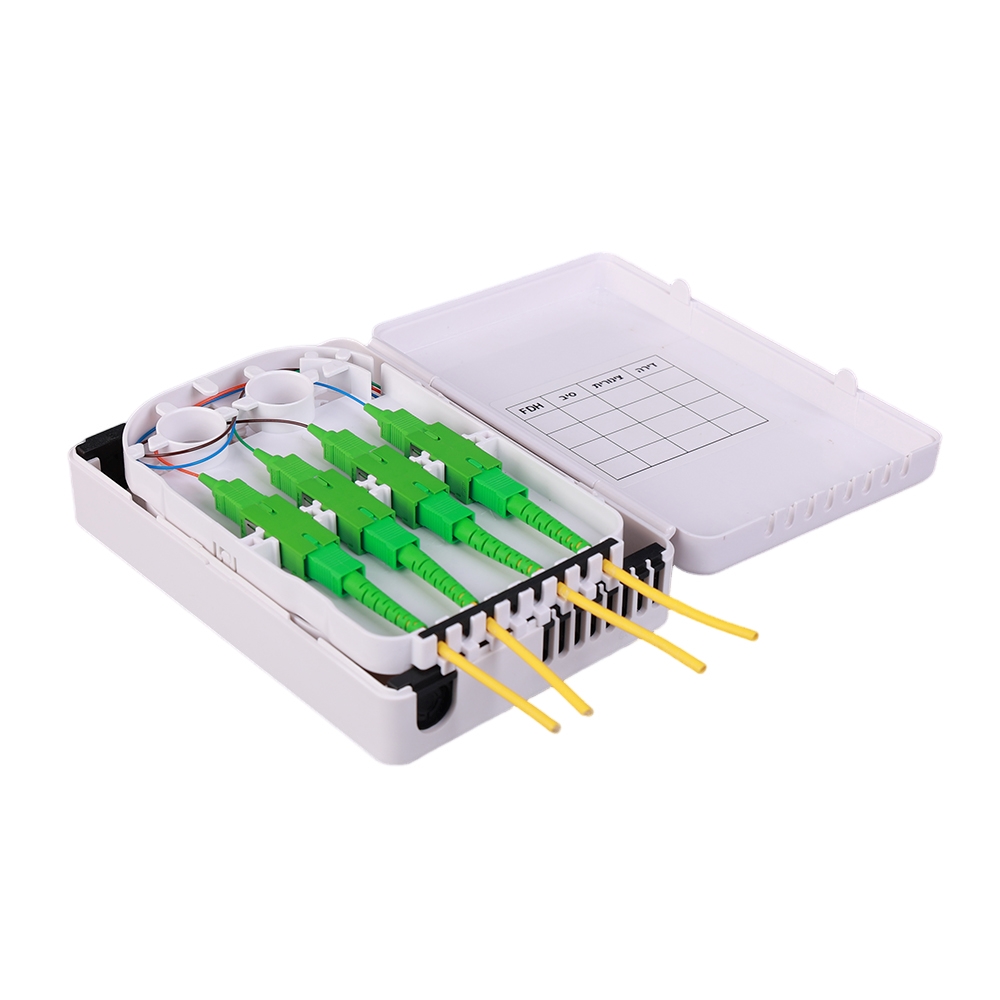

Splice and Patching Types Comparison

Feature	FB-T433	FB-T434
Pictures
Patching Capacity	Not Supported	4 SC or LC Duplex Adapters
Splicing Capacity	8 Fibers	4 Fibers
Main Cable Ports	1 / 1 In-line Ports × Ø13mm
Drop Cable Ports	8×Ø4mm	8×Ø3mm

Features & Benifits

The compact structure provides full splicing and perfect fiber management within a small footprint.
An integrated hinge and snap joint on the cover ensure easy and quick installation and maintenance access.
The internal operating area is partitioned, simplifying the installation and upkeep process.
The unit supports up to two splice trays with a combined maximum splicing capacity of 8 fibers (FO).
Each splice tray is designed with a flip feature and includes a transparent cover for fiber protection and easy inspection.
Both 1:4 and 1:8 Micro PLC splitters are compatible and applicable within each tray.
Comes equipped with wall mounting holes and necessary wall plugs for secure installation.

Specification

Part No.	FB-T433
Dimensions (L×W×H)	150 × 108 × 36 mm
Enclosure Material	ABS or PC/ABS
Box Sealing Method	Hinge and Snap Joint
Cable Sealing Type	Grommet
Cable Entry / Exit Ports	1 / 1 In-line Ports × Ø13mm
Drop Cable Ports	8 × Ø4mm
Patching Capacity (Max)	Not Supported
Splicing Capacity (Max)	8 Fibers (4 Fibers/Tray)
Splice Trays	2 Trays
Tray Material	ABS
IP Rating	IP43
Mounting	Wall Mount

Packing List

Carton Size	55×41×25 CM
Carton Capacity	40 PCS/CTN
Carton G.W.	13 KG

FB-T433 Datasheet.pdf
