FB-T428
FB-T428
Customization Options
Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.
| Options | Mechanical Splice Tray | Cable Dust Cover | Small Flip-Cover |
|---|---|---|---|
| Pictures |
|
| ![]() |

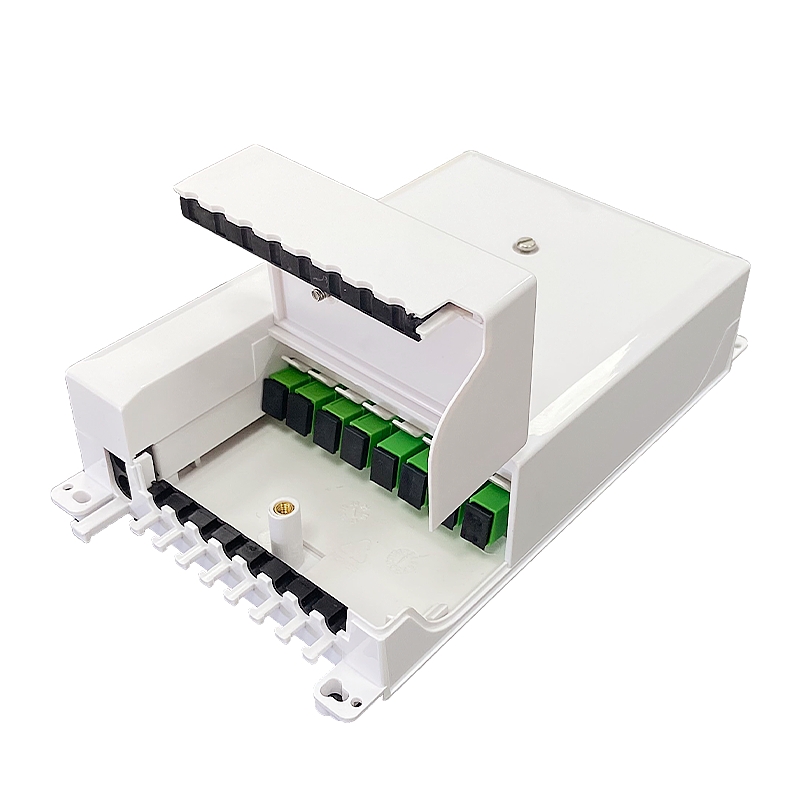

| Description | Suitable for 6 Mechanical Splice | Dust cover fits snugly over drop cables to prevent dust and debris entry. | Small flip cover on the lid hides adapters and drop cable connectors; Open it to add subscribers without removing the full lid. |
Features & Benifits
LSZH plastic construction – flame-retardant for safe indoor use.
Double protection covers – secures customer and splice areas separately.
Clear fiber routing divisions – simplifies organization and troubleshooting.
1:8 micro splitter slot – enables efficient signal splitting in trays.

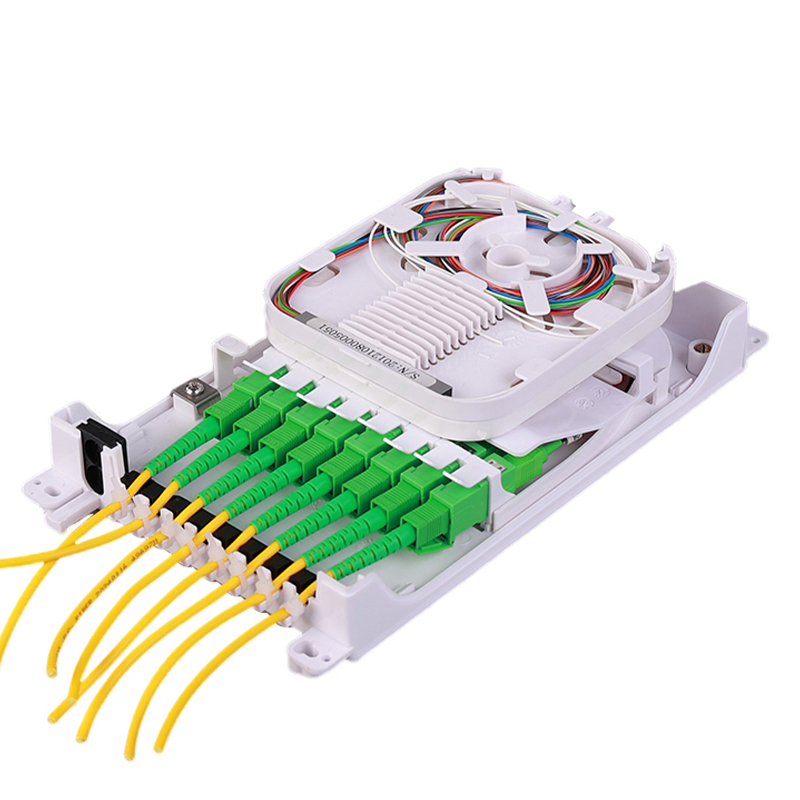

Splice tray holds at 120 degrees – stable during wall-mounted full-load ops.
Adaptor holders lift easily – speeds up installation without extra effort.
Storage tray at 90 degrees – provides flexible access for maintenance.
Supports 8 SC adaptors – accommodates up to 8 output ports reliably.
Inline cable ports (2 in/2 out) – handles φ10 mm max diameter cables.
24 FO splice capacity – via two 12 FO trays for scalable needs.
Specification
Part No. | GP-T428 |

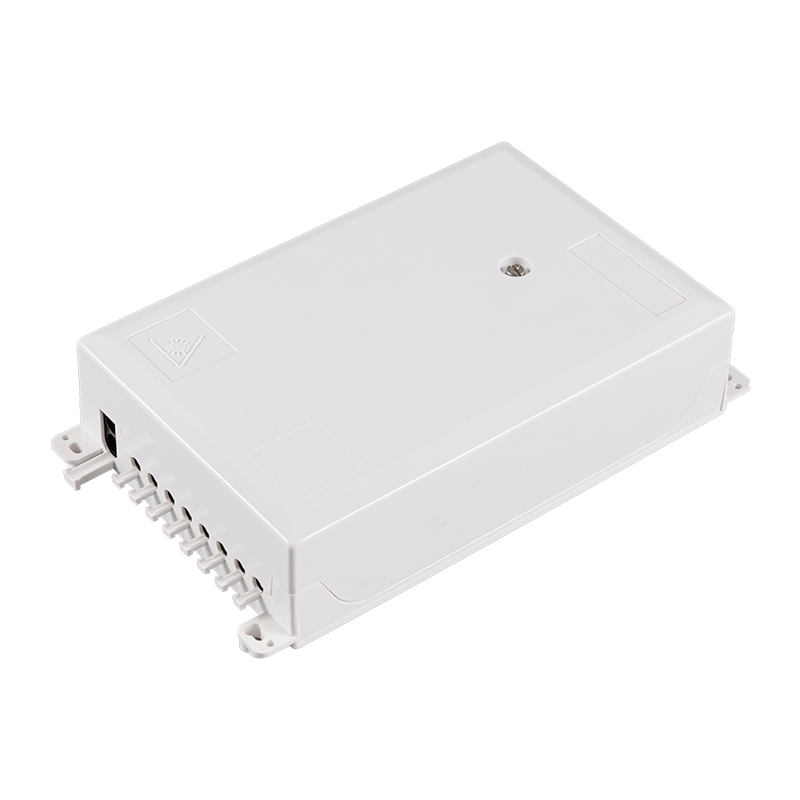

Dimensions (L×W×H) | 215 × 126 × 50mm |
Enclosure Material | ABS or PC+ABS |
Box Sealing Method | Screw-Lock |
Cable Sealing Type | Grommet |
Cable Entry / Exit Ports | 2 / 2 In-line Ports × Ø10mm |
| Drop Cable Ports | 8 Ports × Ø5mm |
Patching Capacity | 8 SC Adapers |
Splicing Capacity | 24 Fibers |
Number of Splice Trays | 2 Tray (12 Fibers/Tray) |
Tray Material | ABS |
IP Rating | IP43 |
Mounting | Wall Mount |
Packing List
| Carton Capacity | 20 PCS/CTN |
| Carton G.W. | 13 KG |
| Carton Size | 57×37×37CM |
