FB-T428i
FB-T428i
Customization Options
Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.

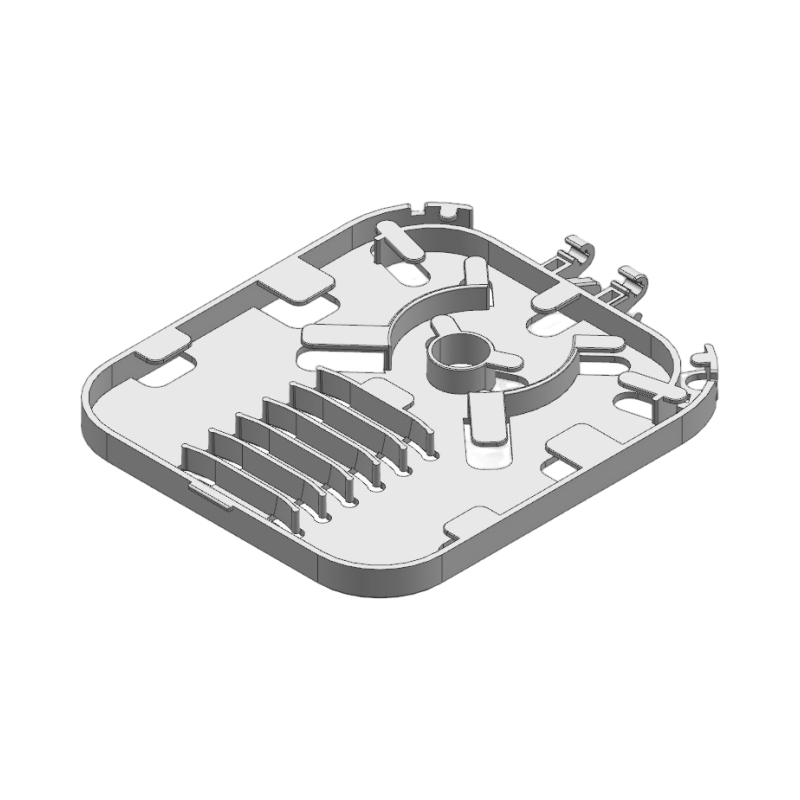

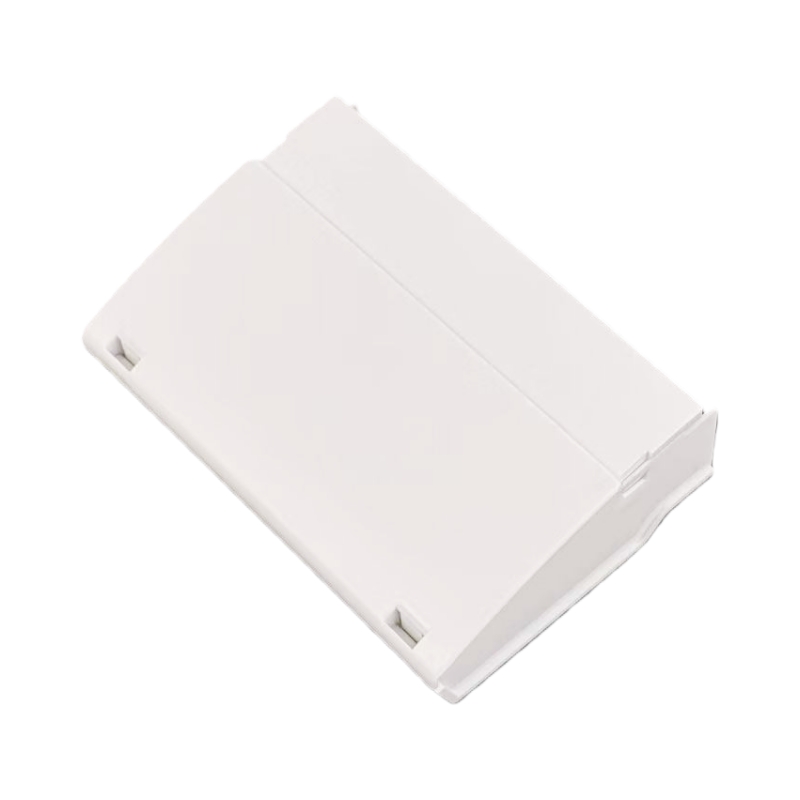

| Options | Mechanical Splice Tray | Cable Dust Cover | Strength Member Clamp |
|---|---|---|---|
| Pictures |
|
| ![]() |
| Description | Suitable for 6 Mechanical Splice | Dust cover fits snugly over drop cables to prevent dust and debris entry. | With Strength Member Clamp or without |
Features & Benifits
The box uses LSZH plastic for safe indoor use.
Special window enables drop cable access easily.
Clear divisions ensure organized fiber routing paths.
Splice tray supports micro splitter 1:8 integration.
Trays hold at 120 degrees when fully loaded.
Adaptor holders lift for simple installation process.
Storage tray maintains 90-degree position securely.
Supports up to 8 SC adapters efficiently.
Accommodates cables up to 10mm diameter max.
Includes accessories for complete wall mounting.
Specification
Part No. | GP-T428i |
Dimensions (L×W×H) | 215 × 126 × 50mm |
Enclosure Material | ABS or PC+ABS |
Box Sealing Method | Screw-Lock |
Cable Sealing Type | Grommet |
Cable Entry / Exit Ports | 2 / 2 In-line Ports × Ø10mm |
| Drop Cable Ports | 8 Ports × Ø5mm |
Patching Capacity | 8 SC Adapers |
Splicing Capacity | 24 Fibers |
Number of Splice Trays | 2 Tray (12 Fibers/Tray) |
Tray Material | ABS |
IP Rating | IP43 |
Mounting | Wall Mount |
Packing List
| Carton Capacity | 20 PCS/CTN |
| Carton G.W. | 13 KG |
| Carton Size | 57×37×37CM |
