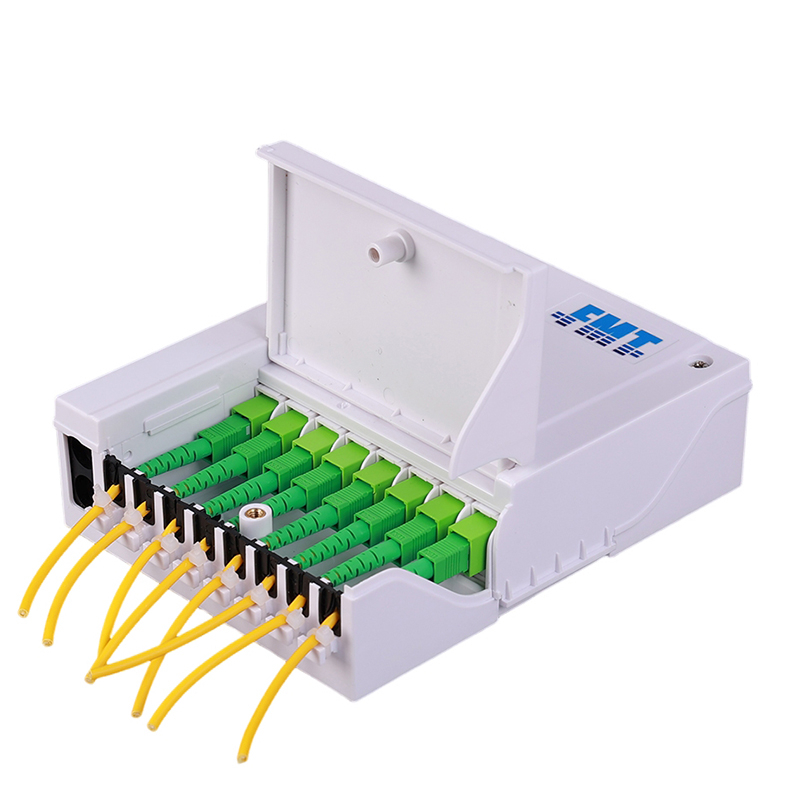

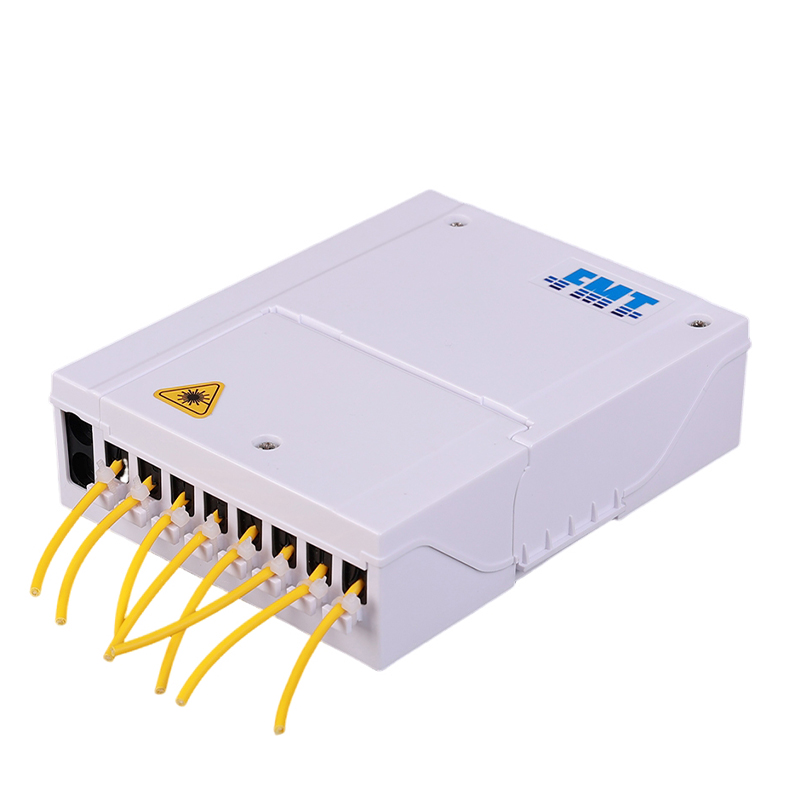

FB-T427
FB-T427
Customization Options
Color: Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials: Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.
Features & Benifits
Brand new LSZH plastic construction enhances safety and longevity.
Special drop cable access window allows operations without opening the full box.

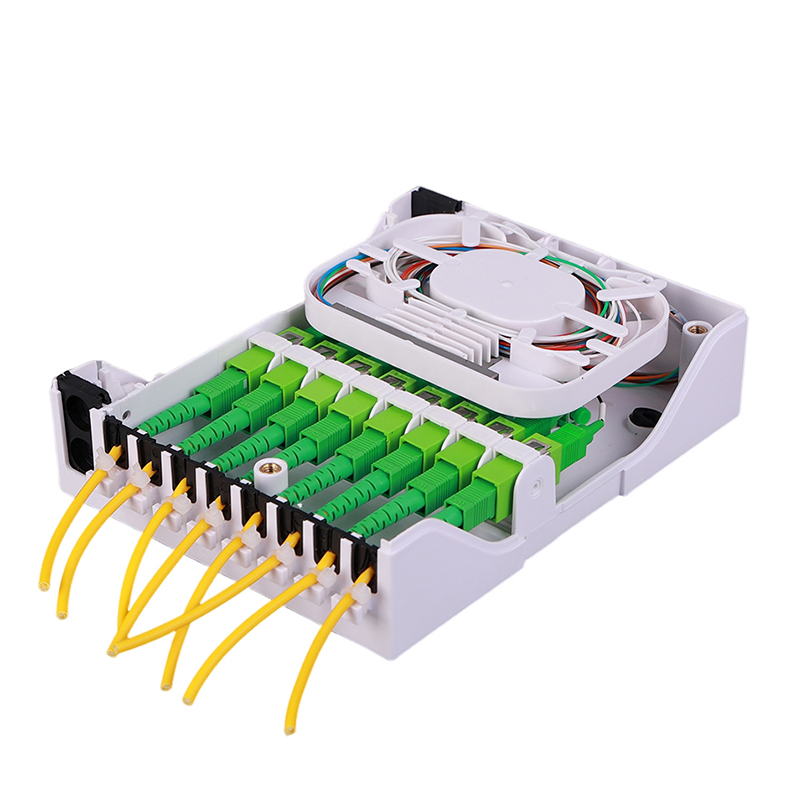

Clear division of fiber areas and routing ensures organized and efficient management.
Dedicated slot for 1:8 micro PLC splitter in the splice tray.
Supports 8 SC adapters for reliable patching.
Clamshell cover design facilitates quick and easy maintenance.
Specification
Part No. | GP-T427 |
Dimensions (L×W×H) | 169 × 130 × 44 mm |
Enclosure Material | ABS or PC/ABS |
Box Sealing Method | Screw-Lock |
Cable Sealing Type | Grommet |
Cable Entry / Exit Ports | 2 / 2 In-line Ports × Ø12mm |
| Drop Cable Ports | 8 Ports × Ø5mm |
Patching Capacity | 8 SC Adapers |
Splicing Capacity | 8 Fibers |
Number of Splice Trays | 1 Tray (8 Fibers/Tray) |
Tray Material | ABS |
IP Rating | IP43 |
Mounting | Wall Mount |
Packing List
| Carton Capacity | 20 PCS/CTN |
| Carton G.W. | 13 KG |
| Carton Size | 57×37×37CM |
