GP-T861
GP-T861
Customization Options
Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.
Features & Benifits

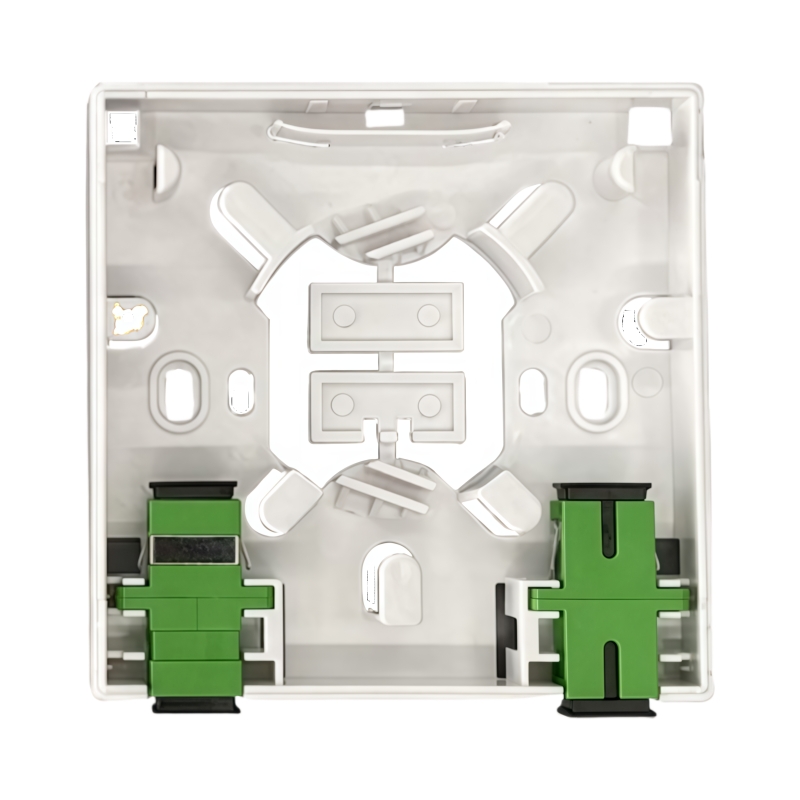

The fiber optic outlet supports termination, splicing, and storage for fiber optic cable systems.
It accommodates two SC adapters for flexible connectivity options.
Compatible with G.657A1 and G.657B3 bend-insensitive fibers.
Compact structure delivers perfect fiber management in limited space.
Engineered fiber routing protects bend radius to maintain signal integrity.
Suitable for both wall-mounted and flush-mounted installations.
Durable plastic construction in RAL9001 white blends with interiors.
Fusion splicing supports 45 mm protection sleeves for 2 fibers.
Accepts drop cables up to 5 mm in diameter.
Complete accessories enable fast, secure, and professional installation.
Specification
Part No. | GP-T861 |
Dimensions (L×W×H) | 86 × 86 × 21.5 mm |
Housing Material | ABS |
Inlet Cable | 1 |
| Cable Size | 3*2mm Drop Cable |
Adaptor Ports | 2 SC Adapers |
Splicing Capacity | 1 or 2 Fibers |
Number of Splice Trays | None |
Tray Material | None |
IP Rating | IP20 |
Mounting | Wall Mount |
Packing List
| Carton Capacity | 400 PCS/CTN |
| Carton G.W. | 12 KG |
| Carton Size | 41×41×36CM |
