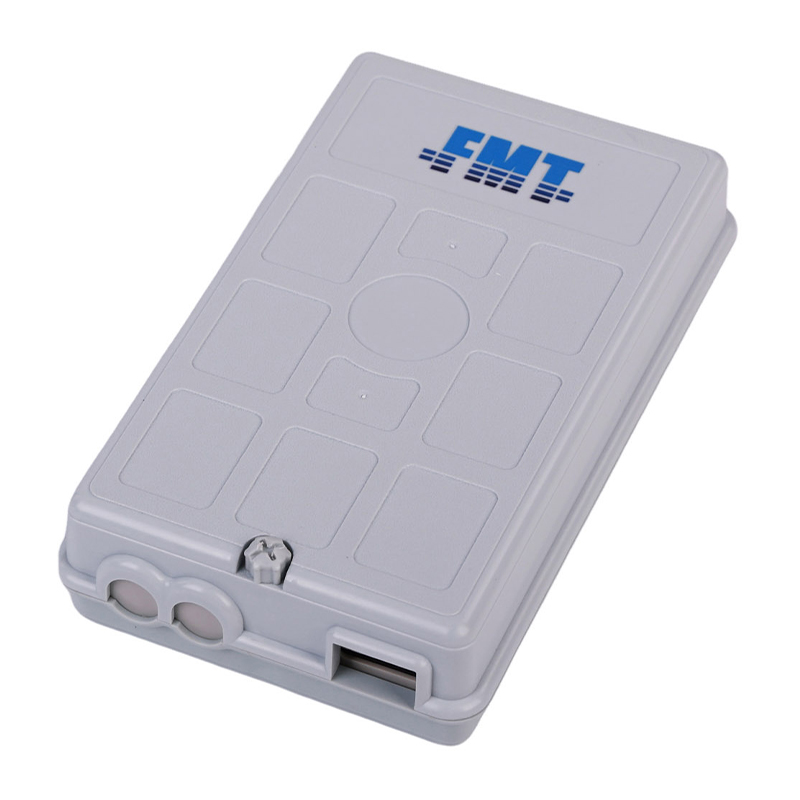

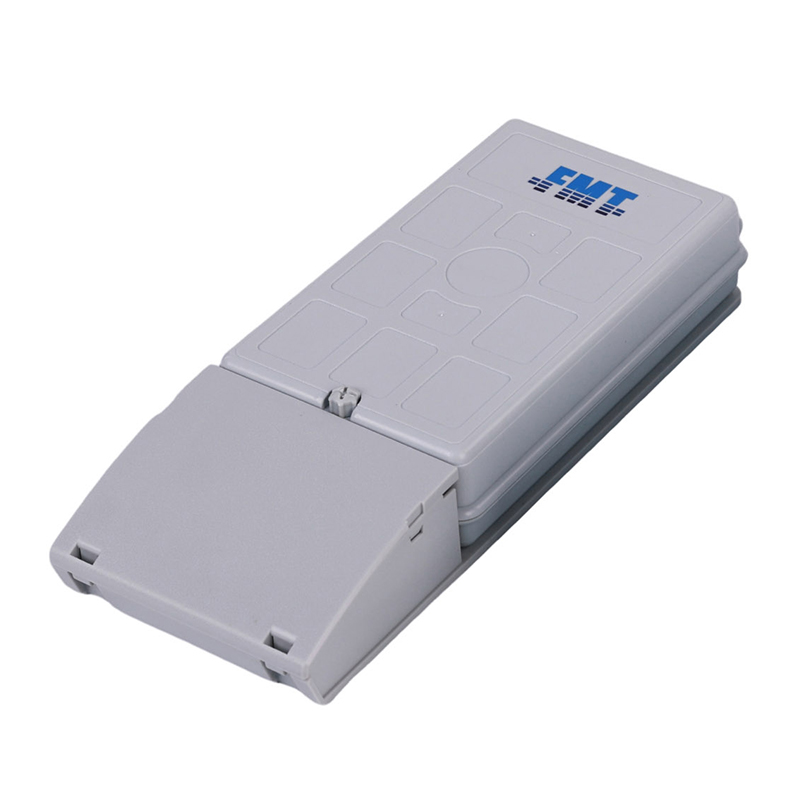

FB-T448-8P Indoor FTTH Termination Box

Application

The Indoor FTTH Termination Box provides splicing, fiber retention, and mechanical protection in FTTH projects.
It is designed for indoor wall-mounting or cabinet use in residential and commercial buildings.
The box supports multi-port cable entry for efficient subscriber distribution.

Capacities

Splicing Capacity: 12 Fibers
Patching Capacity: 8 SC or LC Duplex Adapters
Splitter Capacity: 1×8 Micro PLC Splitter / Tray


Availability:



Inquiry Now！ Add to Basket Product Catalog

Model:
FB-T448-8P
Download:
FB-T448-8P Datasheet.pdf
Model:
FB-T448-8P

Customization Options

Features & Benifits

Specification

Packing List

Documentation

Customization Options

Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:

Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.

Options	1P	8P	Cable Dust Cover
Pictures
Description	The drop port features an adapter slot for one SC or LC duplex adapter.	The drop port features a module for Ø3 mm cables, supporting up to 12 drop cables.	Dust cover fits snugly over drop cables to prevent dust and debris entry.

Features & Benifits

The box is constructed from high-strength, ultra-high-viscosity plastic that delivers a beautiful appearance and exceptional durability.
It accommodates fiber optic cable fixing components, strength core fixing components, and routing rings for secure cable management.

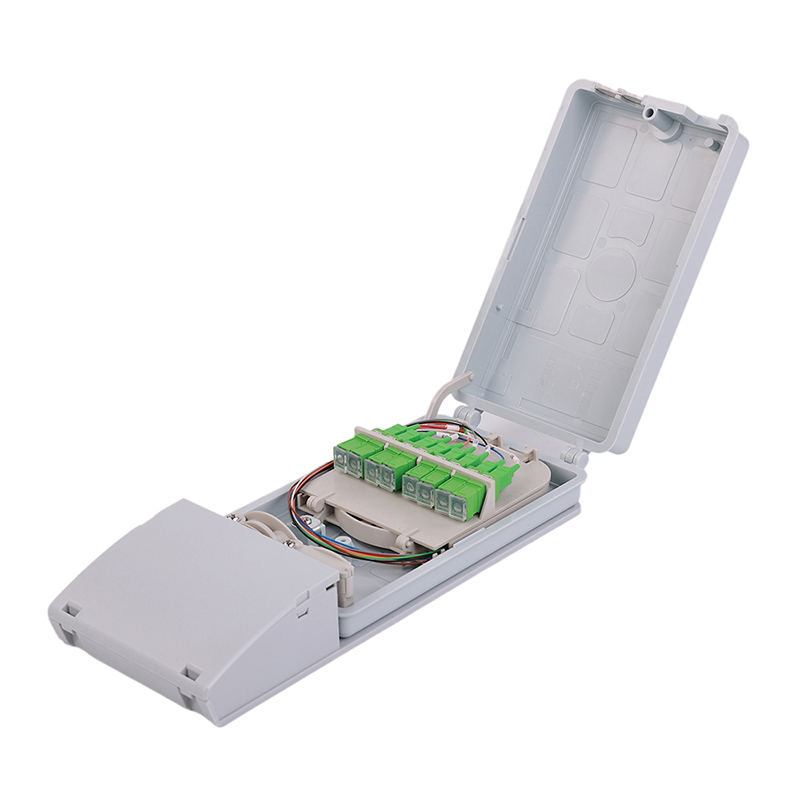

The fiber optic splice tray adopts a stacked structure and can flip over 90° when opening to facilitate easy installation and maintenance.
A micro PLC splitter 1:8 is suitable for integration within the tray to support signal distribution.
The box supports a maximum of 8 SC adapters for versatile termination options.
It features 2 main cable ports for cables up to Φ15mm and 12 drop cable ports for Ø3mm cables to handle multiple connections.
The screw lock mechanism ensures secure closure and protection during operation.

Specification

Part No.	GP-T448-8P
Dimensions (L×W×H)	198 × 112 × 45mm
Enclosure Material	ABS or PC+ABS
Box Sealing Method	Screw-Lock
Cable Sealing Type	None
Cable Entry / Exit Ports	2 Mid-span Ports × Ø15mm
Drop Cable Ports	12 Ports × Ø3mm
Patching Capacity	8 SC or LC Duplex Adapers
Splicing Capacity	12 Fibers
Number of Splice Trays	1 Tray (6/12 Fibers/Tray)
Tray Material	ABS
IP Rating	IP43
Mounting	Wall Mount

Packing List

Carton Capacity	50 PCS/CTN
Carton G.W.	16 KG
Carton Size	61×42×28CM

FB-T448-8P Datasheet.pdf

Fibermint 2025 Fiber OpticProduct Catalog.pdf
