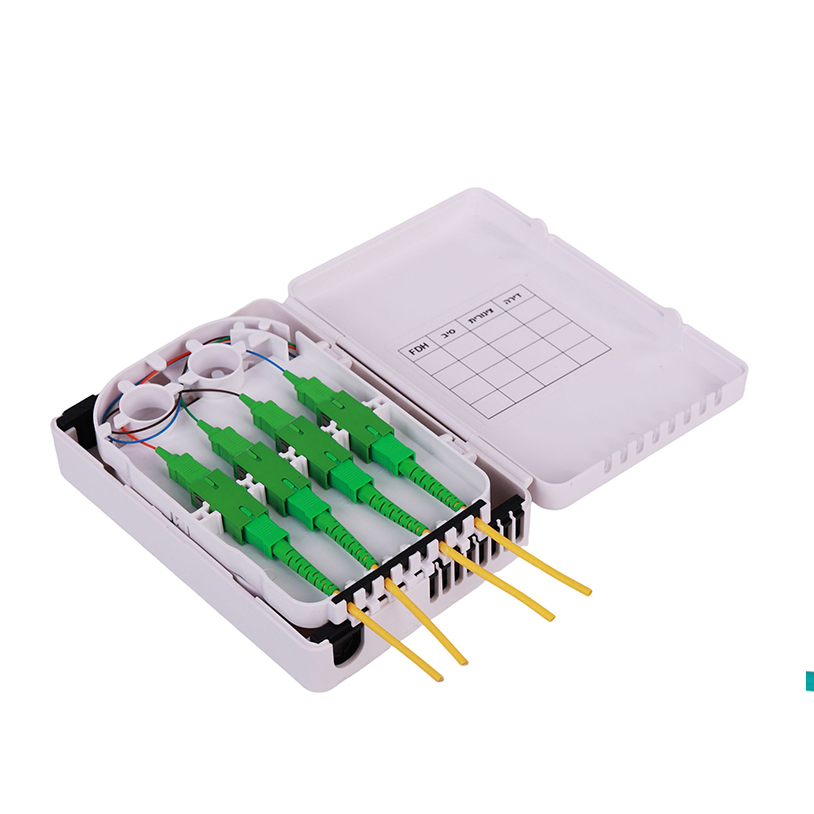

FB-T434-4SC Compact 4 SC Fiber Box

Application
  • Optimized for the connection of optical fiber to pigtail, providing full splice and perfect fiber management in FTTx systems.
  • Ideal for indoor installations with an IP43 rating.
  • Provides protection and distribution for up to 2 incoming cables and 8 outgoing drop cables.

Capacities
  • Splicing Capacity: 8 Fibers
  • Patching Capacity: 4 SC adapters
  • Splitter Capacity: 1×4 or 1×8 Micro PLC Splitter / Tray
Availability:
Inquiry Now！ Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Splice and Patching Types Comparison
Features & Benifits
Specification
Packing List
Documentation


Splice and Patching Types Comparison


Feature FB-T433 FB-T434
Pictures FB-T433 Compact Fiber Optic Floor Distribution Box (Splice Type) FB-T434 Compact Fiber Optic Floor Distribution Box (Patching Type)
Patching Capacity Not Supported 4 SC or LC Duplex Adapters
Splicing Capacity 8 Fibers 4 Fibers
Main Cable Ports

1 / 1 In-line Ports × Ø13mm
Drop Cable Ports  8×Ø4mm 8×Ø3mm



Features & Benifits



  • Constructed from brand new LSZH (Low Smoke Zero Halogen) plastic for enhanced safety.

  • The compact size allows for discreet and space-saving installation.

  • Internal structure provides clear fiber function area division and clear routing paths.

  • A special slot is included on the splice tray to accommodate a Micro PLC Splitter 1:8.

  • Features a special dedicated area for the storage of uncut or reserved cables.

  • Equipped with a hinged cover for straightforward and easy access during installation and maintenance.


Specification


Part No.

FB-T434-4SC

Dimensions (L×W×H)

150 × 108 × 36 mm

Enclosure Material

ABS or PC/ABS

Box Sealing Method

Hinge and Snap Joint

Cable Sealing Type

Grommet

Cable Entry / Exit Ports

1 / 1 In-line Ports × Ø13mm

Drop Cable Ports8 × Ø3mm

Patching Capacity

4 SC Adapters

Splicing Capacity

8 Fibers

Splice Trays

1 Trays

Tray Material

ABS

IP Rating

IP43

Mounting

Wall Mount



Packing List


Carton Size55×41×25 CM
Carton Capacity40 PCS/CTN
Carton G.W.13 KG
