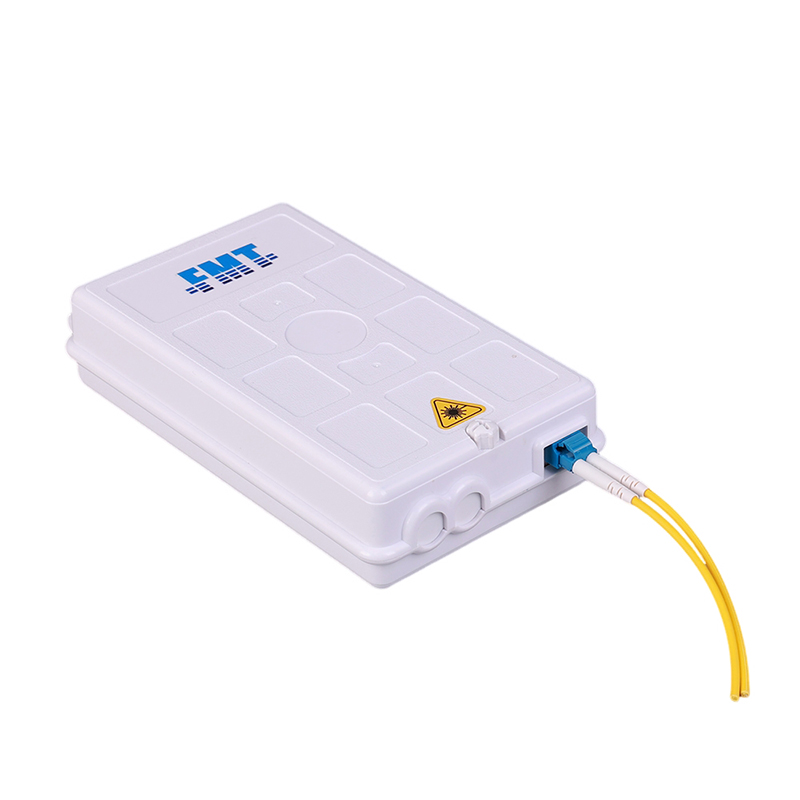

FB-T448-1P
FB-T448-1P
Customization Options
Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.
| Options | 1P | 8P | Cable Dust Cover |
|---|---|---|---|
| Pictures |
| ![]() |
|
| Description | The drop port features an adapter slot for one SC or LC duplex adapter. | The drop port features a module for Ø3 mm cables, supporting up to 12 drop cables. | Dust cover fits snugly over drop cables to prevent dust and debris entry. |
Features & Benifits
Highstrength engineering alloy plastic ensures long service life.
Removable cover with special screw lock for tamperresistant security.

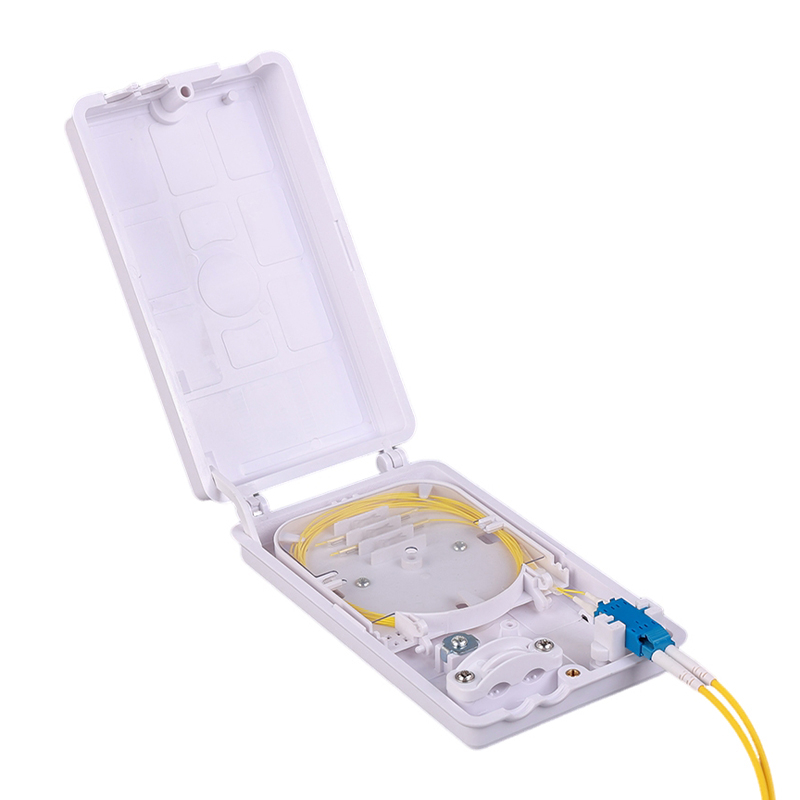

Flipdesign splice tray with >30 mm bend radius protection.
Divided operating space for loopthrough cable and pigtail splicing.
IP43 protection grade safeguards against dust and splashing water.
Dedicated overlength fiber storage prevents microbends and signal loss.
Compact & lightweight design fits tight floor distribution panels.
Intuitive cable routing paths reduce installation time by up to 40 %.
Toolfree splice tray access speeds up maintenance and upgrades.
Robust construction withstands corridor impacts and vibrations.
Universal adapter compatibility supports SC, LC, and FC connectors.
Clear labeling areas simplify fiber identification and documentation.
Includes full mounting kit (screws, ties, sleeves) for immediate deployment.
Backed by Fibermint 2year warranty and lifetime technical support.
Specification
Part No. | GP-T448-1P |
Dimensions (L×W×H) | 198 × 112 × 45mm |
Enclosure Material | ABS or PC+ABS |
Box Sealing Method | Screw-Lock |
Cable Sealing Type | None |
Cable Entry / Exit Ports | 2 Mid-span Ports × Ø15mm |
| Drop Cable Ports | 1 Adapter Slot (for connecting drop cable connectors) |
Patching Capacity | 1 SC or LC Duplex Adapers |
Splicing Capacity | 6 Fibers |
Number of Splice Trays | 1 Tray (6 Fibers/Tray) |
Tray Material | ABS |
IP Rating | IP43 |
Mounting | Wall Mount |
Packing List
| Carton Capacity | 50 PCS/CTN |
| Carton G.W. | 16 KG |
| Carton Size | 61×42×28CM |
