GP-T867 2 Cores FTTH Wall Outlet

Application

The 2 Cores FTTH Wall Outlet serves as the final distribution point in FTTx networks, providing termination, splicing, and patching directly at the customer premises.
It is perfect for indoor wall-mount installations in homes, apartments, offices, and multi-dwelling units.
Rated IP20 with dust-cover protection, it ensures reliable performance in typical indoor environments.

Capacities

Splicing Capacity: 2 Fibers
Patching Capacity: 2 SC or LC Duplex Adapters
Splitter Capacity: Not Supported


Availability:



Inquiry Now！ Add to Basket Product Catalog

Model:
GP-T867
Download:
GP-T867 Datasheet.pdf
Model:
GP-T867

Customization Options

Features & Benifits

Specification

Packing List

Documentation

Similar Outlets

P/N	GP-T867	GP-T868	GP-T869
Pictures
Adaptor Ports	2 for SC or LC Duplex Adapters	1 for SC or LC Duplex Adapters	1 for SC Duplex Adapters

Customization Options

Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:

Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.

Features & Benifits

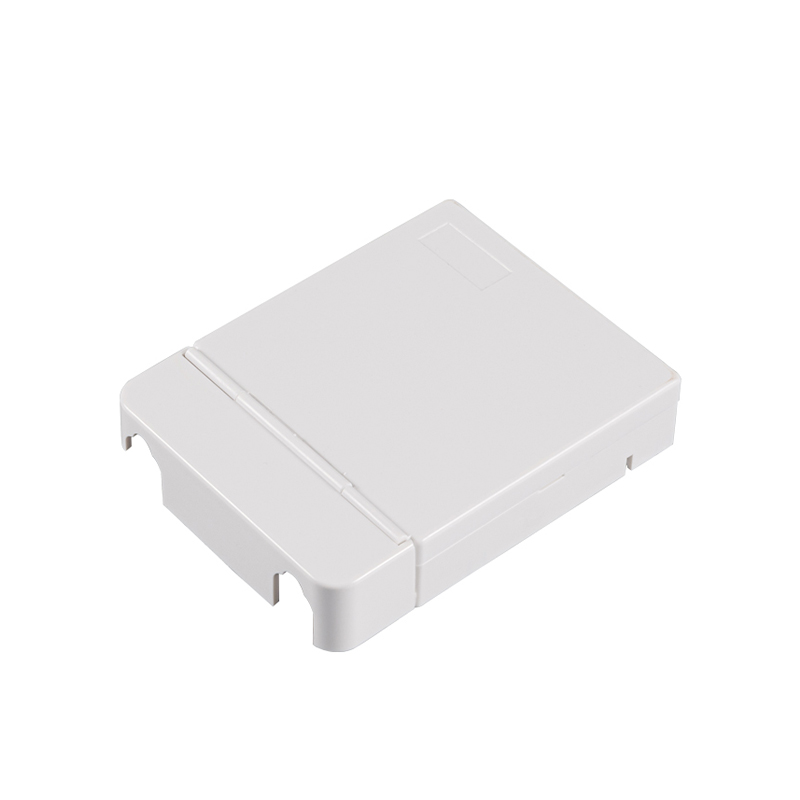

Ultra-compact dimensions of just 112 × 86 × 23 mm fit anywhere.
Supports 2 SC simplex adapters or 1 LC duplex adapter.
Allows up to 2 fusion splices or 4 fibers with integrated splice tray.
Dust cover design simply protects all cable entries and adapters.
Made from durable, flame-retardant ABS material in clean white finish.
Lightweight construction enables easy one-person wall mounting.
Includes complete wall-mounting kit for immediate installation.
IP20 rating provides reliable indoor environmental protection indoors.

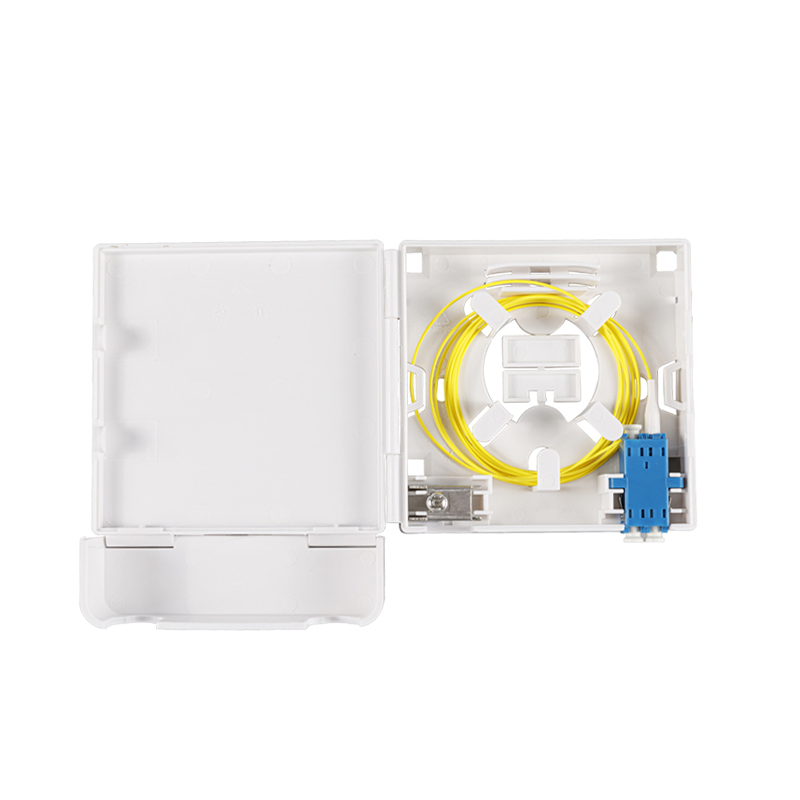

Clean interior layout ensures neat fiber routing and management.
Backed by Fibermint’s quality assurance and technical support.

Specification

Part No.	GP-T867
Dimensions (L×W×H)	112 × 86 × 23 mm
Material	ABS (UL94 V0 Optional)
Mounting	Wall Mount
IP Rating	IP20
Cable Entries	2
Supported Cable	Ø3 mm Round or 3×2 mm Flat Drop Cable
Storage of Fibers	G.657 Fiber
Adapter Ports	2
Adapter Type	SC or LC Duplex Adapter
Splicing Capacity	1/2 Fibers
Splicing Method	Fusion Splice
Compatible Fiber	G.657A1/A2/B3
Operating Temperature	-40°C to +70°C

Packing List

Carton Capacity	200 PCS/CTN
Carton G.W.	16 KG
Carton Size	47×47×27CM

GP-T867 Datasheet.pdf

Fibermint 2025 Fiber OpticProduct Catalog.pdf
