GP-T1170
GP-T1170
Customization Options
Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.
Features & Benifits

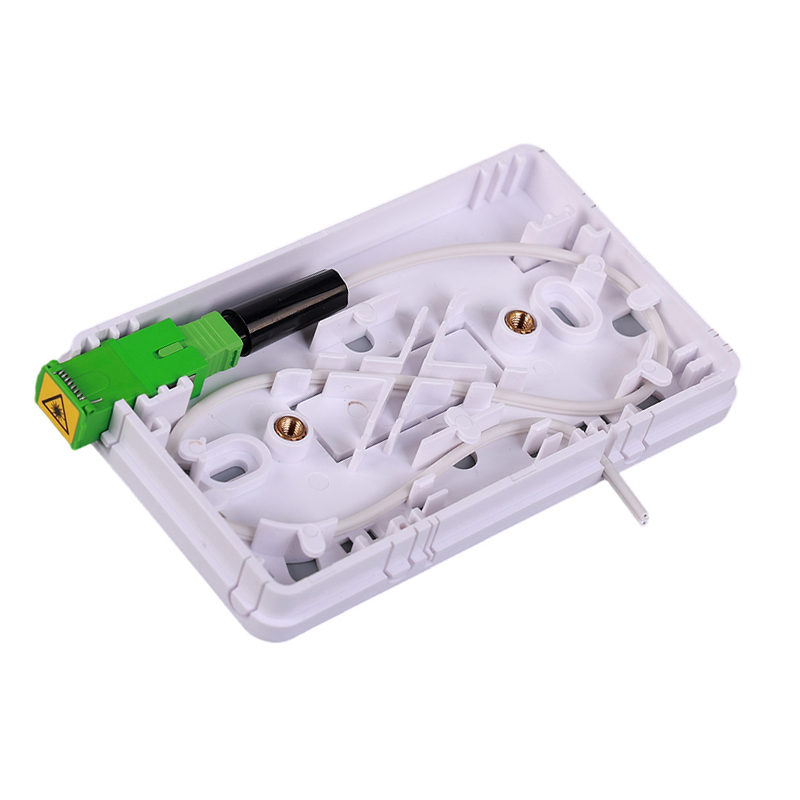

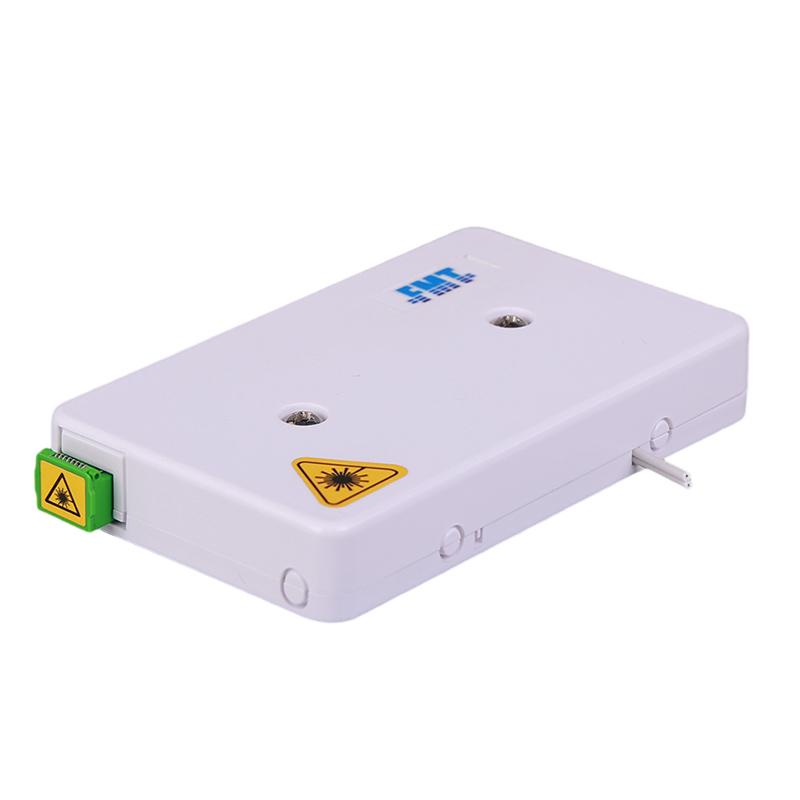

The compact size of 117x70x15 mm fits tight outdoor spaces effectively.
The outlet supports mounting over embedded walls or directly on surfaces.
It accommodates keystone connectors for RJ45, RJ11, RG6, UTP, and coaxial.
The design admits up to two SC/APC adapters for fiber connections.
It allows installation of one or two fusion protectors securely.
The minimum curvature radius of 30mm protects fiber integrity.
The IP54 rating ensures dust and water resistance outdoors.
The plastic body with neoprene backing provides strong adhesion.
The RAL9010 color blends with standard outdoor aesthetics.
Backed by Fibermint’s 2-year warranty and lifetime technical support.
Specification
Part No. | GP-T1170 |
Dimensions (L×W×H) | 117 × 70 × 15 mm |
Material | ABS (UL94 V0 Optional) |
Mounting | Wall Mount |
| IP Rating | IP54 (or IP20) |
Cable Entries | 7 |
Supported Cable | Ø3 mm Round or 3×2 mm Flat Drop Cable |
Storage of Fibers | G.657 Fiber |
Adapter Ports | 2 |
Adapter Type | SC Adapter or keystone connectors for RJ45, RJ11, RG6, UTP, and coaxial. |
Splicing Capacity | 1 Fibers |
| Splicing Method | Fusion Splice |
| Compatible Fiber | G.657A1/A2/B3 |
| Operating Temperature | -40°C to +70°C |
Packing List
| Carton Capacity | 300 PCS/CTN |
| Carton G.W. | 24 KG |
| Carton Size | 54×40×30CM |
