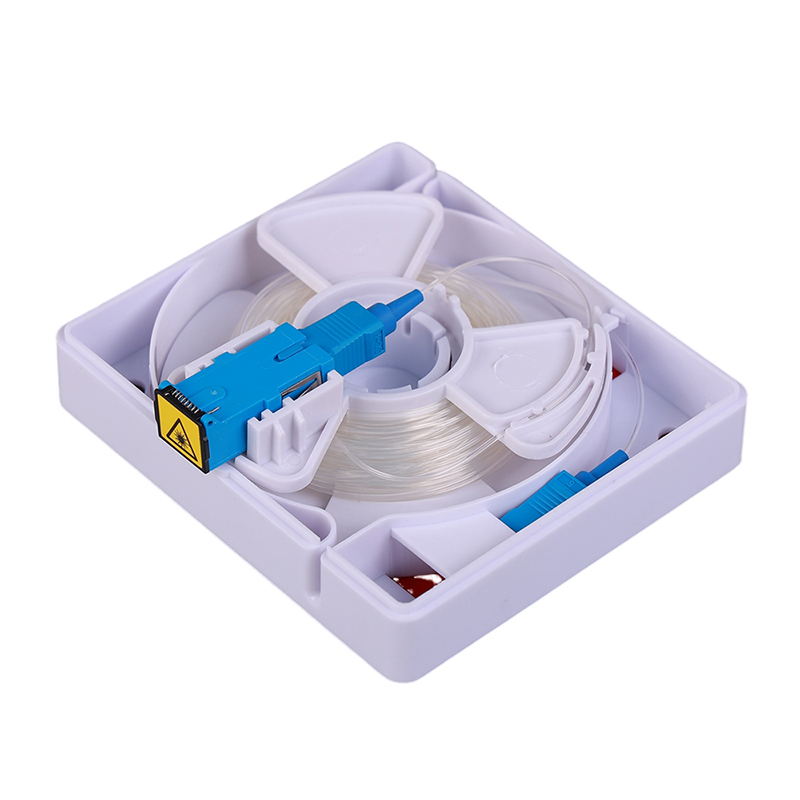

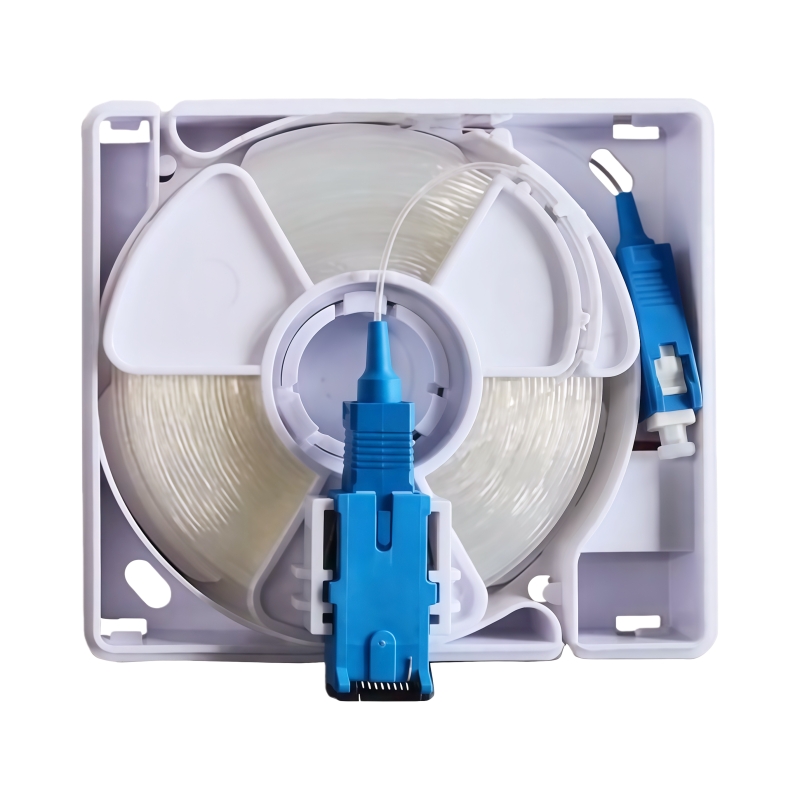

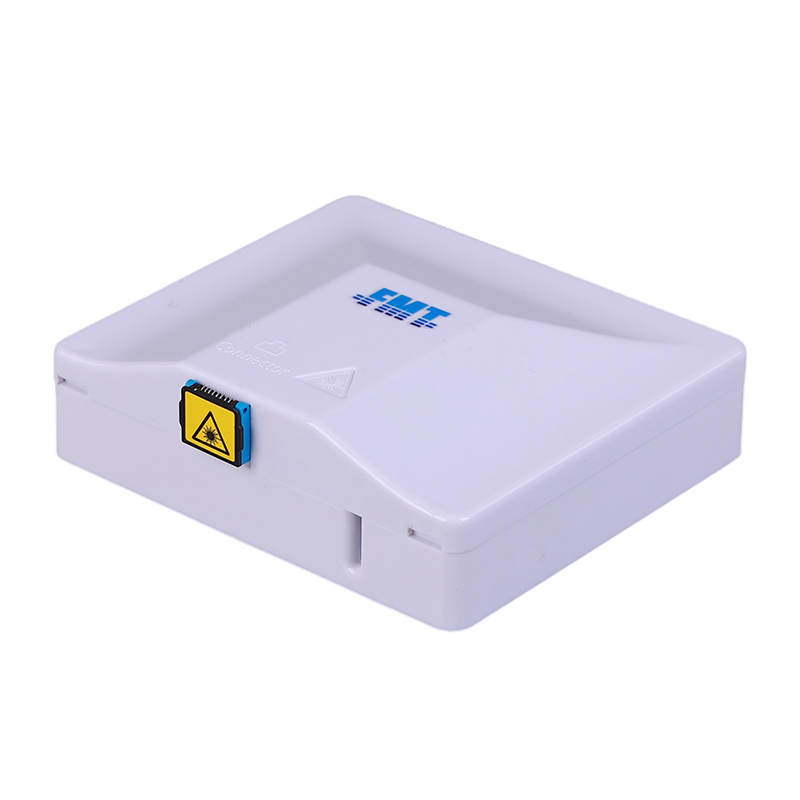

GP-T8693
GP-T8693
Customization Options
Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.
Features & Benifits
The rosette offers small size and light weight for easy installation.
It uses ABS material that is fireproof and dust-proof for safety.
The radian appearance provides a slinky aesthetic in any setting.
The design supports various modules and multimedia interfaces.
Embedded chart and logo positions enable quick identification.
It accommodates multi-mode or single-mode fiber connections.
SC simplex and LC duplex adapters are optional for versatility.
The track rail organizes fiber optic cables efficiently.
Pre-connectorized cable reduces setup time significantly.
Transparent body allows visual inspection of connections.
Specification
Part No. | GP-T8693 |
Dimensions (L×W×H) | 93 × 83 × 16.5 mm |
Material | ABS (UL94 V0 Optional) |
Mounting | Wall Mount |
| IP Rating | IP20 |
Fiber Type | G.652A2, G.657B3 |
Fiber Color | Natural |
Cable Type | 0.9 mm tight buffer |
Cable Color | Natural |
Tight Buffer Material | Nylon |
Connector Type | SC, LC |
End Face | UPC, APC |
Cable Weight | Approx. 0.7kg/km |
Min. Bending Radius | 15 mm (Static) / 30 mm (Dynamic) |
Attenuation | ≤ 0.4 dB/km @ 1310 nm ≤ 0.3 dB/km @ 1550 nm |
Insertion Loss (IL) | ≤ 0.3 dB |
Return Loss (RL) | UPC ≥ 50 dB APC ≥ 55 dB |
| Operating Temperature | -40°C to +70°C |
Packing List
| Carton Capacity | 200 PCS/CTN |
| Carton G.W. | 23 KG |
| Carton Size | 50 × 50 ×36 CM |
