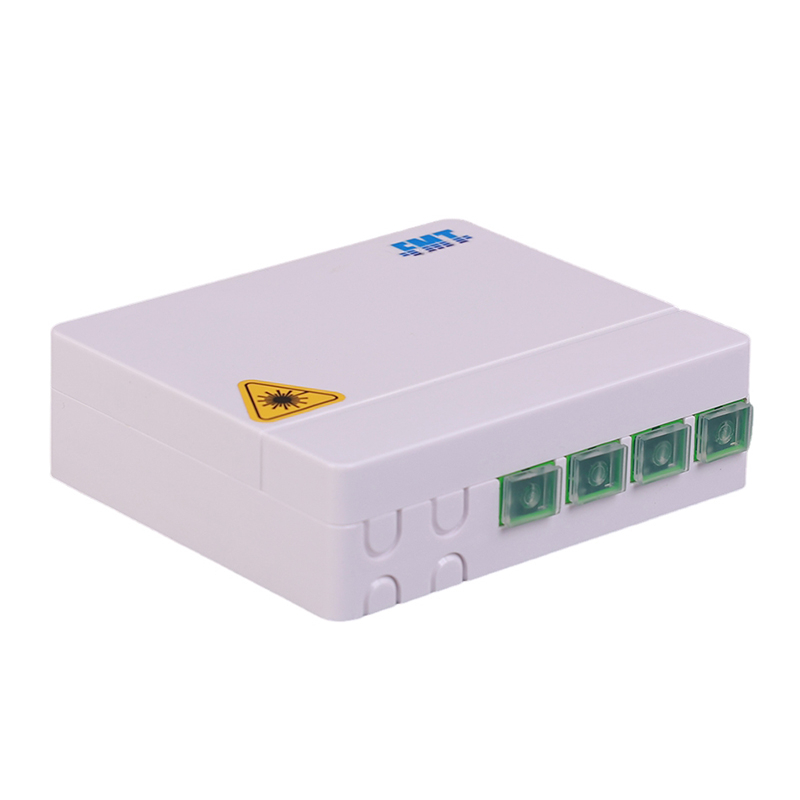

The outlet supports termination, splicing, and storage for fiber optic cable systems.
It is compatible with G.657 fibers for high-performance applications.

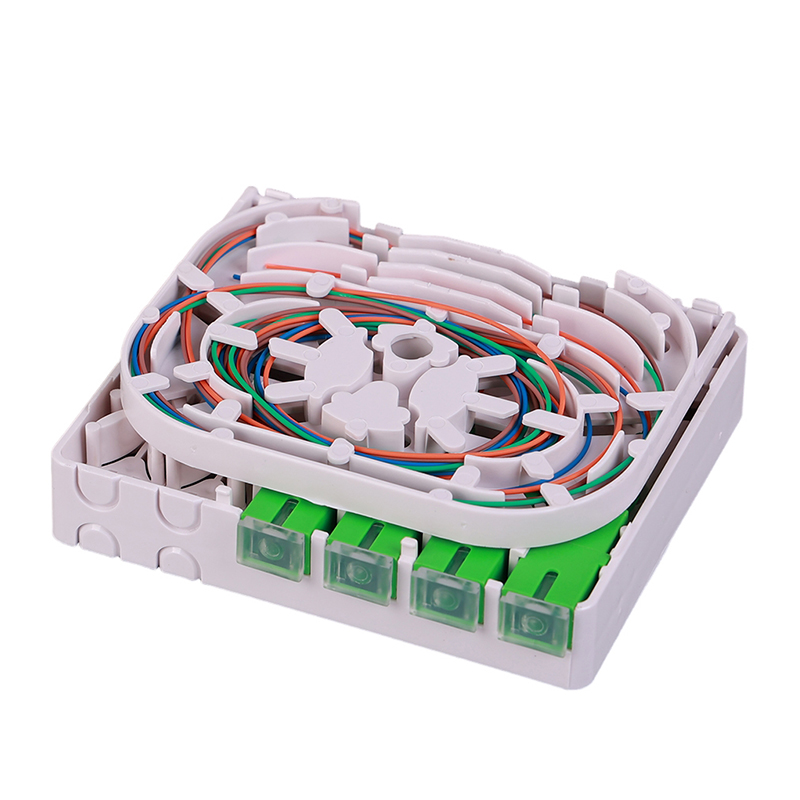

The compact structure ensures perfect fiber management in limited spaces.
Engineered fiber routing protects bend radius to maintain signal integrity.
The design allows wall-mounted or flush-mounted outlet compatibility.
It provides splice capacity for up to 8 single fibers.
Fusion splice method uses 45mm sleeves for secure connections.
The unit holds 2 SC or 2 LC duplex adapters.
Cable inputs accept 3mm or figure-8 types from side or bottom.
Included accessories feature splice sleeves and expansion bolts.
