GP-T1600-1SC
GP-T1600-1SC
Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.
Splice or Patching Type
| Feature | GP-T1600-1F | GP-T1600-1SC |
|---|---|---|
| Photo |
|
|

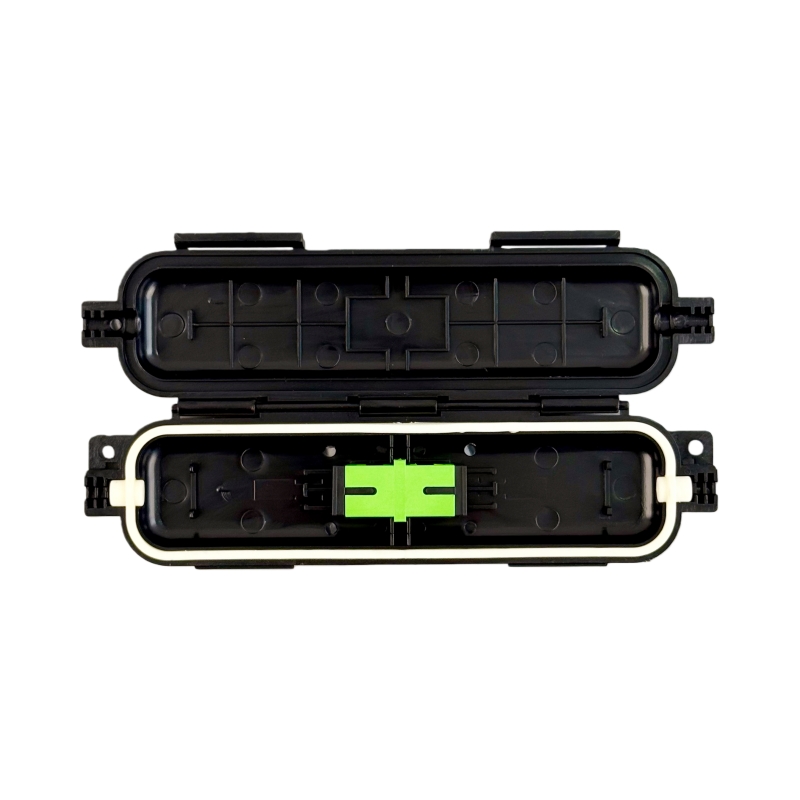

Fully Loaded Solution: Comes pre-installed with 1x SC/APC adapter for immediate deployment and reduced labor time.
Slim Profile: The 17.5mm ultra-thin design allows for discreet installation on any indoor wall surface.
In-line Cable Entry: Supports 1/1 in-line cable entries for straightforward cable routing of 3mm drop cables.
Enhanced Reliability: Provides an IP20 rating and durable construction for efficient indoor fiber management.
Flexible Aesthetics: Available in both White and Black colors to match different interior decor styles.
Part No. | GP-T1600-1SC |
Dimensions (L×W×H) | 160 × 45.5 × 17.5 mm |
Material | ABS (UL94 V0 Optional) |
Mounting | Wall Mount |
| IP Rating | IP20 |
Cable Entries | 1 / 1 In-line Ports |
Supported Cable | Ø3 mm Round Drop Cable |
Patching Capacity | 1 |
Patching Type | SC Adapters |
| Operating Temperature | -40°C to +70°C |
| Carton Capacity | 400 PCS/CTN |
| Carton G.W. | 14 KG |
| Carton Size | 50×34×40CM |
