GP-T1600-1F
GP-T1600-1F
Color Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.
Splice or Patching Type

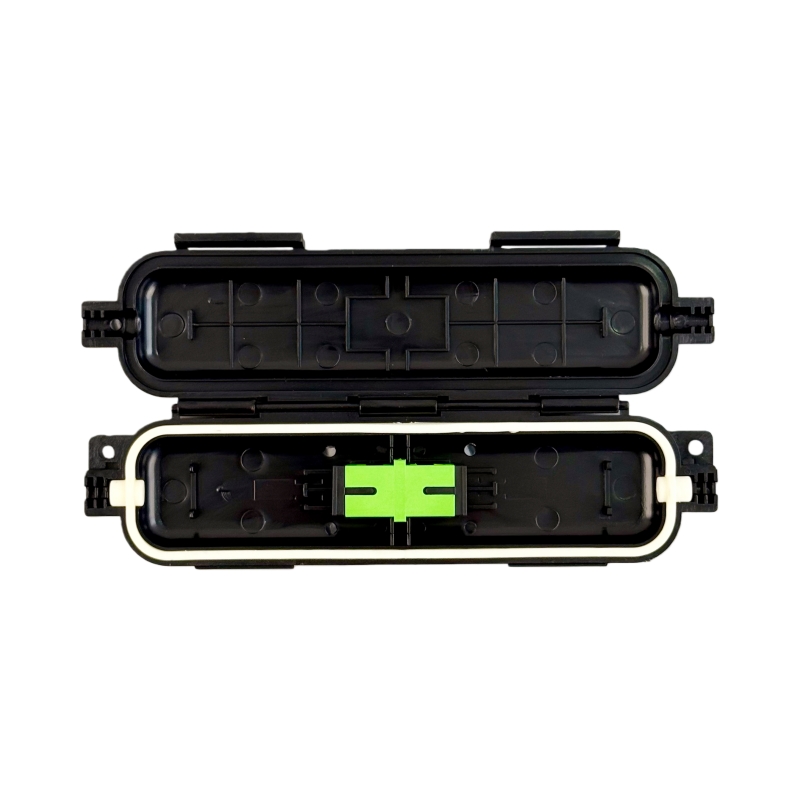

| Feature | GP-T1600-1F | GP-T1600-1SC |
|---|---|---|
| Photo |
|
|

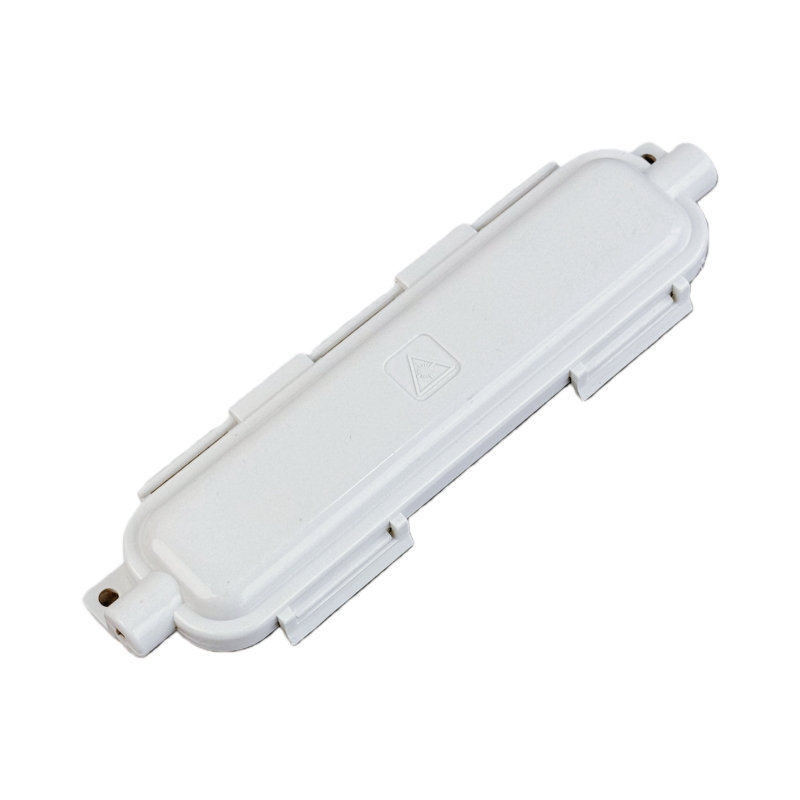

Compact & Space-Saving: Measuring only 160 x 45.5 x 17.5 mm, it fits seamlessly in narrow indoor environments.
Optimized for Splicing: Specifically supports one fusion splice with included splice sleeves for reliable protection.

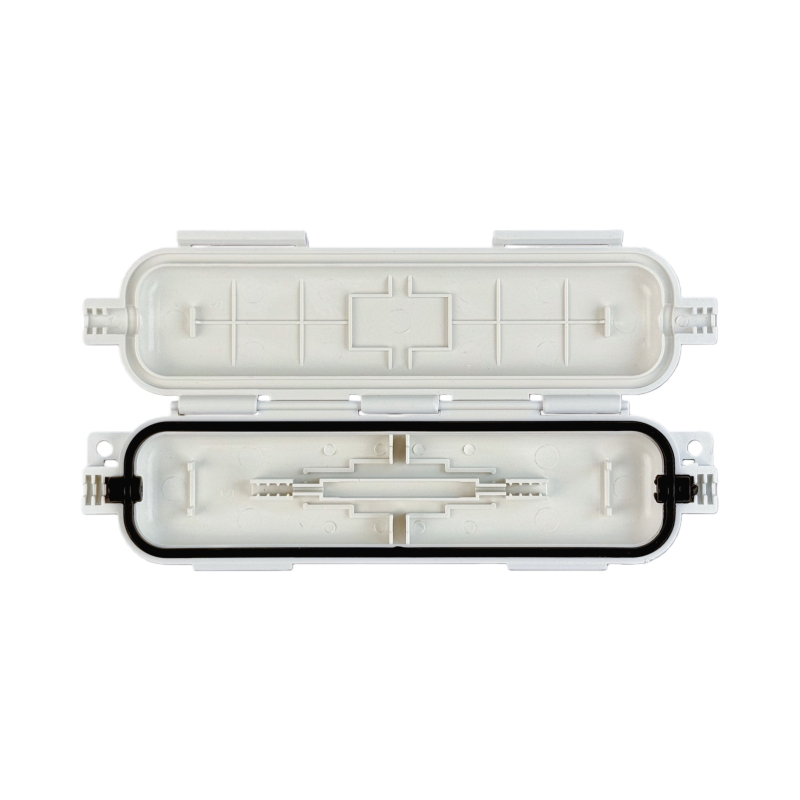

Easy Access Design: Features a user-friendly flip cover mechanism for straightforward installation and maintenance.
Durable Material: Constructed from high-quality ABS (with UL94 V0 optional) to ensure long-term fiber safety.
Wide Temperature Range: Operates reliably in extreme conditions from -40℃ to +70℃.
Part No. | GP-T1600-1F |
Dimensions (L×W×H) | 160 × 45.5 × 17.5 mm |
Material | ABS (UL94 V0 Optional) |
Mounting | Wall Mount |
| IP Rating | IP20 |
Cable Entries | 1 / 1 In-line Ports |
Supported Cable | Ø3 mm Round Drop Cable |
Splicing Capacity | 1 Fiber |
Splice Type | Single Fusion |
| Operating Temperature | -40°C to +70°C |
| Carton Capacity | 400 PCS/CTN |
| Carton G.W. | 14 KG |
| Carton Size | 50×34×40CM |
