Color: Available in standard shades, with full customization options to match branding or environmental needs, including custom printing or relief logos on the enclosure.
Materials: Fully customizable based on deployment environment:
Indoor: Options include standard ABS for cost-effective performance or V0 flame-retardant ABS (UL 94 V-0 rated) for enhanced fire safety in enclosed spaces.
Outdoor: PC/ABS blend is recommended for superior UV resistance, impact strength, and weatherproofing, ensuring long-term reliability in harsh conditions.
Features & Benifits
High-strength engineering alloy plastic construction ensures extended service life.
Slide open-type structure with audible "click" for secure cover locking.

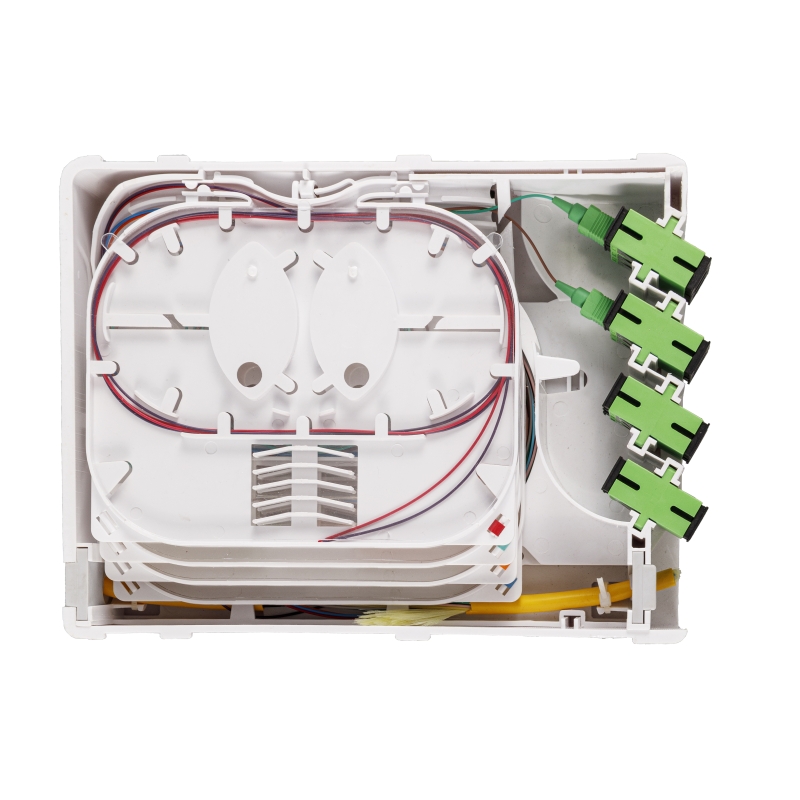

Divided operating space separates loop-through cables from pigtail splicing for streamlined maintenance.

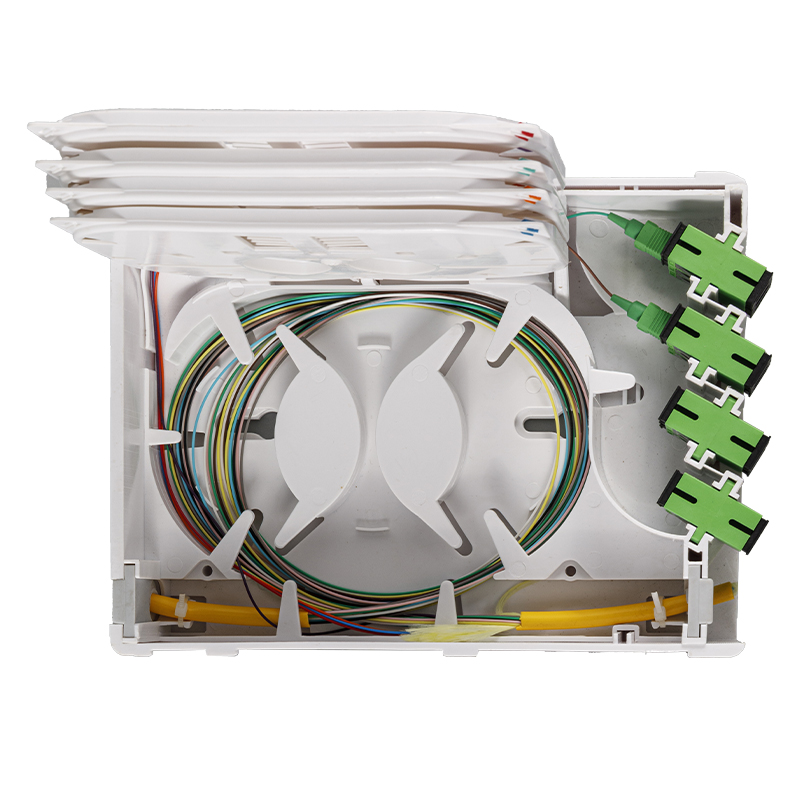

Splice trays with book page flip design, fixable at 45 or 90 degrees for convenient access.
Accommodates up to 12 SC adapters and 1:4 or 1:8 micro splitters per tray.
Supports 4 trays with 4 FO each for fusion or mechanical splices, totaling 16 fibers.
Specification
Part No.
GP-T408-12SC
Dimensions (L×W×H)
158mm × 204mm × 54mm
Enclosure Material
ABS or PC/ABS
Box Sealing Method
Slide Cover (No Sealing Ring)
Cable Sealing Type
Grommet
Cable Entry / Exit Ports
1 / 1 In-line Ports × Ø13mm
Drop Cable Ports
12 Adapter Slots
Patching Capacity
12 SC Adapter
Splicing Capacity
16 Fusion or mechanical splice or 36 Fibers (9 Fibers/Tray)
