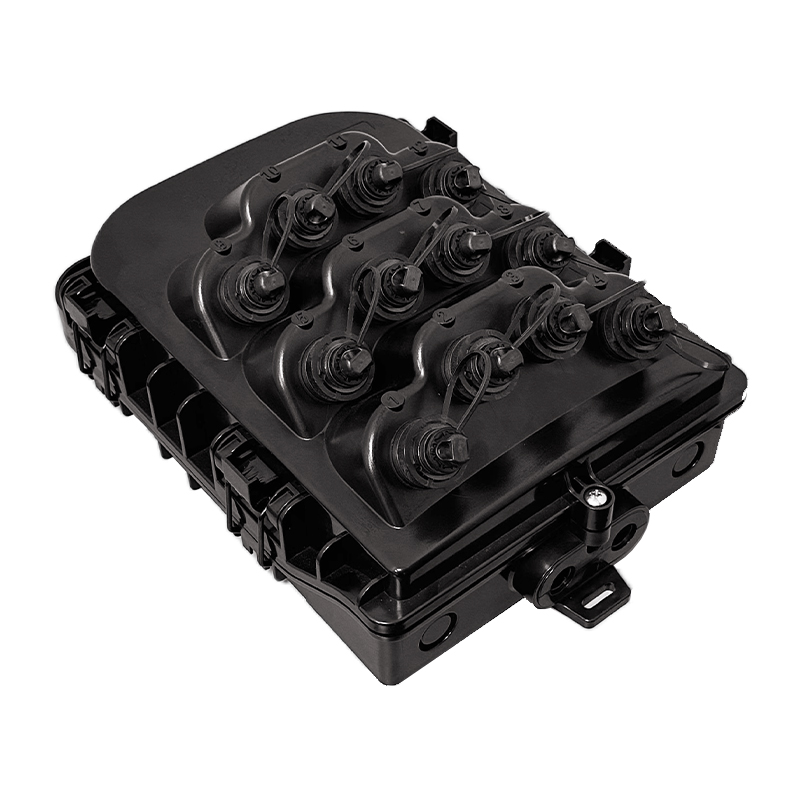

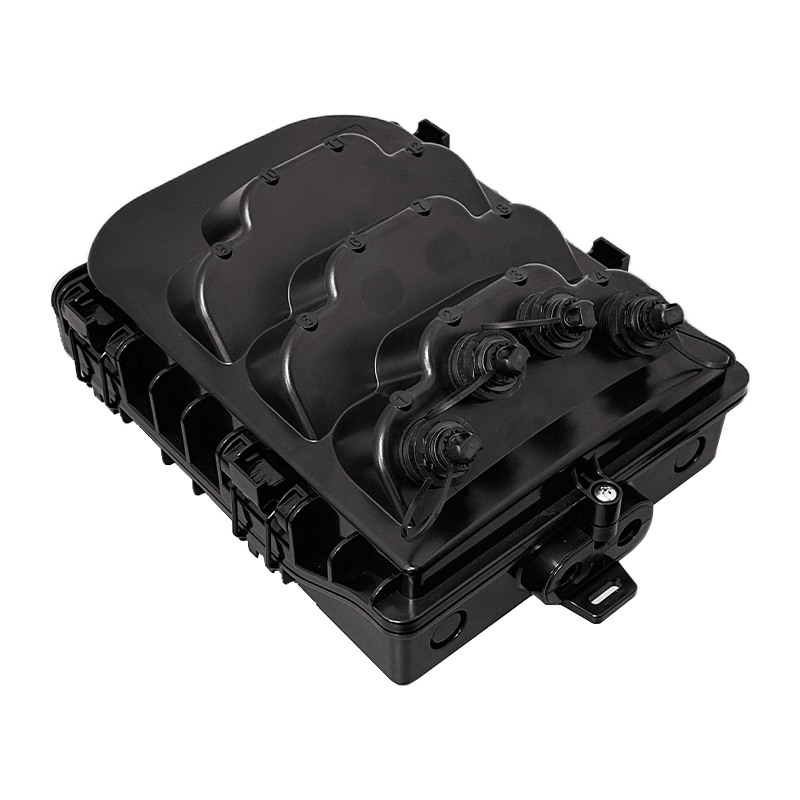

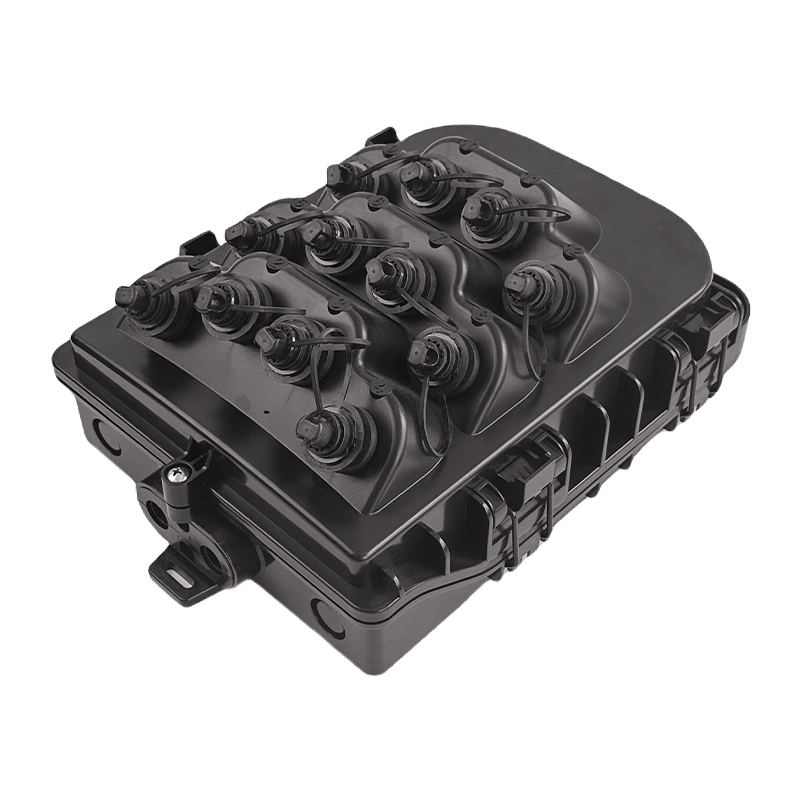

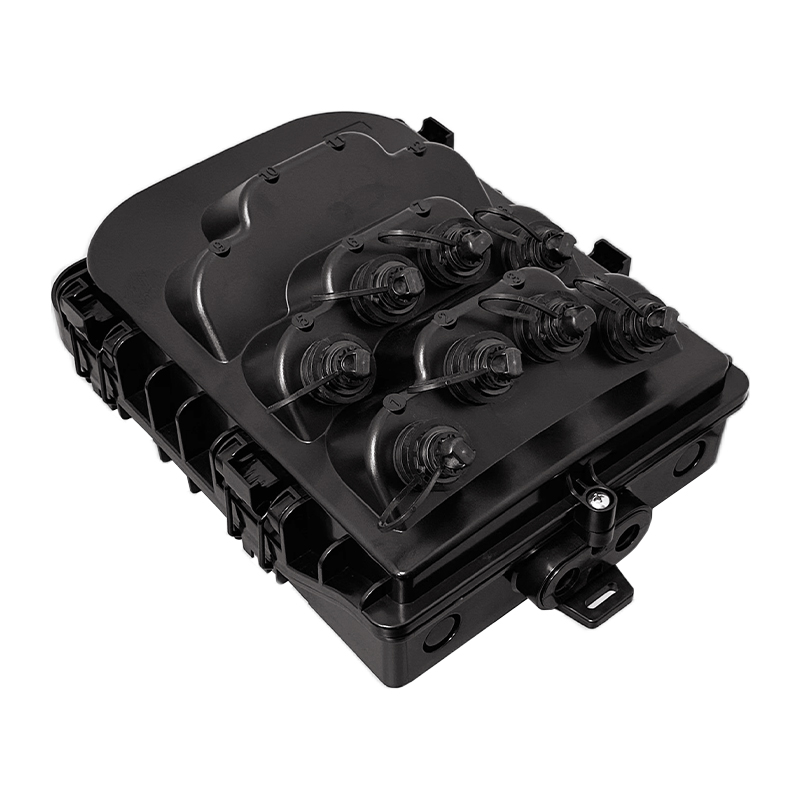

FAT-C12Y 12-Core Fiber Access Terminal Box

Application

Optimized for fiber optic networks, facilitating connections between distribution and drop cables at user access points.
IP65 rating ensures dependable performance in outdoor environments.
Supports aerial, wall, or pole mounting for flexible installation options.

Capacities

Splicing Capacity: 24/48 Fibers
Patching Capacity: 4/8/12 SC or LC
Splitter Capacity: 1x8 or 1x16 Micro PLC Splitter


Availability:



Inquiry Now！ Add to Basket Product Catalog

Model:
FAT-C12Y
Download:
FAT-C12Y Datasheet.pdf
Model:
FAT-C12Y

Customization Options

Features & Benifits

Specification

Packing List

Documentation

The FAT-C12Y Customization Options

Feature	FAT-C12Y-4P	FAT-C12Y-8P	FAT-C12Y-12P
Terminal Ports	4 Ports	8 Ports	12 Ports
Patching Capacity	4 SC or LC Duplex Adapters	8 SC or LC Duplex Adapters	12 SC or LC Duplex Adapters

Replaceable Cover: Choose from covers with 4, 8, or 12 holes to match terminal port requirements (4/8/12 SC or LC duplex adapters) for tailored connectivity.
Pole-Mounting Kit: Opt for a pole-mounting kit with Ø216 mm clamps for secure pole-mounted installations, customized to deployment needs.
Aerial Hook Kit: Select aerial hook kits for stable aerial mounting, enhancing flexibility for overhead installations.
Splitter Configuration: Choose 1x8 or 1x16 micro PLC splitters per tray to optimize fiber distribution for specific network requirements.

Features & Benifits

Built with premium PC/ABS for exceptional durability and weather resistance.
Supports up to 12 hardened adapters (SC or LC duplex) for high-capacity connections.
Accommodates two splice trays with 12/24 fibers each for versatile splicing.
Compatible with 1x8 or 1x16 micro PLC splitters per tray for efficient splitting.
Auxiliary locking device enhances security and maintains IP65 protection.
Auto-movable mechanism holds cover at 90 degrees for convenient access.
Two mid-span and two blind ports simplify cable management and entry.

Specification

Part No.	FAT-C12Y
Dimensions	330×232×127 mm
Enclosure Material	PC/ABS
Box Sealing Method	Silicone Gaskets + Screw Lock
Cable Sealing Type	PG Gland or Hardened Connector
Cable Entry Ports	2 Mid-span Ports × Ø14 mm
Branches	2 × PG13.5
Terminal Ports	4/8/12 Ports (CORNING Water-proof Adapters)
Terminal Capacity	4/8/12 SC or LC duplex Adapters (CORNING Water-proof Adapters
Splice Capacity	48 Fibers (Single-core)
Number of Splice Tray	2 Trays
Suitable Splitter per Tray	1x8 or 1x16 micro PLC splitters
Tray Material	ABS
IP Rating	IP65
Mounting	Aerial / Wall / Pole Mount

Packing List

Carton Size	51×35.5×52cm
Carton Capacity	6 PCS/CTN
Carton G.W.	10 KG
