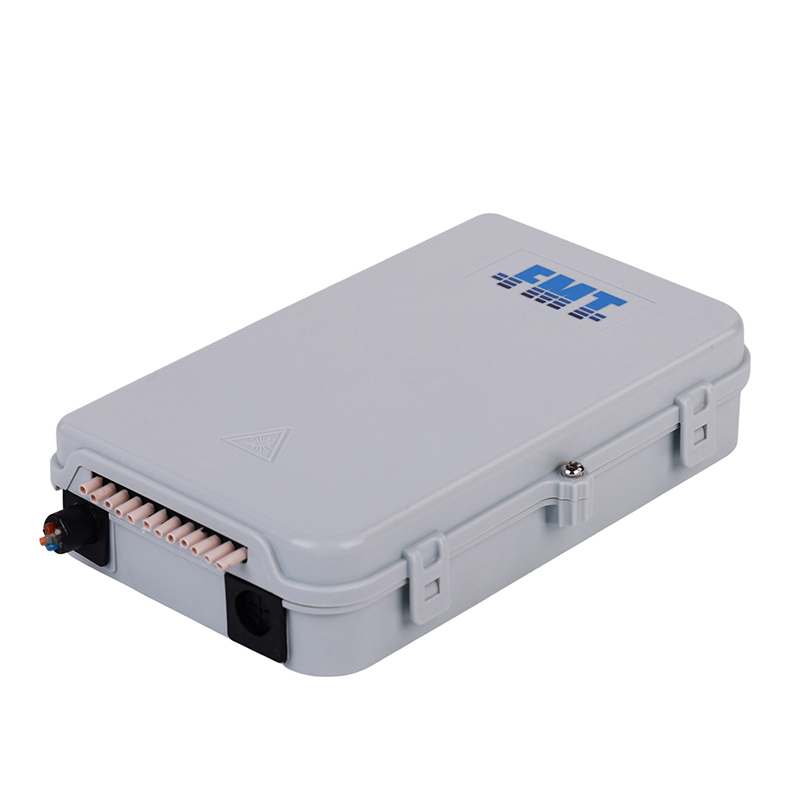

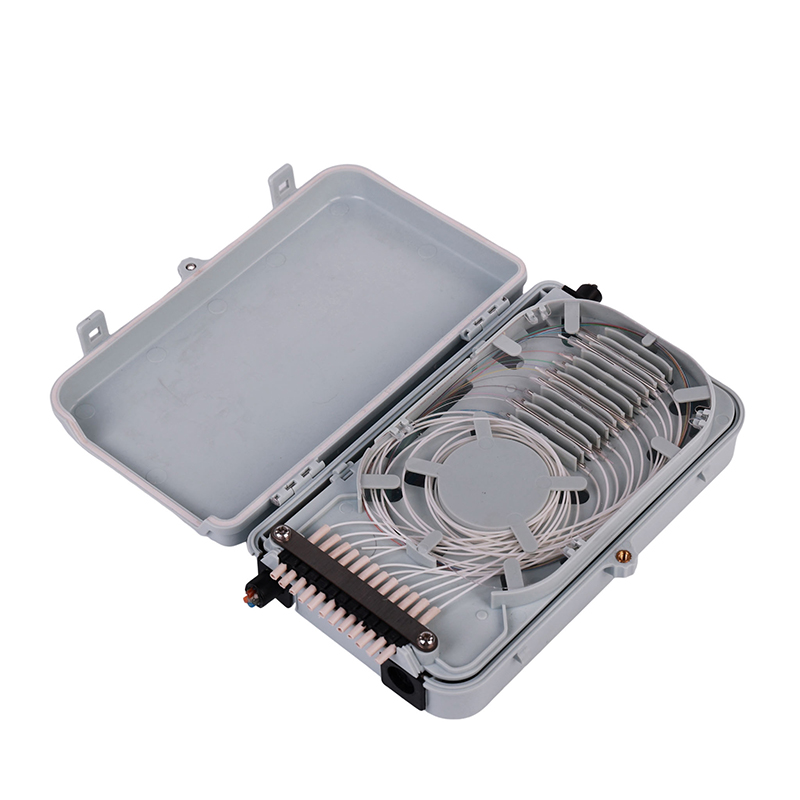

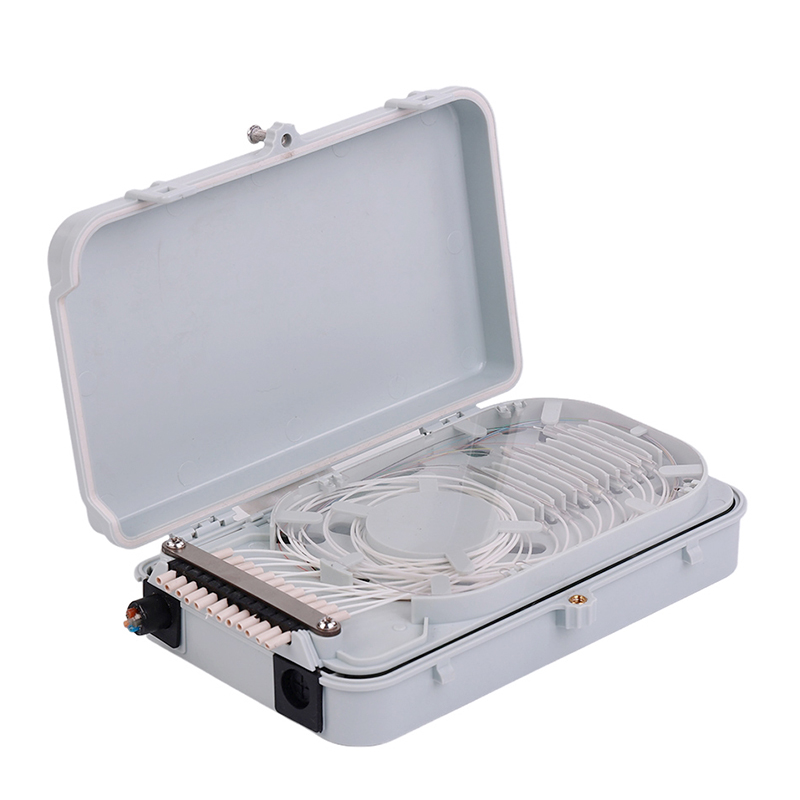

GP-T204
GP-T204

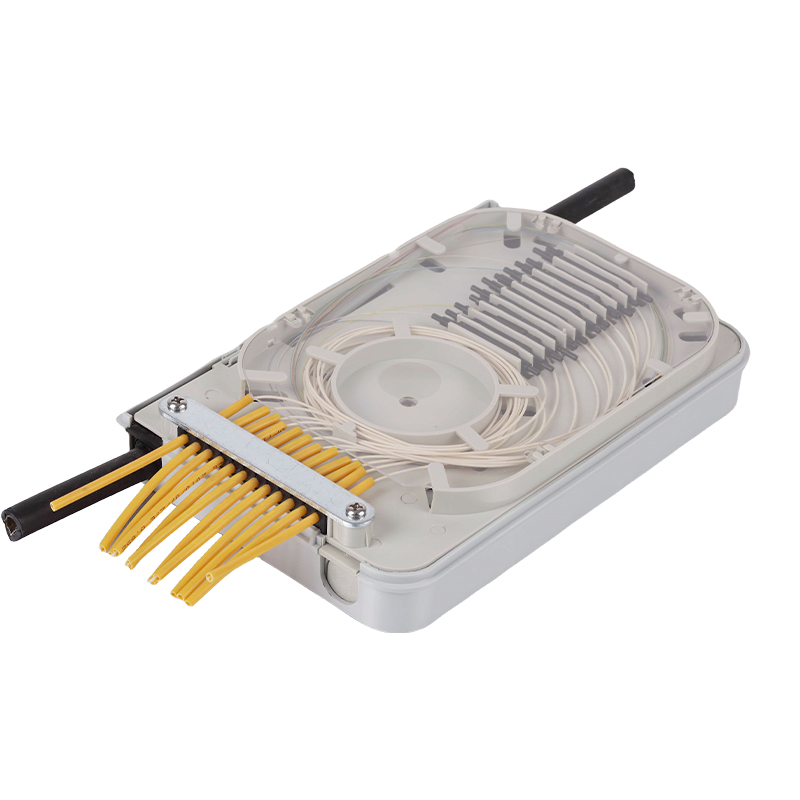

GP-T204 & GP-T404 Comparison
| Feature | GP-T204 | GP-T404 |
|---|---|---|
| Pictures | ![]() | ![]() |
| Splicing Capacity | 12 Fibers | 12/24 Fibers |
| Main Cable Ports | 3ר7mm | 3ר15mm |
| Drop Cable Ports | 12ר2mm | 12ר3mm or 24ר2mm |
Features & Benifits
Streamlined dimensions allow for easy placement in space-limited areas, reducing installation complexity.
Hinged cover and tray system simplifies maintenance and inspections without disrupting operations.
Dual-section interior facilitates versatile cable paths, whether for pass-through or looped arrangements, optimizing network flow.
Tray hinge enables a wide 90-degree access angle while ensuring fibers maintain a safe curvature over 30mm, minimizing signal loss.
Robust entry for three primary cables up to 7mm diameter, combined with 12 exit points for 2mm drops, supports high-density connections.
Enhances overall system reliability by integrating protective elements for fiber management in demanding conditions.
Versatile design promotes quick deployment and scalability in modern optical networks.
Specification
Part No. | GP-T204 |
Dimensions (L×W×H) | 182×124×40 mm |
Enclosure Material | ABS or PC/ABS |
Box Sealing Method | Silicone Gaskets + Snap-fit + Screw Lock |
Cable Sealing Type | Grommet |
Cable Entry Ports | 1 × Ø7mm |
| Cable Exit Ports | 2 × Ø7mm |
| Drop Cable Ports | 12 × Ø2mm |
Patching Capacity (Max) | Not Supported |
Splicing Capacity (Max) | 12 Fibers (Single-core) |
Splice Trays | 1 Tray (Max) |
Tray Material | ABS |
IP Rating | IP54 |
Mounting | Wall Mount |
Packing List
| Carton Size | 40×28×28 CM |
| Carton Capacity | 20 PCS/CTN |
| Carton G.W. | 10 KG |
