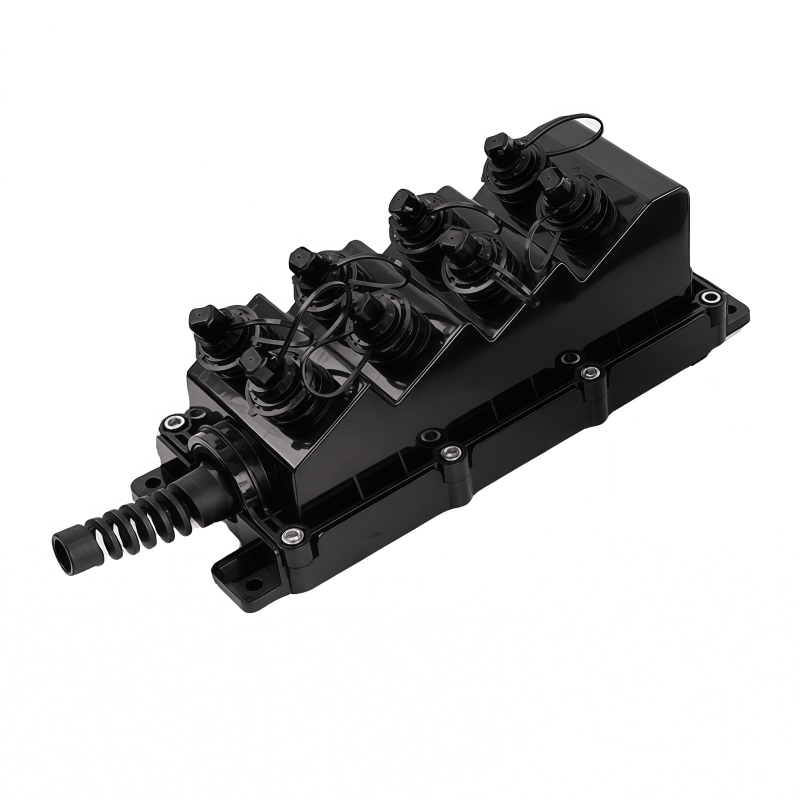

FAT-C8PA
FAT-C8PA Datasheet.pdf
The C4PA & C8PA Comparison
Features & Benifits
Made from high-strength PC or PC+ABS for durability in challenging conditions.
Equipped with 8 CORNING waterproof adapters for secure and efficient connections.
Supports a 1x8 tube splitter for effective signal distribution in FTTx networks.
Bolted sealing design provides robust waterproofing for outdoor applications.
Compact layout optimizes splicing, splitting, and cable management in limited spaces.
Designed for easy installation and maintenance, reducing deployment time.
IP55-rated enclosure protects against dust and water for long-term reliability.
Note: Adapters, pigtails, and splitters sold separately. Custom configurations available upon request.
Specification
Part No.
Dimensions (L×W×H)
282×112×92mm
Enclosure Material
PC +ABS
Box Sealing Method
Silicone Gaskets + Screw Lock
Cable Sealing Type
PG Gland or Hardened Connector
Cable Entry Ports
8 Ports× CORNING Water-proof Adapters
Patching Capacity (Max)
Splicing Capacity (Max)
IP Rating
IP68
Mounting
Wall Mount / Pole Mount
Packing List
60×31×50 CM
