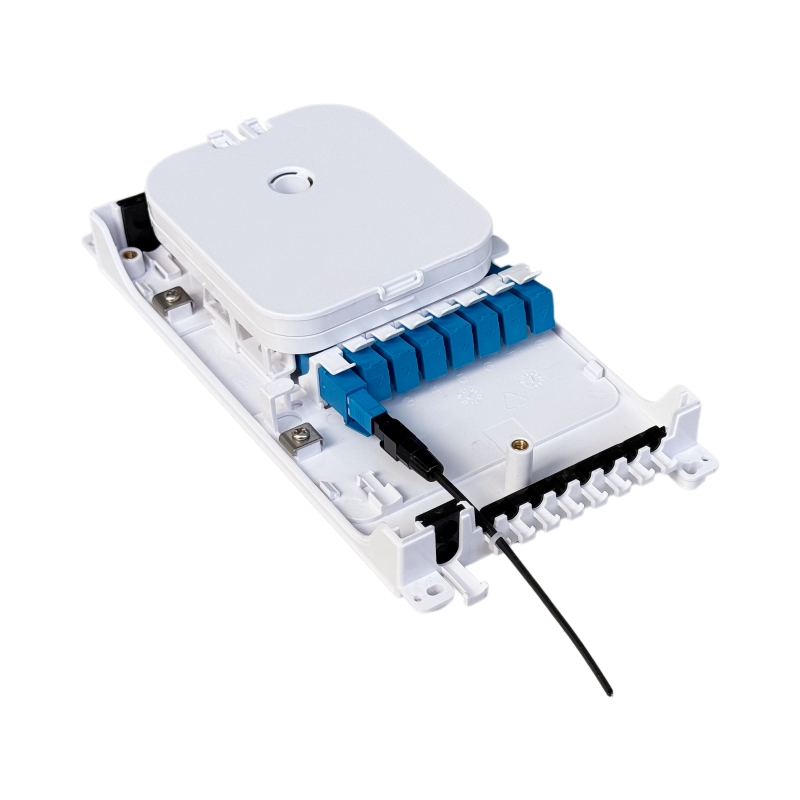

FB-T428L Optical Distribution Terminal Indoor Box | 24-Fiber Extended Fiber Terminal Box

Features & Benefits

• Extended "Longer" Design: Features a longer distance from the adapter to the drop port, making it exceptionally suitable for field connectors and easier cable handling.

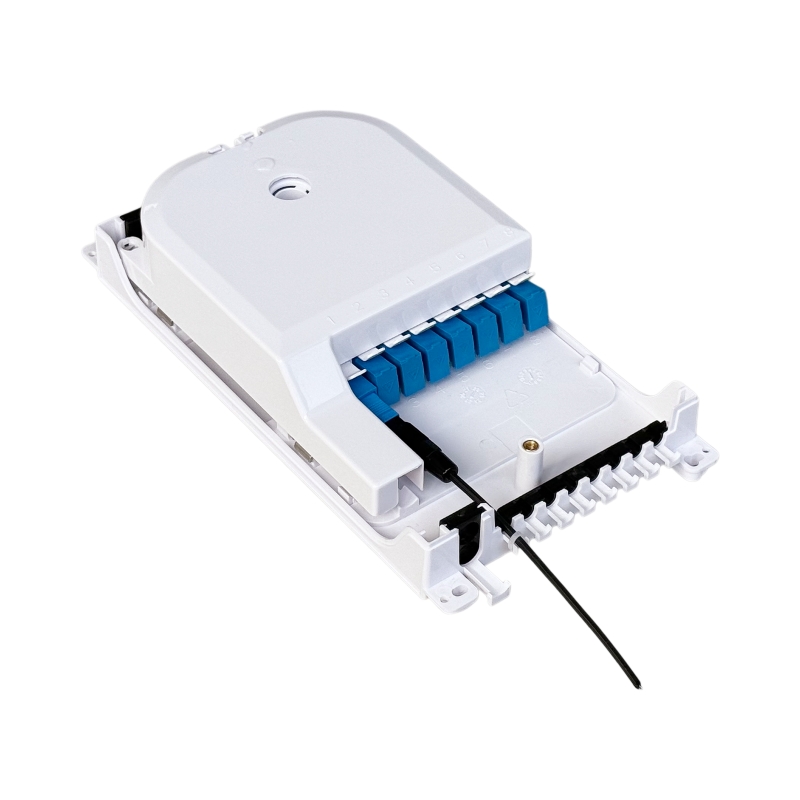

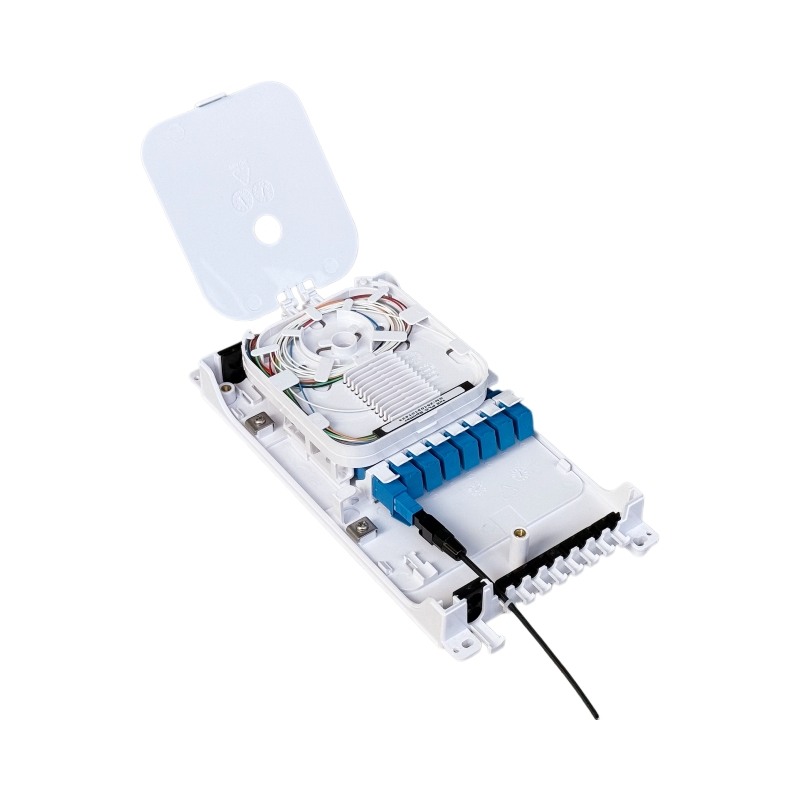

• Double-Cover Protection: Equipped with a dual-layer cover system: the first cover protects the customer access area, while the secondary cover secures the critical splice area.

• High-Quality LSZH Material: Constructed from brand-new LSZH (Low Smoke Zero Halogen) plastic, ensuring safety for indoor deployments.

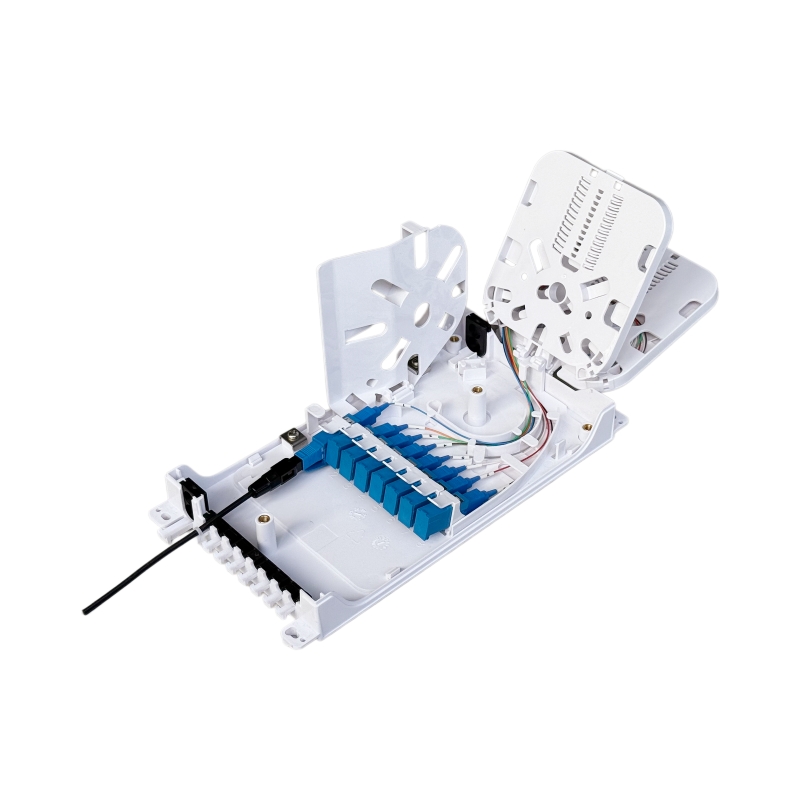

• Efficient Splicing Management: * Supports up to 2 splice trays with a total capacity of 24 fibers (12 FO per tray).

• The splice tray can hold at a 120-degree angle when wall-mounted for hands-free maintenance.

• Splitter Ready: Includes a specialized slot within the splice tray specifically designed for a $1\times8$ micro PLC splitter.

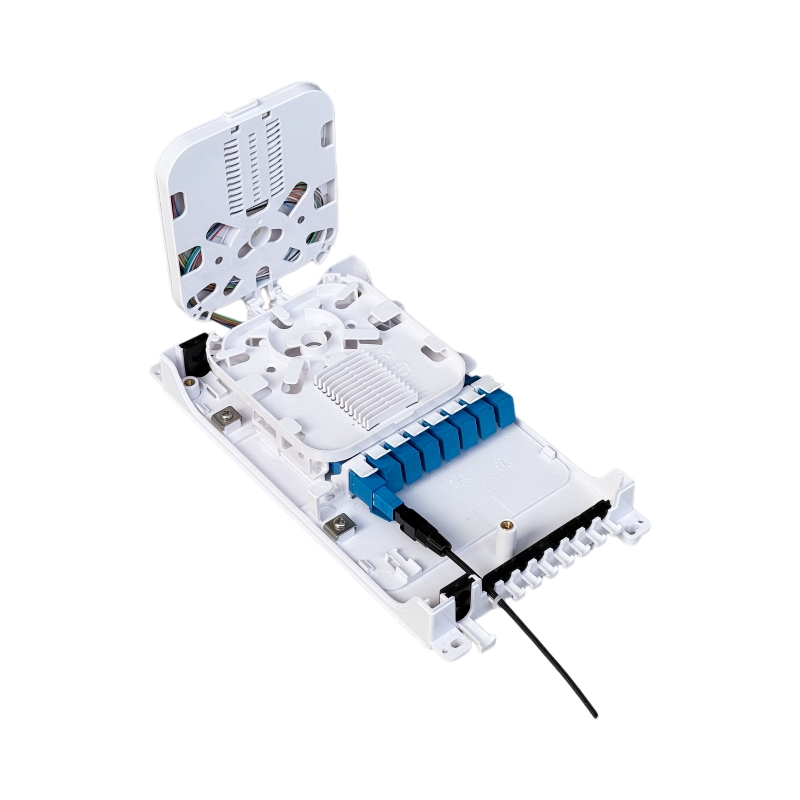

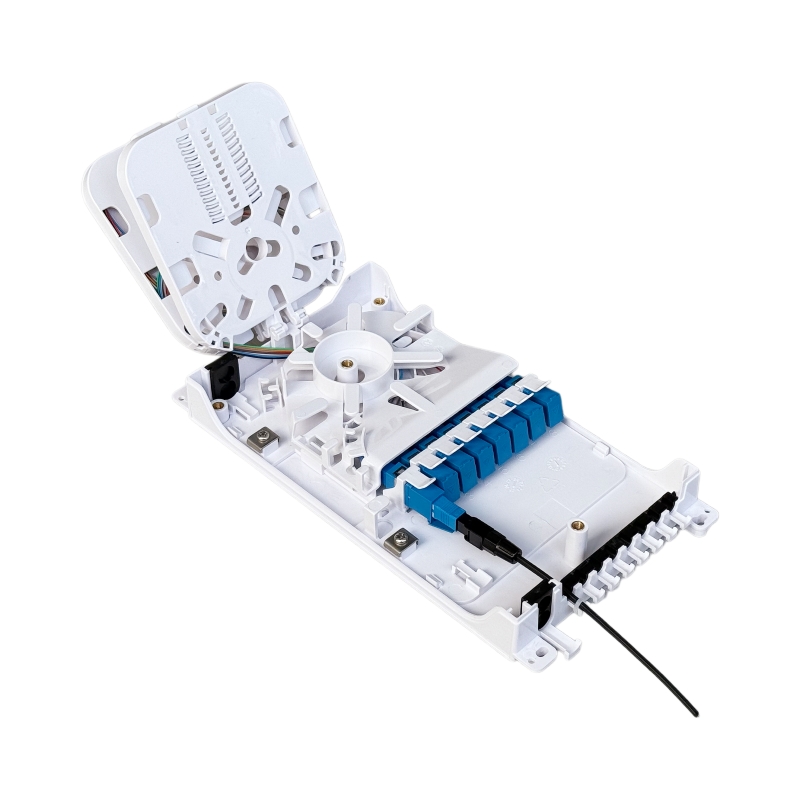

• User-Friendly Installation: * Adapter holders can be slightly lifted to facilitate easier adapter and pigtail installation.

• Dedicated storage tray included for neat management of uncut cable.

• Clear Cable Routing: Designed with distinct functional areas and clear routing paths to maintain signal integrity and ease of service.

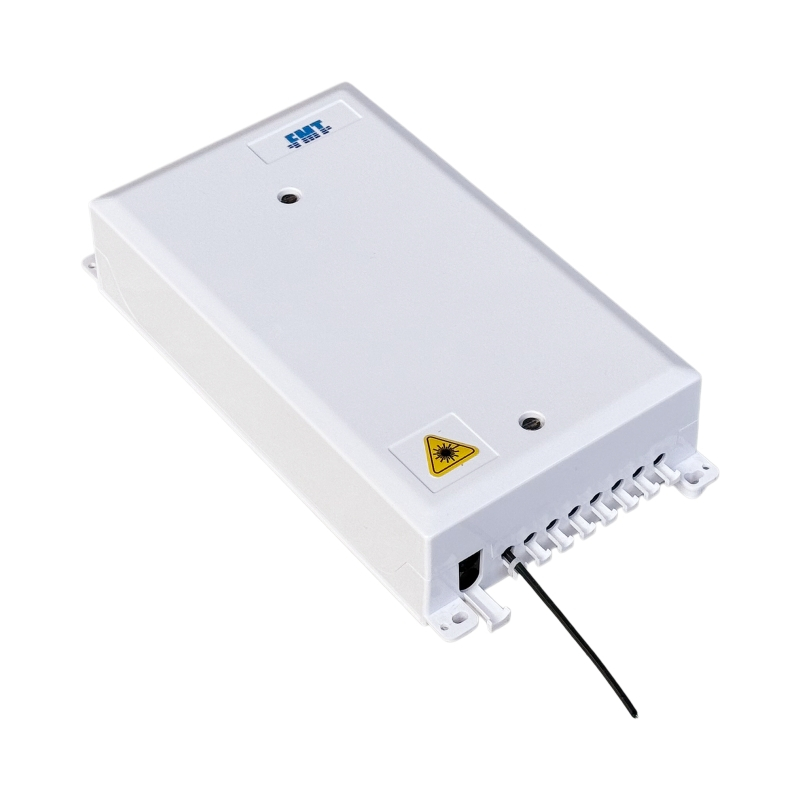

• Enhanced Security: Features two bolts on the cover to ensure better protection, achieving a rating of no less than IP45.

Specification

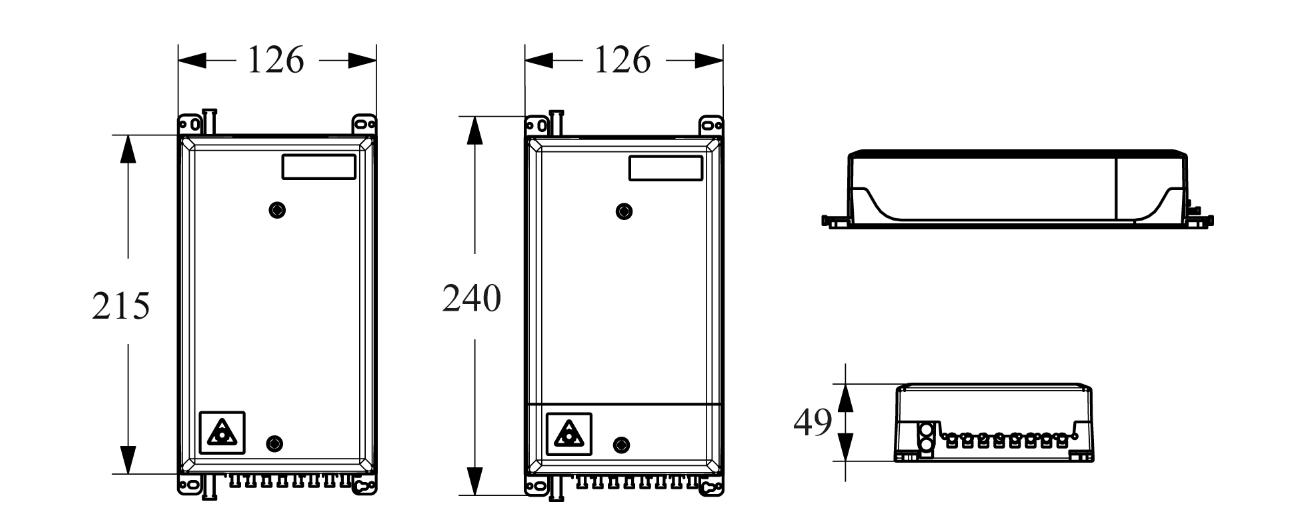

Dimension Drawing

Packing List
