FST-8SP-427 Ultra-Compact Fiber Splice Tray, 8-Fiber, Splitter Compatible

Application

For use with FB-T427 Floor Terminal Box.


Availability:



Inquiry Now！ Add to Basket Product Catalog

Model:
FST-8SP-427
Download:
FST-8SP-427 Datasheet.pdf
Model:
FST-8SP-427

Features & Benefits

Specification

Ordering Notes

Documentation

FAQ

Features & Benefits

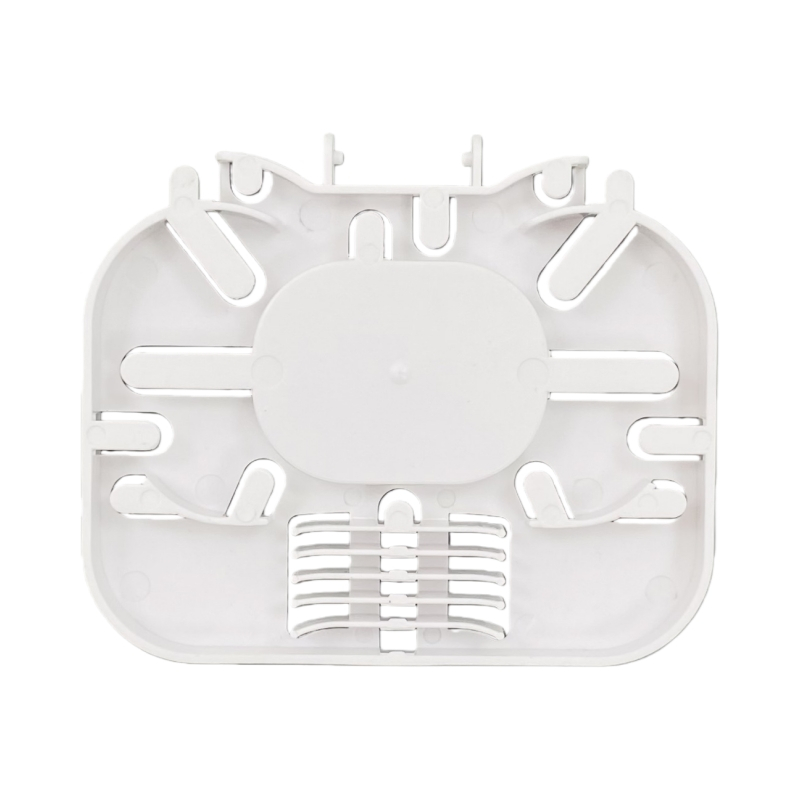

The FST-8SP-427 is an ultra-compact fiber management solution specifically engineered for environments where space is at a premium. It provides a robust and organized platform for both fiber splicing and micro-splitter housing in a minimized footprint.

Ultra-Compact Footprint: With dimensions of only $98 \times 83 \text{ mm}$, it is one of the smallest professional splice trays available, making it ideal for micro-distribution boxes and compact terminal outlets.
Hybrid Splice & Split Solution: Despite its mini size, it features dedicated slots to accommodate up to 8 fiber splices and a 1:4 or 1:8 Micro PLC Splitter (Steel Tube type).
Reliable Fiber Protection: Precision-molded routing paths maintain a minimum bend radius of 30mm, ensuring optimal signal integrity and long-term network reliability for sensitive fibers.

Specification

Par No.	FST-8SP-427
Access Type	Hinged
Splice Capacity	4/8 Fibers
Splicing Method	Single Fusion (Heat Shrink)
Dimensions (H x W x H)	98 × 83 × 11.34 mm
Fiber Bend Radius	≥ 30mm

Ordering Notes

Pre-installed Configuration

Typically, the FST-8SP-427 splice trays are not sold as standalone units but are pre-installed as standard accessories within our Fiber Optic Splice Closures or Distribution Boxes.

Standalone Orders

We welcome individual purchases for maintenance or capacity expansion. If you require trays separately, please contact our sales team to:

Specify your required quantity.
Discuss preferred packaging methods (e.g., bulk industrial packing or individual kits).

Standard Kit (per unit if ordered separately)

1 Splice Tray per Stack	1 x FST-8SP-427 Splice Tray. 1 x Plastic Cover. Optional: 12 x Fiber Heat Shrink Sleeves (available upon request).
2 Splice Tray per Stack	2 x FST-8SP-427 Splice Tray. 1 x Plastic. Optional: 24 x Fiber Heat Shrink Sleeves (available upon request).
...	...

FST-8SP-427 Datasheet.pdf

Fibermint 2025 Fiber OpticProduct Catalog.pdf

FAQ

Q: What is the main advantage of the FST-8SP-427?

A: Its ultra-compact size. It is designed for mini-type fiber boxes.

Q: Can I install a 1:16 splitter in this tray?

A: This model is optimized for 1:4 and 1:8 Micro PLC splitters. For 1:16 splitters, we recommend our slightly larger FST-12S-097 or FST-2M series.

Q: Does it support stackable installation?

A: No, multiple FST-8SP-427 trays cannot be stacked to increase capacity within compact enclosures.

Related Products

FB-T427 Compact 8-Port Fiber Optic Termination Box

FST-2M-024 Modular Fiber Optic Management Tray, Dual-Slot, Hinged

FST-12SP-117 Compact Fiber Optic Splice Tray, 12Fiber, Splitter Compatible

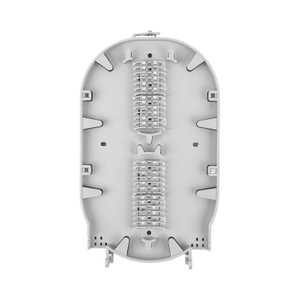

FST-48S-234 High-Density Fiber Optic Splice Tray, 48-Fiber, Quad-Module Design
