Features & Benifits

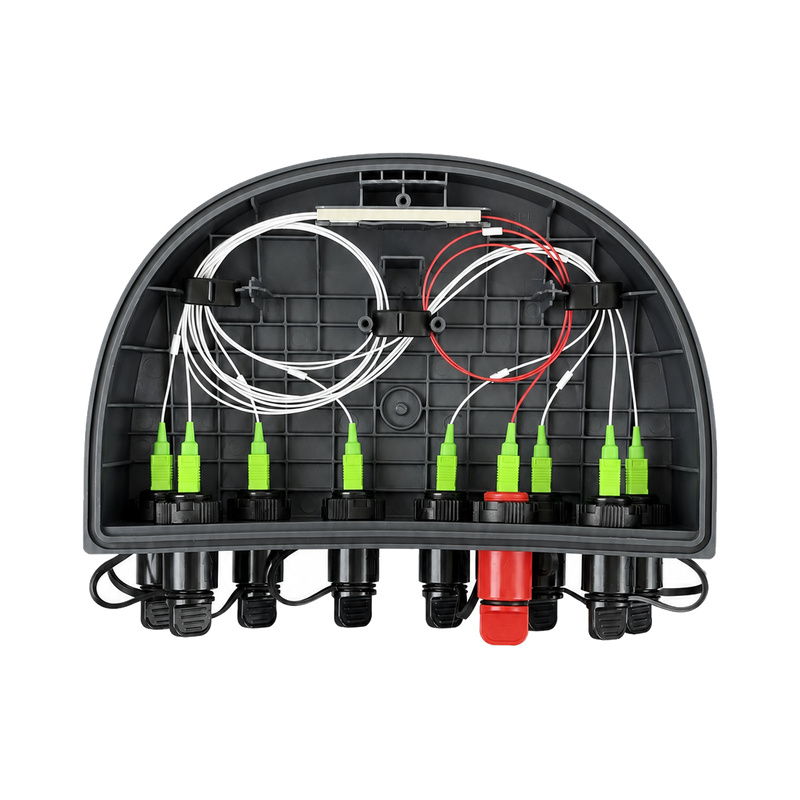

The ODB-8632 provides the final distribution point between the FTTH distribution cable and up to eight subscriber drop connections. Its 1×8 PLC splitter distributes one optical input to eight service outputs, making this model suitable for end-terminal positions where no onward cascade output is required.
The enclosure is sealed by hot-plate welding and uses UV-resistant PP for outdoor deployment. Clearly arranged and numbered external interfaces simplify subscriber connection and inspection. An optional cable storage bracket supports up to 20 m of excess distribution cable behind the terminal.
- Integrated 1×8 PLC splitter for eight subscriber connections.

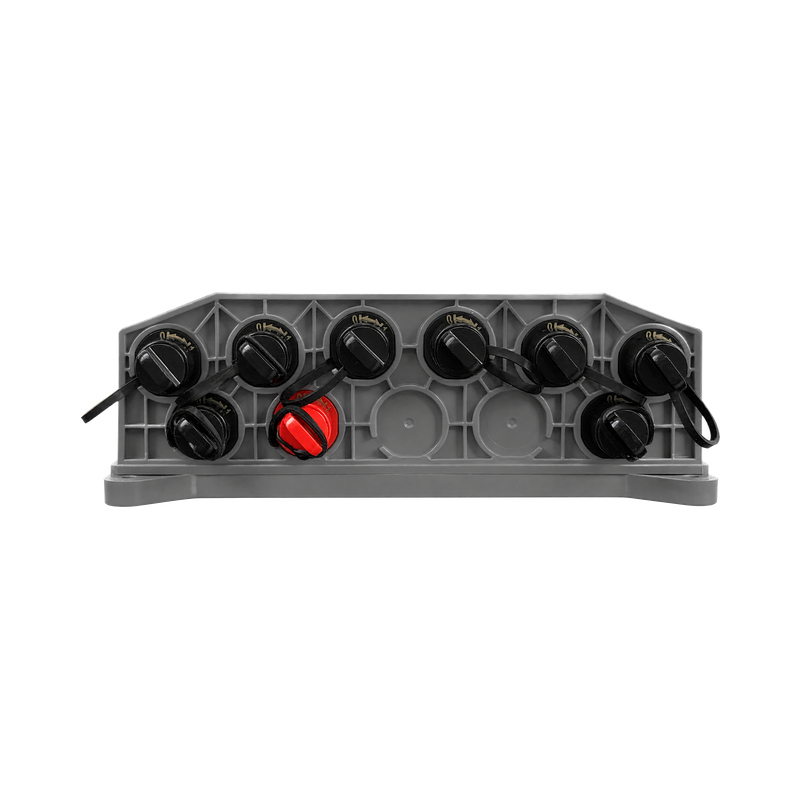

- Nine reinforced external interfaces: one input and eight service outputs.
- Red input-port identification and black service-port identification.
- Hot-plate-welded enclosure for permanent environmental sealing.
- IP65 ingress protection and IK10 impact resistance.
- UV-resistant PP housing in RAL 7024 graphite gray.

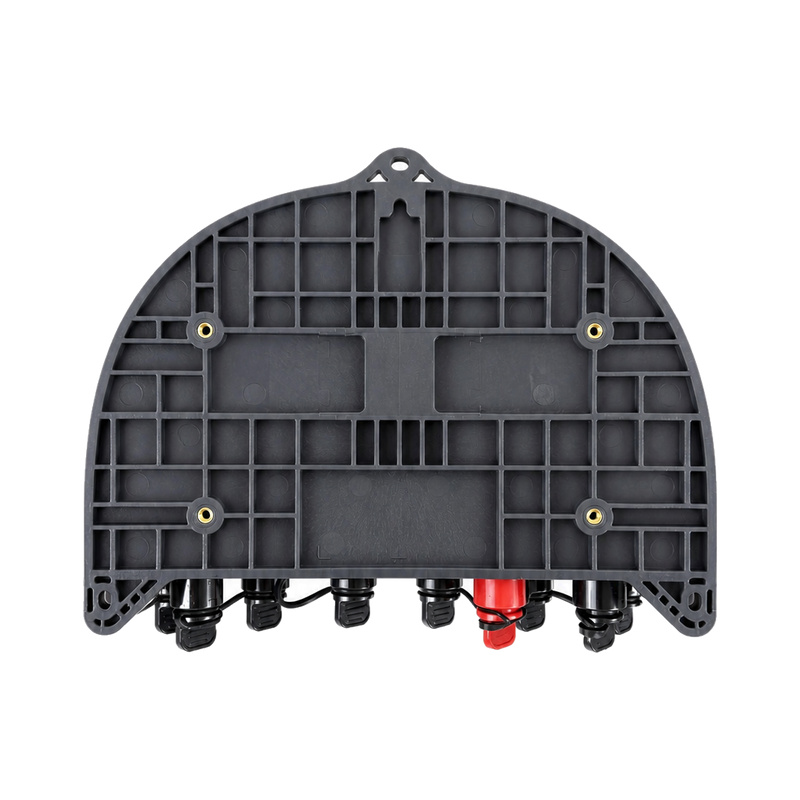

- Supports wall or pole mounting.

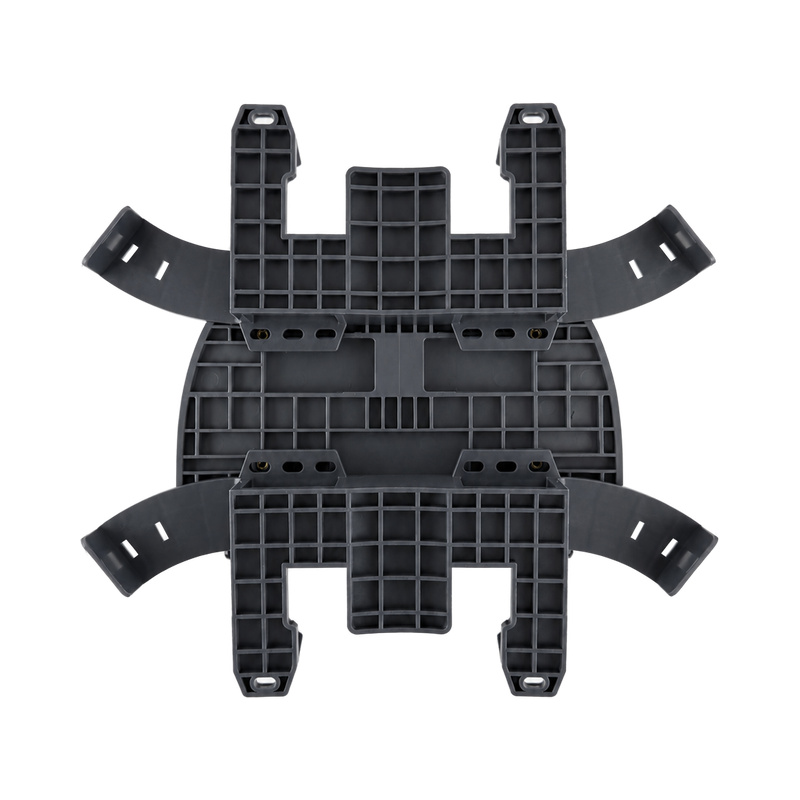

- Cable storage bracket supports up to 20 m of excess cable.

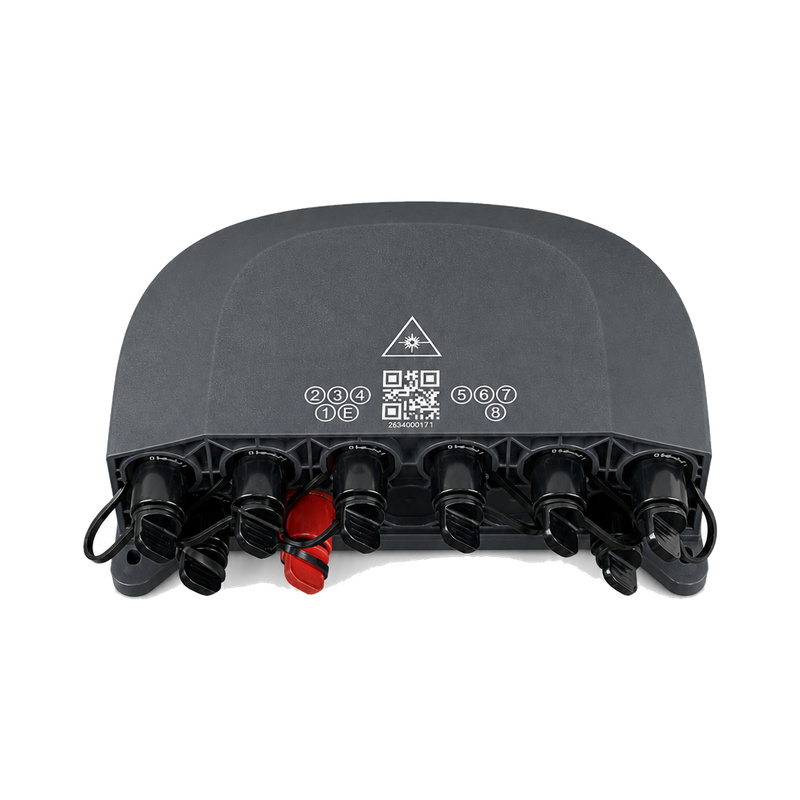

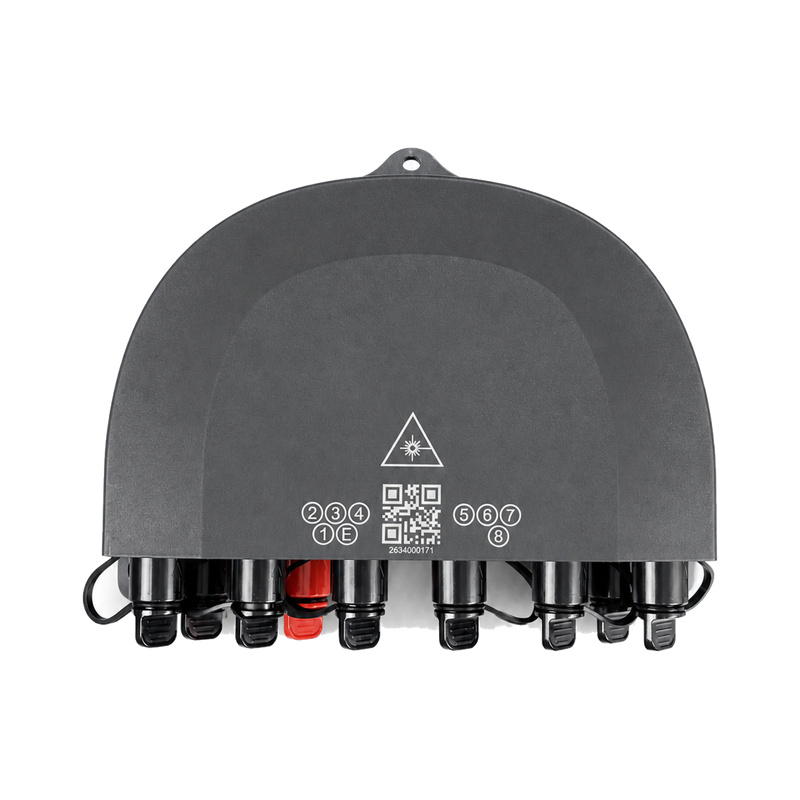

- Numbered ports and QR-code identification support field management.
