Features & Benifits

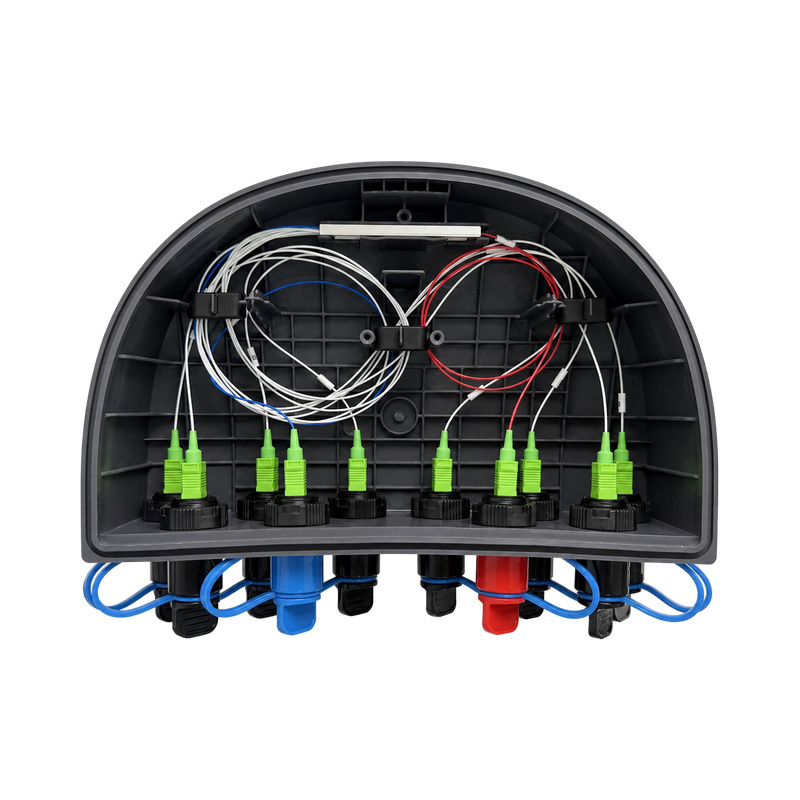

The ODB-8641-70/30 provides local subscriber access while maintaining an onward optical path to the next terminal. Its integrated 1×9 PLC splitter supplies eight local service outputs and one continuation output, allowing multiple terminals to be deployed sequentially along an FTTH distribution route.
The 70/30 configuration provides unequal primary optical-power allocation between the local distribution branch and the continuation branch. It is intended for cascaded networks in which the optical budget must reserve different power levels for the current distribution point and the downstream route. The assignment of the 70% and 30% branches must match the confirmed ordering configuration and network design.
The enclosure is manufactured from UV-resistant PP+GF and permanently sealed by hot-plate welding. Every unit must be fully configured and factory assembled before delivery. The terminal supports wall mounting and pole mounting for outdoor deployment.
- Integrated 1×9 PLC splitter with a 70/30 optical configuration.
- Unequal optical-power allocation for cascaded network design.
- Eight local subscriber outputs and one continuation output.
- Ten reinforced SC interfaces: one input, one continuation output, and eight service outputs.

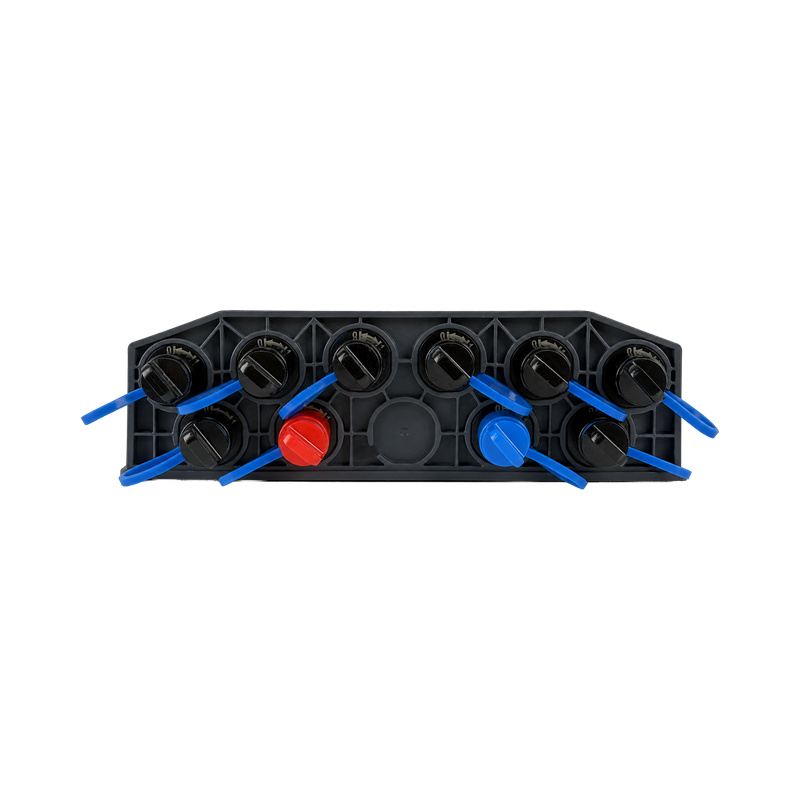

- Red input-port identification, blue continuation-port identification, and black service-port identification.
- Hot-plate-welded enclosure for permanent sealing.
- UV-resistant PP+GF housing with a matte RAL 7024 graphite-gray finish.
- IP65 ingress protection and IK10 impact resistance.
- Fully configured and factory assembled before delivery.

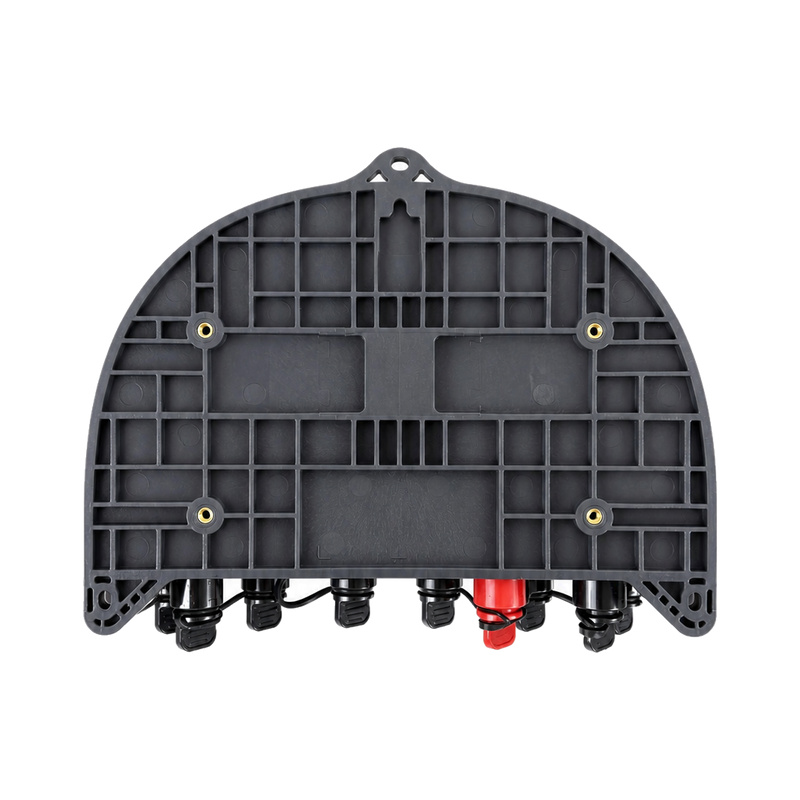

- Supports wall mounting and pole mounting.

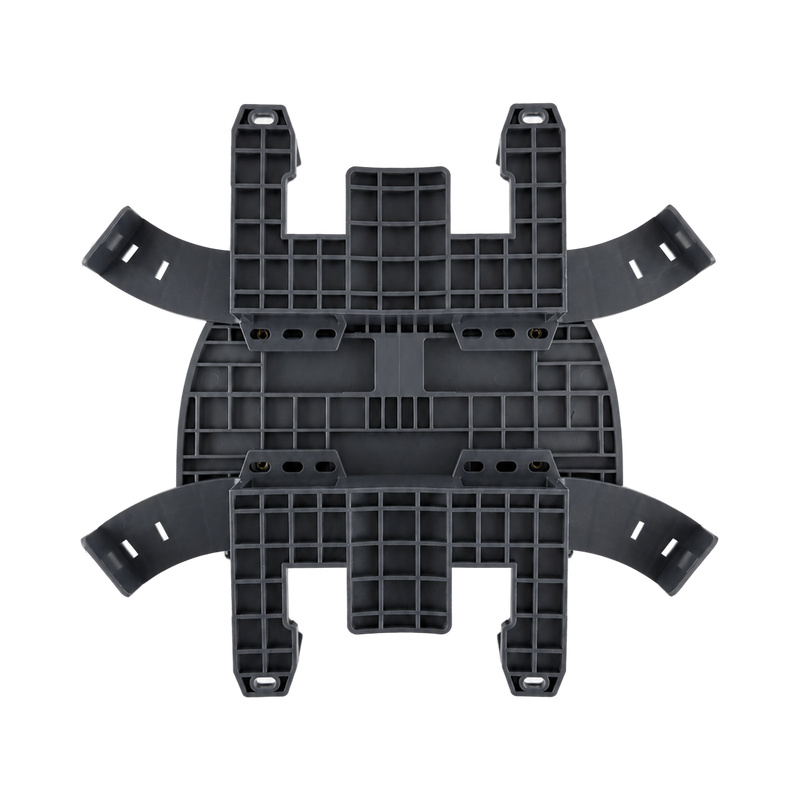

- Cable storage bracket accommodates at least 20 m of excess cable.

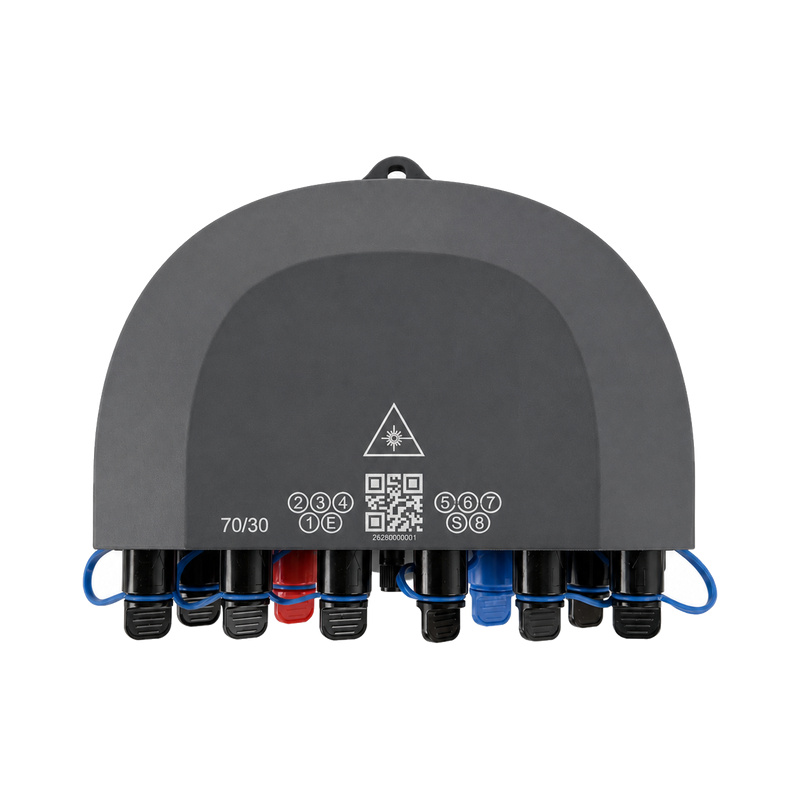

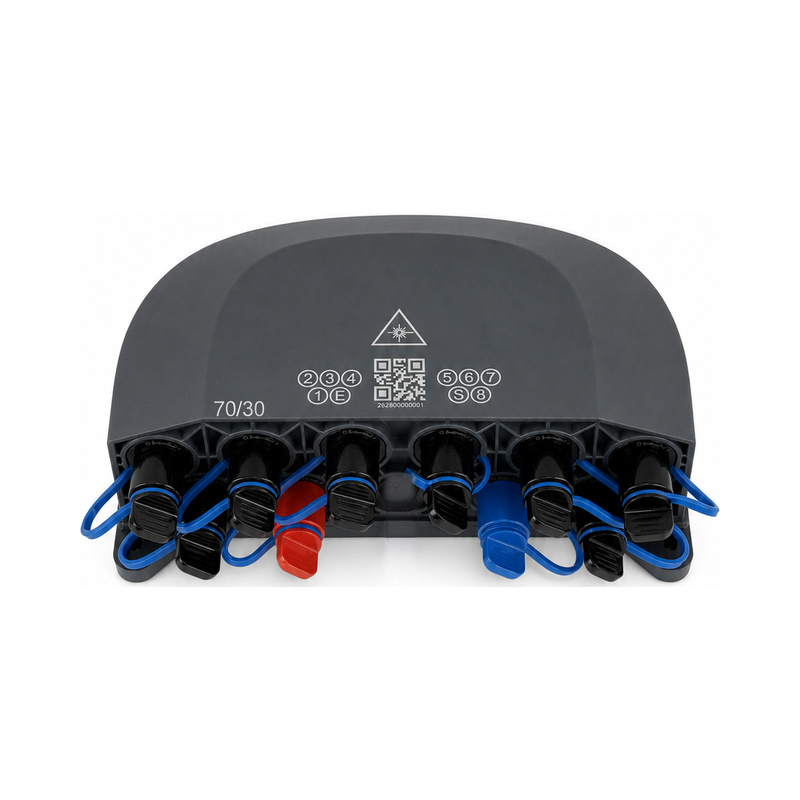

- Numbered service ports and QR-code identification support field management.
