Features & Benifits
The ODB-8641-50/50 combines subscriber distribution and onward fiber continuation in one sealed terminal. The integrated 1×9 PLC splitter supports eight local subscriber connections and one continuation connection to the next terminal, making the product suitable for intermediate positions in a cascaded FTTH route.
The 50/50 configuration provides equal primary optical-power allocation between the local distribution branch and the continuation branch. This makes it suitable for network designs that require a comparable power budget at the current terminal and the downstream route.
The enclosure is manufactured from UV-resistant PP+GF and permanently sealed by hot-plate welding. Every unit must be fully configured and factory assembled before delivery. Wall-mounting and pole-mounting accessories support outdoor installation on building facades, posts, and utility poles.

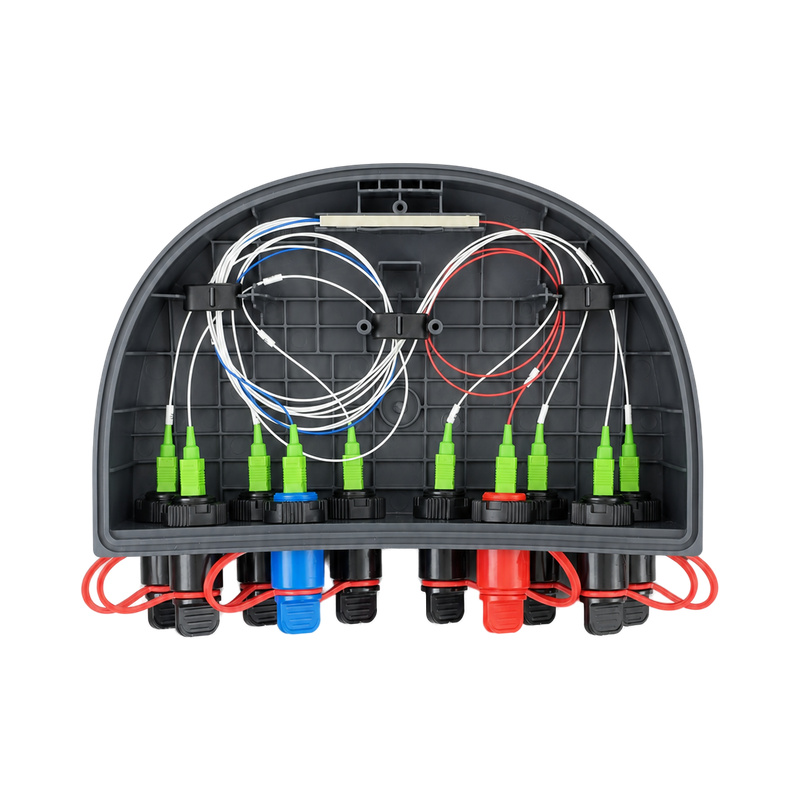

- Integrated 1×9 PLC splitter with a 50/50 optical configuration.
- Eight local subscriber outputs and one continuation output.
- Ten reinforced SC interfaces: one input, one continuation output, and eight service outputs.

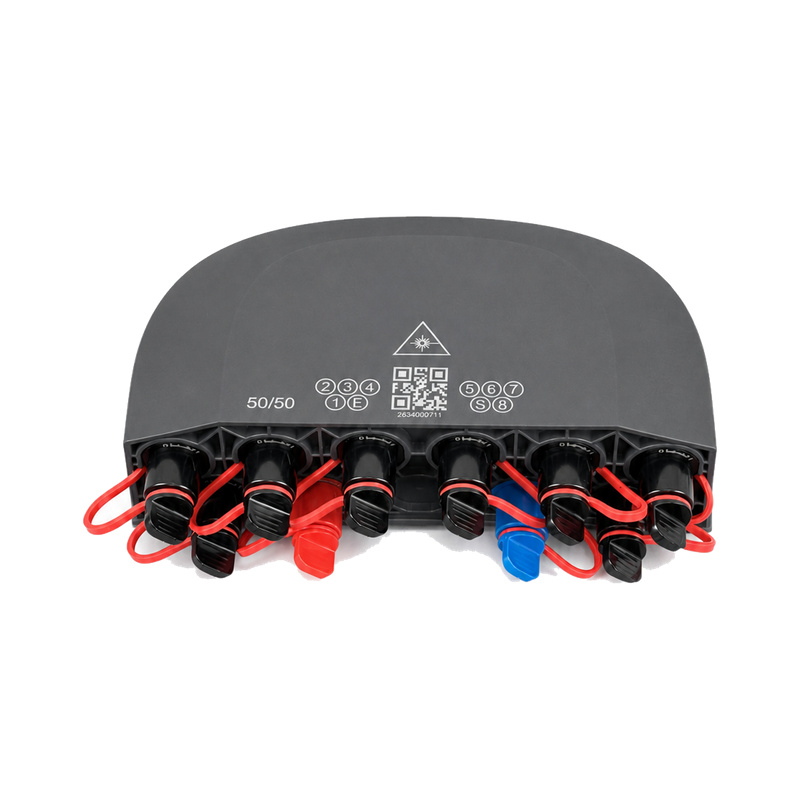

- Red input-port identification, blue continuation-port identification, and black service-port identification.
- Hot-plate-welded enclosure for permanent sealing.
- UV-resistant PP+GF housing with a matte RAL 7024 graphite-gray finish.
- IP65 ingress protection and IK10 impact resistance.
- Fully configured and factory assembled before delivery.

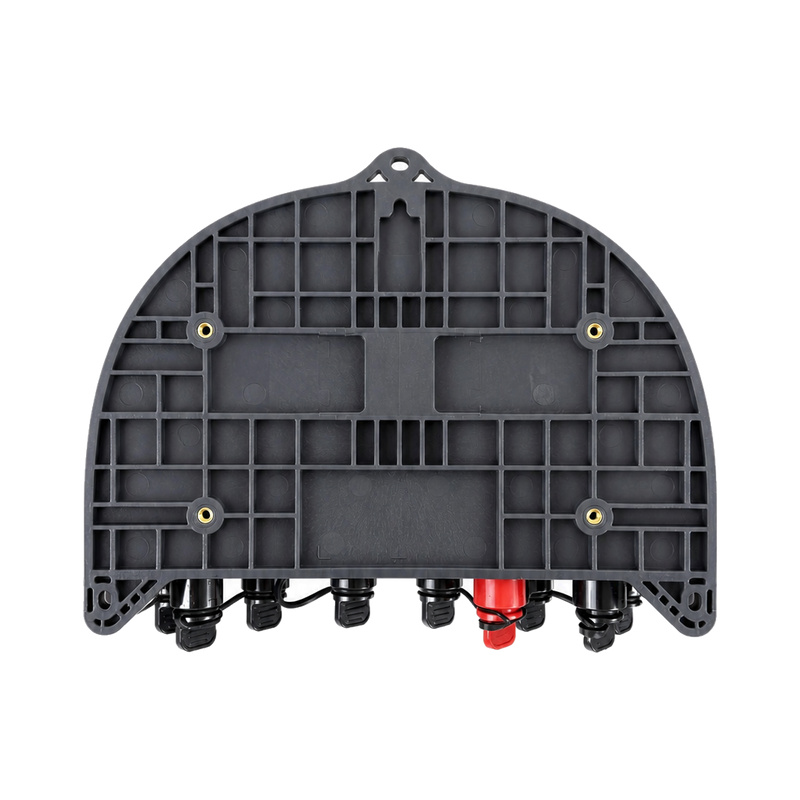

- Supports wall mounting and pole mounting.
- Cable storage bracket accommodates at least 20 m of excess cable.

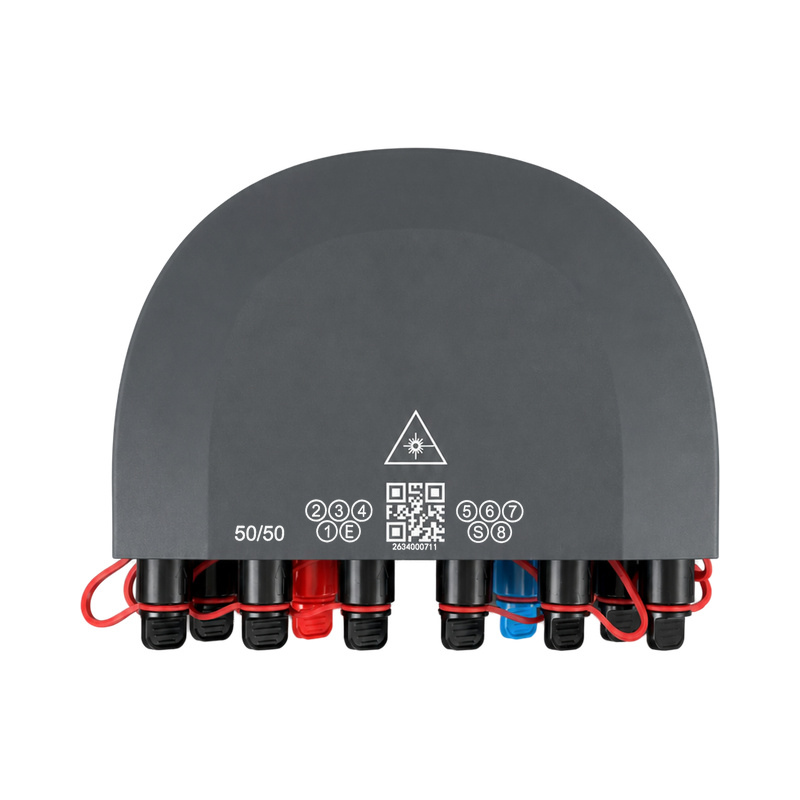

- Numbered service ports and QR-code identification support field management.
