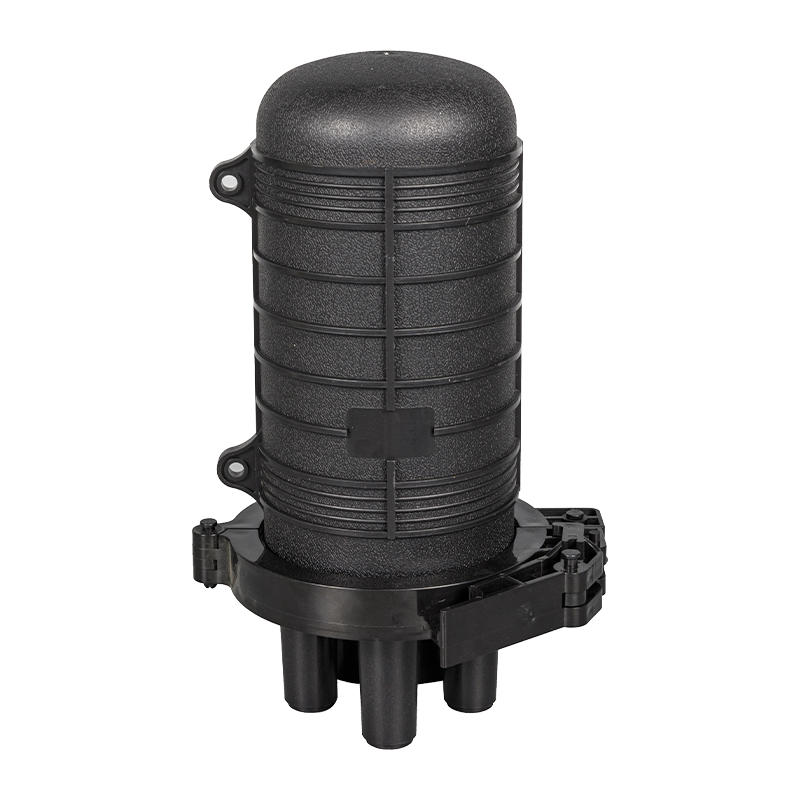

GJS-D0484C
GJS-D0484C Datasheet.pdf
Customization Options
Mounting Kits: Select from aerial, wall, or pole-mount kits to customize installation for specific deployment needs.
Features & Benifits
Superior Environmental Protection: IP68 rating ensures long-term waterproof and dustproof performance in harsh conditions.

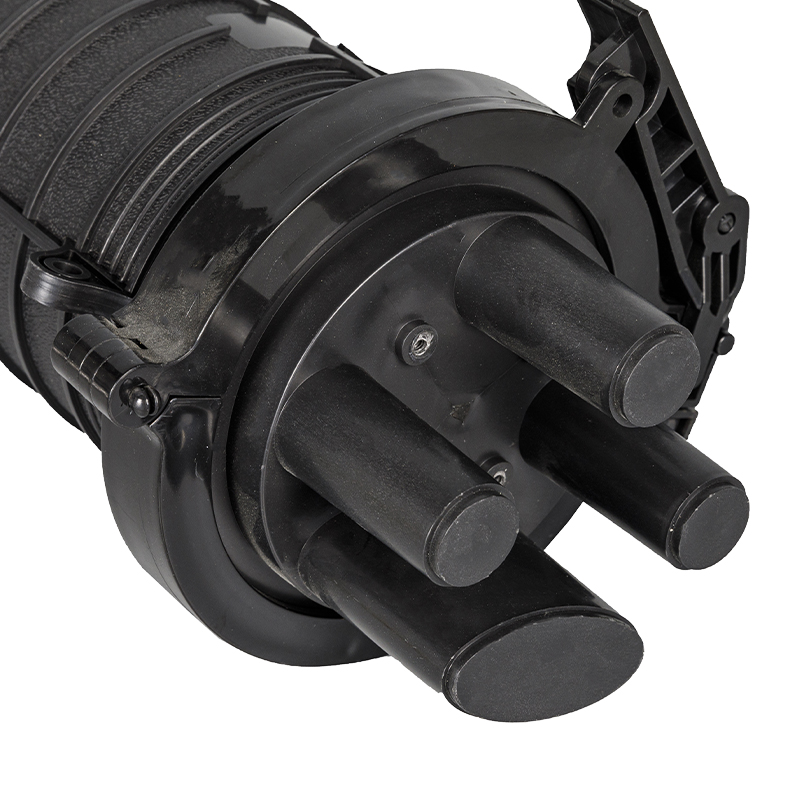

Flexible Cable Integration: 3 circular ports (φ16mm) and 1 oval port (φ25mm/2×φ21mm) adapt to various cable sizes for mid-span or branch connections.
Easy Installation: Includes pole mount kits, butterfly wrench, and heat shrink tools for quick deployment across different scenarios.
Space-Efficient Design: 330×Ø120mm compact size fits tight spaces while supporting 48 fibers (4 trays × 12FO max).
Reliable Sealing System: Dome-type heat shrinkable ports create airtight seals to prevent water ingress and maintain signal stability.
Complete Accessory Set: Comes with splice protection sleeves, branch clips, and aluminum foil for comprehensive fiber management and installation.
Specification
Part No.
Outside Dimensions
330 × Ø120mm (13.0 × 4.72 in)
Material of Enclosure
PP+GF
Base Sealing Method
Dome-to-base clamp with O-ring
Cable Sealing Type
Heat-shrink Sealing
Cable Entry Ports
1 Oval Port (Ø25mm / 2×Ø21mm)
Cable Exit Ports
4 Round Ports (Ø16mm)
Splicing Capacity (Max)
48 Fibers (Single-core)
Number of Splice Trays (Max)
4 Trays
ABS
IP Rating
Mounting
Packing List
