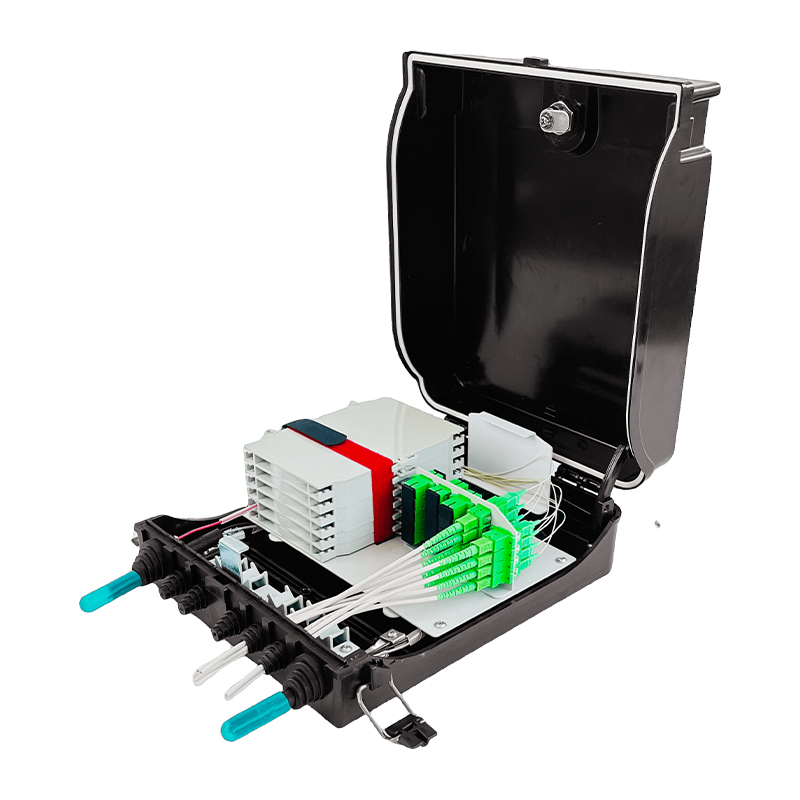

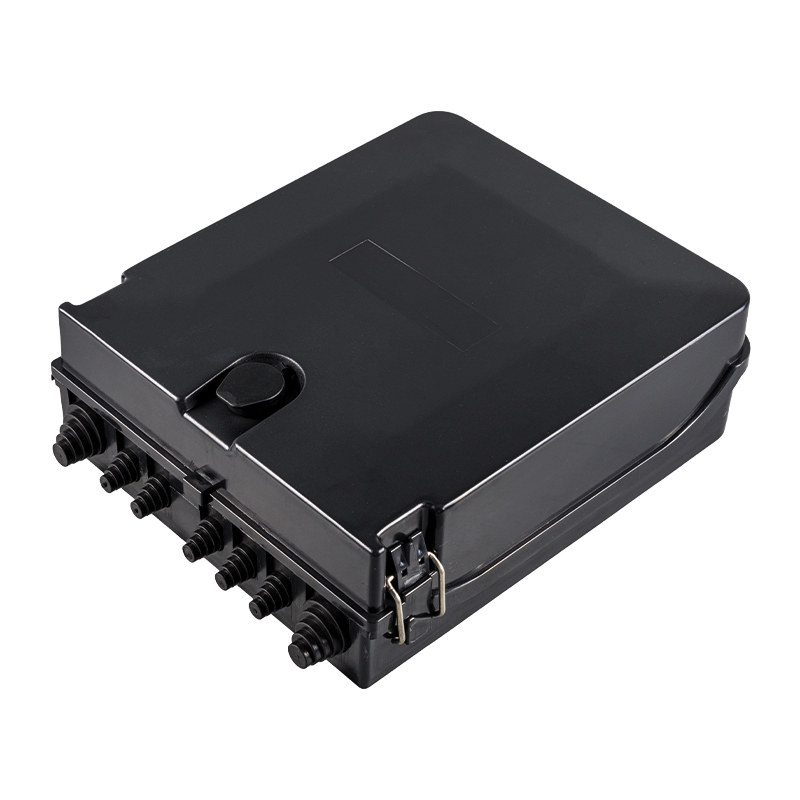

FDB-T224C-24SC

Application
  • FTTx Network Integration: The FDB-T224C-24 v4.0 distribution box supports splicing, patching, and passive component integration for FTTx projects, ensuring efficient fiber management.
  • Indoor/Outdoor Durability: Rated IP55, it provides reliable mechanical protection for both indoor and outdoor applications, suitable for wall-mounted or pole-mounted installations.

Capacities
  • Splicing Capacity: 144F
  • Patching Capacity: 24SC
  • Splitter Capacity: 1x8 or 1x16 Micro PLC Splitter (per Tray)
Availability:
Inquiry Now！ Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Customization Options
Features & Benifits
Specification
Packing List
Documentation


Customization Options

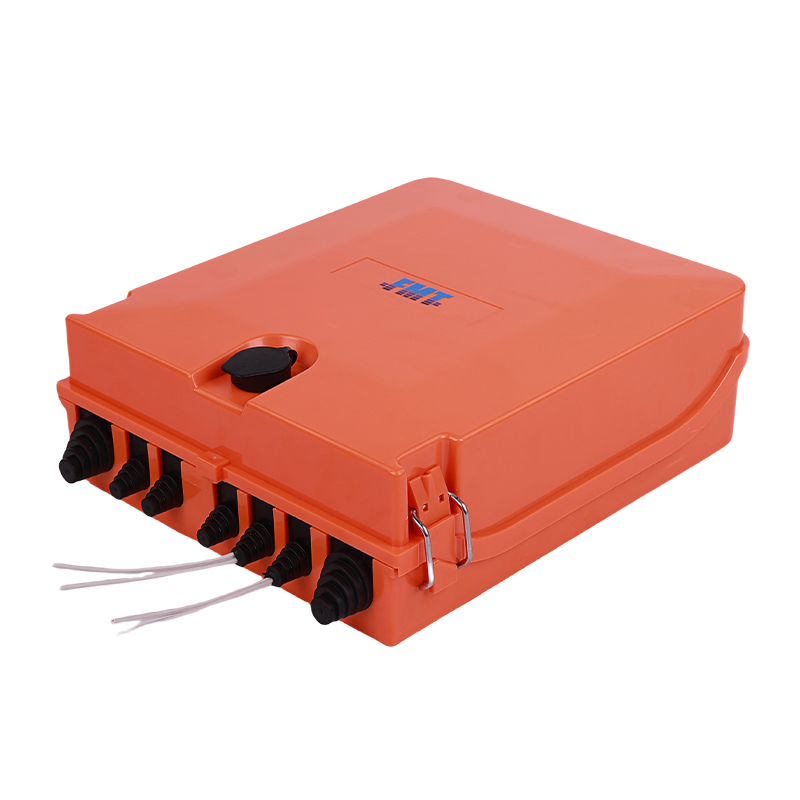

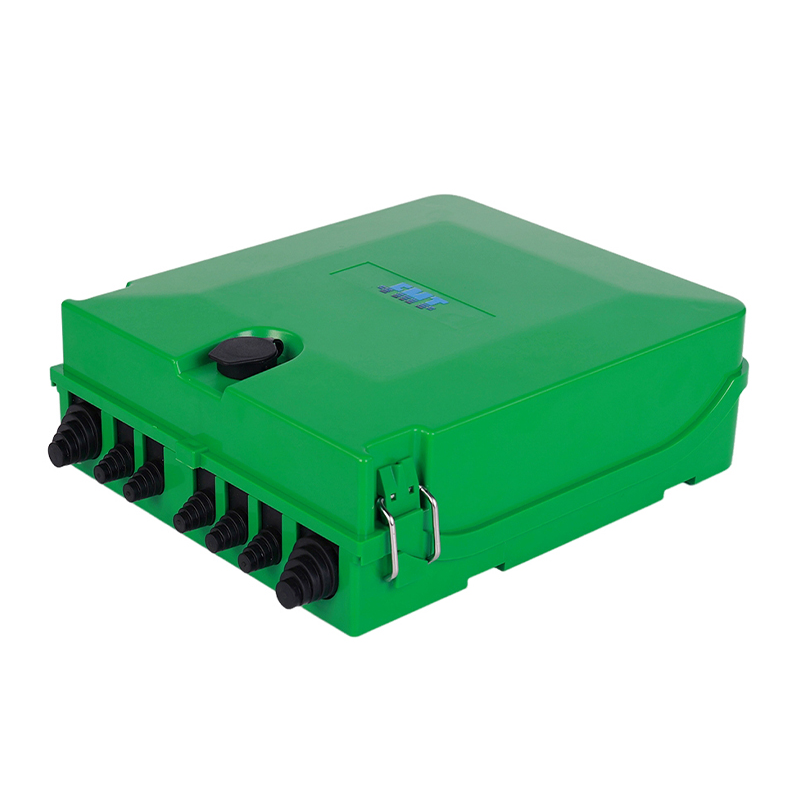

Color: Choose from black (default) or other customizable colors to match aesthetic or branding requirements (contact supplier for options).

Lockable Cover: Select a lockable cover with keys for secure access control or a non-lockable cover for easier access, based on project needs.

Splitter Configuration: Choose 1:8 or 1:17 micro PLC splitters per tray to optimize network distribution for project requirements.

Wall / Pole-Mounting Kit: Include a pole-mounting kit with clamps and support frame for pole-mounted installations, tailored to specific deployment scenarios.



Features & Benifits


Versatile Fiber Management: Supports up to 144 splices, 24 SC adapters, and 1:8 or 1:16 micro PLC splitters across 6 trays, ideal for FTTx network distribution.

Robust IP55 Protection: Features rubber grommets for main (Ø25 mm) and branch (Ø15 mm) cables, with a key lock and dust-proof cover for secure environmental sealing.

Flexible Cover Design: Adjustable cover opens to 90° or 180°, enhancing accessibility for maintenance and installation tasks.

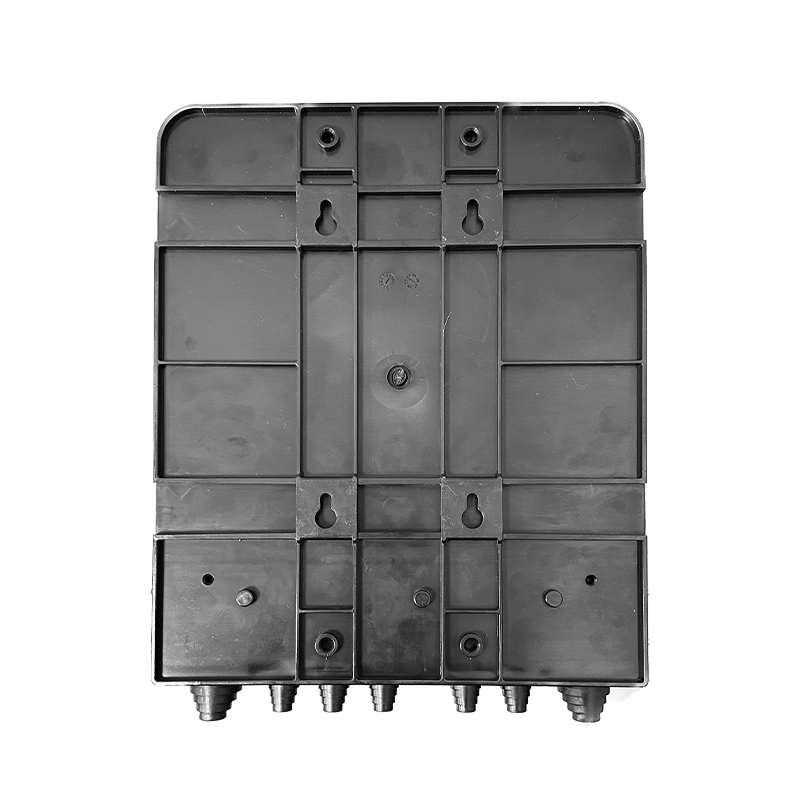

Durable Construction: New base design supports both wall and pole mounting, with an auxiliary locking device ensuring IP55-rated protection.

Enhanced Cable Security: Optional drop cable strength member fixing and book-type splice/splitter trays ensure organized and protected fiber routing.



Specification


Part No.

FDB-T224C-24 v4.0

Dimensions

245 x 296 x 94.5 mm

Entry Ports

2 × Ø25 mm (max)

Output Ports

5 × Ø15 mm (max)

Splice Trays

6 trays, 12/24 splices per tray

Splicing Capacity

Up to 144 splices

Suitable PLC Splitter

Micro PLC splitter 1:8, 1:16

Patching Capacity

24 SC adapters

Cover Open Positions

90° and 180°

Lock Type

Key lock with dust-proof cover

Protection Grade

IP55

Installation Methods

Wall-mounted, pole-mounted



Packing List


Carton Size53*35*41
Carton G.W.15 KG
Carton Capacity6 PCS/CTN
