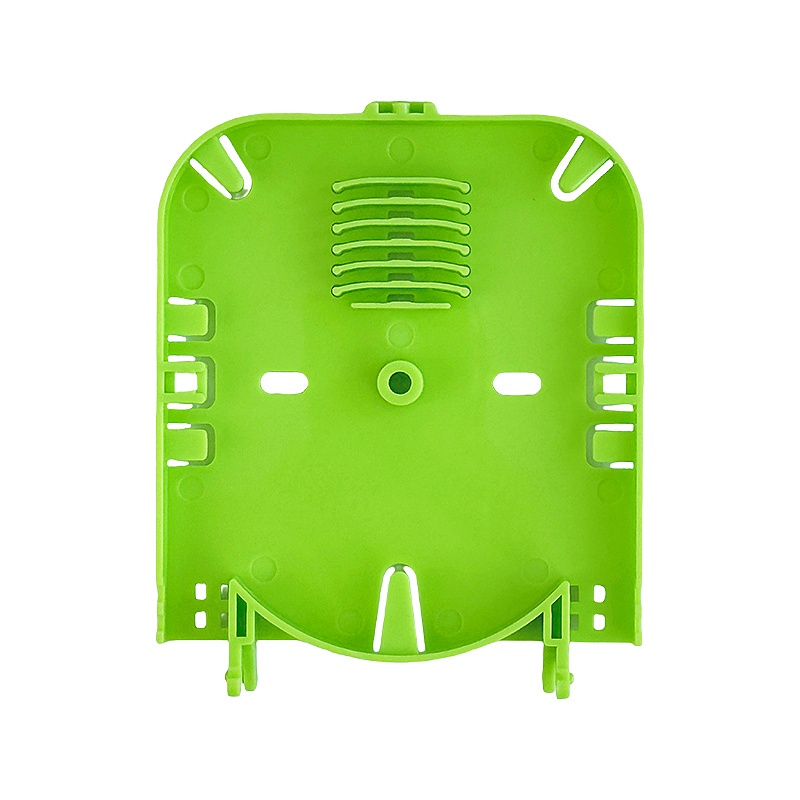

FST-12SP-037 Hybrid Fiber Splice & Splitter Tray, Hinged, 12-Fiber

Application
Availability:
Inquiry Now！ Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Features & Benefits
Specification
Ordering Notes
Documentation
FAQ


Features & Benefits


The FST-12SP-037 is a compact, multi-functional management tray designed to integrate high-density fiber splicing and Micro PLC Splitter housing within a minimal footprint. It provides an efficient "Splice + Split" solution for FTTH and PON network deployments where space-saving and accessibility are prioritized.


  • Integrated Hybrid Management Features 6 specialized splice slots for up to 12 FO single fusion and a dedicated slot for housing a 1x4 or 1x8 Micro PLC splitter.

  • Space-Saving Design Engineered with compact outside dimensions (113x93x10.5 mm) for integration into small distribution boxes and terminals.

  • Hinged Access & Scalability The hinged stacking design allows for independent "book-like" flipping, ensuring easy access to any individual splice or splitter without disturbing adjacent fibers.

  • Transparent Fiber Protection Each tray includes a dedicated transparent cover to allow for easy visual inspection while providing physical protection for delicate splices.

  • Bend Radius Integrity Designed to maintain a fiber bend radius of ≥30mm, ensuring optimal signal performance and long-term reliability.

  • Durable Construction Manufactured from high-quality plastic materials to ensure structural stability in various deployment environments.



Specification


Par No.

FST-12SP-037

Access Type

Hinged

Splice Capacity

6 / 12 Fibers

Splicing Method

Single Fusion

Dimensions (H x W x H)

113 × 93 × 10.5 mm

Fiber Bend Radius

≥ 30mm



Ordering Notes


Pre-installed Configuration

Typically, the FST-24S-042 splice trays are not sold as standalone units but are pre-installed as standard accessories within our Fiber Optic Splice Closures or Distribution Boxes.


Standalone Orders

We welcome individual purchases for maintenance or capacity expansion. If you require trays separately, please contact our sales team to:

  • Specify your required quantity.

  • Discuss preferred packaging methods (e.g., bulk industrial packing or individual kits).


Standard Kit (per unit if ordered separately)

1 Splice Tray per Stack

  • 1 x FST-24S-042 Splice Tray.

  • 1 x Plastic Cover.

  • Optional: 24 x Fiber Heat Shrink Sleeves (available upon request).

2 Splice Tray per Stack

  • 2 x FST-24S-042 Splice Tray.

  • 1 x Plastic and 1 x Transparent Cover (based on stacking position).

  • Optional: 48 x Fiber Heat Shrink Sleeves (available upon request).

4 Splice Tray per Stack

  • 4 x FST-24S-042 Splice Tray.

  • 1 x Plastic and 3 x Transparent Cover (based on stacking position).

  • Optional: 96 x Fiber Heat Shrink Sleeves (available upon request).

6 Splice Tray per Stack

  • 6 x FST-24S-042 Splice Tray.

  • 1 x Plastic and 5 x Transparent Cover (based on stacking position).

  • Optional: 144 x Fiber Heat Shrink Sleeves (available upon request).

......



FAQ


Q: What is the maximum splice capacity of the FST-12SP-037?

The tray supports a maximum capacity of 12 fibers using single fusion splicing across 6 dedicated slots.

Q: What types of PLC splitters can be housed in this tray?

The FST-12SP-037 is specifically designed to accommodate one 1x4 or 1x8 Micro PLC Splitter.

Q: Does each tray come with a cover?

Yes, each individual tray is equipped with a transparent plastic cover to protect the fibers and splices.

Q: What are the physical dimensions of the tray?

The outside dimensions are 113 x 93 x 10.5 mm, while the inner dimensions are 102 x 90 x 8.5 mm.

Q: Can these trays be stacked?

Yes, the hinged design is specifically intended for stacking, allowing users to flip through multiple trays like a book for easy maintenance.
